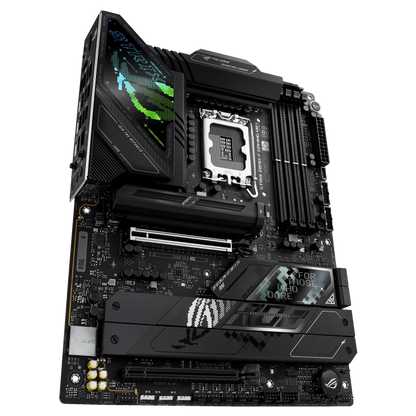

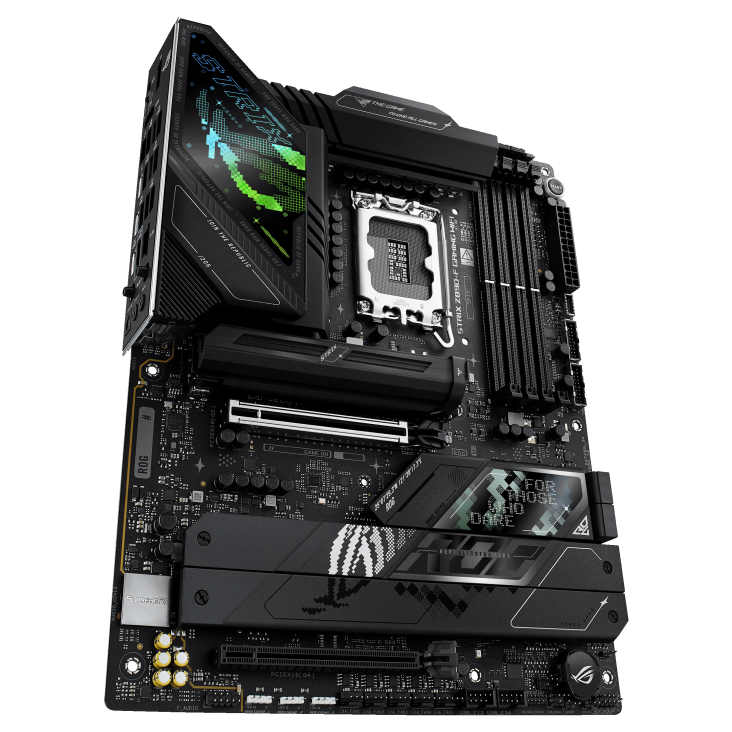

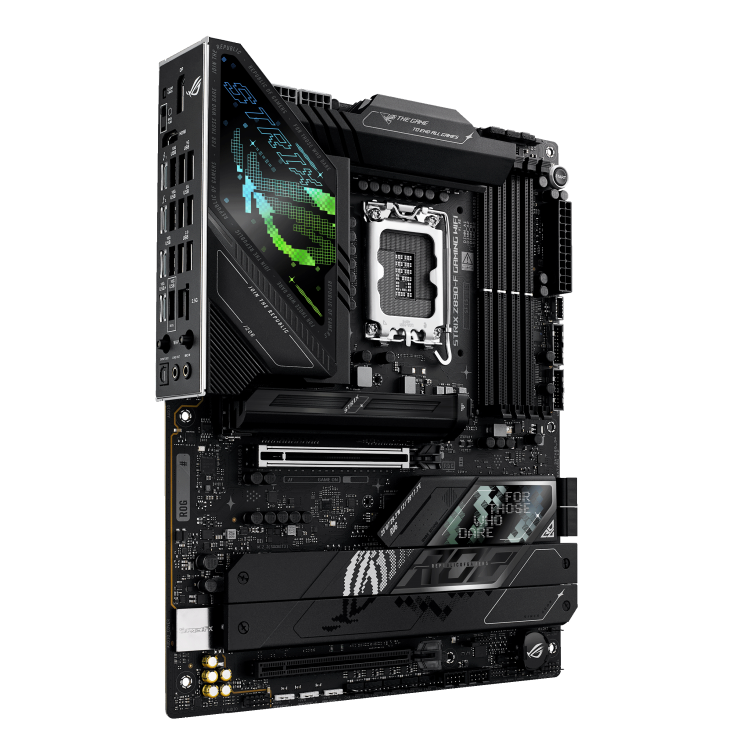

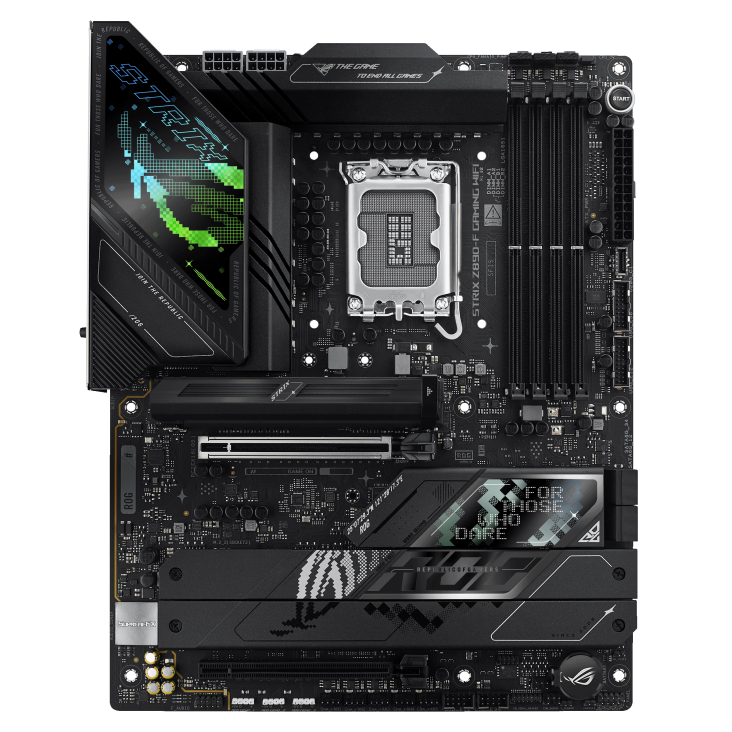

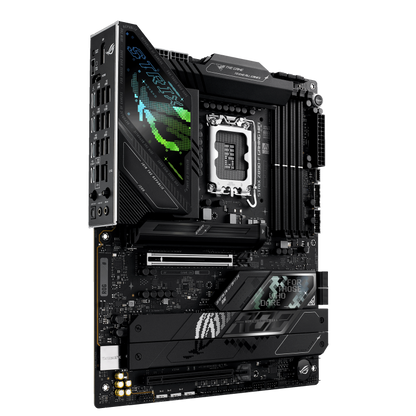

ASUS ROG STRIX Z890-F GAMING WIFI INTEL Z890 CHIPSET MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

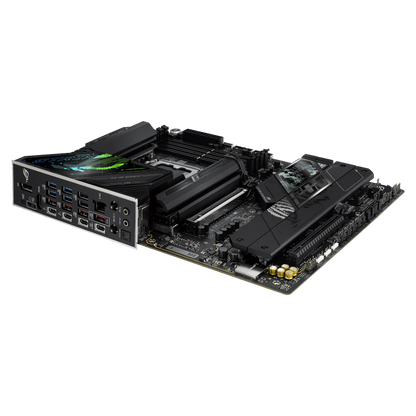

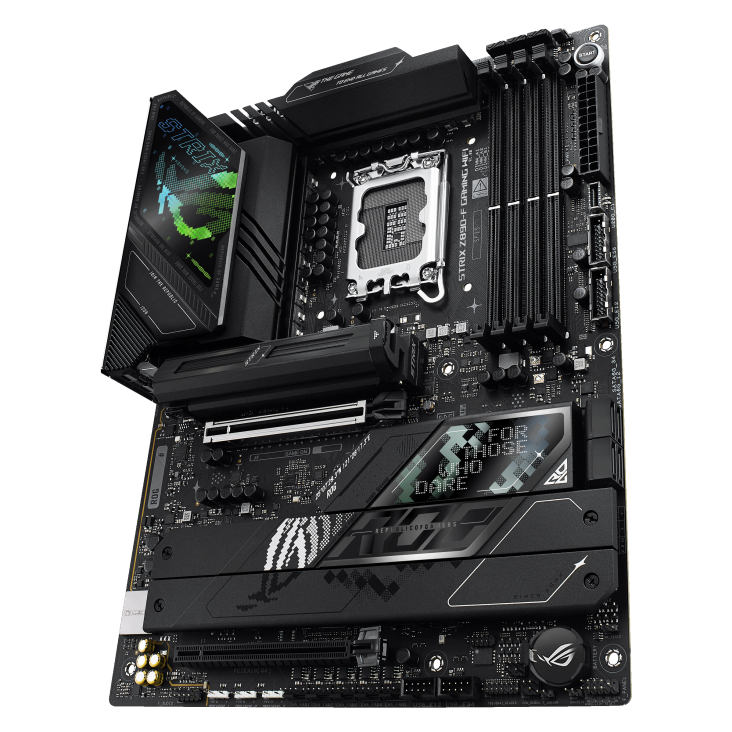

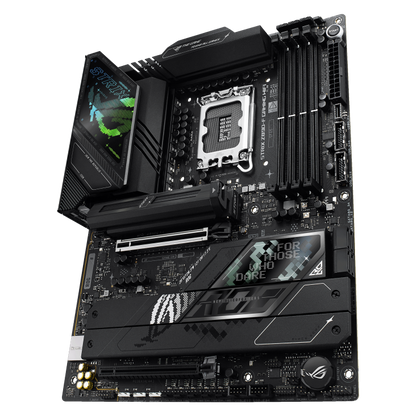

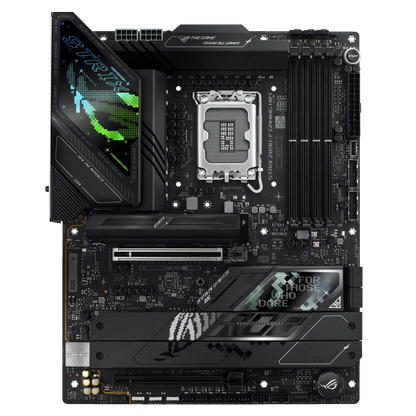

Step into the next generation of computing with the ASUS ROG STRIX Z890-F GAMING WIFI INTEL Z890 CHIPSET MOTHERBOARD. Engineered for advanced AI PCs and the latest Intel Core Ultra processors (Series 2), this motherboard delivers robust power, optimized thermal design, and exclusive AI and memory technologies for an unparalleled gaming and productivity experience. It integrates essential features for seamless performance and ease of use.
Key Features at a Glance
- Ready for Advanced AI PCs with robust power and connectivity.
- Features Intel LGA 1851 Socket for Intel Core Ultra processors (Series 2).
- Includes exclusive AI Technologies such as NPU Boost and AI Overclocking.
- Equipped with DIMM Fit, DIMM Flex, and AEMP III memory technologies.
- Robust power solution with multiple power stages and premium components.
- Optimized thermal design featuring massive heatsinks and an L-shaped heatpipe.
- Supports one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling.
ASUS AI Advisor for Enhanced Support
Utilize the ASUS AI Advisor, a built-in technical expert that provides answers to your questions using natural language. It offers easy-to-understand explanations for one-click optimizations such as AI Overclocking and AI Cooling II, and guides users through the latest features for both DIY beginners and seasoned PC builders.
AI Cooling II for Optimal Performance
Balance system thermals and acoustics with a single click using AI Cooling II. A proprietary ASUS algorithm reduces unnecessary noise during stress tests and dynamically adjusts fan speeds based on CPU temperatures for optimal efficiency.
Advanced Network Monitoring with Armoury Crate
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage, allowing you to move to a less congested channel for improved network performance. Additionally, Fast Check rapidly detects WiFi signal strength, and Direction Finder helps identify the optimal antenna orientation for the best signal.
GameFirst for Prioritized Gaming
Integrated into Armoury Crate, GameFirst optimizes networking performance by intelligently allocating bandwidth in real-time. It uses algorithms for various application scenarios and includes dedicated support for NVIDIA GeForce NOW, ensuring the lowest latency during intense cloud gaming sessions.
Effortless Component Installation
Benefit from user-friendly installation features like PCIe Slot Q-Release Slim, which allows for easy graphics card removal without fiddling with latches. The M.2 Q-Release and new M.2 Q-Latch simplify SSD installation and removal, eliminating the need for tiny screws and ensuring reliable heat dissipation.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9066+ |
| Max Memory Support | 192 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics Port | 1 x DisplayPort,1 x HDMI,2 x Intel Thunderbolt 4 |
| Expansion Slots | Intel Core Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

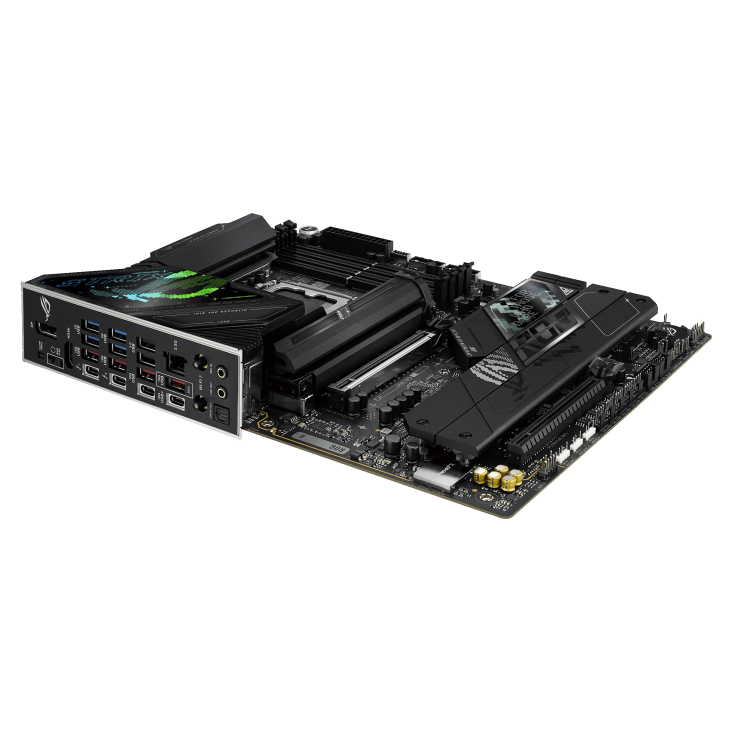

| Back Panel I/O Ports | 2 x Thunderbolt 4 (2 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors does the ASUS ROG STRIX Z890-F GAMING WIFI support?
A: This motherboard is ready for Intel Core Ultra processors (Series 2) and features the Intel LGA 1851 Socket.
Q: How does the motherboard manage thermals?
A: It features an optimized thermal design with massive heatsinks, an integrated I/O cover, high-conductivity thermal pads, and an L-shaped heatpipe. It also includes AI Cooling II for dynamic fan speed adjustment.
Q: What M.2 storage options are available?
A: The motherboard supports one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all equipped with substantial cooling solutions for optimal performance.
