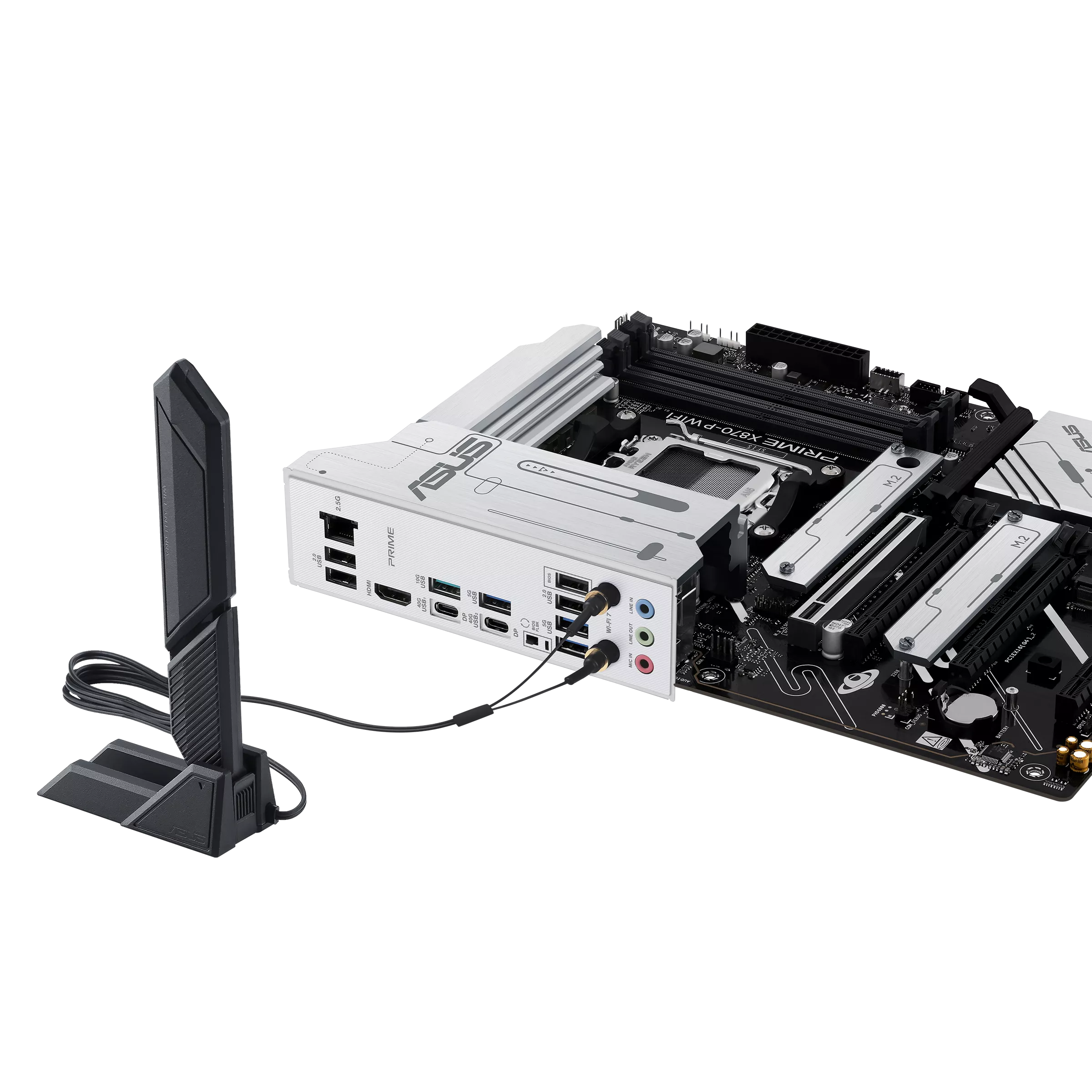

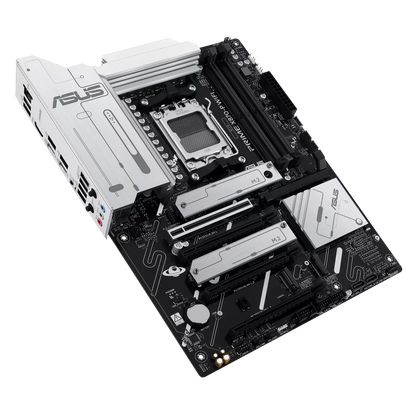

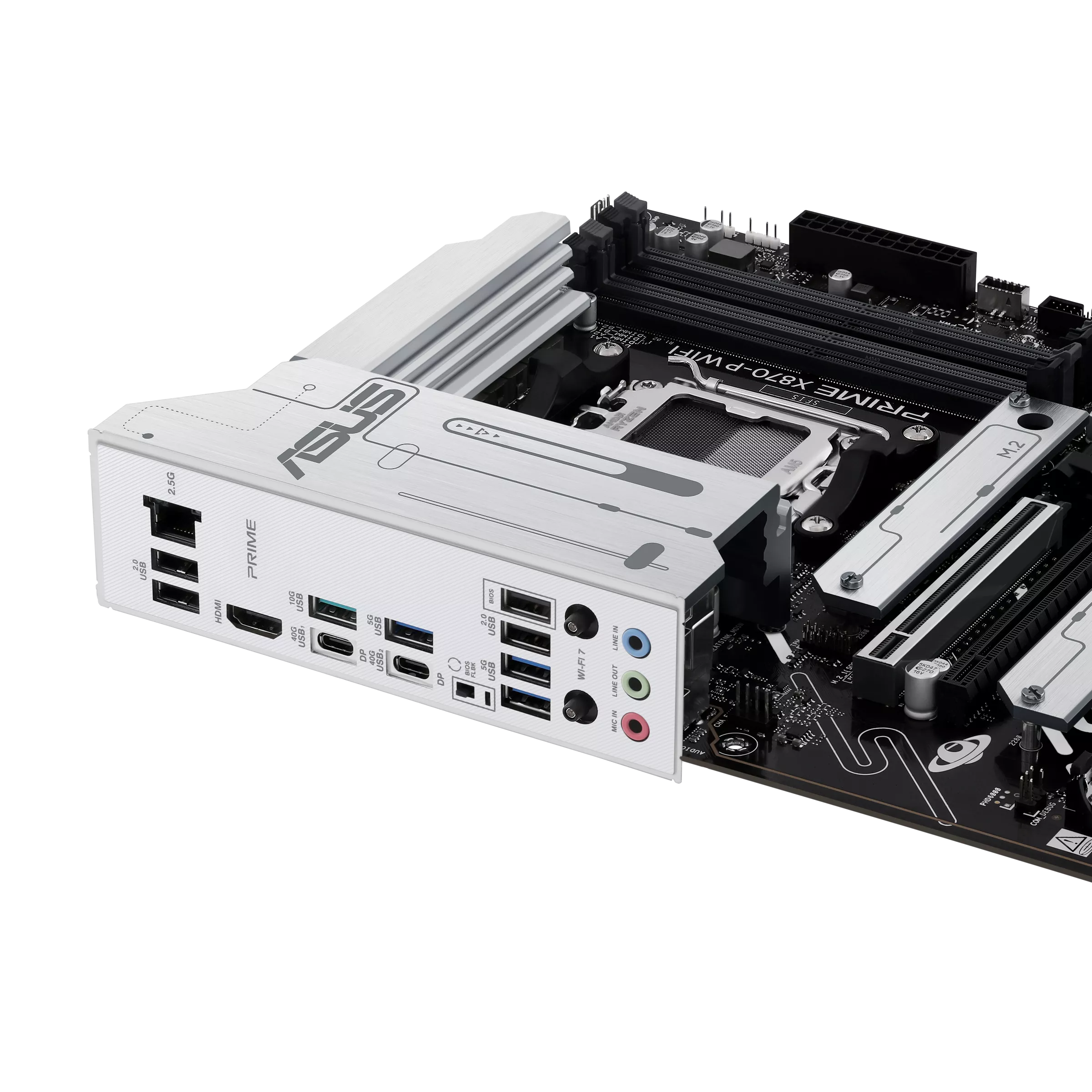

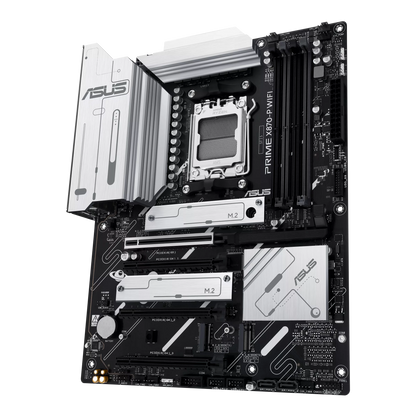

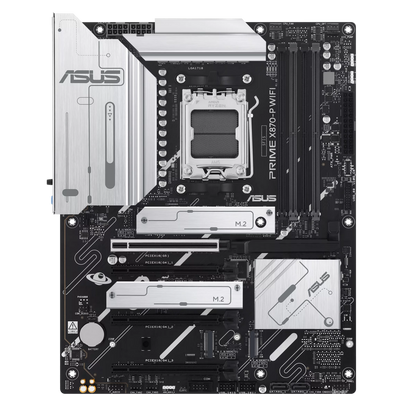

ASUS PRIME X870-P WIFI-CSM MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

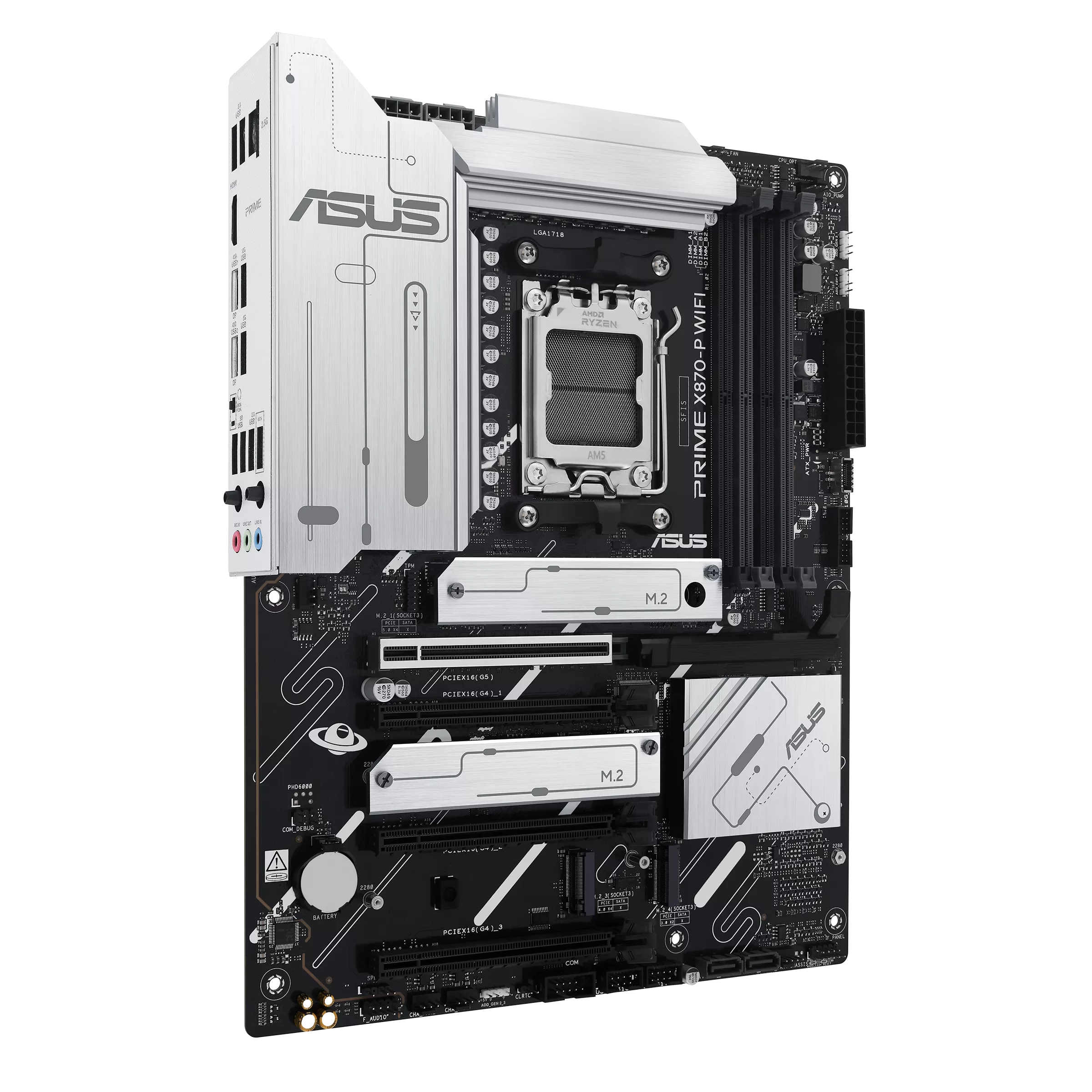

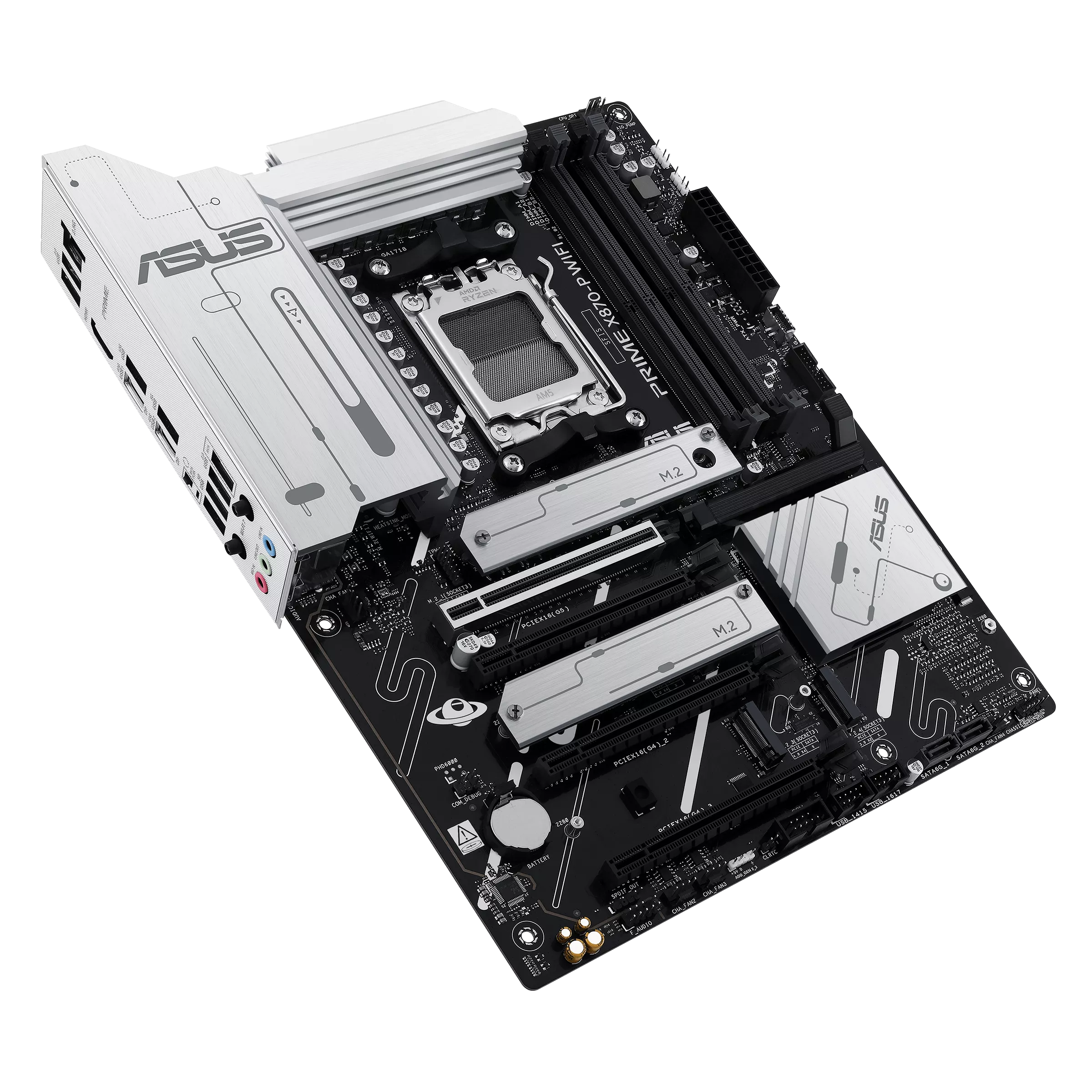

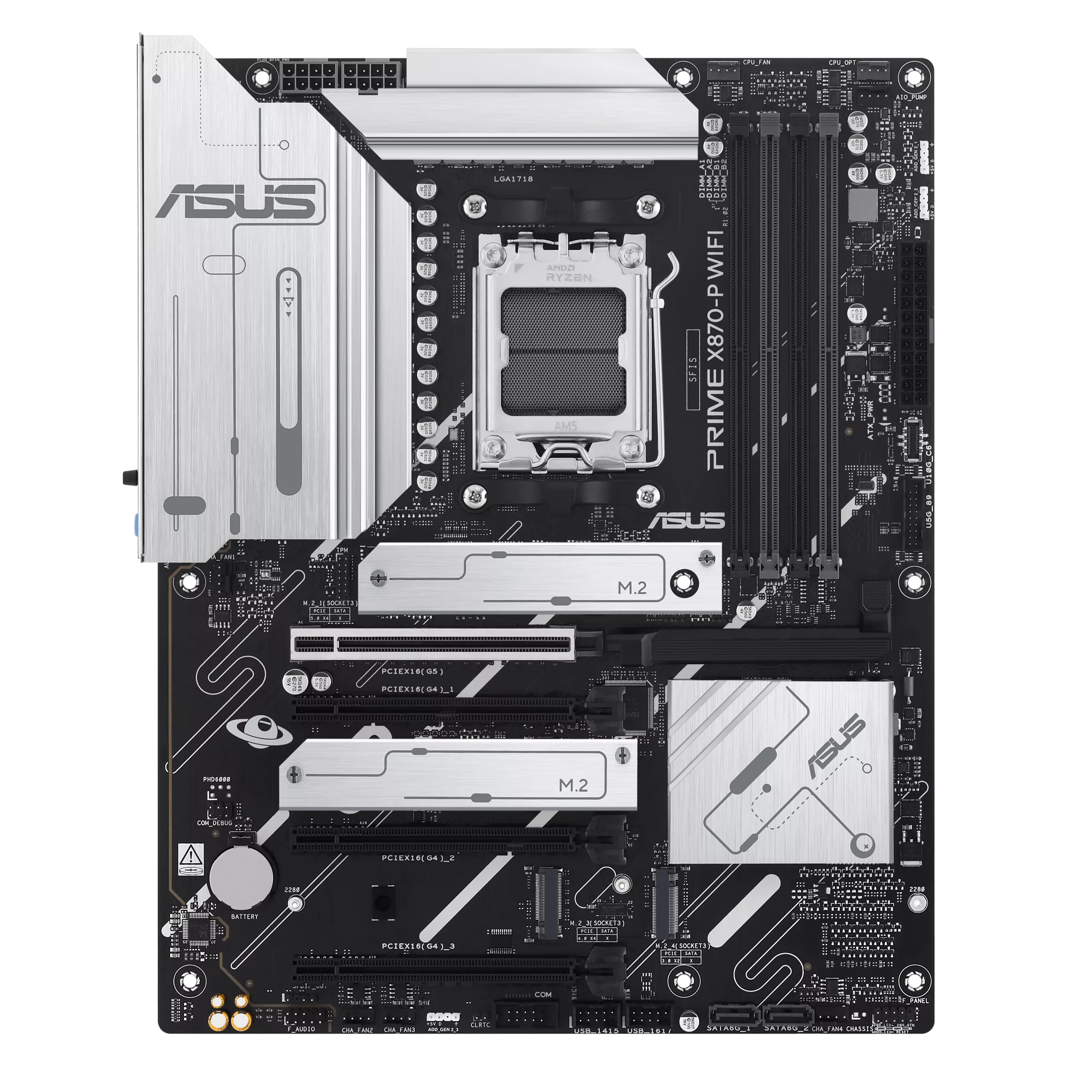

The ASUS PRIME X870-P WIFI-CSM Motherboard is expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. This motherboard provides users and PC DIY builders with robust power, comprehensive cooling, and intelligent tuning, making it ready for advanced AI PC applications.
Key Features at a Glance
- Engineered for AMD Ryzen™ 9000 series processors.
- Features a robust power design.
- Includes comprehensive cooling solutions.
- Offers intelligent tuning options.
- Designed to be Advanced AI PC-ready.
- Provides power and connectivity for demanding AI applications.
Optimized for AMD Ryzen™ 9000 Series
The ASUS PRIME X870-P WIFI-CSM Motherboard is expertly engineered to fully support and unleash the performance of AMD Ryzen™ 9000 series processors, ensuring powerful computing experiences.
Robust Power and Cooling
Benefit from a robust power design and comprehensive cooling solutions that maintain stable performance and system reliability, even under demanding workloads.
Advanced AI PC-Ready
This motherboard is designed with future-proof capabilities, offering the necessary power and connectivity to support demanding Advanced AI PC applications.
Intuitive Performance Tuning
Access intelligent tuning options through intuitive software and firmware features, allowing both users and PC DIY builders to optimize system performance with ease.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870 |
| Memory Speed | up to 8000+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand Website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics Port | 1 x HDMI,2 x USB4 |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support Brand Website Site ** Specifications vary by CPU types. *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to Brand Website for the list of supported peripherals. |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

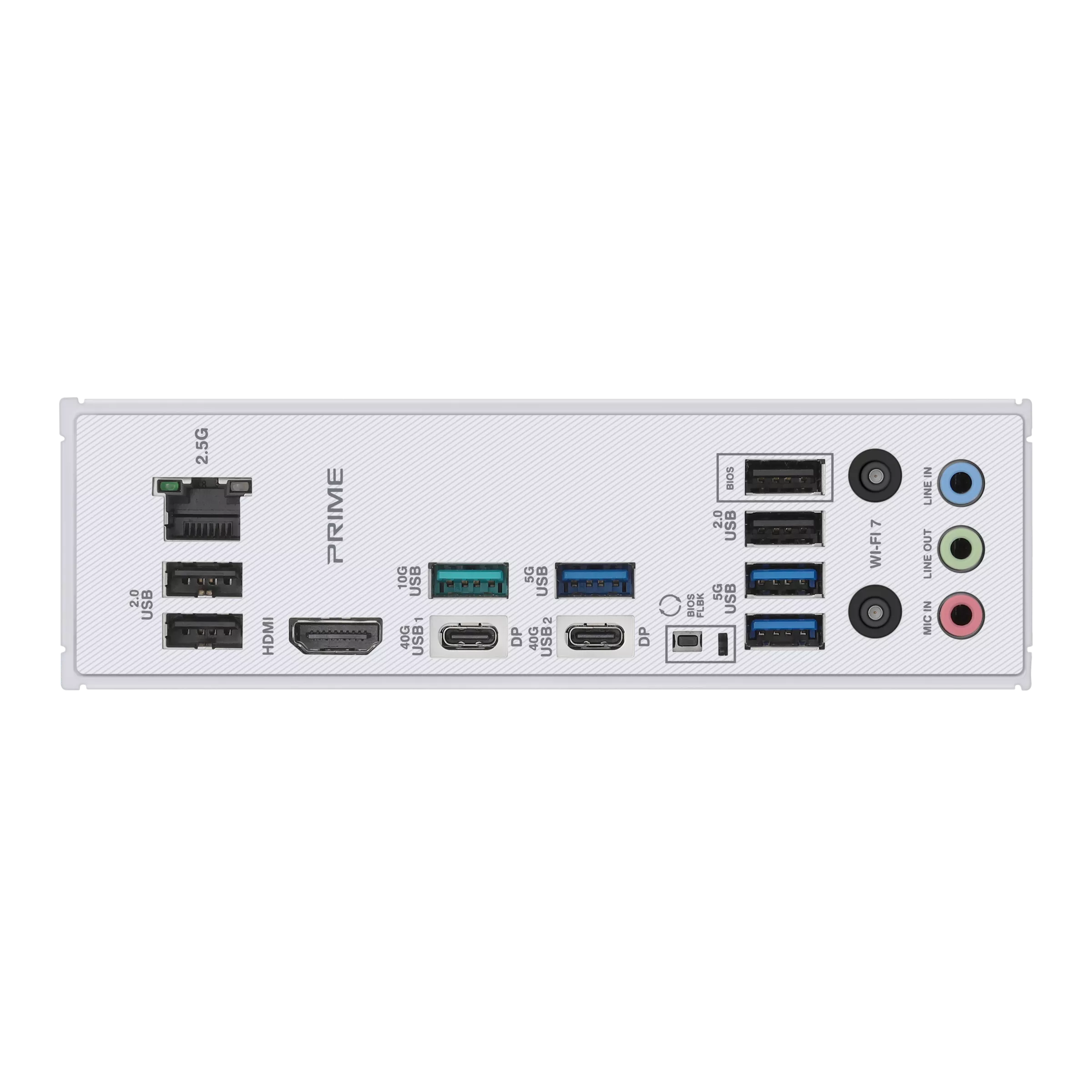

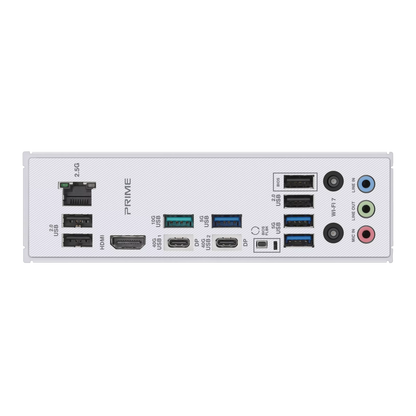

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS Flash Back button |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors does the ASUS PRIME X870-P WIFI-CSM Motherboard support?
A: It is engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.
Q: What key features does this motherboard offer for performance?
A: It boasts a robust power design, comprehensive cooling solutions, and intelligent tuning options.
Q: Is the ASUS PRIME X870-P WIFI-CSM Motherboard suitable for AI applications?
A: Yes, it is designed to be Advanced AI PC-ready, providing power and connectivity for demanding AI applications.
