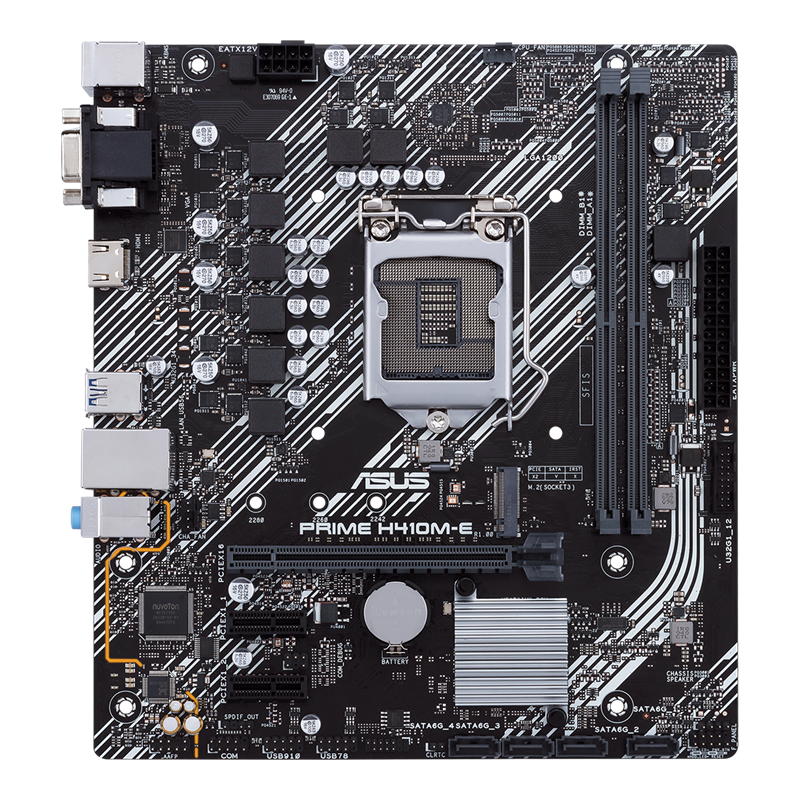

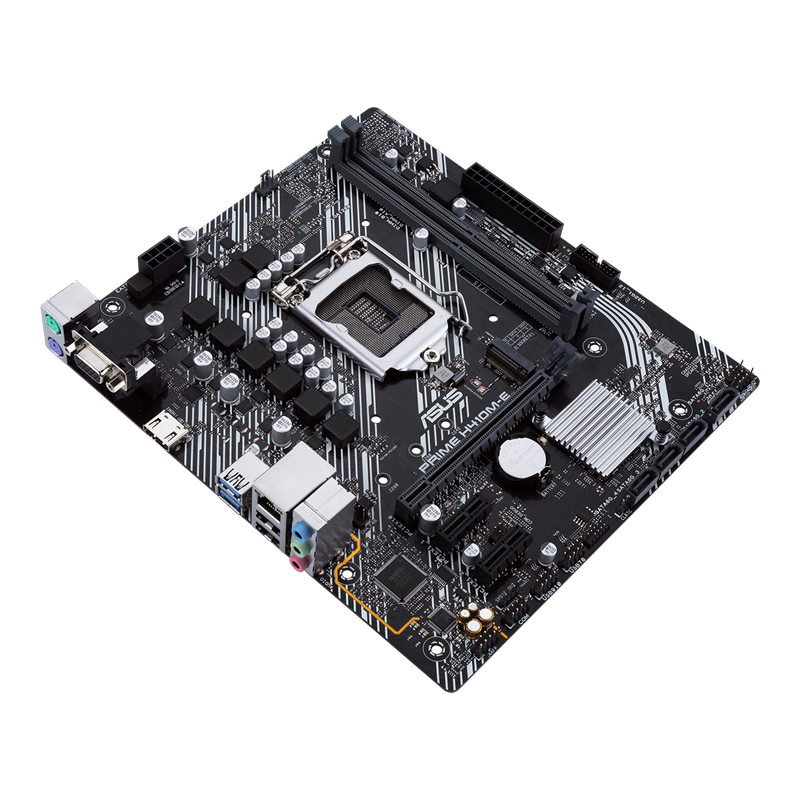

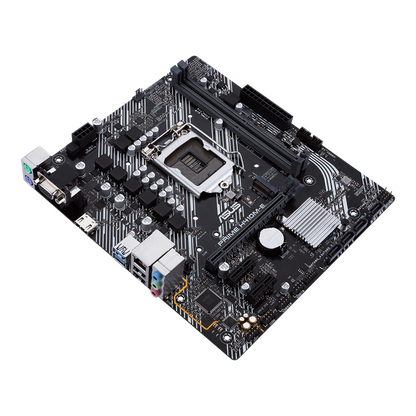

ASUS PRIME H410M-E LGA1200 MOTHERBOARD
Sale priceRs. 5,684.00Regular price
Rs. 6,800.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Specification | Details |
|---|---|
| Model | PRIME H410M-E |
| CPU | * Refer to www.asus.com for CPU support list.,Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU |
| Chipset | Intel H410 |
| Memory | * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP) |
| Graphic | 1 x HDMI port,Integrated Graphics Processor *,*Graphics specifications may vary between CPU types. |
| Expansion Slots | Intel H410 Chipset , Intel 10th Gen Processors ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode) |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports , Intel H410 Chipset : ,1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)* 1 ,4 x SATA 6Gb/s port(s) |
| LAN | Realtek RTL8111H |
| Audio | - Premium audio capacitors,Realtek ALC887/8977.1-Channel High Definition Audio CODEC * 2 ,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : |
| USB Ports | Rear USB Port ( Total 4 ), Front USB Port ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |

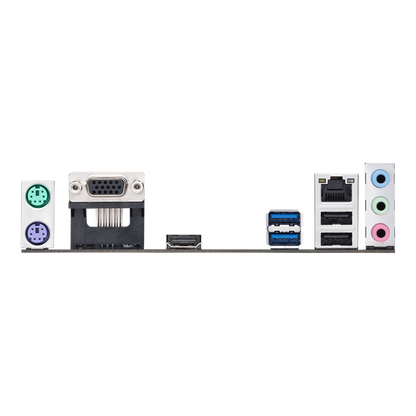

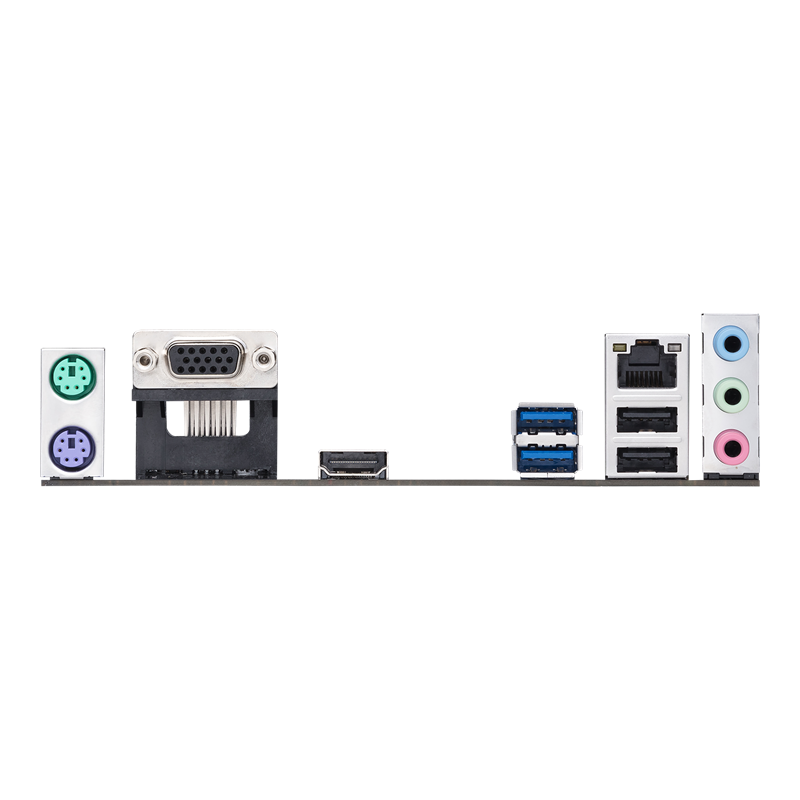

| Back I/O Ports | 2 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode),1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x Speaker connector |

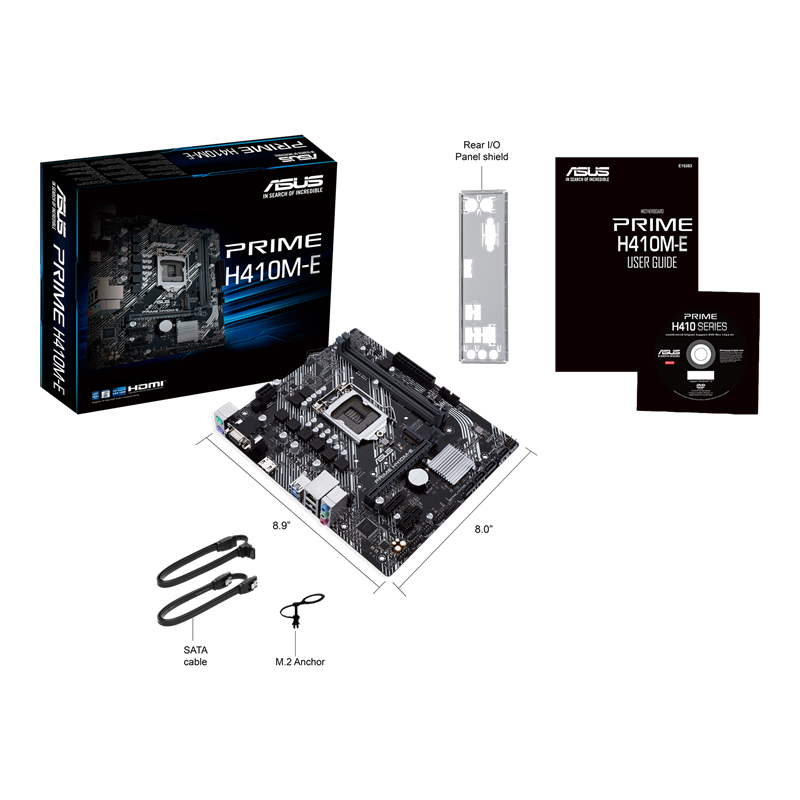

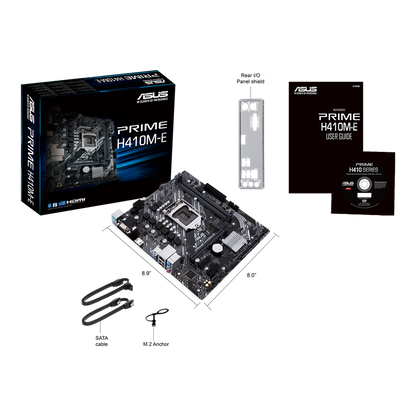

| Accessories | 2 x SATA 6Gb/s cable(s),User manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Anchor,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ),mATX Form Factor |
| Note | *1 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used. *2 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
