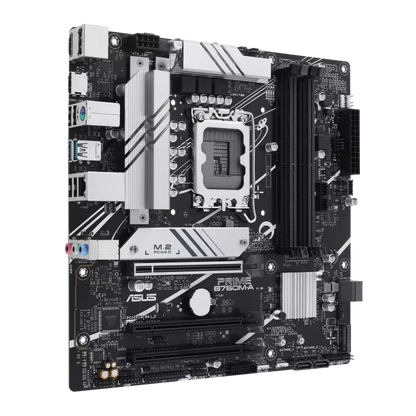

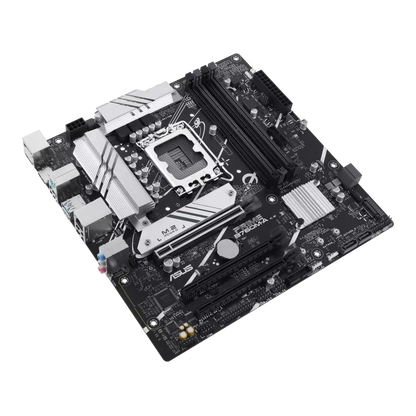

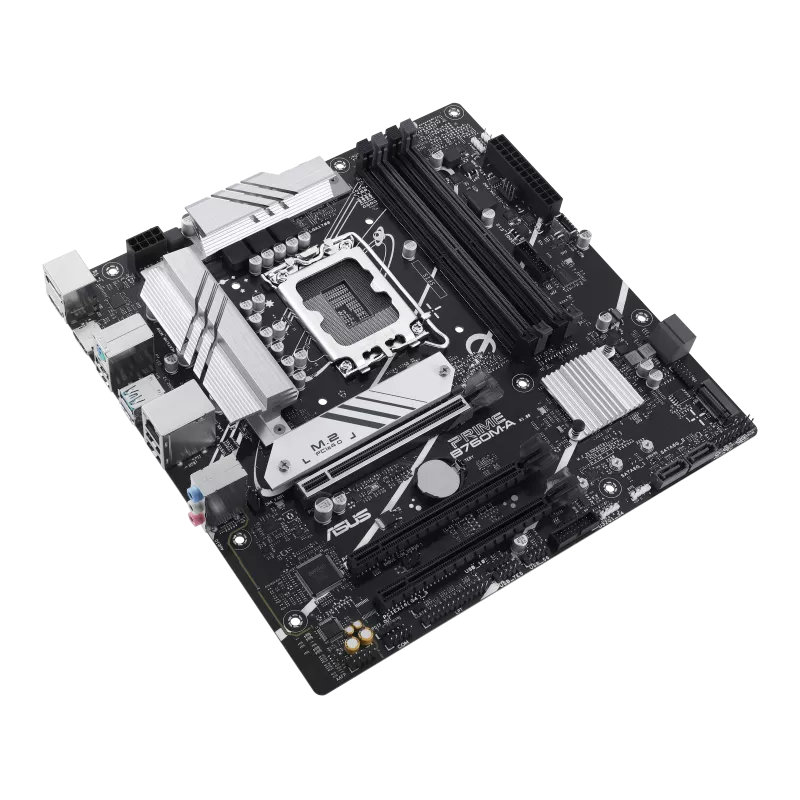

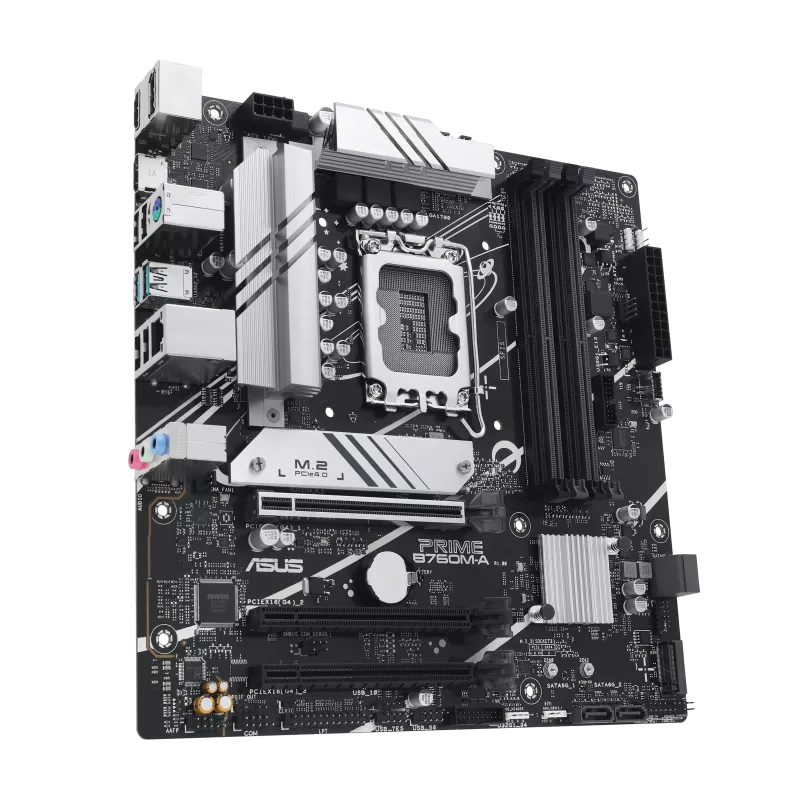

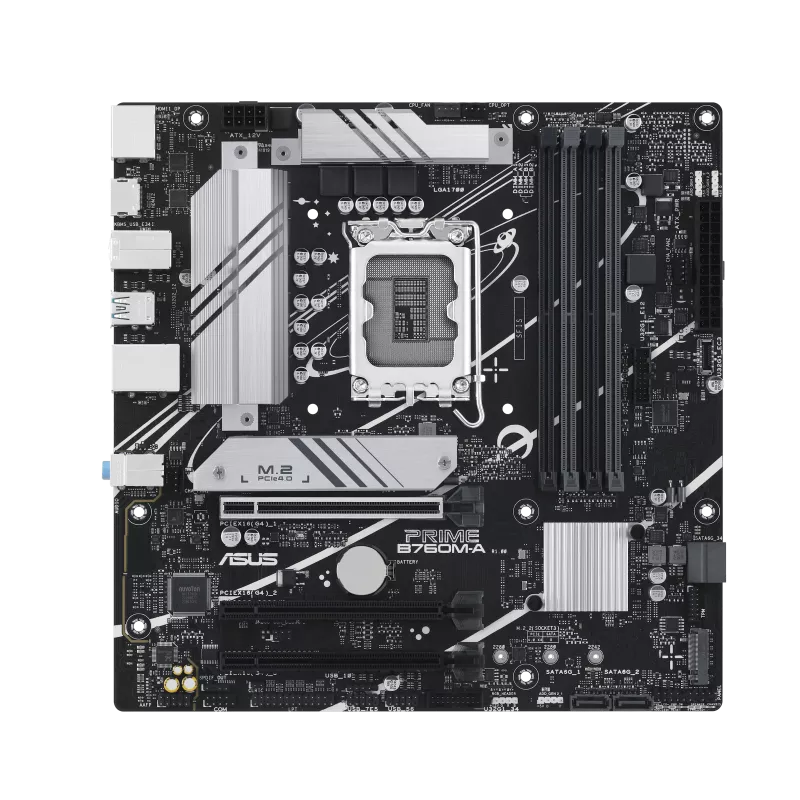

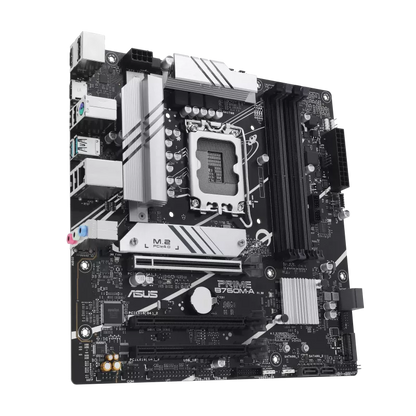

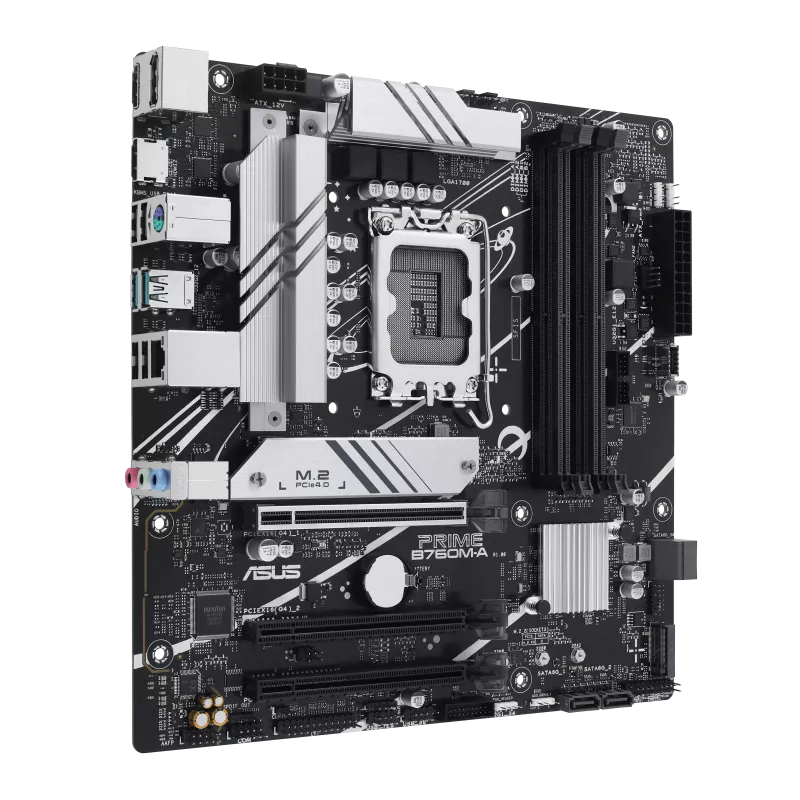

Elevate your PC build with the ASUS PRIME B760M-A MOTHERBOARD, designed to support 13th and 12th Gen Intel processors. This motherboard combines ultrafast connectivity with comprehensive cooling and intelligent control features, ensuring a robust and efficient foundation for your system.
Key Features at a Glance
- Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II support
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 and Aura RGB headers for customizable LED strips
Intelligent System Optimization
The ASUS Intelligent Control system simplifies complex tuning and dynamically optimizes essential aspects of your PC. It offers user-friendly options for new PC builders while providing comprehensive features for experienced enthusiasts, making system management smarter and more efficient.
Advanced Cooling Management
Gain comprehensive control over your system's cooling with ASUS Fan Xpert 2+ software, managing both fans and all-in-one (AiO) coolers. An Auto-Tuning mode intelligently configures all parameters with a single click, and an Extreme Quiet mode ensures whisper-quiet operation during light tasks. Cooling settings can also be adjusted directly through the UEFI BIOS.
Precise Digital Power Delivery
Experience ultimate stability and performance with the Digi+ voltage-regulator module (VRM). This technology provides real-time control over voltage droop, automatically adjusting frequency and power-efficiency settings. It also allows precise fine-tuning of your CPU for optimal operation.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 13th Gen,12th Gen, Pentium, Celeron |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Memory Feature | Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphics Port | 1 x DisplayPort,2 x HDMI |
| Expansion Slots | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |

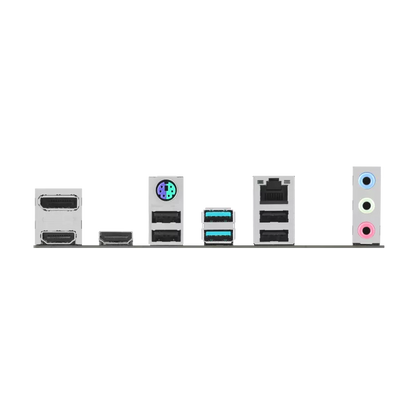

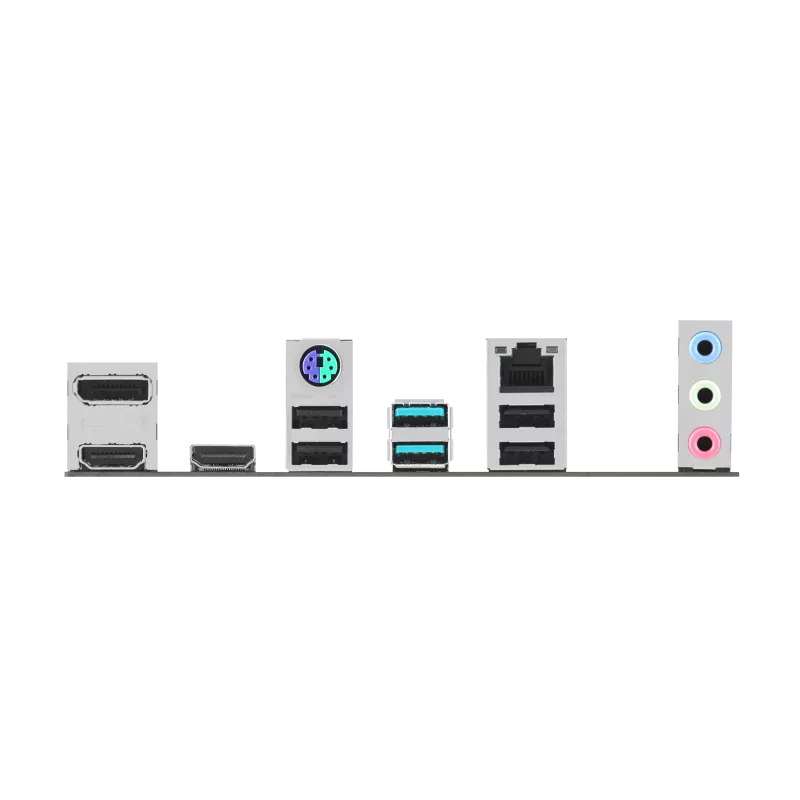

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which Intel processors does this motherboard support?
A: The ASUS PRIME B760M-A MOTHERBOARD is ready for both 13th and 12th Gen Intel processors, thanks to its Intel LGA 1700 Socket.
Q: What connectivity options are available on this motherboard?
A: It features ultrafast connectivity including PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, and a front USB 3.2 Gen 1 Type-C port.
Q: How does the motherboard manage cooling?
A: Cooling is managed comprehensively with VRM, M.2, and PCH heatsinks, hybrid fan headers, and the Fan Xpert 2+ software for air and liquid cooling control.
