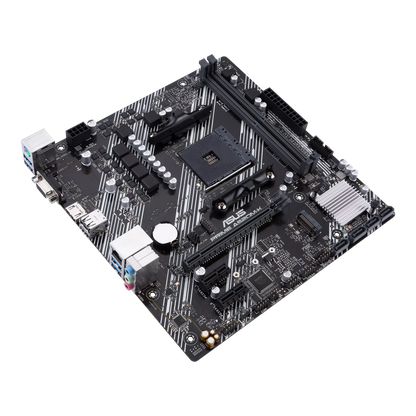

ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD
ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

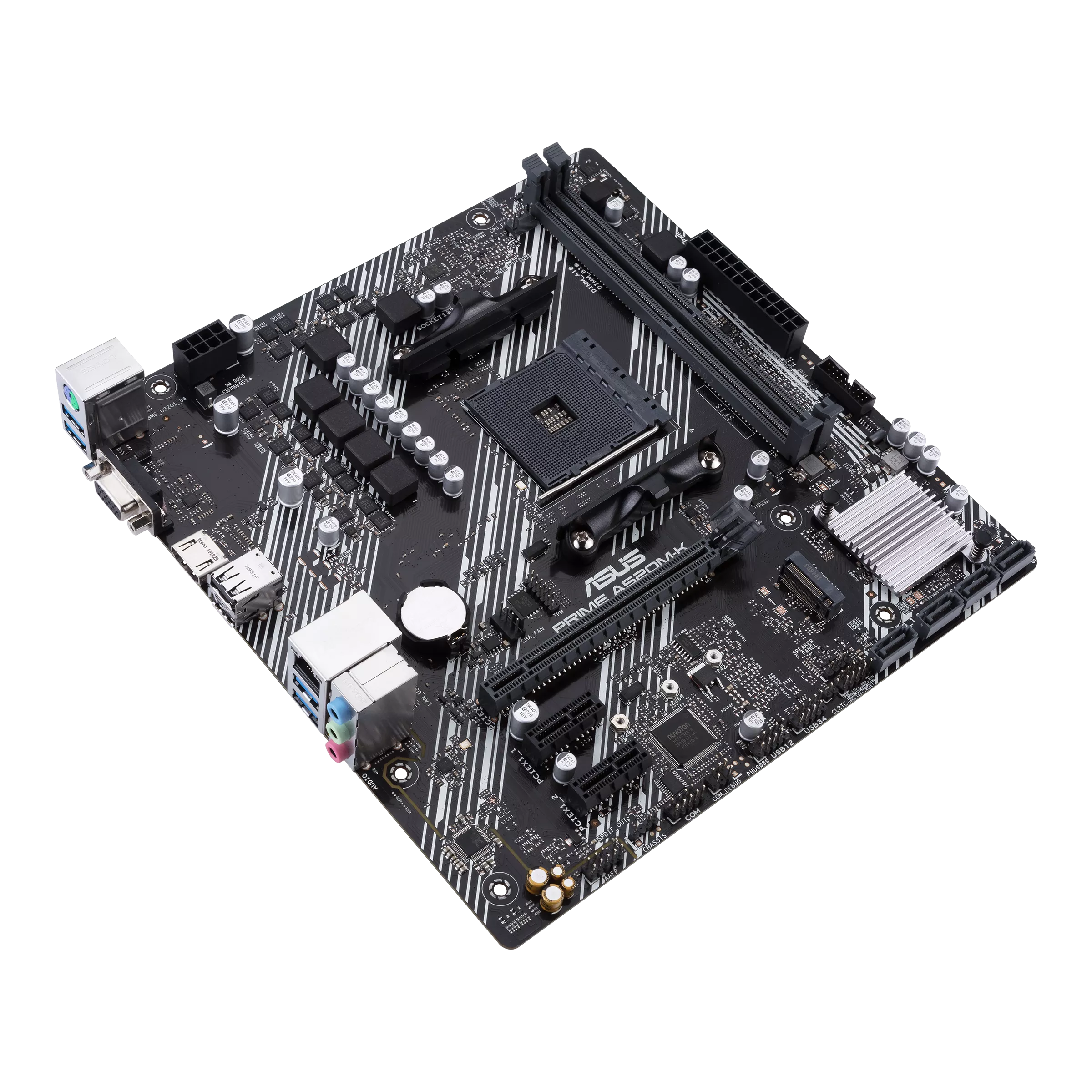

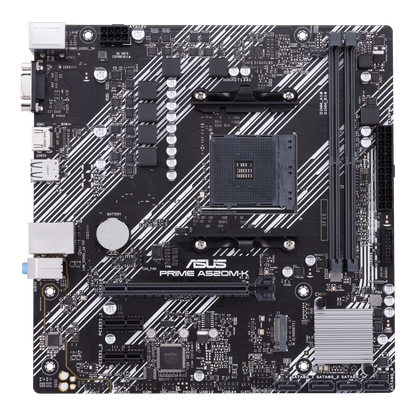

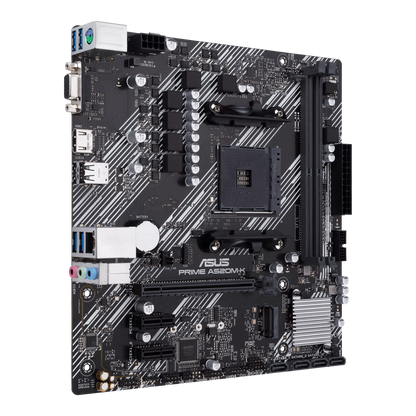

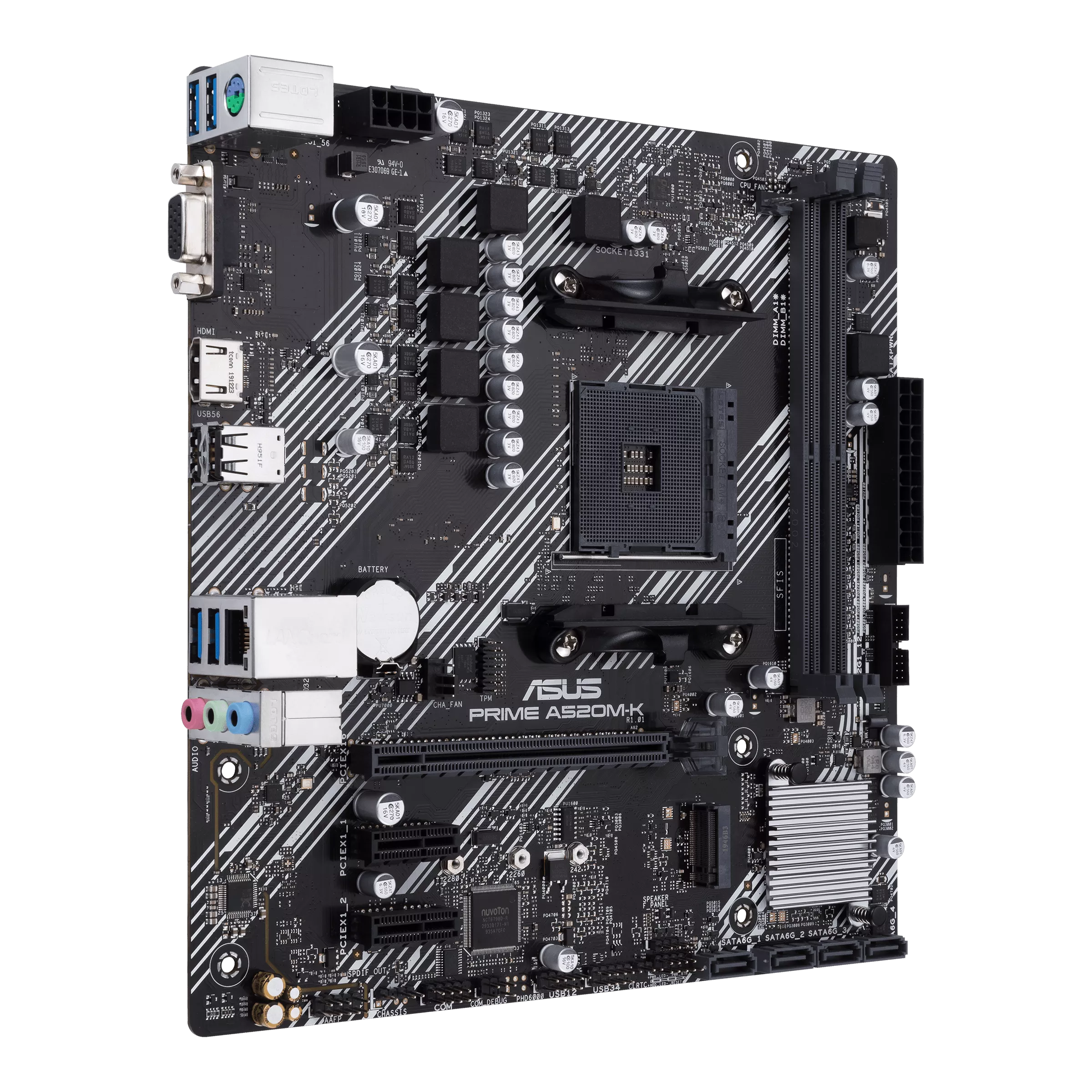

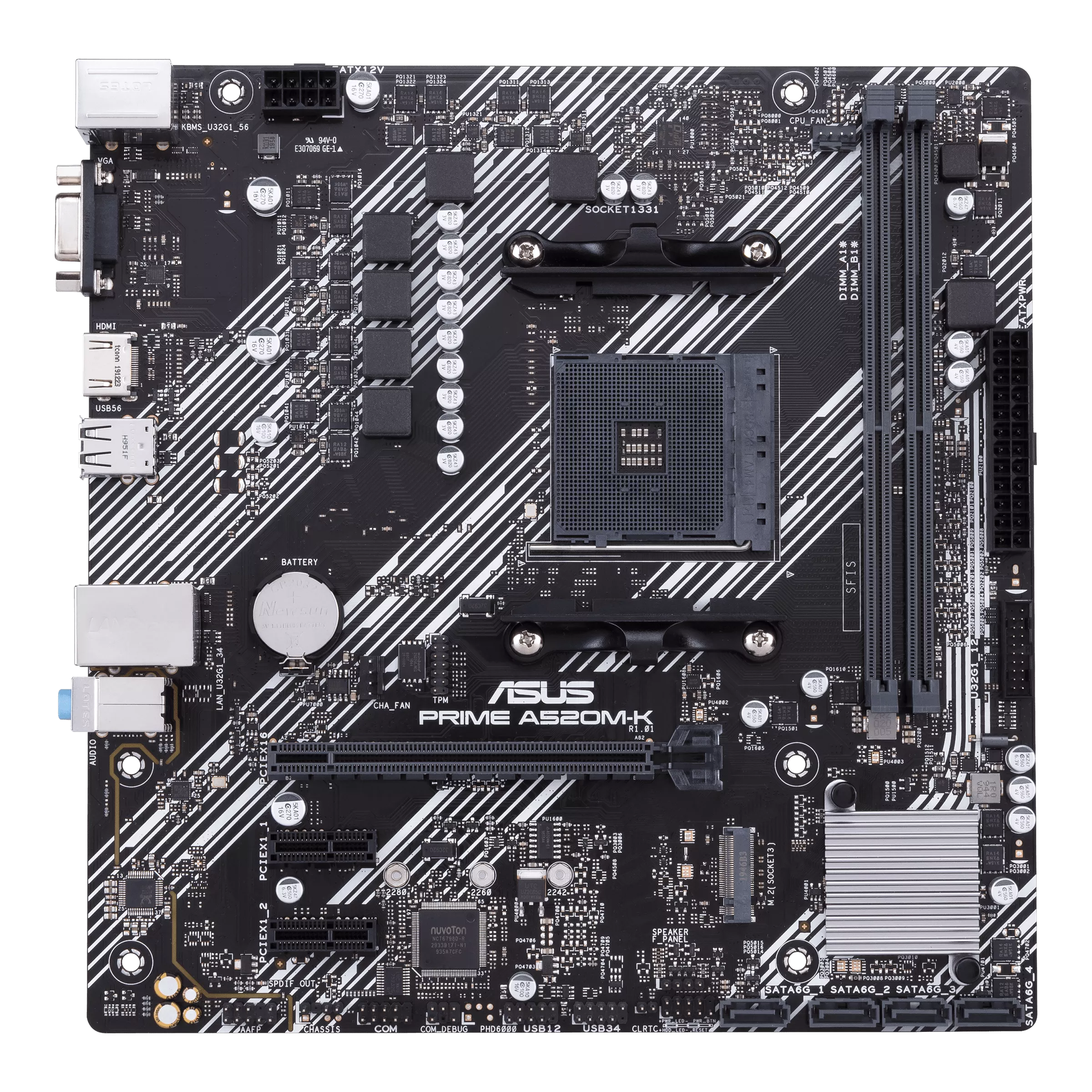

Discover the ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD, an essential foundation for your next PC build. Designed to support AM4 processors and DDR4 memory, this motherboard provides a robust platform for a wide range of computing needs.
Key Features at a Glance
- AM4 socket support for compatible processors
- Designed for DDR4 memory modules
- ASUS PRIME series model A520M-K
- Provides a core component for PC assembly
- Micro-ATX form factor (implied by K, typical for A520M) - *Self-correction: Cannot infer form factor from the name alone, A520M doesn't definitively mean mATX without external knowledge. Removing this inference.*
- From ASUS, a recognized manufacturer
Ready for AM4 Processors
Build your system around AM4 socket processors, offering broad compatibility for various computing tasks. The ASUS PRIME A520M-K provides the necessary platform to integrate your chosen AM4 CPU seamlessly.
Supports DDR4 Memory
Utilize widely available DDR4 memory modules to complete your system's core. This motherboard is designed to accommodate DDR4 RAM, ensuring compatibility with standard memory types for your build.
Built on ASUS Technology
As an ASUS branded product, the PRIME A520M-K incorporates the manufacturing standards associated with the brand. This motherboard serves as a foundational component for your personal computer.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PRIME A520M-K |
| CPU | * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors * |
| Chipset | AMD A520 |
| Memory | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU. |
| Graphic | 1 x HDMI 2.1(4K@60HZ) |
| Expansion Slots | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors , AMD A520 Chipset ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode) |
| Storage | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : , Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports , AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard |
| Audio | Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |

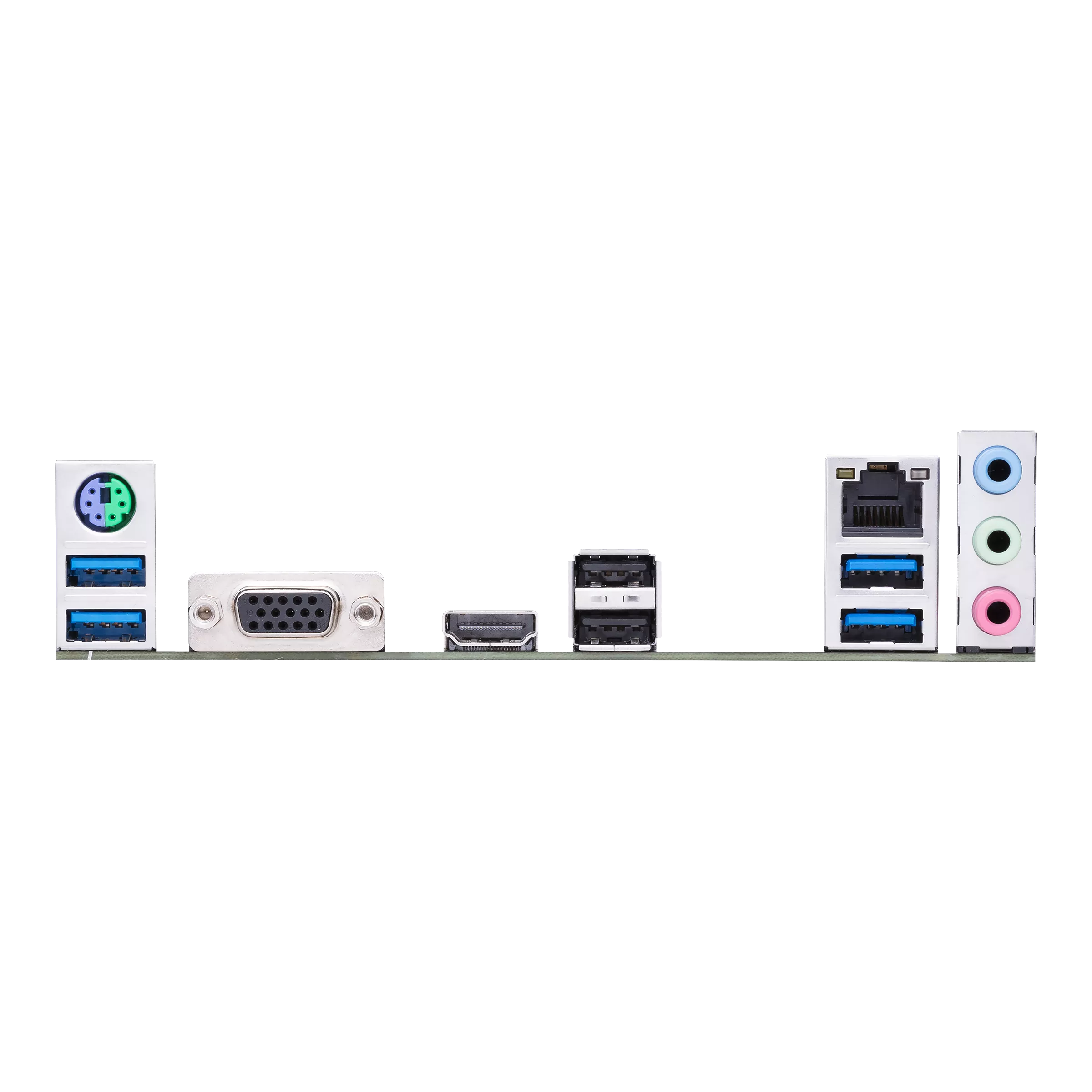

| Back I/O Ports | 4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports | 1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector |
| Accessories | 1 x ACC Express Activation Key Card,1 x M.2 SSD screw package(s),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
Frequently Asked Questions
Q: What processors does the ASUS PRIME A520M-K support?
A: This motherboard is designed to support processors that use the AM4 socket.
Q: What type of memory is compatible with this motherboard?
A: The ASUS PRIME A520M-K motherboard is compatible with DDR4 memory modules.
Q: What is the model name of this ASUS motherboard?
A: The model name of this ASUS motherboard is PRIME A520M-K.
