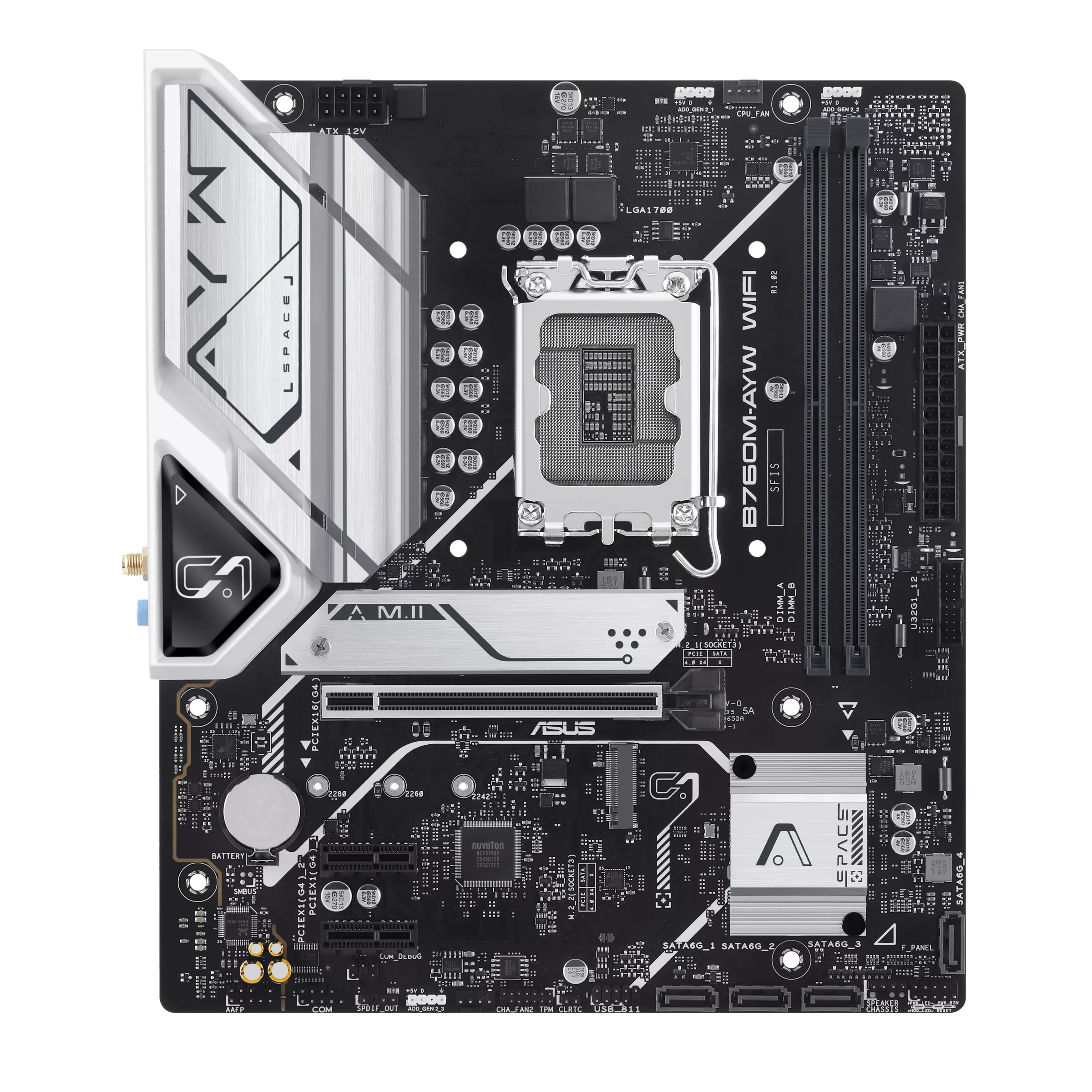

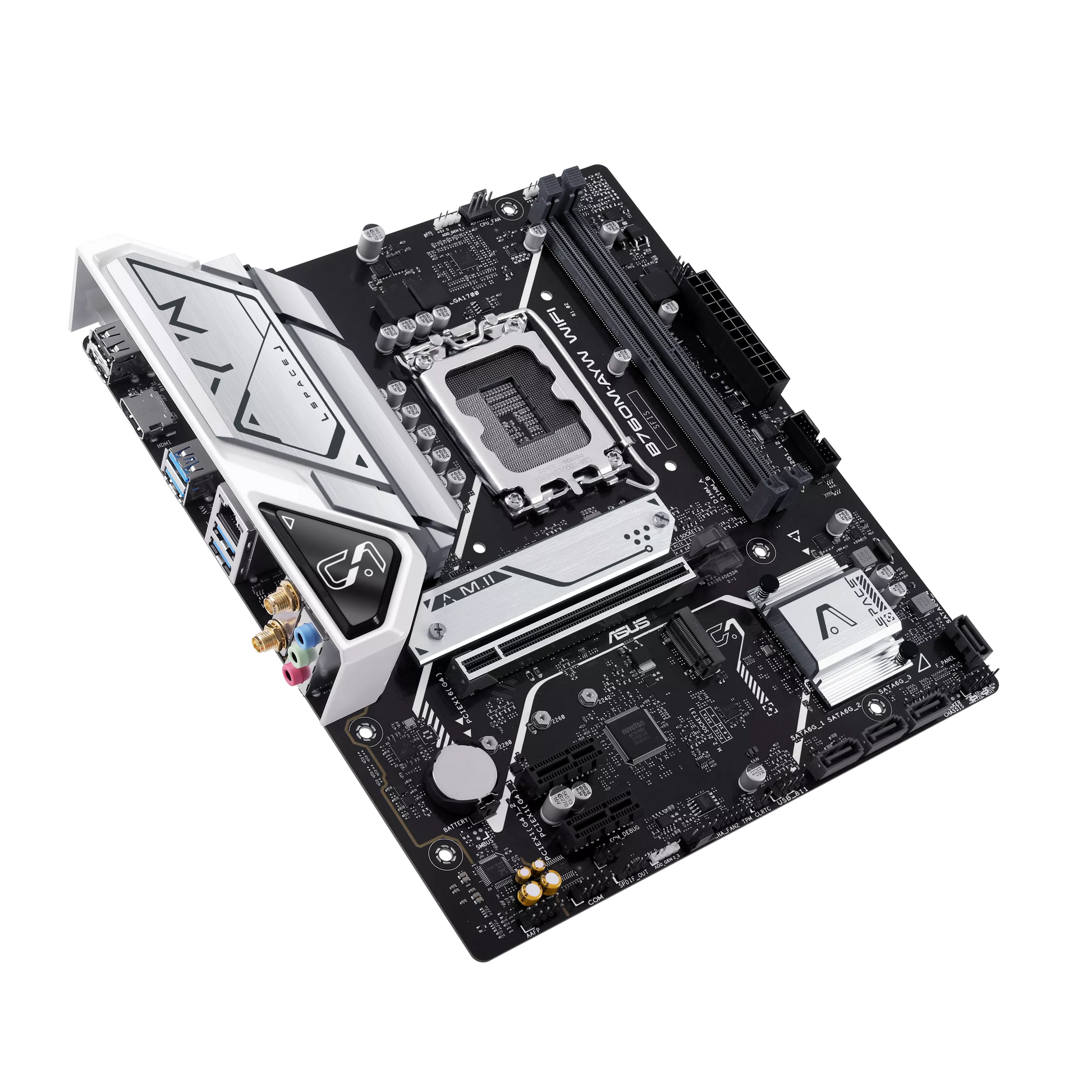

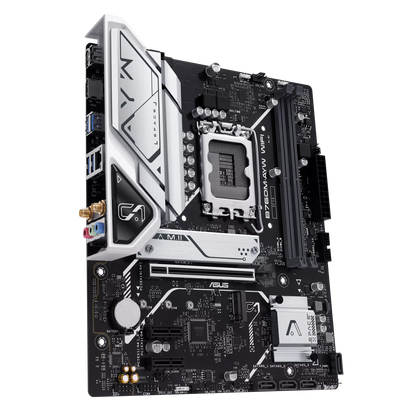

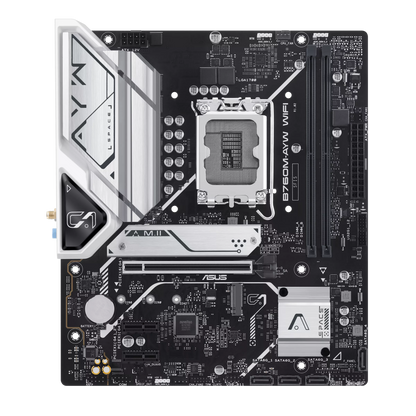

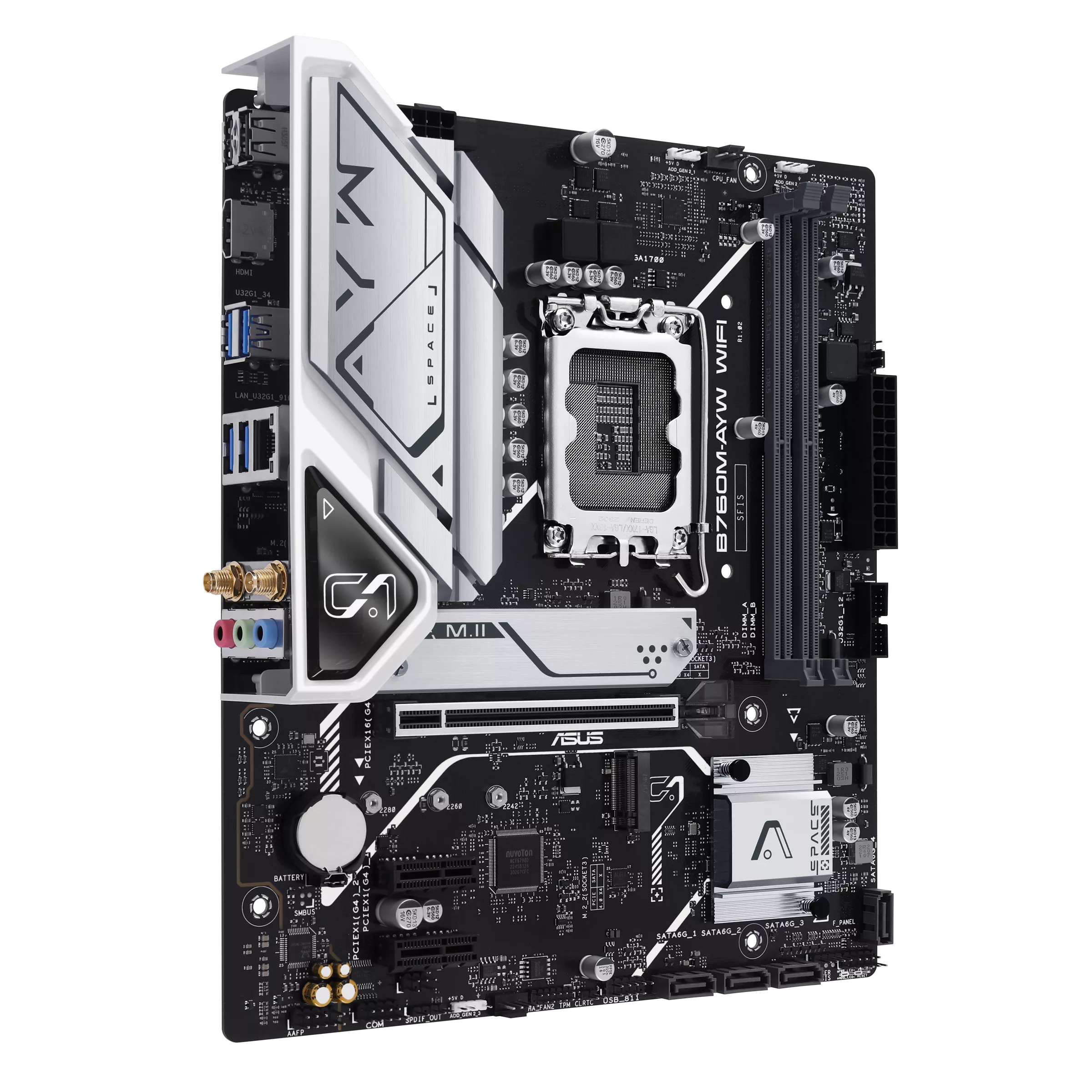

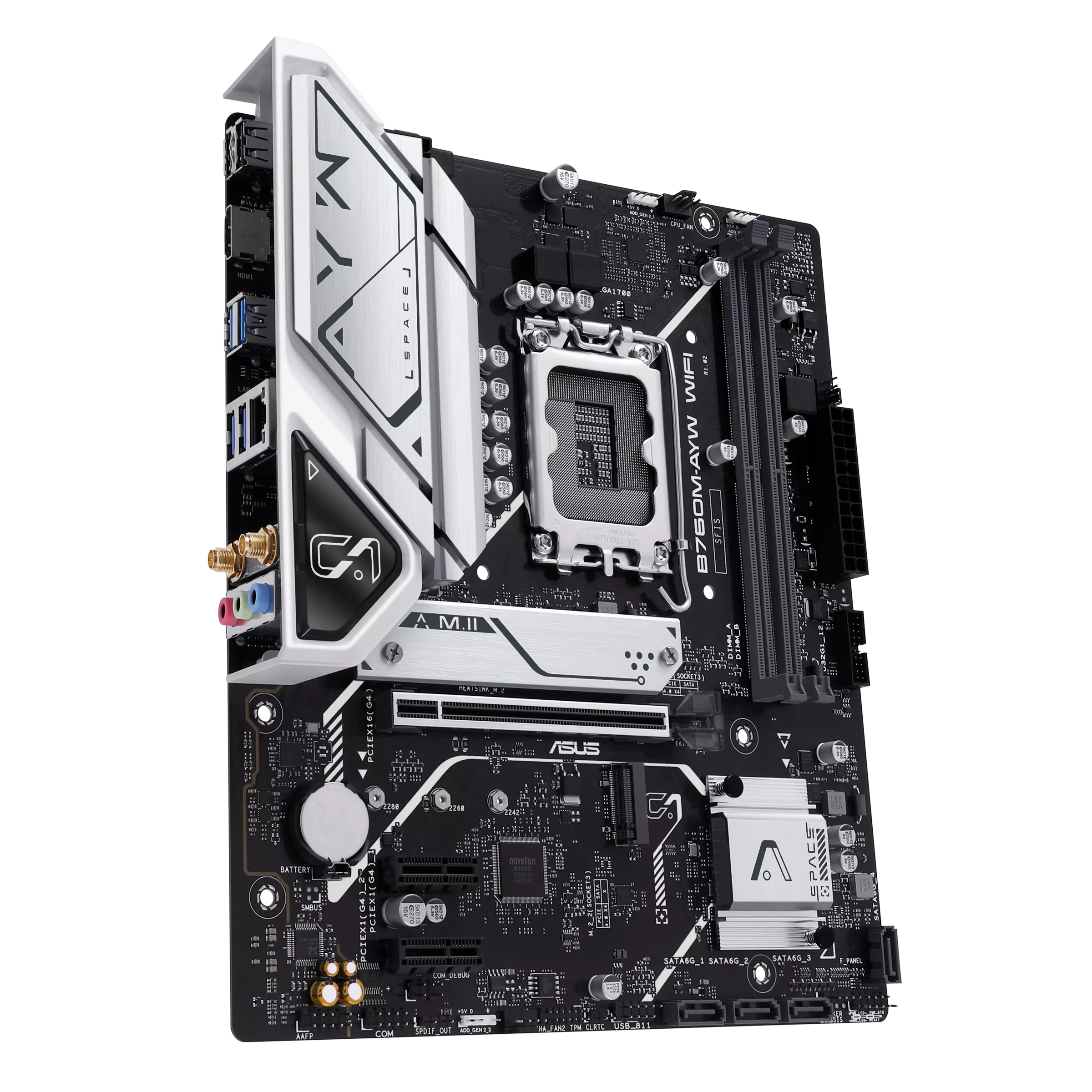

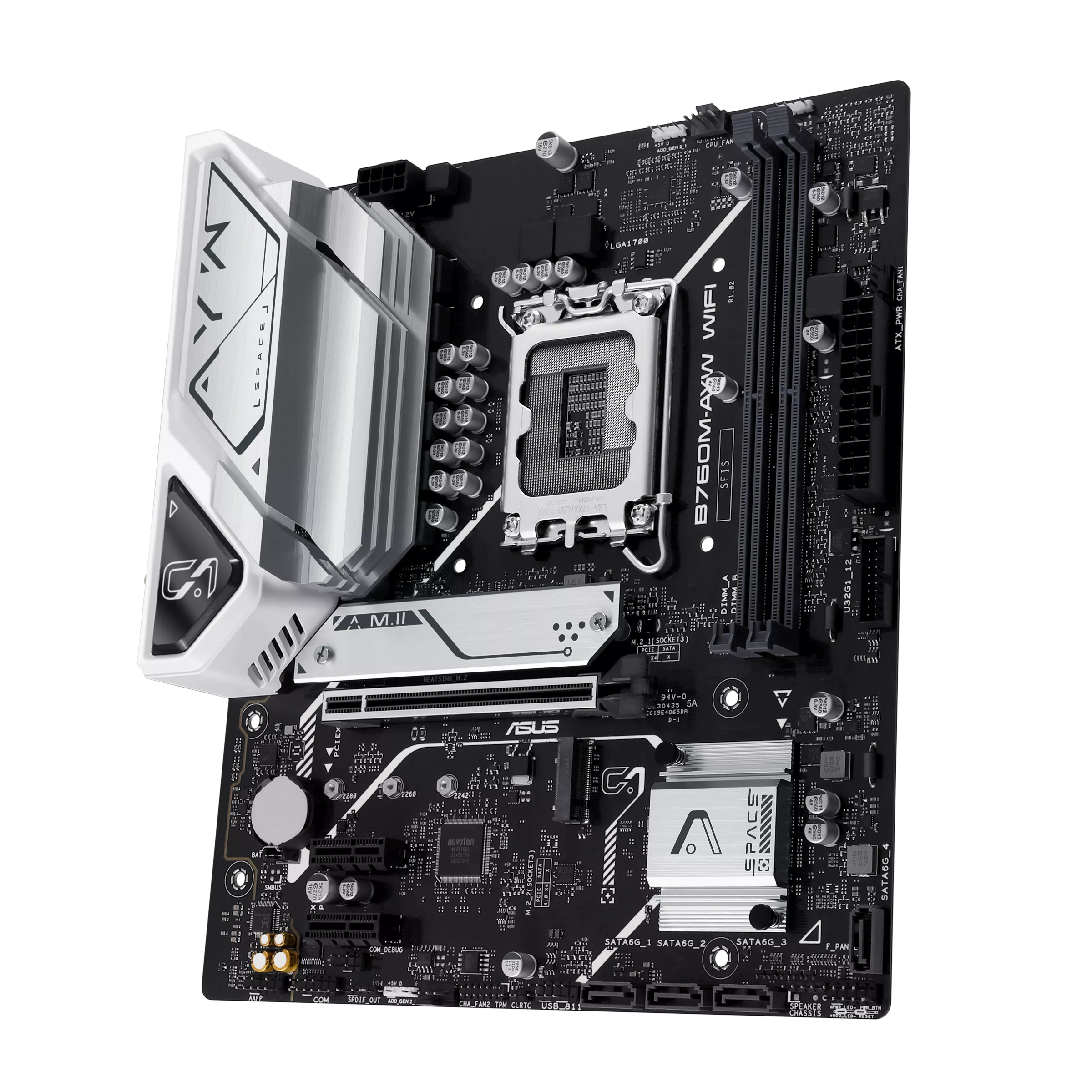

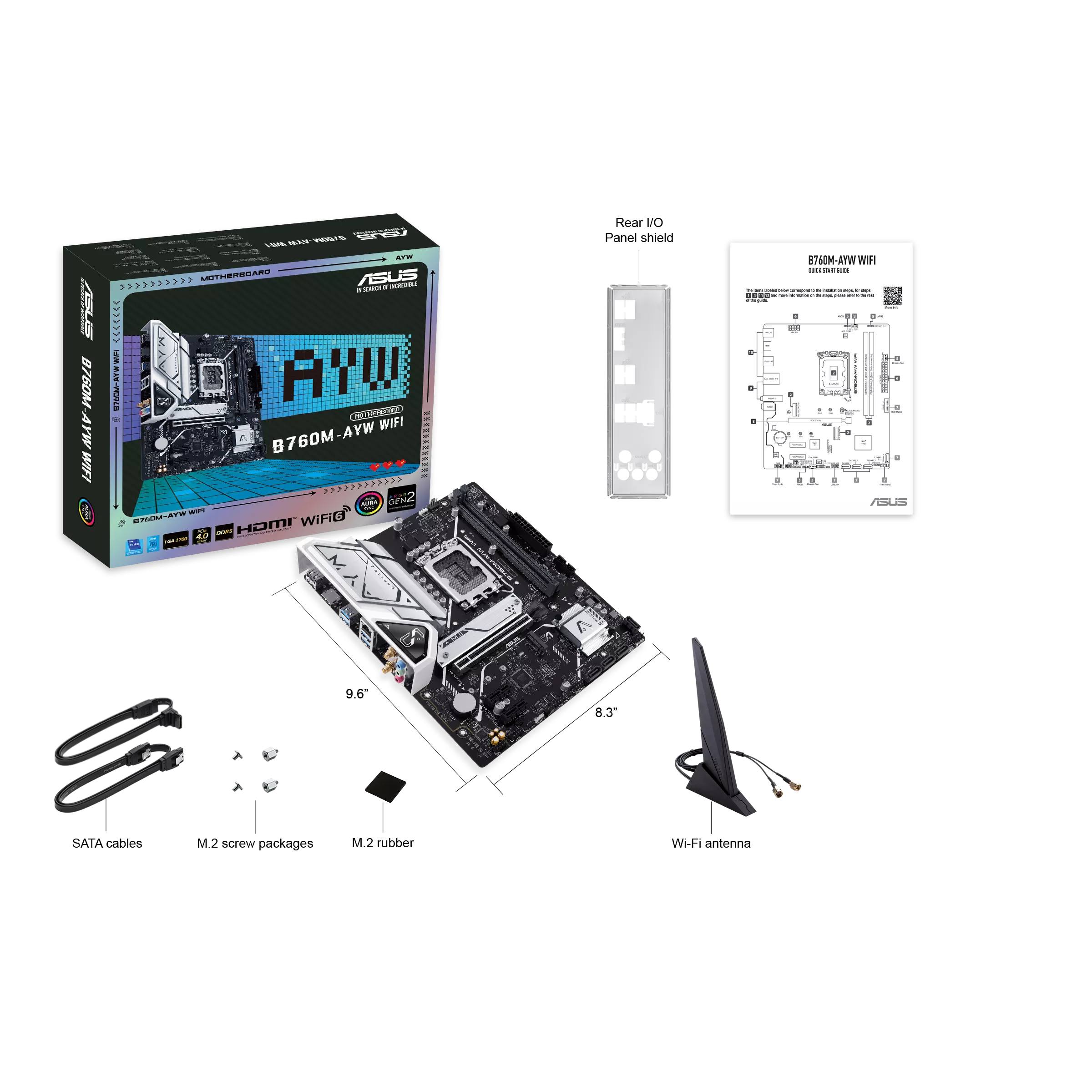

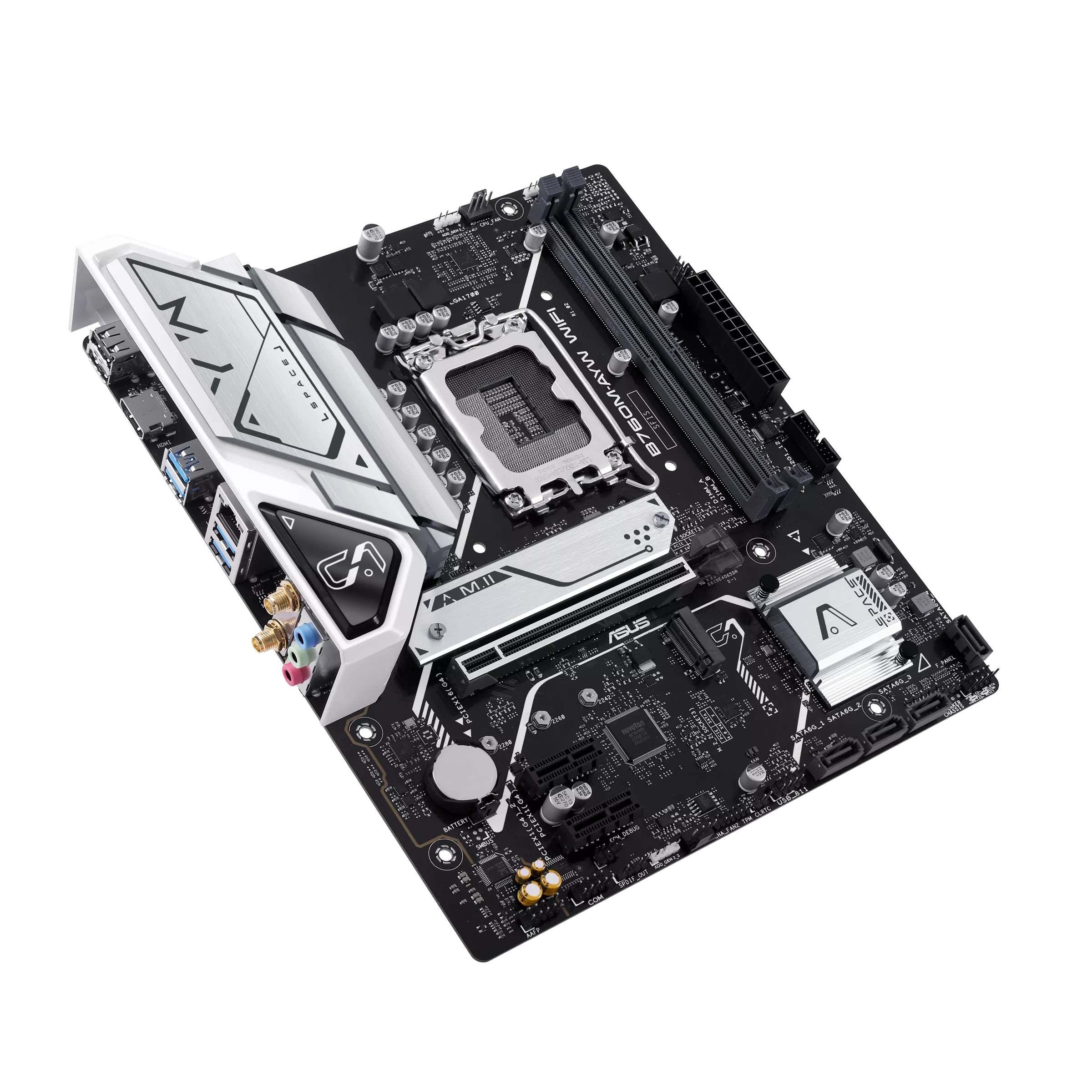

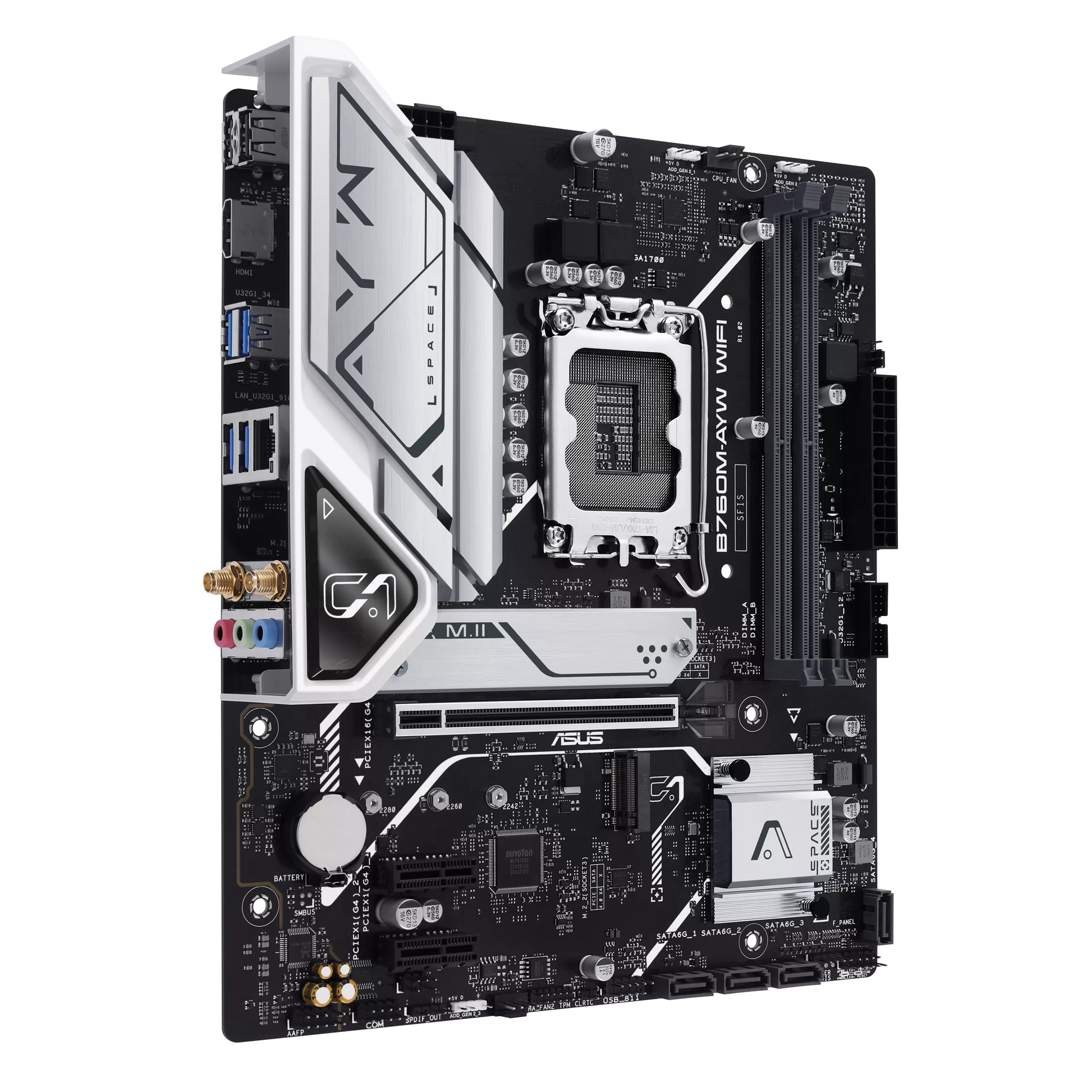

The ASUS B760M-AYW WIFI Motherboard is engineered to power your computing experience, supporting 12th and 13th Gen Intel processors with its LGA 1700 socket. This board delivers robust connectivity, efficient cooling, and customizable RGB lighting for a powerful and personalized build.
Key Features at a Glance
- LGA 1700 socket for 12th and 13th Gen Intel processors.
- Ultrafast connectivity with PCIe 4.0, dual M.2 slots, and WiFi 6.
- Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support.
- Comprehensive cooling solutions including VRM, M.2, and PCH heatsinks.
- Aura Sync RGB Lighting with Addressable Gen 2 headers.
- Equipped with hybrid fan headers and Fan Xpert 2+ for thermal control.
Next-Gen Processor Support
Equipped with the Intel LGA 1700 socket, the ASUS B760M-AYW WIFI Motherboard is ready to harness the full power of both 13th and 12th Generation Intel processors, providing a robust foundation for high-performance computing.
Blazing-Fast Connectivity
Experience lightning-fast data transfer and networking with PCIe 4.0 support, including two PCIe 4.0 M.2 slots for high-speed storage. Built-in Realtek 2.5Gb Ethernet and WiFi 6 ensure smooth online experiences, complemented by front USB 3.2 Gen 1 for versatile peripheral connections.
Advanced Cooling Design
Maintain optimal system temperatures under load with comprehensive cooling features. This motherboard includes dedicated VRM, M.2, and PCH heatsinks, alongside hybrid fan headers and Fan Xpert 2+ software, ensuring stable performance and extended component lifespan.
Personalized RGB Lighting
Customize your system's aesthetics with Aura Sync RGB Lighting. Featuring onboard Addressable Gen 2 headers, you can easily connect RGB LED strips and synchronize them with other Aura Sync-capable hardware to create a unique and cohesive lighting setup.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 8000 |
| Max Memory Support | 96 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics Port | 1 x HDMI |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Wireless Networking | WiFi 6,Bluetooth 5.3 |

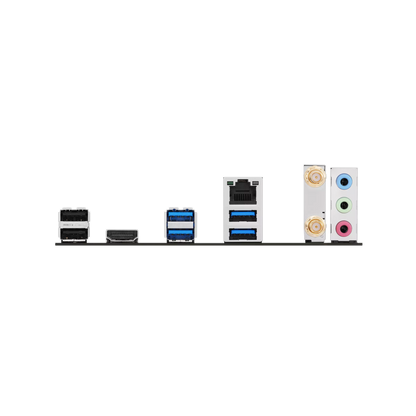

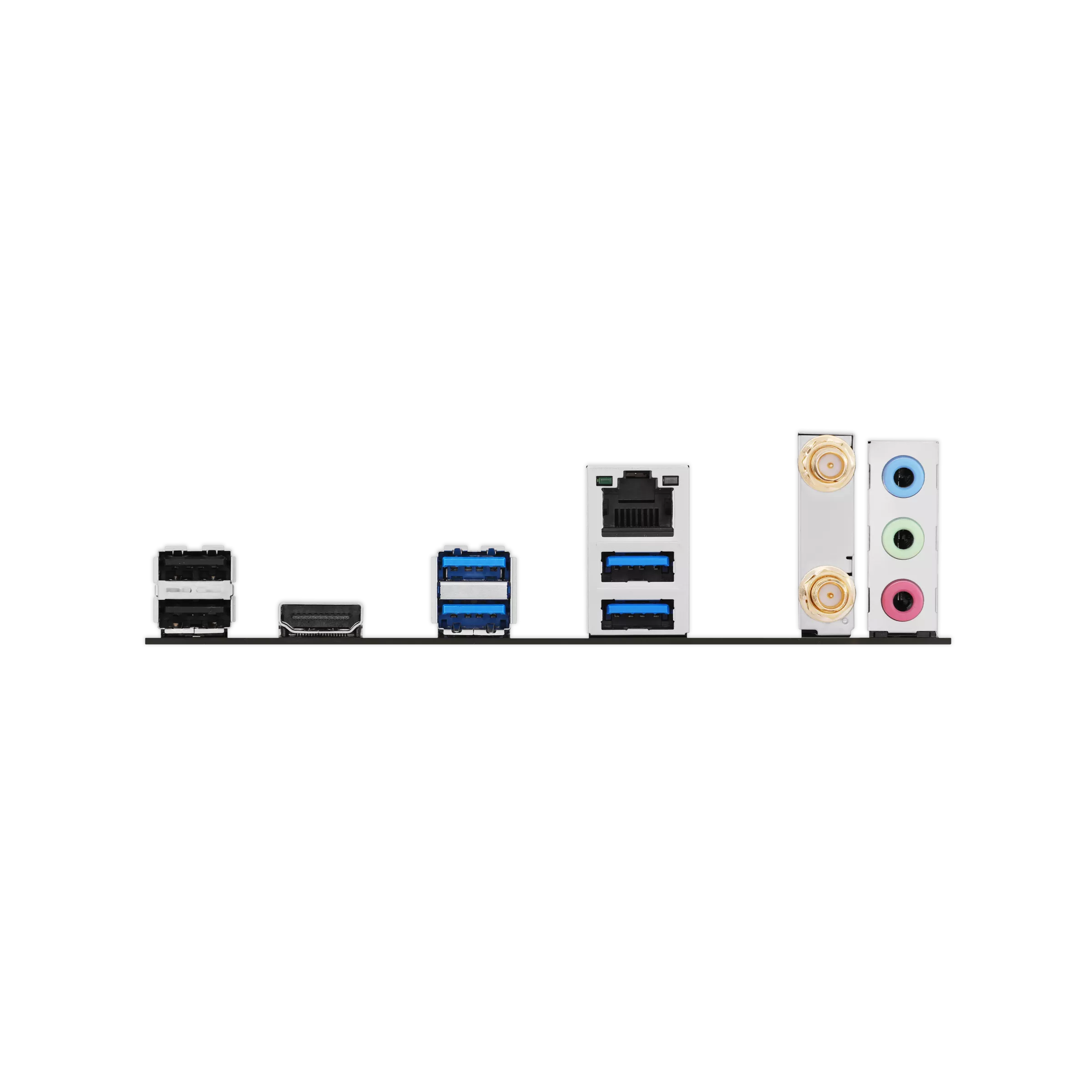

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which Intel processors does this motherboard support?
A: The ASUS B760M-AYW WIFI Motherboard supports 13th and 12th Gen Intel processors with its LGA 1700 socket.
Q: What kind of connectivity options are available?
A: It features PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, WiFi 6, and front USB 3.2 Gen 1 support for ultrafast connectivity.
Q: Does this motherboard include RGB lighting features?
A: Yes, it includes Aura Sync RGB Lighting with onboard Addressable Gen 2 headers for RGB LED strips, which can be synced with Aura Sync-capable hardware.
