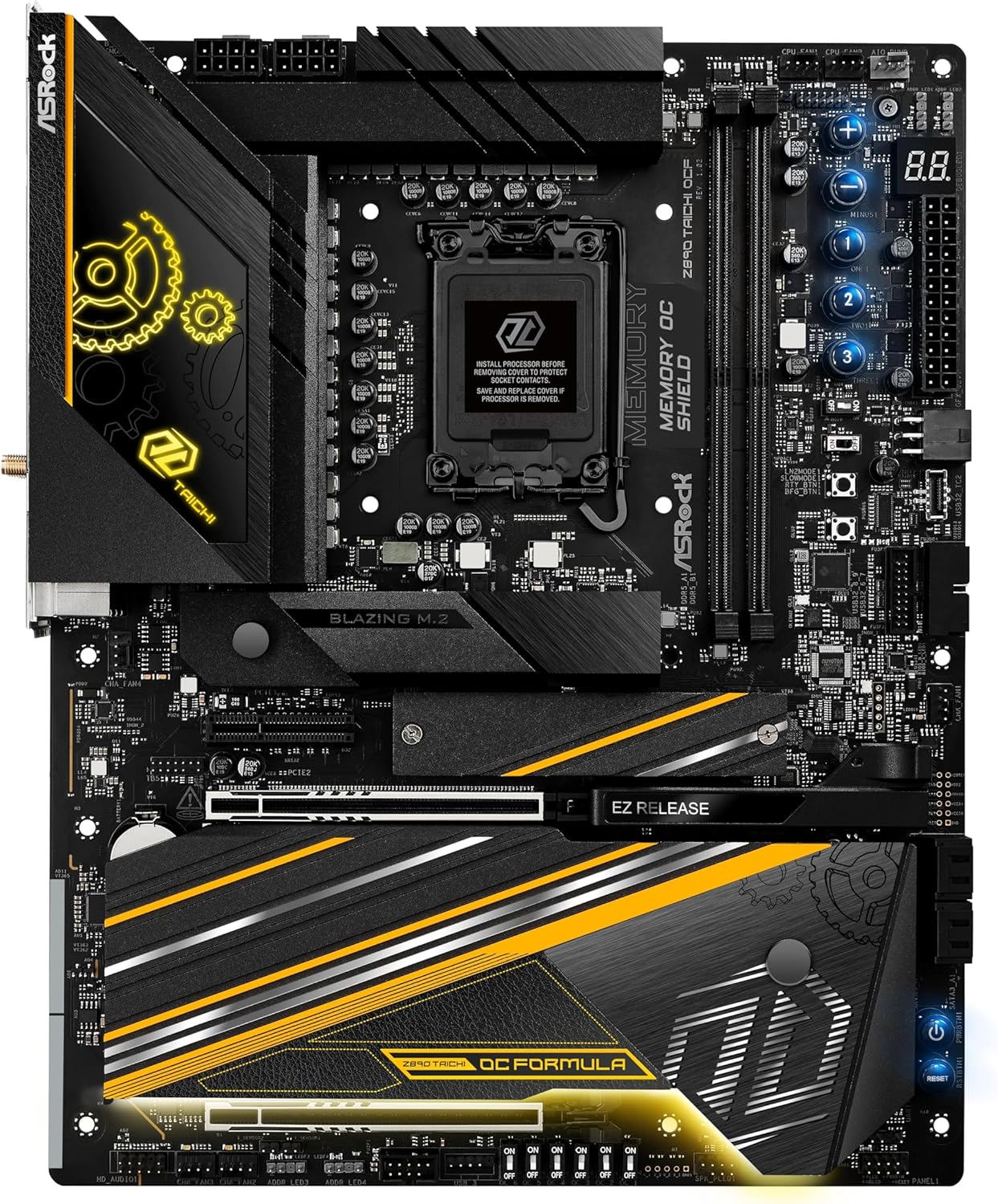

ASROCK Z890 TAICHI OCF INTEL CORE ULTRA LGA1851 DDR5 M-ATX MOTHERBOARD
ASROCK Z890 TAICHI OCF INTEL CORE ULTRA LGA1851 DDR5 M-ATX MOTHERBOARD
Regular price
Rs. 51,793.00
Sale price
Rs. 51,793.00
Regular price
Rs. 98,499.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About this item
- Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 22+1+2+1+1 Power Phase, 110A SPS for VCore
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 12735+ (OC)* - 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: Dual Thunderbolt 4/USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
3 Hyper M.2 (PCIe Gen4 x4)
2 Hyper M.2 (PCIe Gen4 x4 & SATA3) - Dual Thunderbolt 4/USB4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 USB 3.2 Gen2 Type-A (Rear)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
3 USB 2.0 (Front) - 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
- Professional Overclocking Toolkit
Product information
|
CPU
|
- Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration - Supports ASRock Hyper BCLK Engine |
|
Chipset
|
- Intel Z890 |
| Memory |
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 12735MHz+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 3.0x |
|
BIOS
|
- 2 x 256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
- Intel Xe LPG Graphics Architecture - 2 x Intel Thunderbolt 4/USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
Audio
|
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Nahimic Audio |
| LAN |
- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 |
|
Wireless LAN
|
- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz frequency band* - Supports 320MHz channel bandwidth with 6GHz frequency band* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
| Slots |
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* - 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode* Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3) |
|
Storage
|
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors |
|
RAID
|
CPU: - 2 x Thunderbolt 4/USB4 Type-C (Rear) Chipset: - 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front) - 4 x USB 3.2 Gen2 Type-A (Rear) - 5 x USB 3.2 Gen1 (1 Rear, 4 Front) - 3 x USB 2.0 (Front) |
| Connector |
- 2 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 4 x Addressable LED Headers* - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Heater Header - 1 x ElmorLabs OCP Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Retry Button - 1 x Safe Boot Button - V-Probe™: 11-set of onboard voltage measurement points laid - Rapid OC Buttons: +/- buttons to adjust OC frequency - 6 x OC Switches - 1 x Slow Mode Switch - 1 x LN2 Mode Switch - 1 x NickShih's OC Profile 1 Button with LED - 1 x NickShih's OC Profile 2 Button with LED - 1 x NickShih's OC Profile 3 Button with LED |
| Rear Panel I/O |
- 2 x Antenna Ports - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)* - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 1 x USB 3.2 Gen1 Port - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x BIOS Selection Switch - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 10 Layer PCB - 2oz Copper PCB |
|
OS
|
- Microsoft Windows 11 64-bit |
