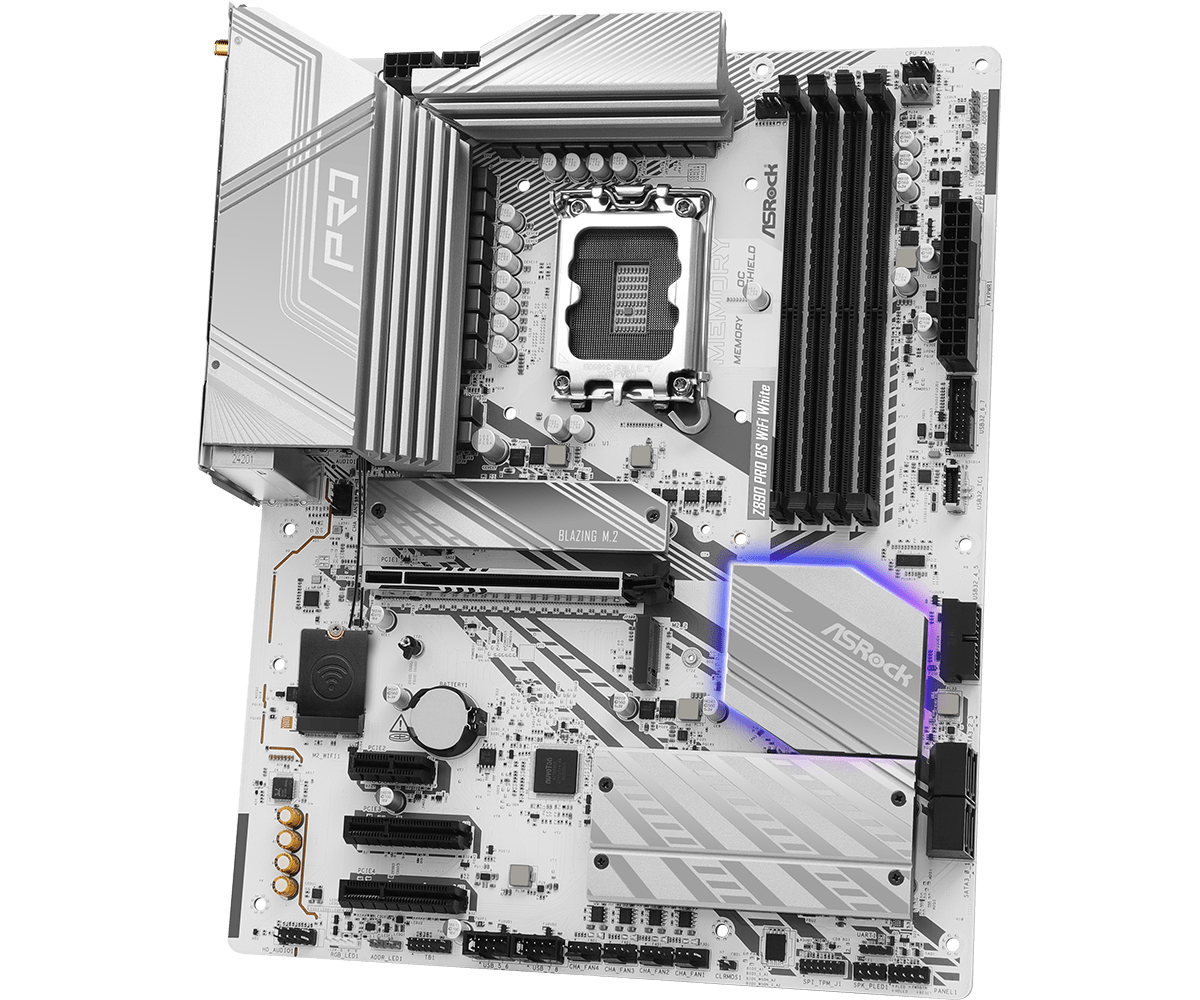

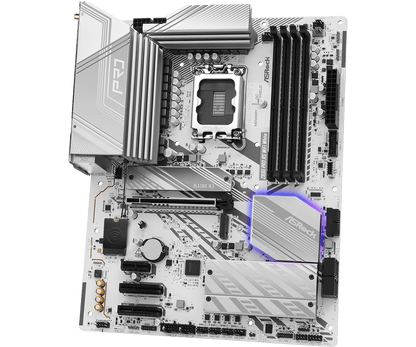

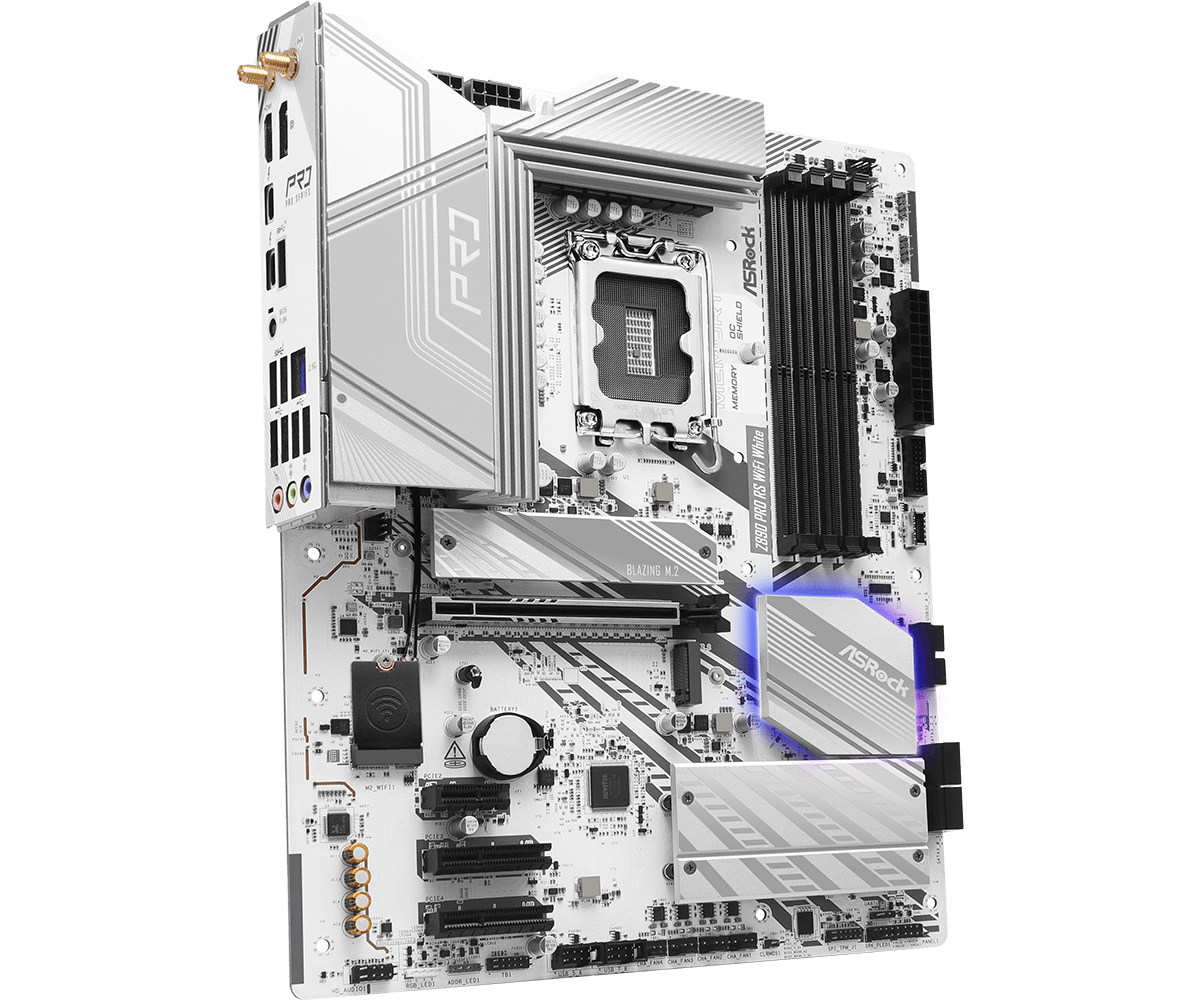

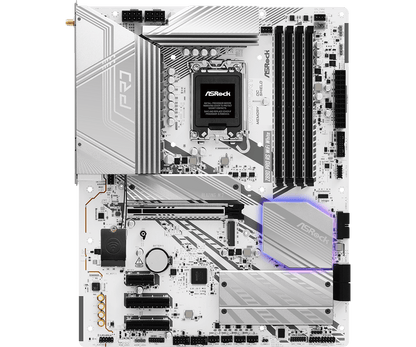

ASROCK Z890 PRO RS WIFI WHITE MOTHERBOARD
ASROCK Z890 PRO RS WIFI WHITE MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

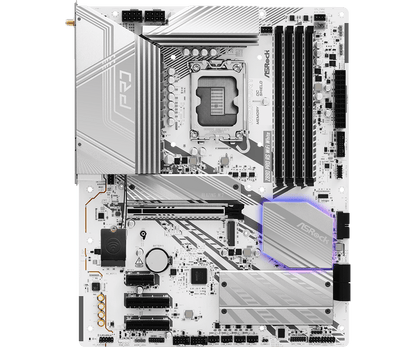

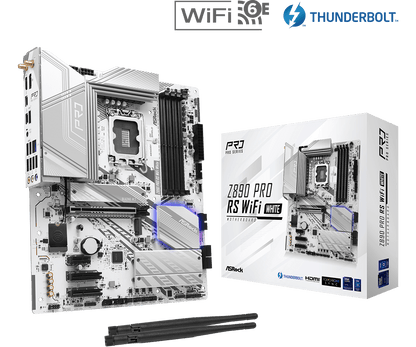

Elevate your system build with the ASROCK Z890 PRO RS WIFI WHITE MOTHERBOARD. Designed to provide a robust foundation for modern computing, this motherboard combines essential features with a distinctive aesthetic, making it suitable for a wide range of PC enthusiasts and builders.
Key Features at a Glance
- Reliable ASROCK brand engineering
- Designed for the Z890 series chipset
- Integrated Wi-Fi connectivity for wireless networking
- Striking white color scheme for a unique build
Robust Foundation
The ASROCK Z890 PRO RS provides a solid platform, offering a core component for assembling a powerful and stable computer system.
Seamless Connectivity
Benefit from convenient, integrated Wi-Fi capabilities, simplifying your network setup without the need for additional adapters.
Distinctive Aesthetic
With its prominent white design, this motherboard stands out, offering a clean and modern look to complement custom PC builds.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9066+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | non-ECC, un-buffered memory Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel Extreme Memory Profile (XMP) 3.0x |
| Graphics Port | 1 x HDMI,1 x DisplayPort,2 x Intel Thunderbolt |
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

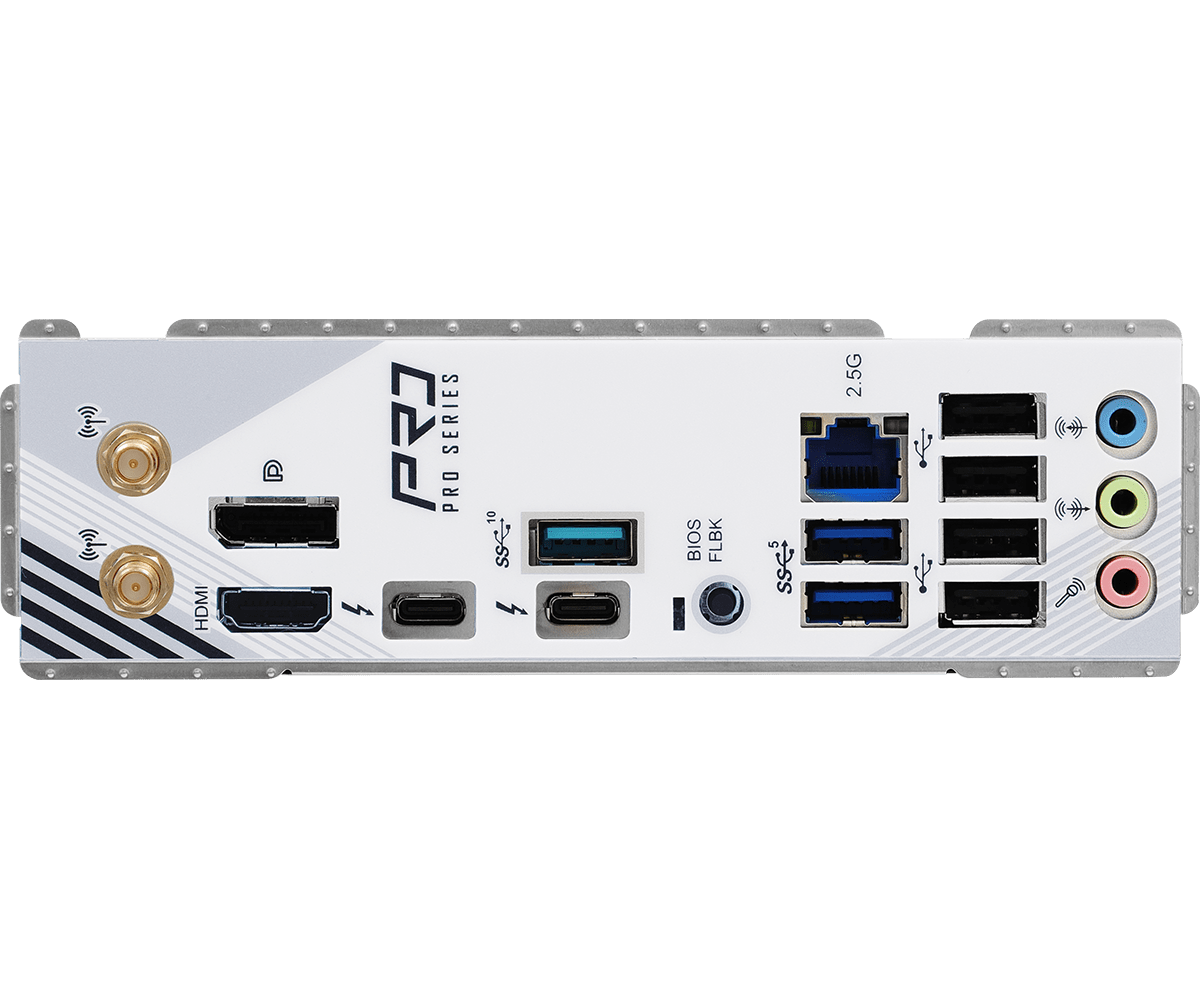

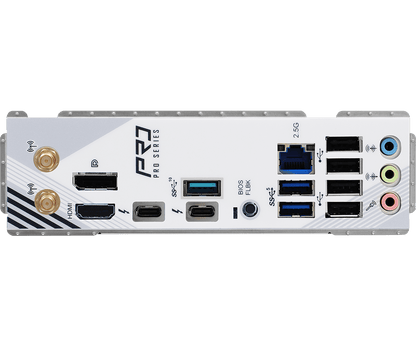

| Back Panel I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What type of product is this?
A: This is the ASROCK Z890 PRO RS WIFI WHITE MOTHERBOARD, a core component for building a computer system.
Q: Where can I find detailed product specifications?
A: All detailed specifications are contained within the Technical Specifications section provided on this page.
Q: Does this motherboard include wireless connectivity?
A: Yes, as indicated by "WIFI" in its name, this motherboard features integrated Wi-Fi capabilities.
