• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s)

• 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

• Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
• Killer DoubleShot„ Pro
• Front Panel Type-C 60W Fast Charging (20V/3A)
• ASRock Lightning Gaming Ports

• ASRock Auto Driver Installer

• Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)
• Supports ASRock Hyper BCLK Engine

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• Max. capacity of system memory: 256GB
• Supports Intel Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

• Intel Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 2 x Intel Thunderbolt„ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz**

*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Supports two 4K displays or one 8K display.

• 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• WIMA Audio Capacitors (For Front Outputs)
• ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
• Individual PCB Layers for R/L Audio Channel
• Impedance Sensing on Rear Out port
• Nahimic Audio

• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
• Supports Killer LAN Software
• 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO
• Supports Killer LAN Software
• Supports Killer DoubleShot„ Pro

*A 6GHz compatible router is required for 6E functionality.

• 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Supports AMD CrossFire„
• 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)

*If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
If PCIE2 is occupied, M2_1 will be disabled.
If PCIE3 is occupied, SATA3_0~3 will be disabled.

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode**
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 8 x SATA3 6.0 Gb/s Connectors**

*Supports Intel Volume Management Device (VMD).
**If PCIE3 is occupied, SATA3_0~3 will be disabled.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

• 2 x USB4 Thunderbolt„ 4 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 2 x USB 3.2 Gen2 Type-A (Rear)
• 10 x USB 3.2 Gen1 (6 Rear, 4 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

*All USB ports support ESD Protection

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)******
• 1 x Clear CMOS Button
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED

*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
*****CHA_FAN1~6/WP support the fan power up to 2A (24W).
******Supports USB PD 3.0 up to 20V@3A (60W) fast charging.

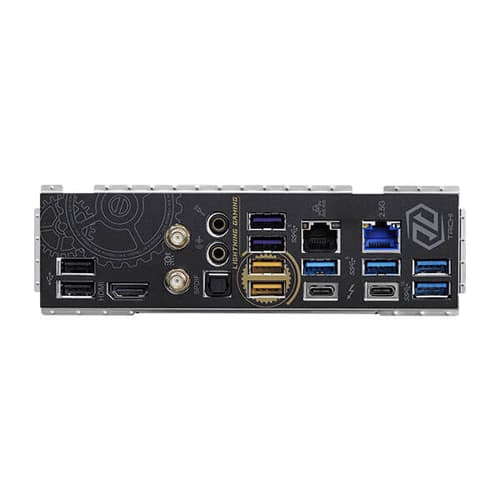

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s)
• 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 6 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 2 x RJ-45 LAN Ports
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging

• ASRock Motherboard Utility (A-Tuning)
• Killer Control Center
• ASRock Polychrome SYNC*

UEFI:
ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer

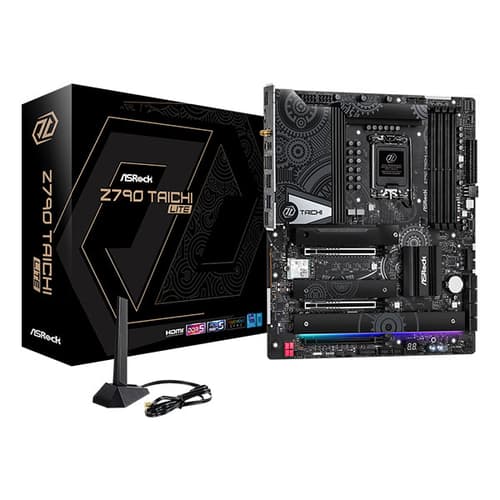

• 1 x User Manual
• 4 x SATA Data Cables
• 1 x Wireless Dongle USB Bracket
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 4 x Screws for M.2 Sockets

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
• CEC Tier II ready
