Motherboard

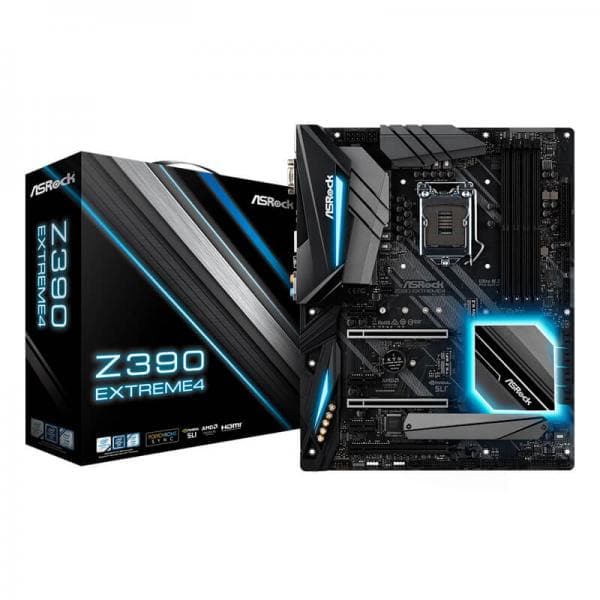

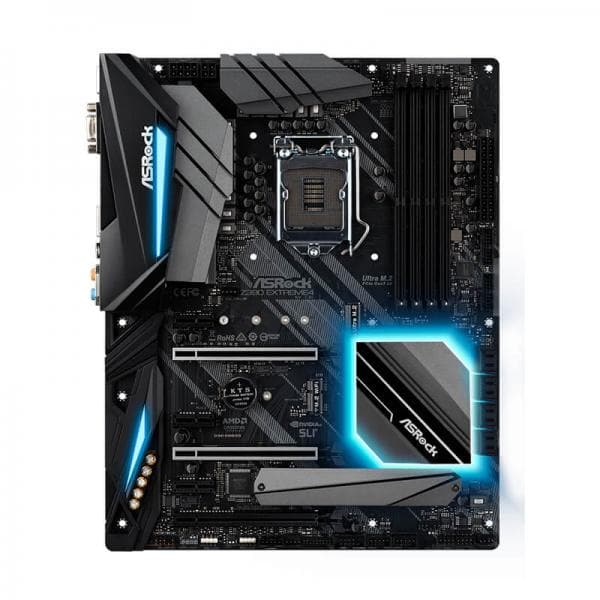

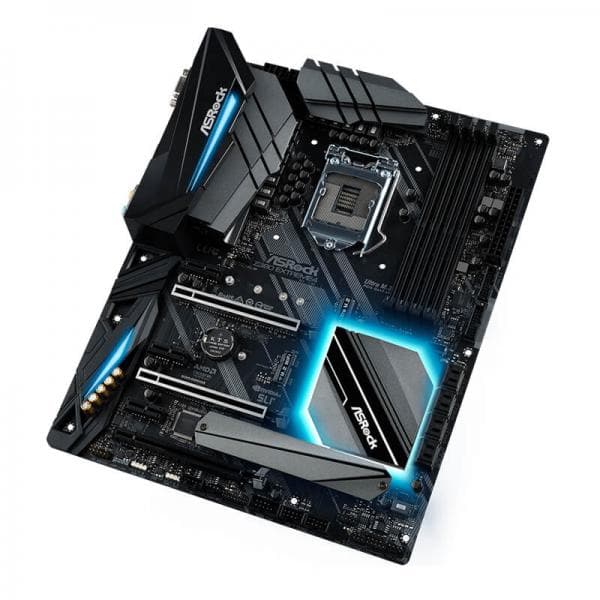

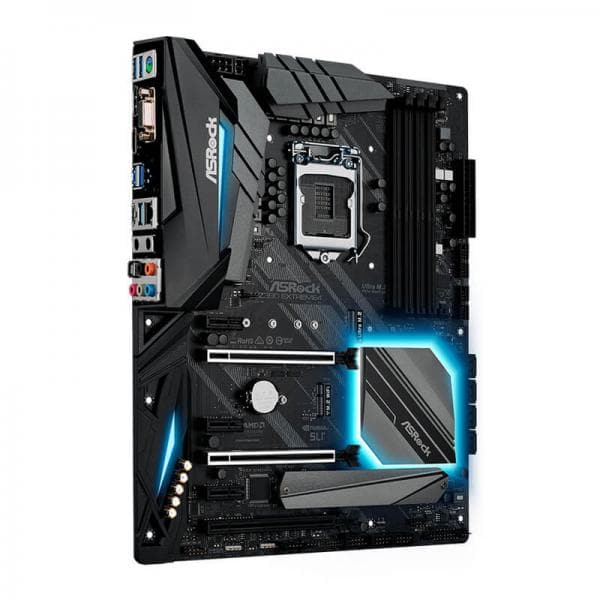

ASROCK Z390 Extreme4 DDR4 Intel Motherboard
Rs. 20,099.00
Rs. 16,728.00
In Stock
Brand : ASROCK
asrock-z390-extreme4
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASRock Z390 Extreme4 DDR4
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Digital PWM, 12 Power Phase
- Supports DDR4 4300 (OC)
- 3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options : HDMI, D-Sub, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A 1 Type-C)
- 9 USB 3.1 Gen1 (1 Front Type-C, 4 Front Type-A, 4 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Fully Supports 9th Gen Intel® Core Processors
ASROCK Z390 Extreme4 DDR4 is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely
Specifications of ASRock Z390 Extreme4 DDR4
| Unique Feature | ASRock USB 3.1 Gen2 |
| - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) | |
| - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) | |
| ASRock Super Alloy | |
| - XXL Aluminum Alloy Heatsink | |
| - Premium 60A Power Choke | |
| - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) | |
| - Dual-Stack MOSFET (DSM) | |
| - Combo Caps (Nichicon 12K Black Caps) | |
| - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
| - I/O Armor | |
| - Matte Black PCB | |
| - High Density Glass Fabric PCB | |
| ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology | |
| ASRock Steel Slots | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) |
| - Digi Power design | |
| - 12 Power Phase design | |
| - Supports Intel® Turbo Boost 2.0 Technology | |
| - Supports Intel® K-Series unlocked CPUs | |
| - Supports ASRock BCLK Full-range Overclocking | |
| Chipset | Intel® Z390 |
| Memory | Dual Channel DDR4 Memory Technology |
| - 4 x DDR4 DIMM Slots | |
| - Supports DDR4 4300 (OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| - Max. capacity of system memory: 128GB* | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| - 15μ Gold Contact in DIMM Slots | |
| *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) |
| - Supports Secure Backup UEFI Technology | |
| - ACPI 6.0 Compliant wake up events | |
| - SMBIOS 2.7 Support | |
| - CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment | |
| Graphics | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) |
| - Supports Secure Backup UEFI Technology | |
| - ACPI 6.0 Compliant wake up events | |
| - SMBIOS 2.7 Support | |
| - CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment | |
| Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics |
| - DirectX 12 | |
| - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 | |
| - Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 | |
| - Supports Triple Monitor | |
| - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz | |
| - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz | |
| - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | |
| - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) | |
| - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports | |
| - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports | |
| *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| - Premium Blu-ray Audio support | |
| - Supports Surge Protection | |
| - Supports Purity Sound™ 4 | |
| - Nichicon Fine Gold Series Audio Caps | |
| - 120dB SNR DAC with Differential Amplifier | |
| - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) | |
| - Pure Power-In | |
| - Direct Drive Technology | |
| - PCB isolate shielding | |
| - Impedance Sensing on Rear Out port | |
| - Individual PCB Layers for R/L Audio Channel | |
| - RGB LED | |
| - 15μ Gold Audio Connector | |
| - Supports DTS Connect | |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| - Giga PHY Intel® I219V | |
| - Supports Wake-On-LAN | |
| - Supports Lightning/ESD Protection | |
| - Supports Energy Efficient Ethernet 802.3az | |
| - Supports PXE | |
| Slots | 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* |
| - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) | |
| - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ | |
| - Supports NVIDIA® Quad SLI™ and SLI™ | |
| - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards** | |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT) | |
| - 15μ Gold Contact in VGA PCIe Slot (PCIE2) | |
| *Supports NVMe SSD as boot disks | |
| **NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary. | |
| Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug* |
| - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug | |
| - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
| - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
| *M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. | |
| M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. | |
| **Supports Intel® Optane™ Technology | |
| Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| Connector | 1 x COM Port Header |
| - 1 x TPM Header | |
| - 1 x Power LED and Speaker Header | |
| - 2 x RGB LED Headers* | |
| - 1 x Addressable LED Header** | |
| - 1 x CPU Fan Connector (4-pin)*** | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection) | |
| - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| - 1 x Front Panel Type C USB 3.1 Gen1 Header (Intel® Z390) (Supports ESD Protection) | |
| - 1 x Performance Mode / Easy OC Header | |
| *Support in total up to 12V/3A, 36W LED Strip | |
| **Supports in total up to 5V/3A, 15W LED Strip | |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. | |

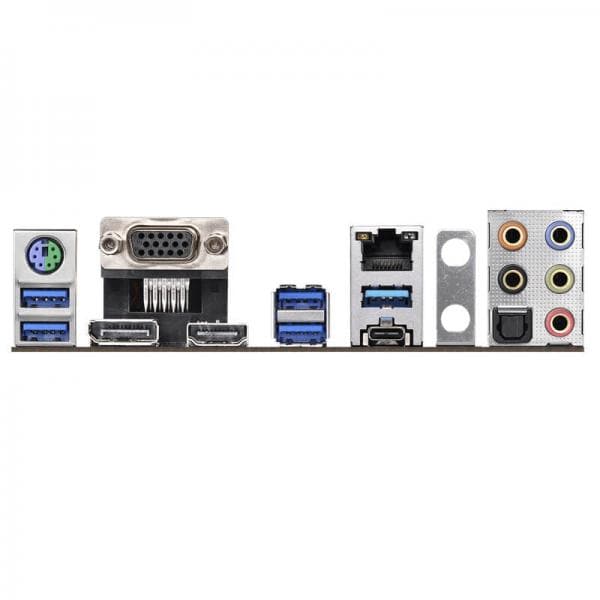

| Rear Panel I/O | 1 x Antenna Ports |
| - 1 x PS/2 Mouse/Keyboard Port | |
| - 1 x D-Sub Port | |
| - 1 x HDMI Port | |
| - 1 x DisplayPort 1.2 | |
| - 1 x Optical SPDIF Out Port | |
| - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
| - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
| - 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)* | |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone | |
| *Please note that the USB3_34 do not support USB Keyboard & mouse S3/S4/S5 Wakeup. | |
| Software and UEFI | Software |
| - ASRock A-Tuning | |
| - ASRock Polychrome SYNC | |
| - ASRock XFast LAN | |
| UEFI | |
| - ASRock EZ Mode | |
| - ASRock Full HD UEFI | |
| - ASRock My Favorites in UEFI | |
| - ASRock Instant Flash | |
| - ASRock Internet Flash | |
| - ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| - Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS | Microsoft® Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
