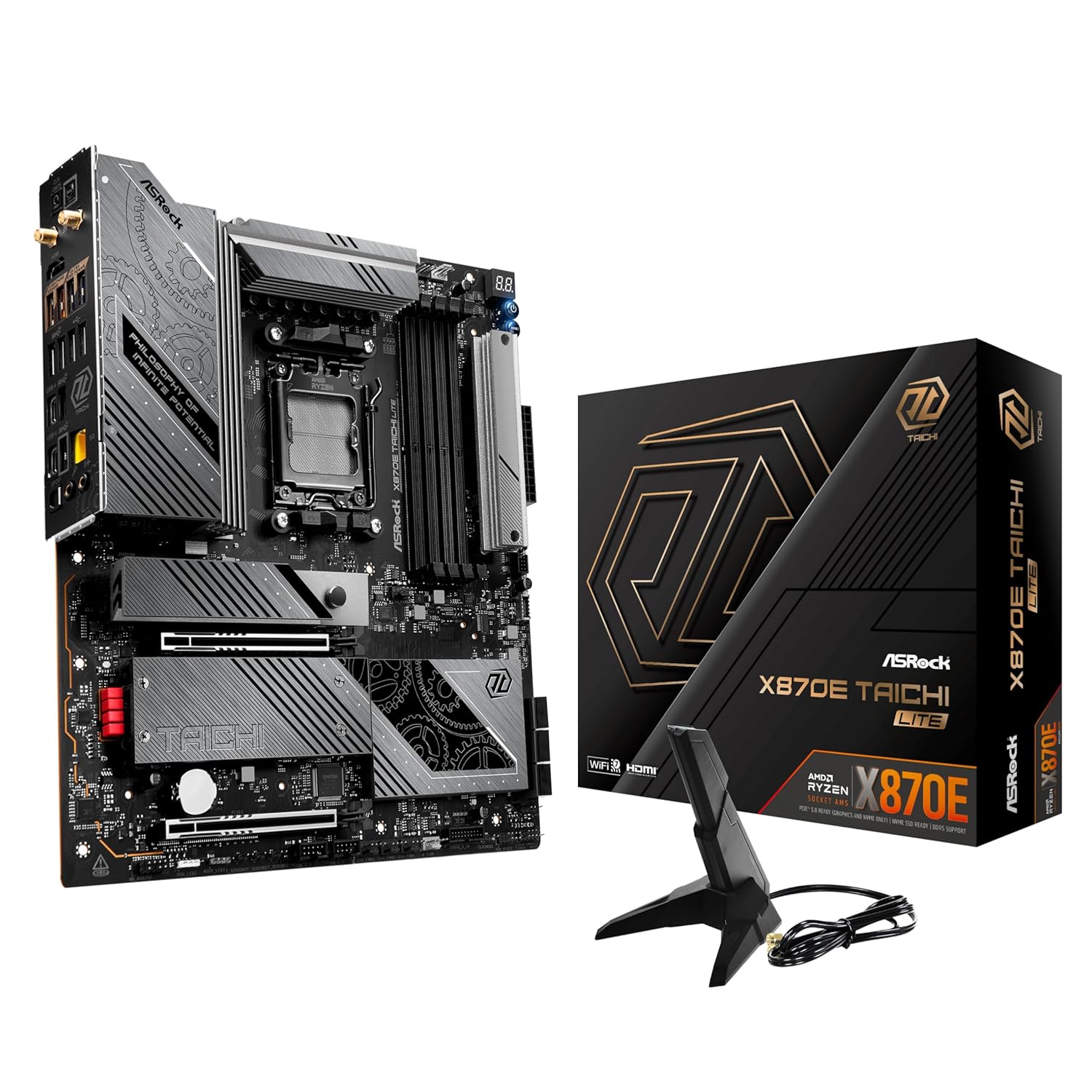

Experience peak performance and versatility with the ASROCK X870E TAICHI LITE MOTHERBOARD, engineered for AMD AM5 Socket Ryzen 9000, 8000, and 7000 Series Processors. This motherboard combines a robust power design with advanced connectivity and high-speed memory support, offering a solid foundation for any demanding build.
Key Features at a Glance
- Supports AMD AM5 Socket Ryzen 9000, 8000, and 7000 Series Processors.
- Features a 24+2+1 Phase Power Design with 110A SPS.
- Equipped with 4 x DDR5 DIMMs, supporting up to 8200+ (OC) Dual Channel memory.
- Offers high-speed storage with 1 Blazing M.2 (PCIe Gen5x4) and 3 Hyper M.2 (PCIe Gen4x4).
- Integrated 5G LAN and 802.11be Wi-Fi 7 + Bluetooth for advanced networking.
- Provides versatile connectivity including 2 PCIe 5.0 x16 slots and multiple USB4 Type-C ports.
Enhanced Power Delivery and Stability
The ASROCK X870E TAICHI LITE MOTHERBOARD features a 24+2+1 Phase Power Design with 110A SPS, ensuring stable power delivery for even the most demanding AMD AM5 Ryzen processors. Equipped with exclusive 20K Black capacitors, this design extends component lifespan to 20,000 hours and provides higher capacitance, lower ripple, and more stable output current for superior system performance and reliability.
Next-Generation Connectivity and Speed
Stay ahead with integrated 5G LAN and the latest 802.11be Wi-Fi 7, offering higher data throughput and lower latency for a smooth, real-time interactive experience. USB4 Type-C ports provide lightning-fast 40Gbps data transfer, while dual PCIe 5.0 x16 slots and multiple M.2 slots ensure ample bandwidth for high-performance graphics and storage solutions.
Optimized DDR5 Memory Performance
Built with high-quality materials and designed for stability, this motherboard fully supports DDR5 XMP and EXPO profiles. Enthusiasts can easily unlock boosted DDR5 memory overclocking performance, allowing you to maximize your system's potential with pre-tested profiles.
Technical Specifications
| Model Name | X870E Taichi Lite |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors - Supports ASRock Hyper BCLK Engine |
| Chipset | - AMD X870E |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Audio | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Rear Outputs) - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
| LAN | - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 |
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
| Slots |
CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 6 x SATA3 6.0 Gb/s Connectors |
| RAID |
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 3 x USB 3.2 Gen2 Type-A (Rear) - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | - 3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |

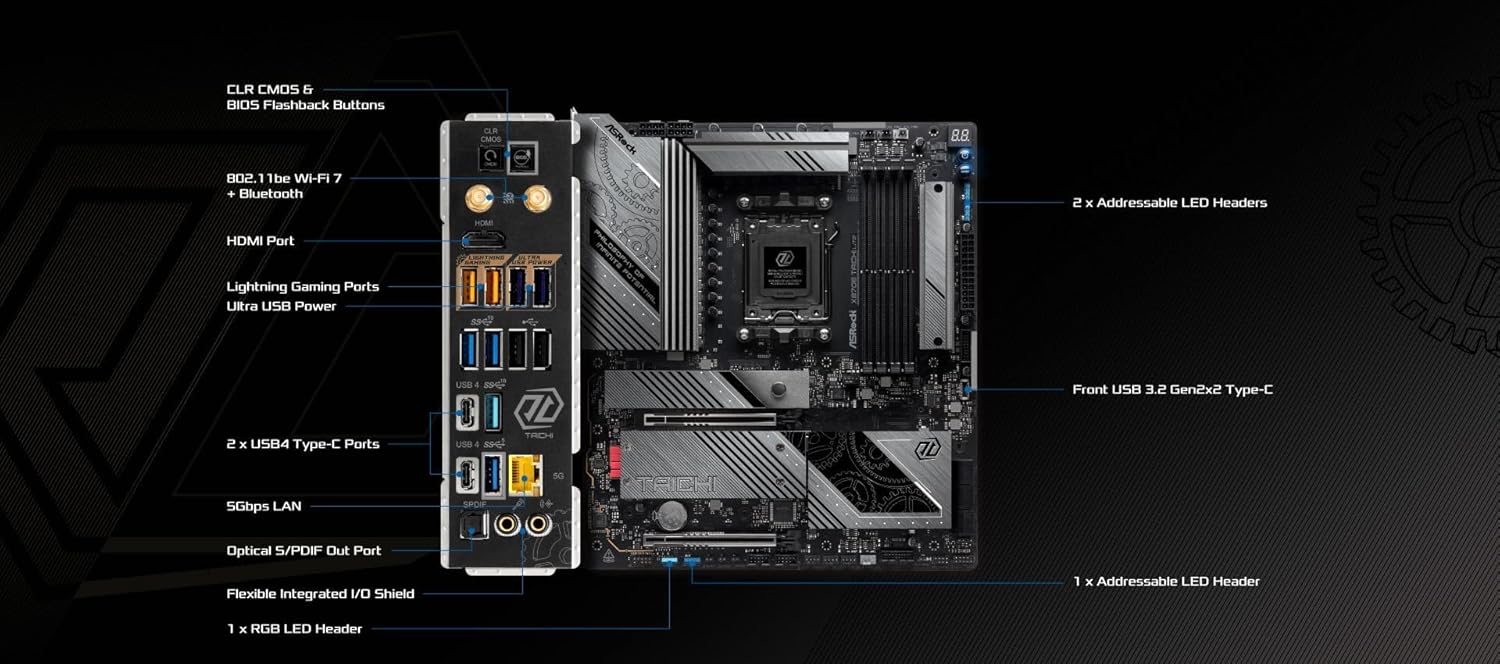

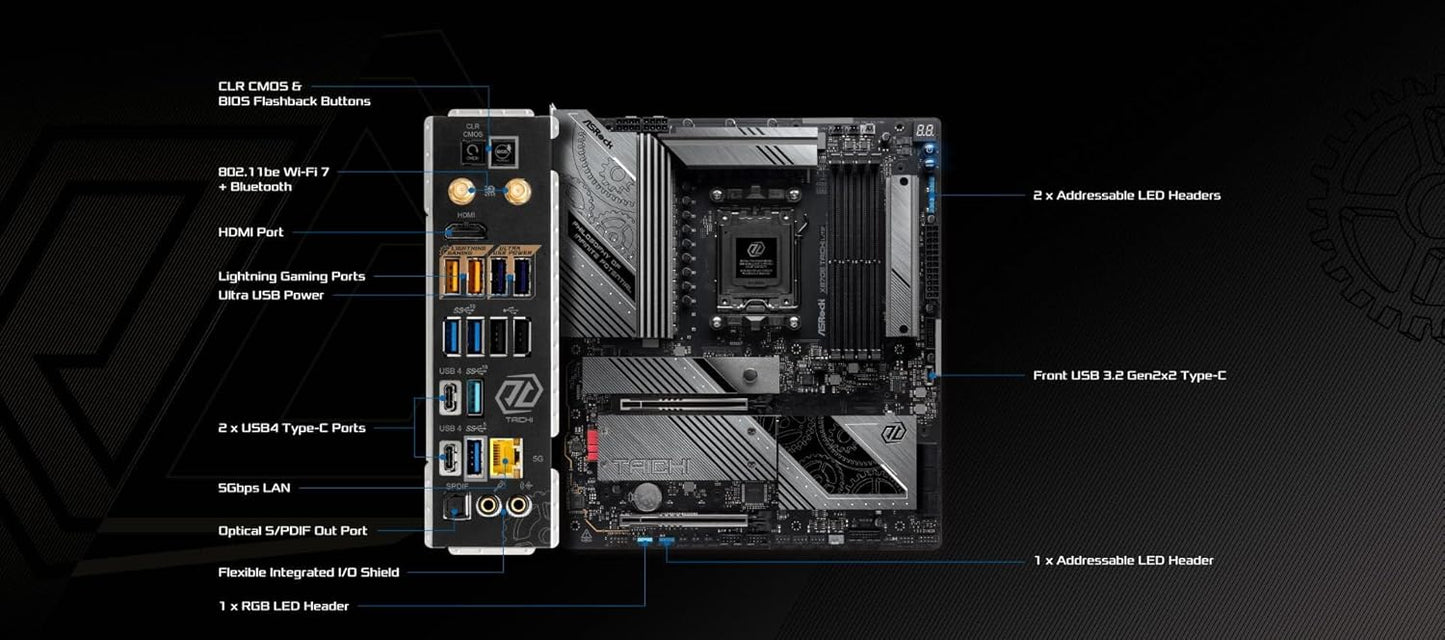

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |

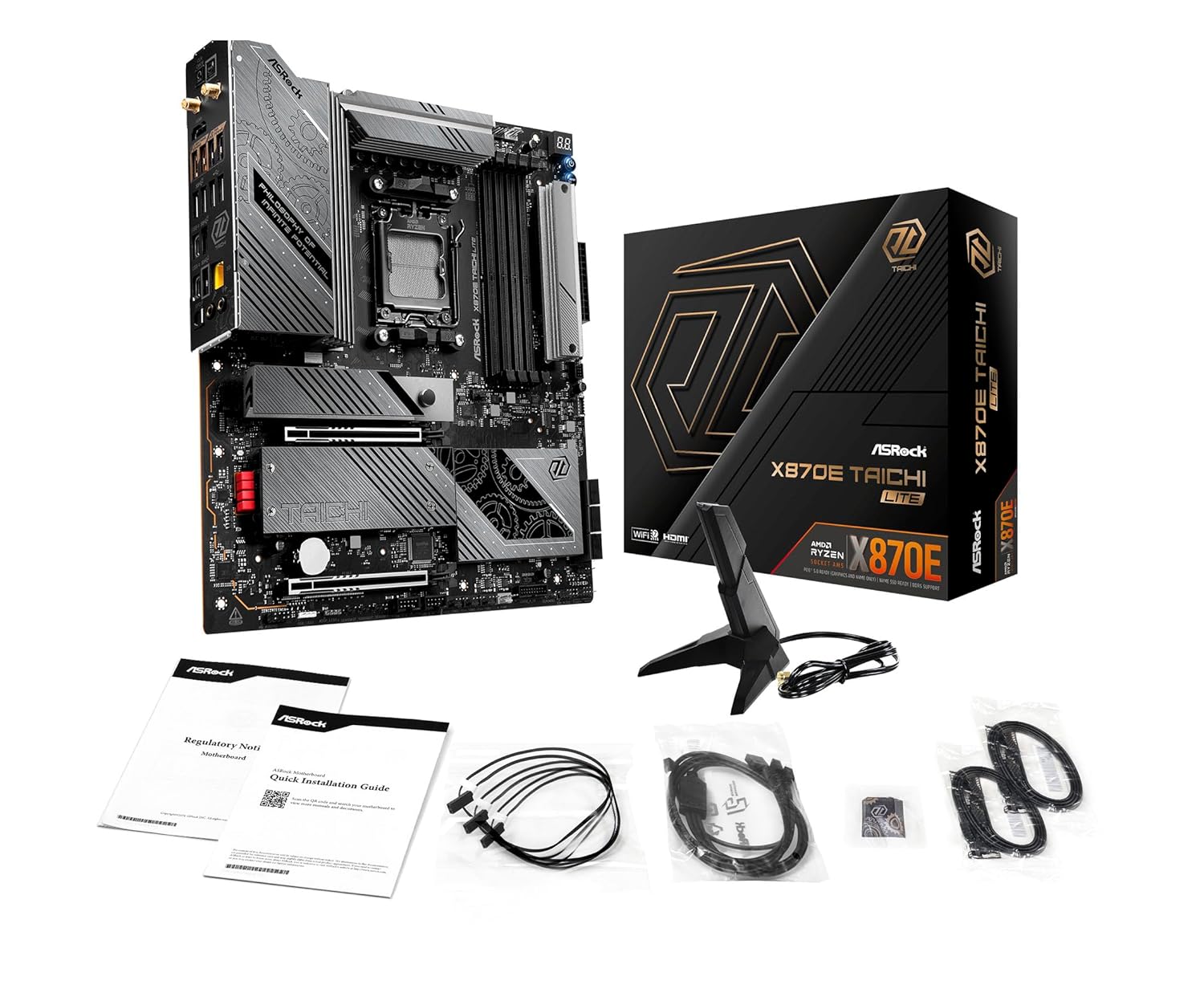

| Accessories | - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 3 x Thermistor Cables |

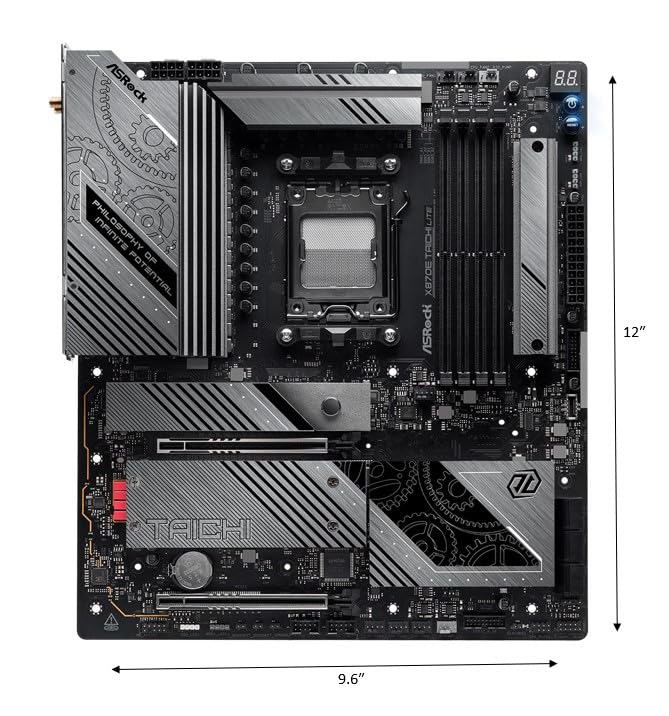

| Form Factor | - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm - 8 Layer PCB - 2oz Copper PCB |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Frequently Asked Questions
Q: What processors are supported by the ASROCK X870E TAICHI LITE MOTHERBOARD?
A: It supports AMD AM5 Socket Ryzen 9000, 8000, and 7000 Series Processors.
Q: What are the key features of the 20K Black capacitor used in this motherboard?
A: The 20K Black capacitor extends lifespan to 20,000 hours, increases capacitance to 1000uF, and provides higher capacitance, lower ripple, more stable output current, and better system stability.
Q: What networking capabilities does the ASROCK X870E TAICHI LITE MOTHERBOARD offer?
A: It includes integrated 5G LAN, 802.11be Wi-Fi 7, and Bluetooth, providing high data throughput and low latency for advanced connectivity.
