ASROCK X870E NOVA WIFI AM5 AMD X870E

Name: ASROCK X870E NOVA WIFI AM5 AMD X870E
Brand: Asrock
SKU: 1090865
Price: 34894.00 INR
Availability: InStock

Rs. 34,894.00 Rs. 49,500.00

Product variants

Hurry, only 10 items left in stock!

Rs. 34,894.00 Rs. 49,500.00

Elevate your system's performance with the ASROCK X870E NOVA WIFI AM5 AMD X870E motherboard. Designed to support advanced computing needs, this motherboard integrates robust power delivery and extensive storage options for a powerful and reliable foundation.

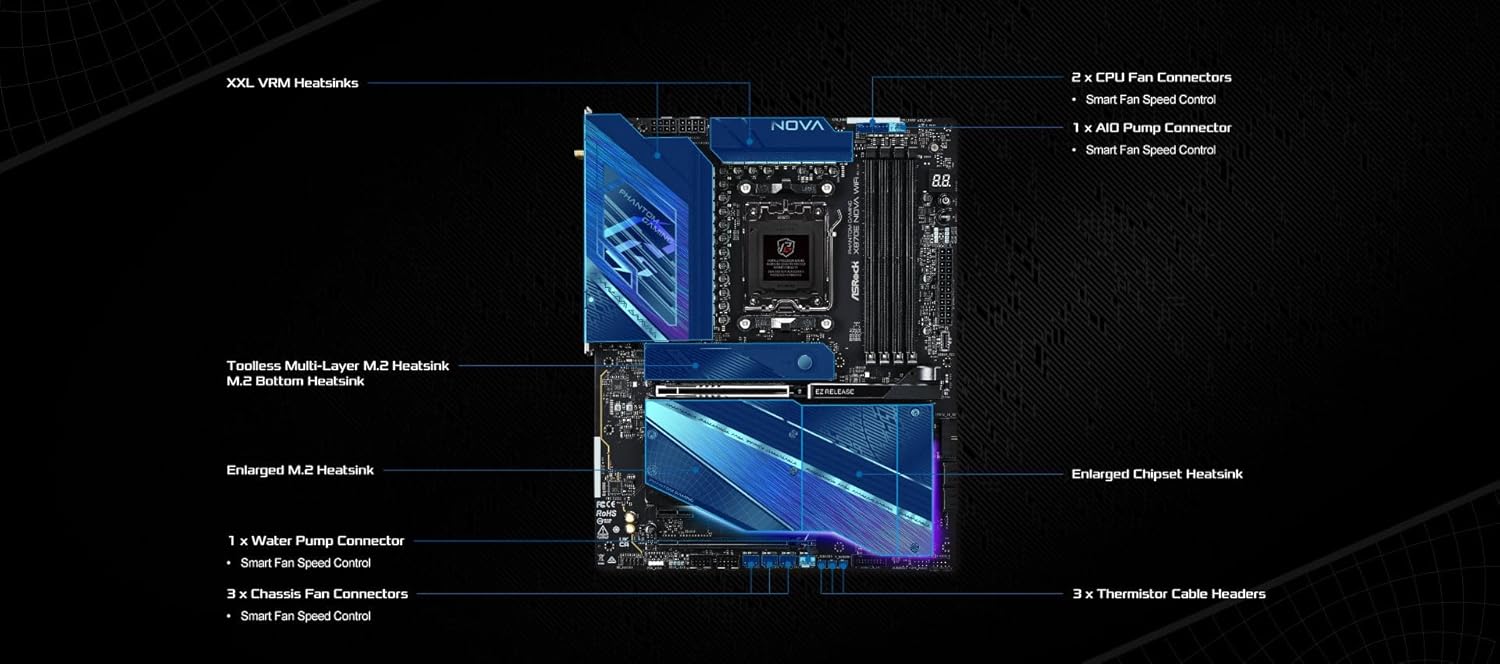

Key Features at a Glance

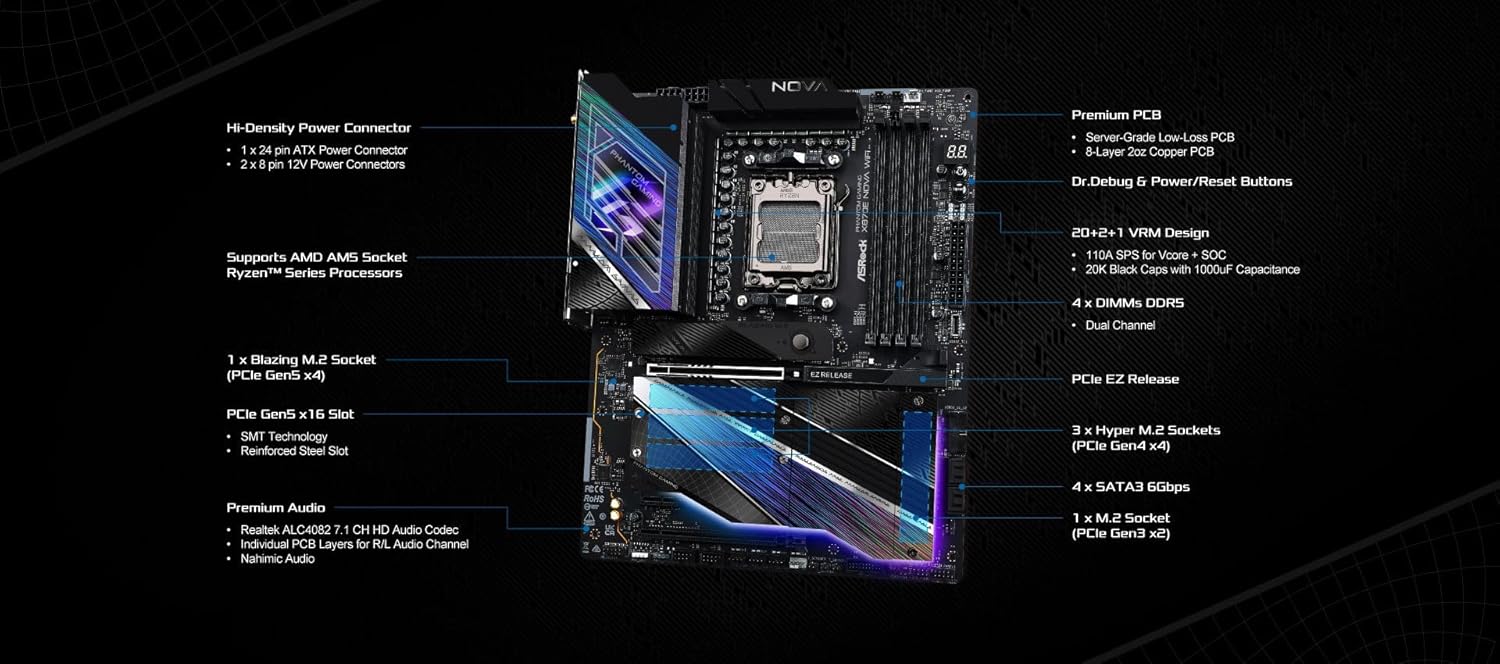

20+2+1 Power Phase Design
Premium 5 M.2 Sockets
EZ Release Design
Dual USB4 Type-C
Toolless Multi-Layer M.2 Heatsink
Optimized 5Gbps LAN

Robust Power Delivery

Experience stable and efficient power with the 20+2+1 power phase design. This configuration is built to provide consistent power to your CPU, supporting high-performance demands.

Advanced Storage Solutions

Utilize premium storage capabilities with five M.2 sockets. These slots offer ample space for high-speed NVMe SSDs, enhancing system responsiveness and load times. A toolless multi-layer M.2 heatsink ensures optimal thermal management for your drives.

Modern Connectivity

Connect peripherals with ease using dual USB4 Type-C ports, providing versatile and high-speed data transfer options. The motherboard also features optimized 5Gbps LAN for reliable and fast network connections.

Technical Specifications

Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	X870E
Memory Speed	up to 8200+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports DDR5 ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics Port	1 x HDMI,2 x USB4
Expansion Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Wireless Networking	WiFi 7,Bluetooth 5.4
Back Panel I/O Ports	2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
Internal I/O Connector	3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED

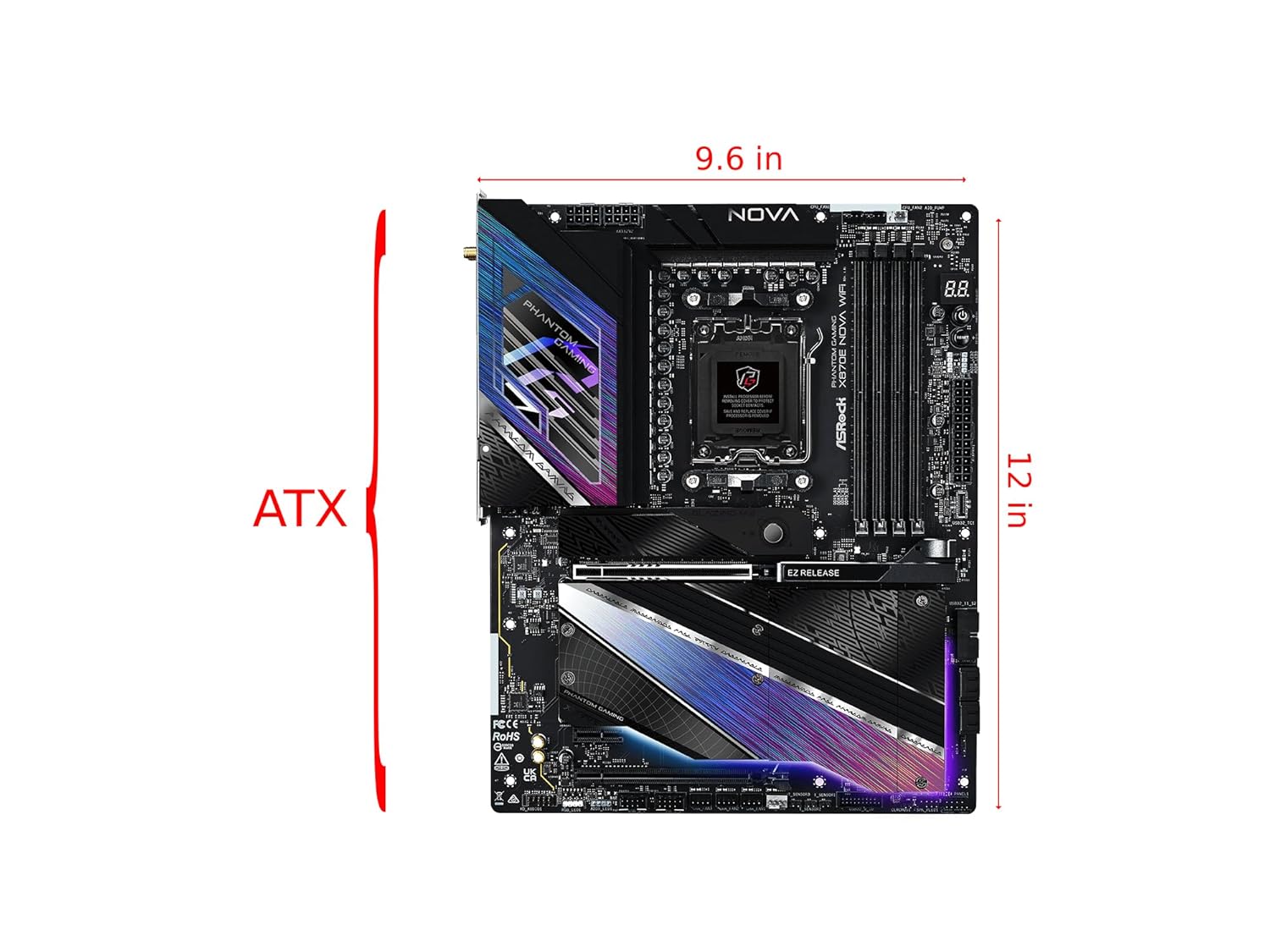

Form Factor	ATX
Warranty	3 Years

Frequently Asked Questions

Q: What kind of power phase design does the ASROCK X870E NOVA WIFI motherboard feature?

A: It features a 20+2+1 power phase design for stable power delivery.

Q: How many M.2 sockets are available on this motherboard?

A: The motherboard is equipped with premium 5 M.2 sockets for extensive storage options.

Q: Does the ASROCK X870E NOVA WIFI support USB4?

A: Yes, it includes dual USB4 Type-C ports for versatile, high-speed connectivity.
