| CPU |
– Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors – Supports AMD Socket sTR5 – Supports ASRock Hyper BCLK Engine |
|---|---|
| Chipset | AMD WRX90 |
| Memory |
Eight Channel DDR5 Memory Technology – 8 x DDR5 DIMM Slots* – Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) – Max. capacity of system memory: 2TB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
Aspeed AST2600 BMC Controller – 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz* |
| Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| LAN |
2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) – Support PXE 1 x Dedicated IPMI (Realtek RTL8211F) |
| Slots |
CPU: – 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*- 15μ Gold Contact in VGA PCIe Slots |
| Storage |
CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode* – 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) – 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) – 4 x SATA3 6.0 Gb/s Connectors |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| USB |
CPU: – 2 x USB4 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 4 x USB 2.0 (Front) |
| Connector |
2 x Thermistor Cable Headers – 1 x Front VGA Header – 1 x COM Port Header – 1 x Power LED and Speaker Header – 1 x Intelligent Platform Management Bus Header – 1 x PSU SMBus Header – 1 x BMC SMBus Header – 1 x Auxiliary Panel Header – 2 x Addressable LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 3 pin ATX Power Connector***** – 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)******* – 1 x Right Angle Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 2 x SGPIO Headers – 1 x CPU HP-SMBus Connector – 1 x Non Maskable Interrupt Button Header – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED – 1 x Clear CMOS Button |

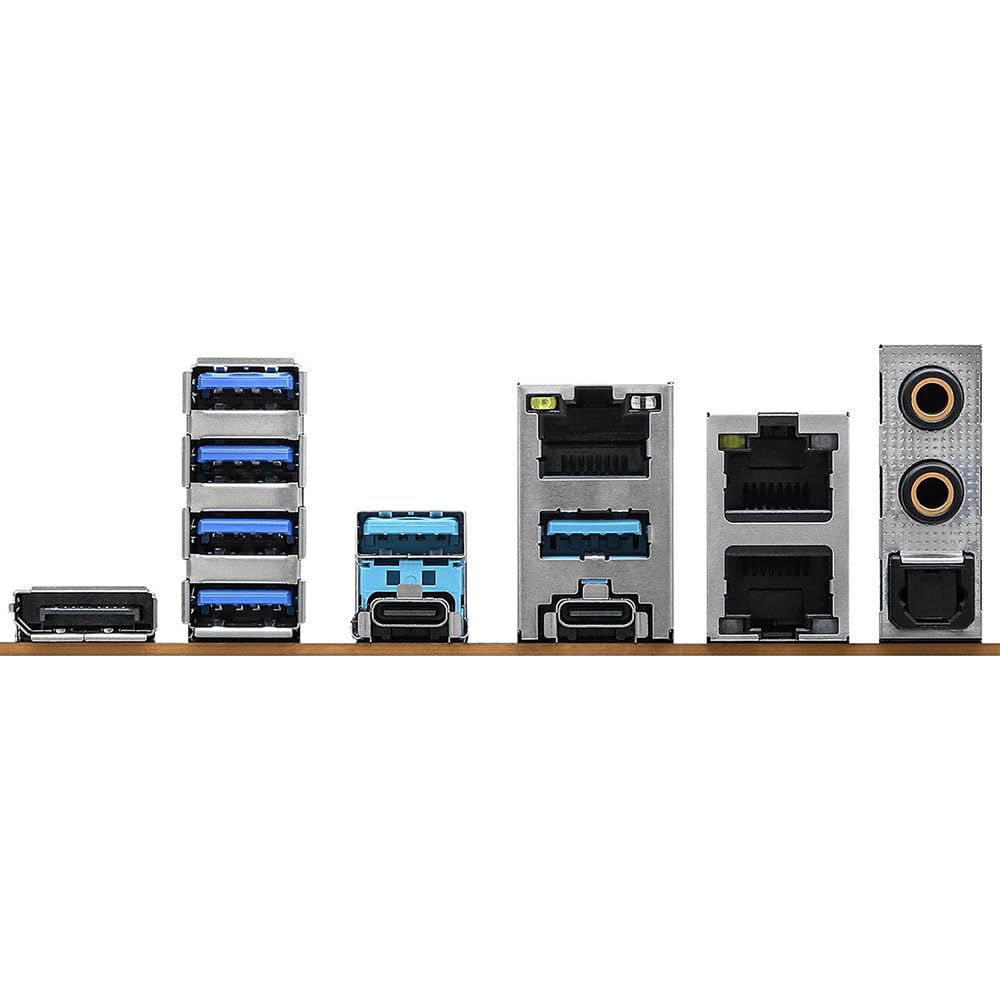

| Rear Panel I/O |
1 x DisplayPort 1.1a – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 2 x RJ-45 LAN Ports – 1 x RJ45 Dedicated IPMI LAN Port – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software & UEFI |
Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
| Accessories |
1 x User Manual – 1 x I/O Shield – 4 x SATA Data Cables – 2 x Thermistor Cables – 1 x Multi PSU Adaptor Cable – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Form Factor |
EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm – 14 Layer PCB – 2oz Copper PCB |
| OS | Microsoft Windows 11 64-bit |
| Warranty | 3 Years |
