| Platform | INTEL |
| Socket | LGA1151 |
| CPU Type | 7th Gen,6th Gen, Pentium |
| Chipset | Q270 |
| Memory Speed | up to 2400 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots |
| Expansion Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 12 x PCI Express 3.0 x1 Slots |

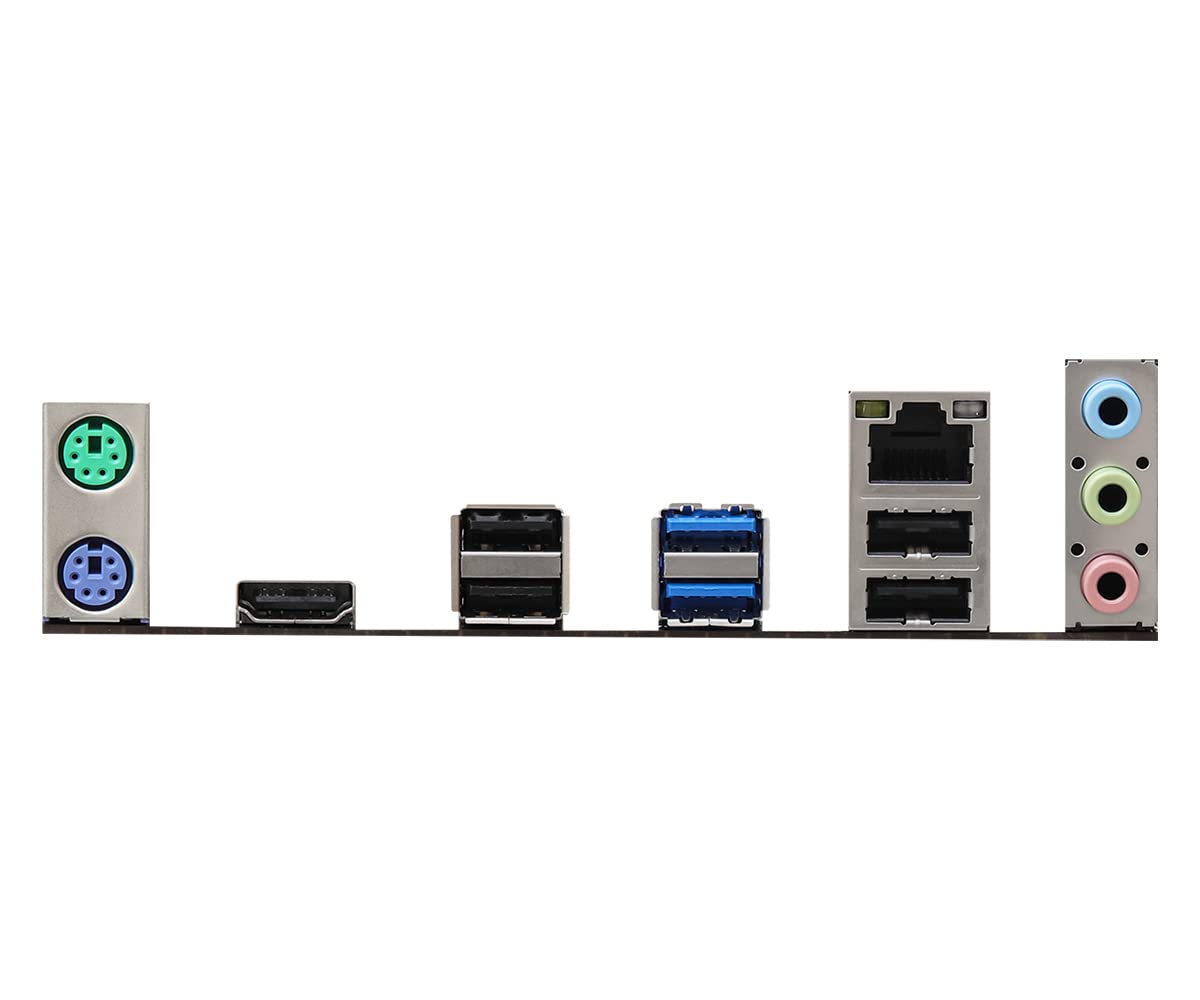

| Back Panel I/O Ports | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | - 1 x System Panel Header - 1 x TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 2 x PCIe Power Connectors - 1 x SATA Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Power Button - 1 x Reset Button |
| Form Factor | ATX |
| Warranty | 3 Years |
