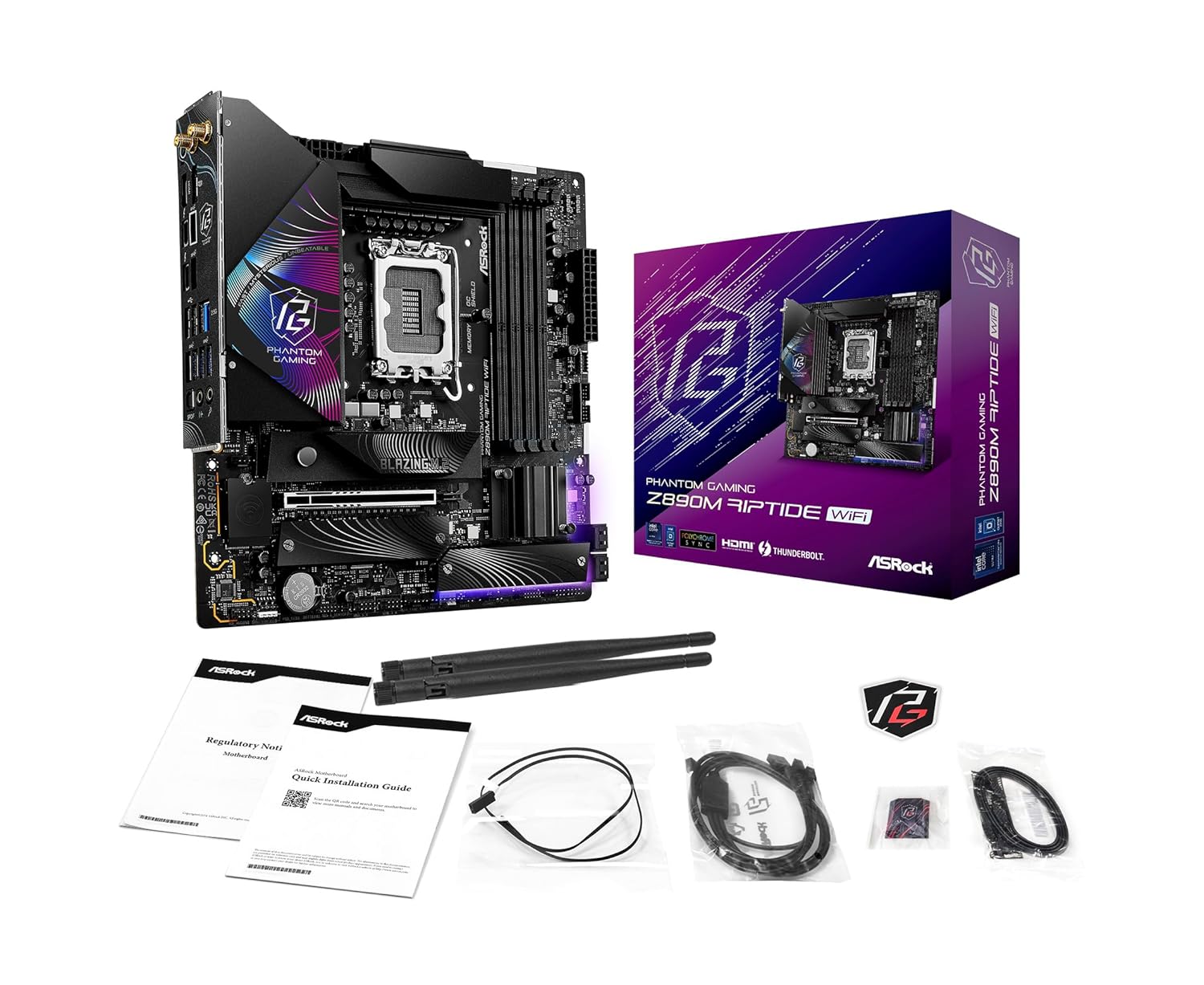

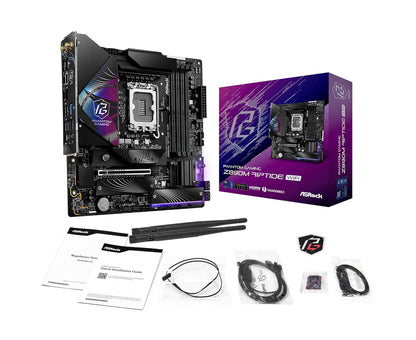

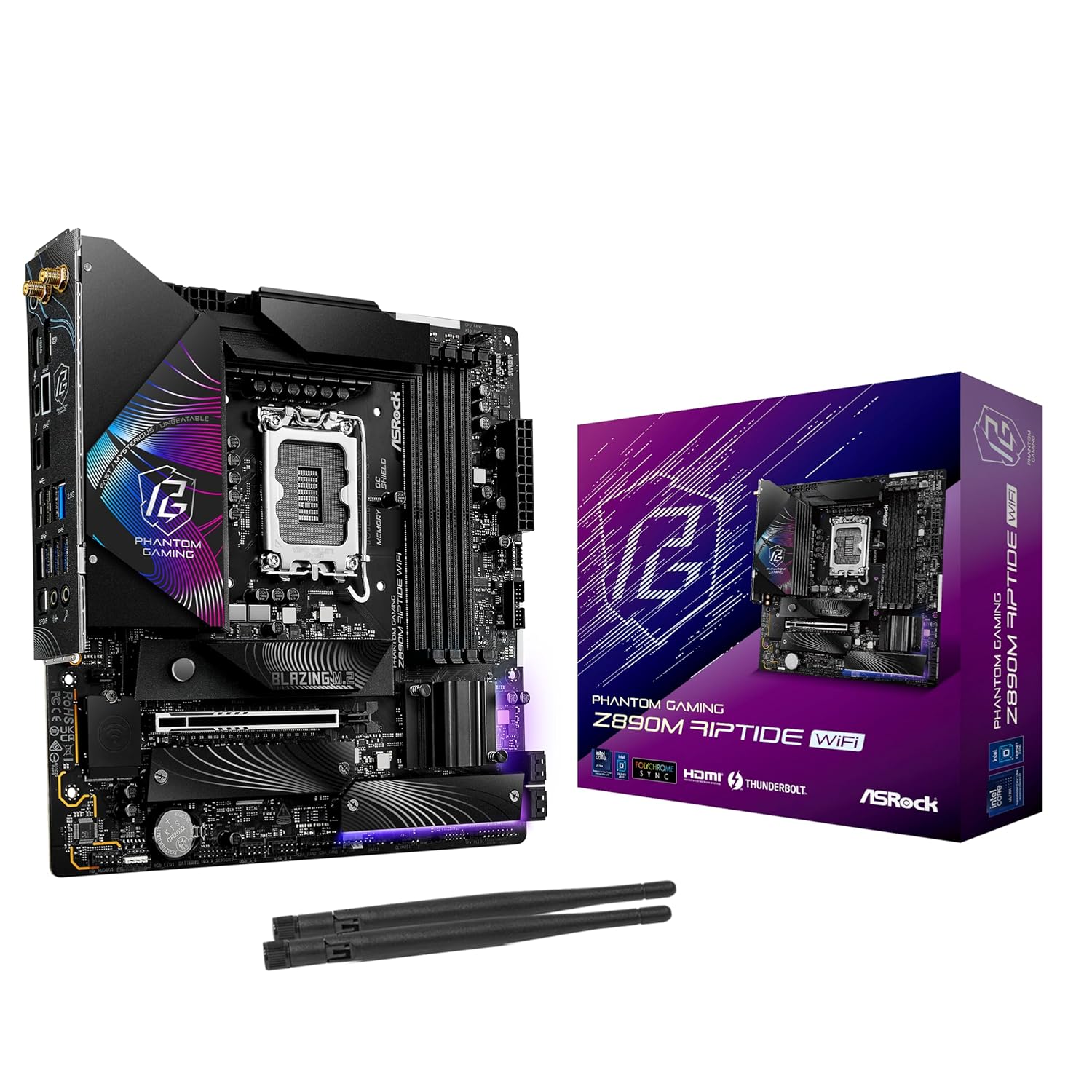

ASROCK PHANTOM GAMING Z890M RIPTIDE WIFI 6E DDR5 MICRO ATX MOTHERBOARD
ASROCK PHANTOM GAMING Z890M RIPTIDE WIFI 6E DDR5 MICRO ATX MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The ASROCK PHANTOM GAMING Z890M RIPTIDE WIFI 6E DDR5 MICRO ATX MOTHERBOARD is engineered for next-generation performance, offering robust support for Intel Core Ultra Processors (Series 2). This Micro ATX motherboard combines advanced power delivery, high-speed connectivity, and versatile expansion options to build a powerful and efficient system.

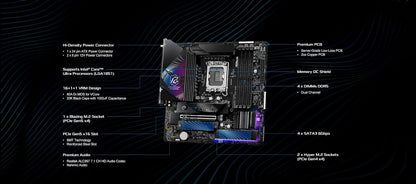

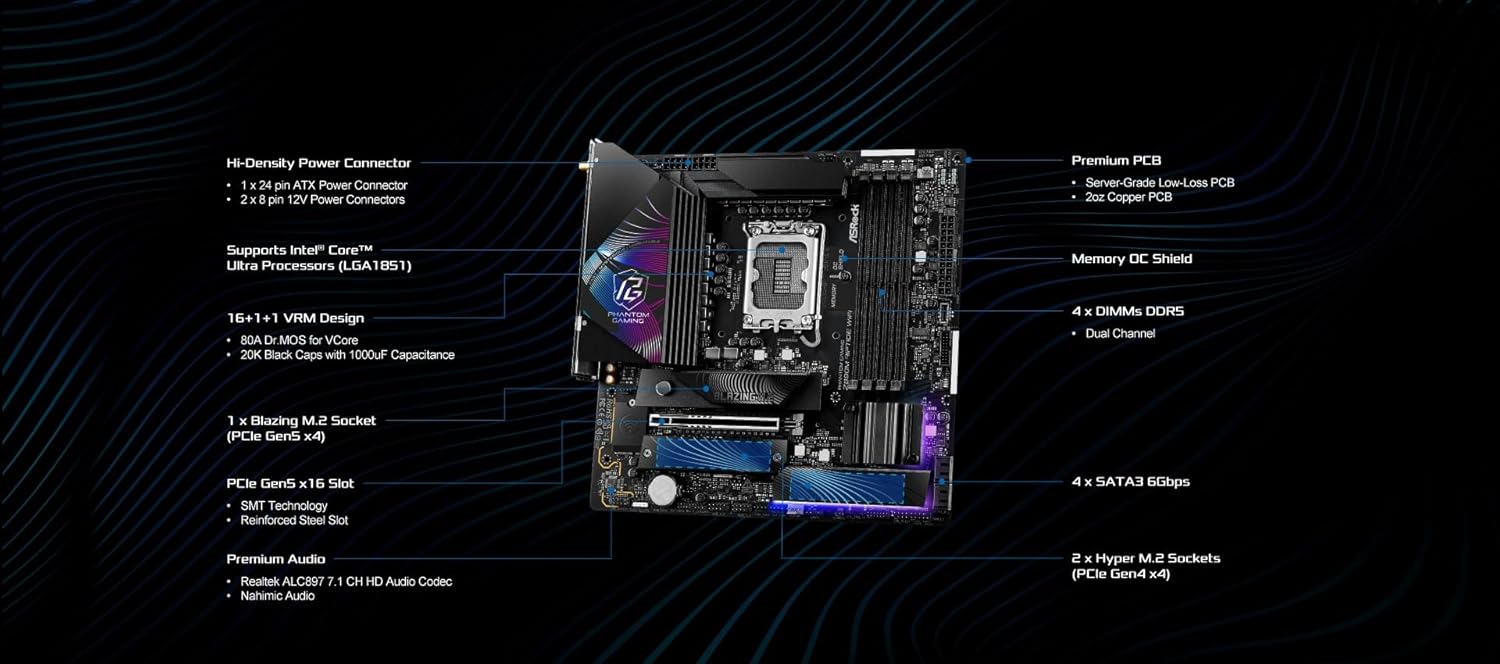

Key Features at a Glance
- Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 4 x DDR5 DIMMs with Dual Channel support, up to 9466+ (OC)
- 1 PCIe 5.0 x16 slot for high-performance graphics
- Integrated 802.11axe Wi-Fi 6E, Bluetooth, and Killer 2.5G LAN
- Multiple storage options including Blazing M.2 (PCIe Gen5 x4)
- Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio
Next-Generation Processor Support
Equipped with the LGA1851 socket, the ASROCK PHANTOM GAMING Z890M RIPTIDE WIFI 6E DDR5 MICRO ATX MOTHERBOARD is ready to harness the power of Intel Core Ultra Processors (Series 2), providing a solid foundation for your cutting-edge system.
Blazing-Fast Memory & Storage
Experience unparalleled speed with 4 x DDR5 DIMMs supporting Dual Channel memory up to an impressive 9466+ (OC). Storage is equally advanced, featuring a Blazing M.2 (PCIe Gen5 x4) slot alongside Hyper M.2 options, ensuring rapid data access and system responsiveness.
Comprehensive Connectivity
Stay connected with integrated 802.11axe Wi-Fi 6E and Bluetooth for wireless convenience, complemented by a Killer 2.5G LAN for stable wired connections. This motherboard also offers a rich array of USB ports, including Thunderbolt 4 Type-C and USB 3.2 Gen2x2 Type-C, for all your peripheral needs.
Advanced Graphics & Audio Experience
Elevate your multimedia experience with a PCIe 5.0 x16 slot for high-end graphics cards and versatile graphics output options including HDMI, DisplayPort, and Thunderbolt 4 Type-C. Immerse yourself in superior sound quality thanks to the Realtek ALC1220 7.1 CH HD Audio Codec with Nahimic Audio.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9466+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | un-buffered memory Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Graphics Port | 1 x HDMI,1 x DisplayPort,2 x Intel Thunderbolt 4 |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. Supports NVMe SSD as boot disks |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| Internal I/O Connector | 1 x Thermistor Cable Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 2 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

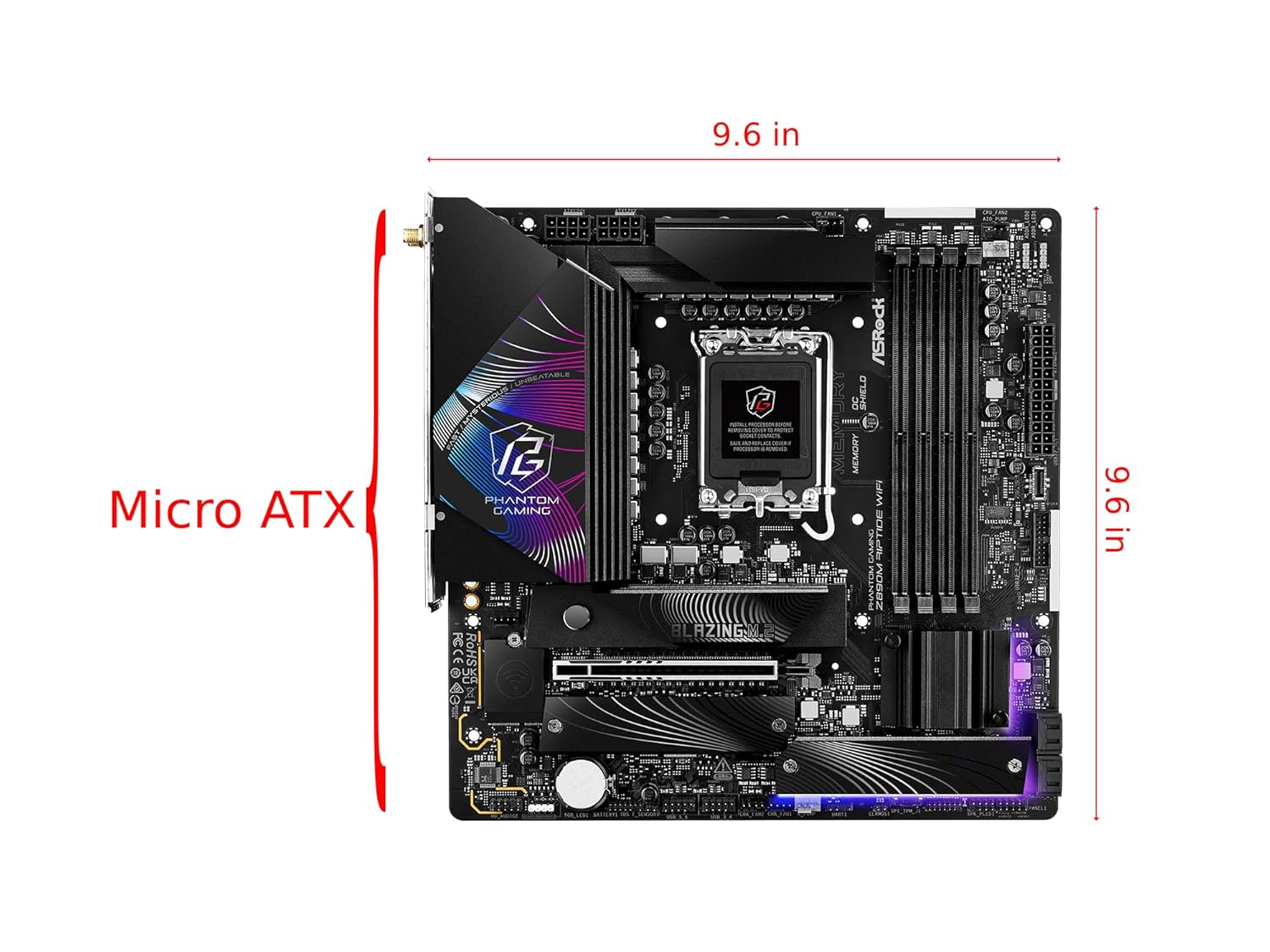

| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are supported by this motherboard?
A: The ASROCK PHANTOM GAMING Z890M RIPTIDE WIFI 6E DDR5 MICRO ATX MOTHERBOARD supports Intel Core Ultra Processors (Series 2) with the LGA1851 socket.
Q: What type of memory does this motherboard use?
A: This motherboard supports 4 x DDR5 DIMMs in Dual Channel configuration, allowing for memory speeds up to 9466+ (OC).
Q: Does this motherboard have Wi-Fi connectivity?
A: Yes, it features integrated 802.11axe Wi-Fi 6E along with Bluetooth for comprehensive wireless connectivity.
