Unleash the full potential of your next-gen build with the ASROCK INTEL CORE ULTRA Z890 NOVA WIFI 7 ATX MOTHERBOARD. Designed for the latest Intel Core Ultra Processors (Series 2) on the LGA1851 socket, this ATX motherboard offers robust power delivery, advanced connectivity, and extensive expansion options for high-performance computing.
Key Features at a Glance
- Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 20+1+2+1+1 Power Phase with 110A SPS for VCore
- 4 x DDR5 DIMMs, supporting Dual Channel up to 9600+ (OC)
- Multiple PCIe 5.0 x16 and PCIe 4.0 x16 slots for expansion
- Integrated 802.11be Wi-Fi 7 and Bluetooth connectivity
- Comprehensive USB 3.2 Gen2x2 and Thunderbolt 4 Type-C ports
Robust Power Delivery for Peak Performance
The ASROCK Z890 NOVA features a powerful 20+1+2+1+1 power phase design, including 110A Smart Power Stages (SPS) for the VCore. This ensures stable and efficient power delivery to your Intel Core Ultra Processor (Series 2), allowing it to maintain peak performance during demanding tasks.
Next-Generation Connectivity and Speed
Experience blazing-fast data transfer and networking with integrated 802.11be Wi-Fi 7 and Killer 2.5G LAN. The motherboard also offers a 5Gbps LAN port, multiple USB 3.2 Gen2x2 Type-C and Thunderbolt 4 Type-C ports, providing versatile options for connecting all your peripherals and storage devices.
Advanced Expansion and Storage Solutions
Equipped with 1 PCIe 5.0 x16 and 1 PCIe 4.0 x16 slot, along with a Blazing M.2 (PCIe Gen5 x4) and four Hyper M.2 (PCIe Gen4 x4) slots, this ATX motherboard is ready for the fastest graphics cards and NVMe SSDs. Additional storage is supported by 4 SATA3 ports and an M.2 slot compatible with both PCIe Gen4 x4 and SATA3.
Immersive Audio and Essential Features
Enjoy high-definition audio with the Realtek ALC4082 7.1 CH HD Audio Codec and Nahimic Audio, delivering a rich sound experience. Practical features like Memory OC Shield, BIOS Flashback, and durable 20K Caps with 1000uF Capacitance enhance usability and reliability.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9600+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | un-buffered memory Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Graphics Port | 1 x HDMI,2 x Intel Thunderbolt 4 |
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. If PCIE2 is occupied, M2_4 will be disabled. Supports NVMe SSD as boot disks |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_56 are Lightning Gaming Ports. USB32_34 support Ultra USB Power. |
| Internal I/O Connector | 3 x Thermistor Cable Headers 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

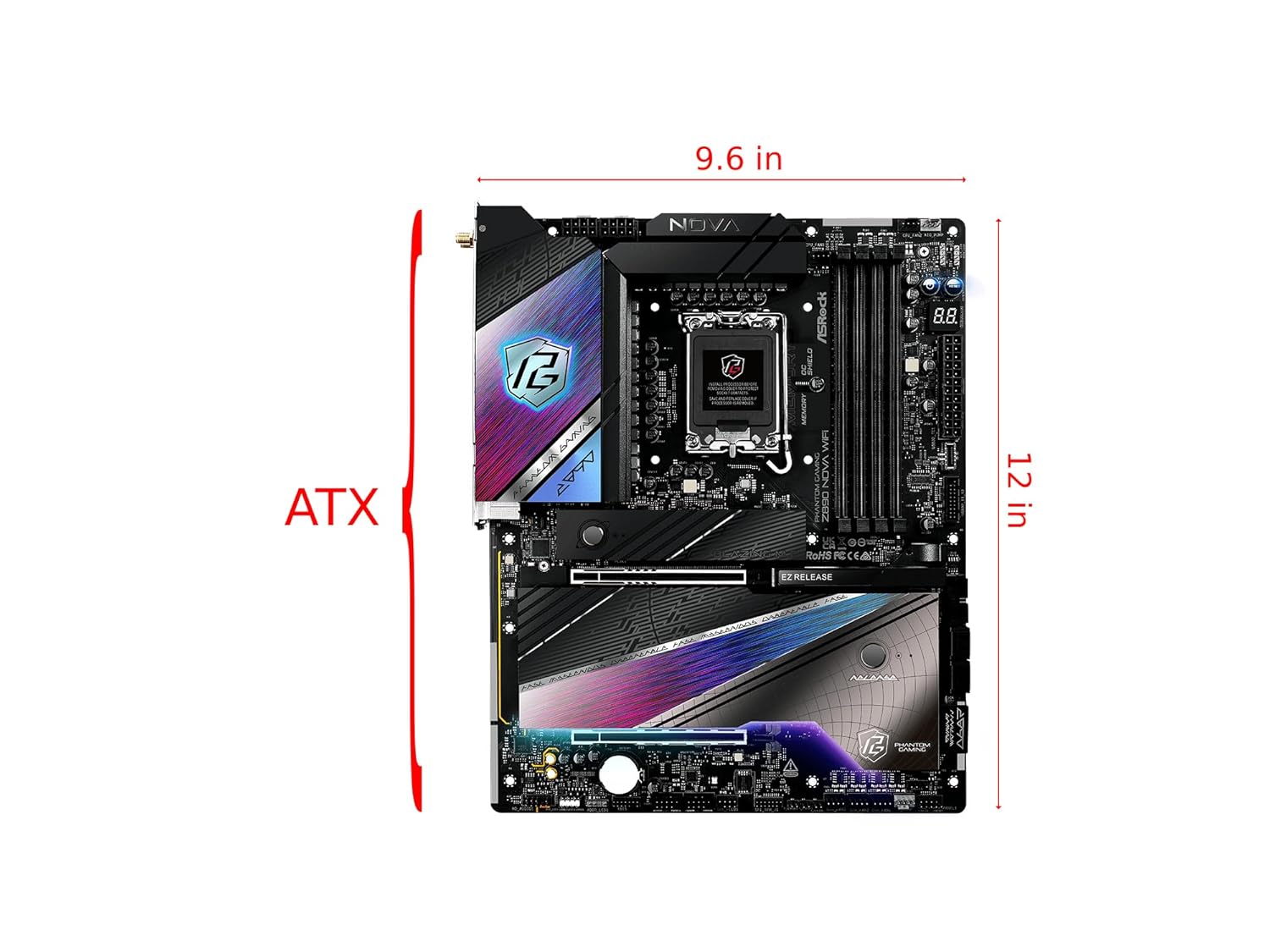

| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: This motherboard supports Intel Core Ultra Processors (Series 2) designed for the LGA1851 socket.
Q: What type of RAM does this motherboard support?
A: It supports 4 x DDR5 DIMMs in a Dual Channel configuration, with overclocked speeds up to 9600+ (OC).
Q: What kind of network connectivity does it offer?
A: The motherboard includes 802.11be Wi-Fi 7, Bluetooth, Killer 2.5G LAN, and an additional 5Gbps LAN port.
