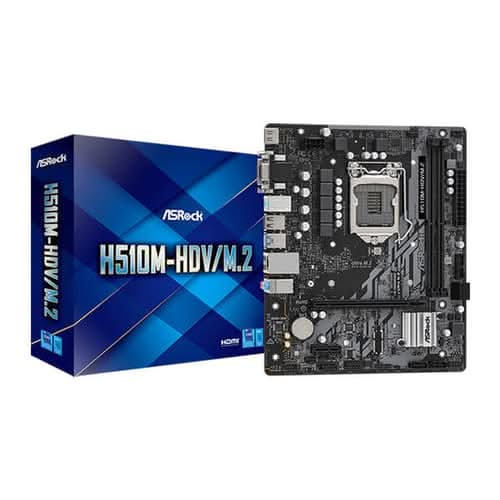

ASRock H510M-HDV/M.2 Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

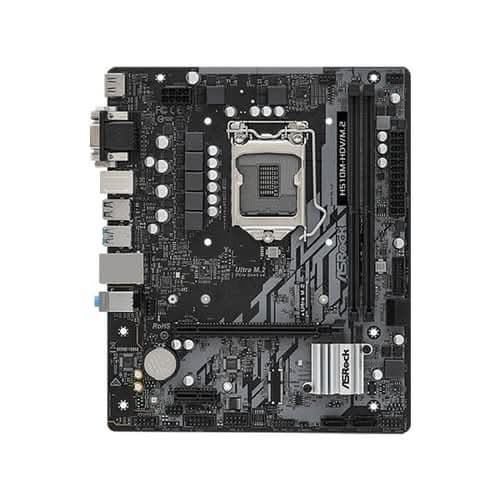

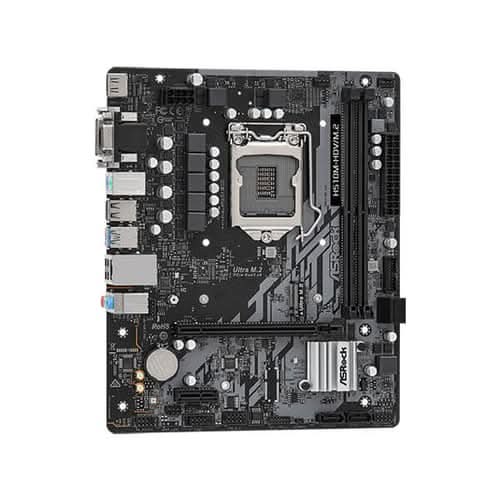

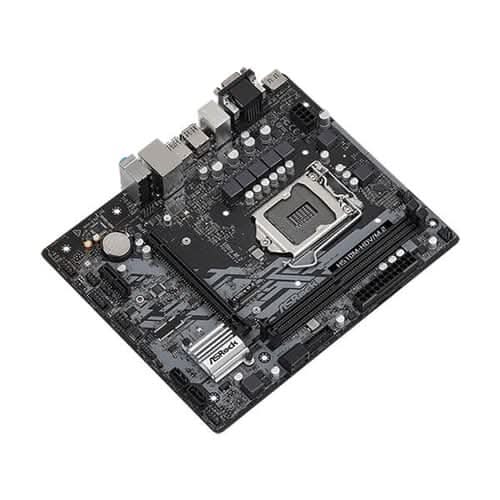

The ASRock H510M-HDV/M.2 Motherboard provides a reliable foundation for your PC build, supporting both 10th and 11th Generation Intel Core Processors. Designed to offer essential features, this motherboard integrates crucial connectivity and storage options for a balanced system.
Key Features at a Glance
- Supports 10th and 11th Gen Intel Core Processors
- DDR4 3200MHz (OC) Memory Support
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 Slots
- HDMI, DVI-D, and D-Sub Graphics Output
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3 and 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- Intel Gigabit LAN
Powerful Processor Compatibility
Designed to support both 10th and 11th Generation Intel Core Processors, this motherboard ensures you have a strong foundation for your system, ready for a range of computing tasks.
Versatile Connectivity Options
Equipped with multiple graphics output options including HDMI, DVI-D, and D-Sub, the ASRock H510M-HDV/M.2 offers flexibility for connecting various displays. Abundant USB 3.2 Gen1 and USB 2.0 ports ensure comprehensive connectivity for your peripherals.
High-Speed Storage and Networking
Benefit from fast data transfer with an Ultra M.2 slot supporting PCIe Gen3 x4 and SATA3, alongside four additional SATA3 ports for traditional drives. An integrated Intel Gigabit LAN provides stable and reliable network speeds for all your online activities.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1200 |
| CPU Type | 11th Gen, 10th Gen |
| Chipset | H510 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Graphics Port | HDMI, DVI-D, D-Sub |
| Expansion Slots | 11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core™ Processors - 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slot |
| Back Panel I/O Ports | - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which generations of Intel Core processors does this motherboard support?
A: The ASRock H510M-HDV/M.2 Motherboard supports both 10th Gen and 11th Gen Intel Core Processors.
Q: What type of memory is supported by this motherboard?
A: It supports DDR4 memory with speeds up to 3200MHz (OC).
Q: What are the available graphics output options?
A: The motherboard offers HDMI, DVI-D, and D-Sub graphics output options.
