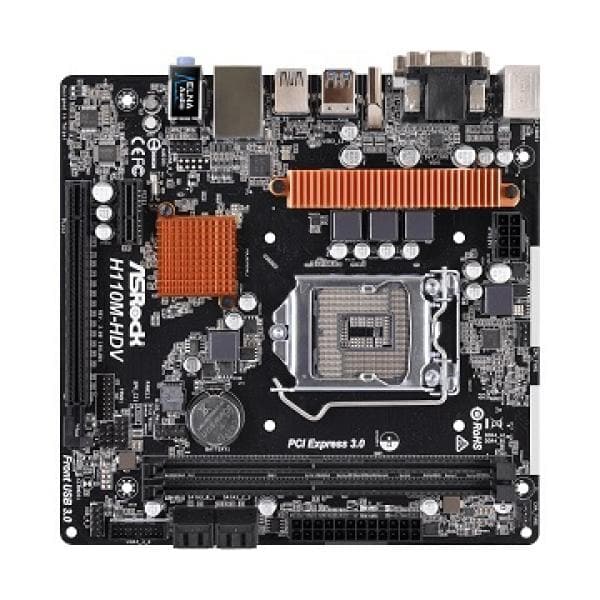

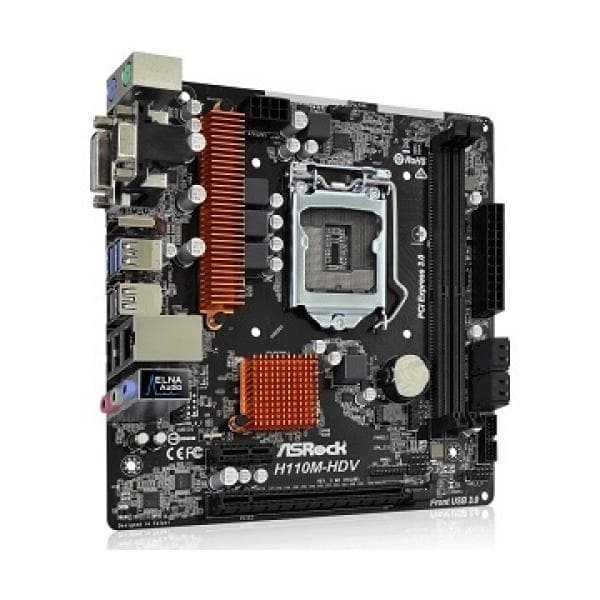

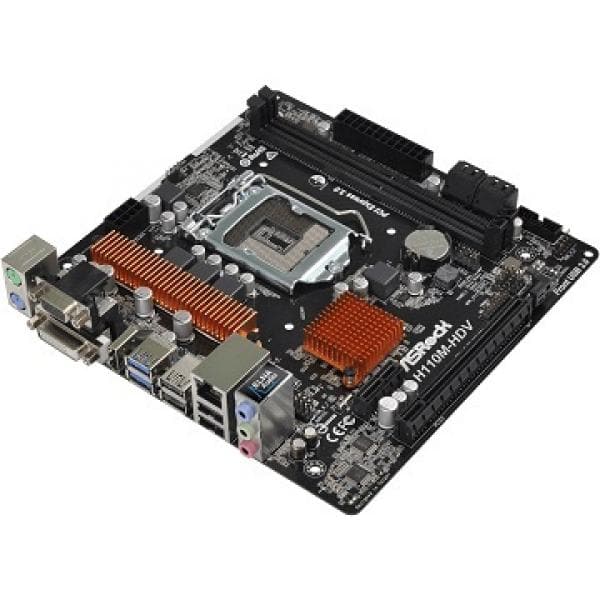

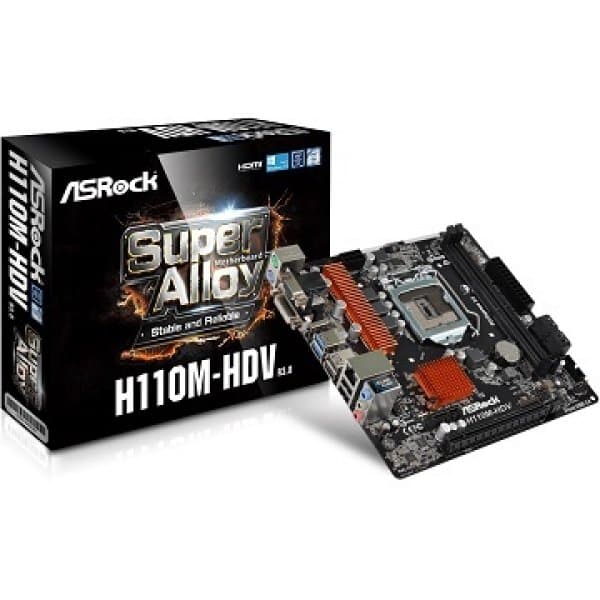

ASROCK H110M HDV R3.0 DDR4 Intel Motherboard
- Regular price
- Rs. 3,875.00
- Regular price
-
Rs. 6,450.00 - Sale price
- Rs. 3,875.00
- Unit price
- per
Couldn't load pickup availability
Size Guide
Have a question?
Notified by email when this product becomes available
Rs. 3,875.00
You may also like
- Description
- Product Reviews
- Privacy policy
- Tab heading
- Tab heading
Feature of ASROCK H110M HDV R3.0 DDR4
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2133
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output Options: DVI-D, D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
High Density Glass Fabric PCB
What you've never understood about your computer is that it is scared to death of water, H2O,
whatever you'd like to name it. And even though you do not see the water, actually there may
excessive moist in the air killing your motherboard silently and slowly. No, your motherboard d
when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily,
new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to
motherboard against electrical shorts caused by humidity.
UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system's current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme memory performance!
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMi port supports 4K resolution.
Solid Capacitor Design
ASROCK H110M HDV R3.0 DDR4 applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and
ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause
your system to malfunction immediately. ASRock Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these
unexpected voltage spikes.
Specifications of ASROCK H110M HDV R3.0 DDR4
| Unique Feature | ASRock Super Alloy |
| - High Density Glass Fabric PCB | |
| ASRock Full Spike Protection | |
| ASRock Live Update & APP Shop | |
| CPU | Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) |
| - 4 Power Phase design | |
| - Supports CPU up to 95W | |
| - Supports Intel® Turbo Boost 2.0 Technology | |
| Chipset | Intel® H110 |
| Memory | Dual Channel DDR4 Memory Technology |
| - 2 x DDR4 DIMM Slots | |
| - Supports DDR4 2133 non-ECC, un-buffered memory | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| - Max. capacity of system memory: 32GB* | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| BIOS | 64Mb AMI UEFI Legal BIOS with multilingual GUI support |
| - ACPI 5.0 Compliant wake up events | |
| - SMBIOS 2.7 Support | |
| - DRAM, PCH 1.0V Voltage Multi-adjustment | |
| Graphics | Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630 |
| - Pixel Shader 5.0, DirectX 12 | |
| - Max. shared memory 1024MB** | |
| - Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously | |
| - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz | |
| - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz | |
| - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | |
| - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) | |
| - Supports Accelerated Media Codecs: HEVC, VP8, VP9 | |
| - Supports HDCP with DVI-D and HDMI Ports | |
| - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports | |
| *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| **The size of maximum shared memory may vary from different operating systems. | |
| ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. | |
| ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* |
| - Supports Surge Protection (ASRock Full Spike Protection) | |
| - ELNA Audio Caps | |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| - Realtek RTL8111C/RTL8111H | |
| - Supports Wake-On-LAN | |
| - Supports Lightning/ESD Protection (ASRock Full Spike Protection) | |
| - Supports LAN Cable Detection | |
| - Supports PXE | |
| Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* |
| - 1 x PCI Express 2.0 x1 Slot | |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | 1 x TPM Header |
| - 1 x Chassis Intrusion and Speaker Header | |
| - 1 x CPU Fan Connector (4-pin) | |
| - 1 x Chassis Fan Connector (4-pin)* | |
| - 1 x 24 pin ATX Power Connector | |
| - 1 x 8 pin 12V Power Connector | |
| - 1 x Front Panel Audio Connector | |
| - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | |
| - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | |

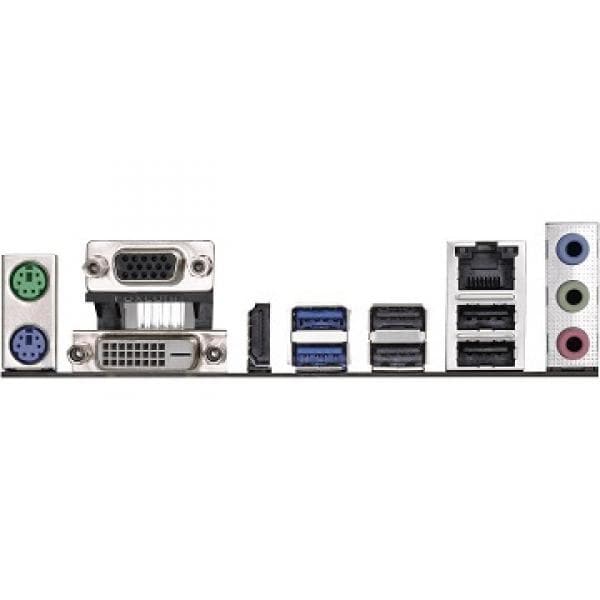

| Rear Panel I/O | 1 x PS/2 Mouse Port |
| - 1 x PS/2 Keyboard Port | |
| - 1 x D-Sub Port | |
| - 1 x DVI-D Port | |
| - 1 x HDMI Port | |
| - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* | |
| - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) | |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| - HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| - ASRock Disk Health Report | |
| - ASRock USB Key | |
| - ASRock APP Charger | |
| - ASRock XFast LAN | |
| - ASRock XFast RAM | |
| - ASRock Fast Boot (Fast Boot, Restart to UEFI) | |
| UEFI | |
| - ASRock EZ Mode | |
| - ASRock My Favorites in UEFI | |
| - ASRock Instant Flash | |
| - ASRock Internet Flash | |
| - ASRock Crashless BIOS | |
| - ASRock OMG (Online Management Guard) | |
| - ASRock UEFI Tech Service | |
| - ASRock Easy Driver Installer | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| - 2 x SATA Data Cables | |
| Hardware Monitor | CPU/Chassis temperature sensing |
| - CPU/Chassis Fan Tachometer | |
| - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) | |
| - CPU/Chassis Fan multi-speed control | |
| - CASE OPEN detection | |
| - Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore | |
| Form Factor | Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm |
| - Solid Capacitor design | |
| OS | - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* |
| Certifications | - FCC, CE |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
