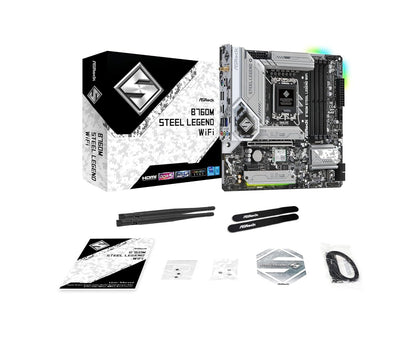

ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD
ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Experience robust performance and connectivity with the ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD. Designed to support the latest Intel processors and high-speed memory, this micro ATX motherboard provides a solid foundation for your next build, integrating advanced features for gaming and productivity.

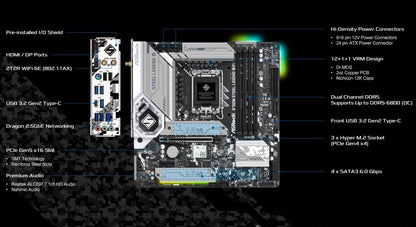

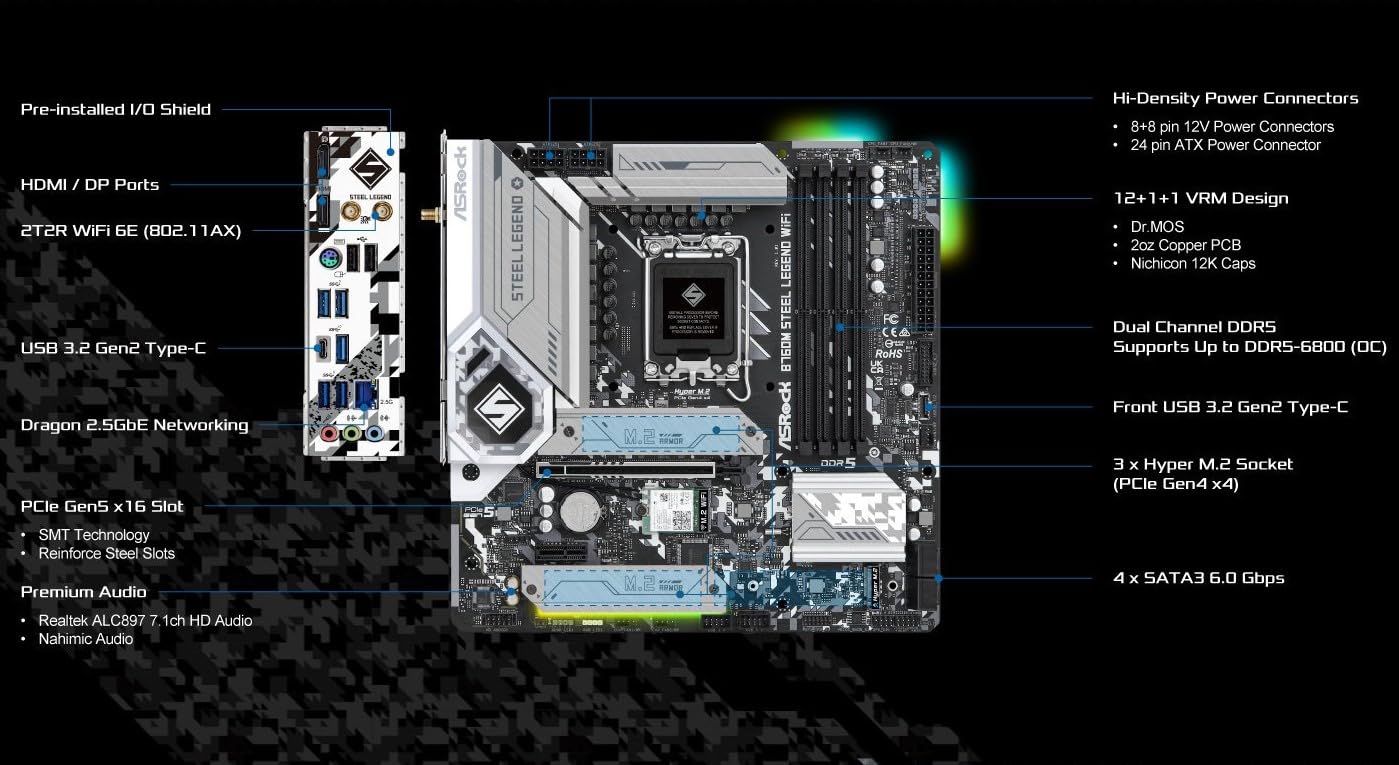

Key Features at a Glance
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700).
- DDR5 7200MHz (OC) Memory Support.
- Integrated Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3.
- Multiple storage options: 4 SATA3 and 3 Hyper M.2 (PCIe Gen4x4).
- Equipped with 12+1+1 Power Phase and Dr.MOS for VCore+GT.
- Diverse graphics output with HDMI, DisplayPort, and eDP.
Advanced Processor and Memory Support
The ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD is engineered for modern computing, offering support for 14th, 13th, and 12th Gen Intel Core Processors on the LGA1700 socket. Coupled with DDR5 memory support up to an overclocked 7200MHz, it provides a powerful platform for demanding tasks and applications.

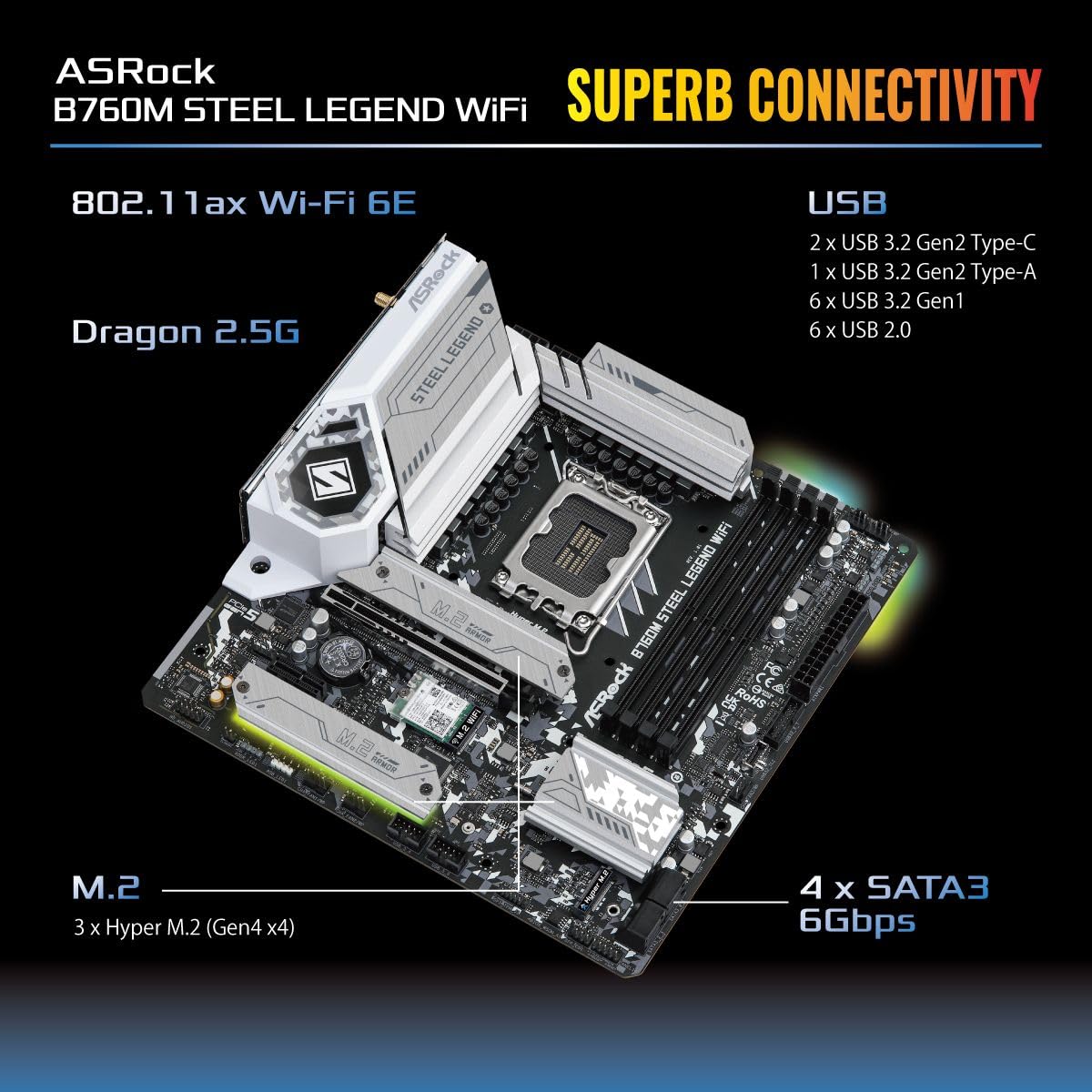

Comprehensive Connectivity Options
Stay connected with Dragon 2.5G LAN for high-speed wired networking, complemented by 802.11ax (WiFi 6E) and Bluetooth 5.3 for robust wireless capabilities. A wide array of USB ports, including 2 USB 3.2 Gen2 Type-C (one rear, one front) and 1 USB 3.2 Gen2 Type-A (rear), ensures versatile peripheral support.
Flexible Storage and Expansion
This motherboard offers extensive storage solutions with 4 SATA3 ports and 3 Hyper M.2 (PCIe Gen4x4) slots for ultra-fast NVMe SSDs. Expand your system further with a PCIe 5.0 x16 slot for the latest graphics cards and an additional PCIe 4.0 x1 slot for other expansion cards.
Immersive Audio and Visuals
Experience high-quality audio with the integrated Realtek ALC897 7.1 CH HD Audio Codec, enhanced by Nahimic Audio for an immersive sound experience. Multiple graphics output options, including HDMI, DisplayPort, and eDP, provide flexible display connections for your setup.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Graphics Port | 1 x eDP 1.4, 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |

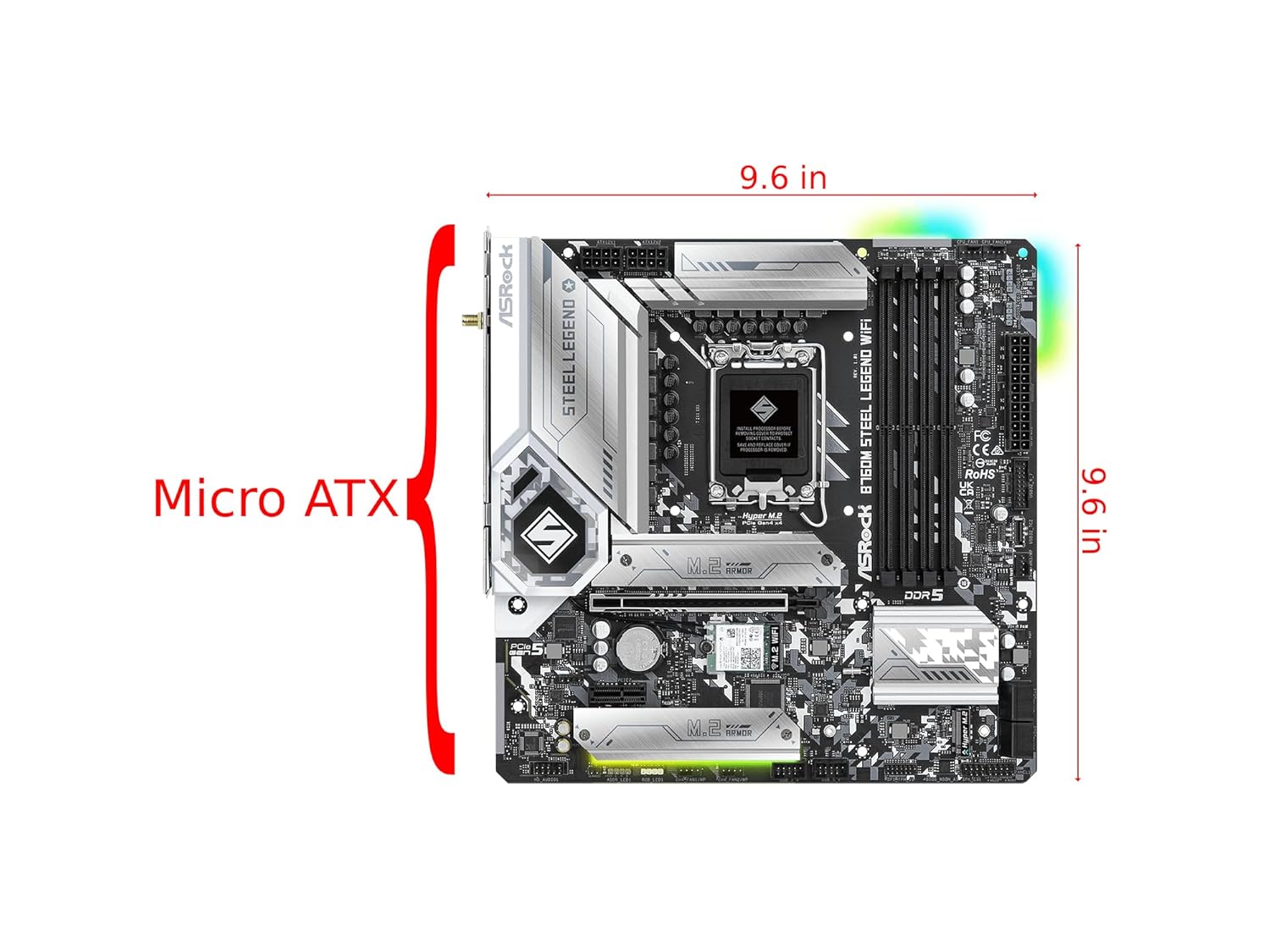

| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What Intel processors does the ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD support?
A: It supports 14th, 13th, and 12th Gen Intel Core Processors (LGA1700 socket).
Q: What type of memory is compatible with this motherboard?
A: This motherboard supports DDR5 memory, with overclocked speeds up to 7200MHz (OC).
Q: Does the ASROCK B760M STEEL LEGEND WIFI DDR5 MICRO ATX MOTHERBOARD have integrated Wi-Fi and Bluetooth?
A: Yes, it features 802.11ax (WiFi 6E) and Bluetooth 5.3 for wireless connectivity, alongside Dragon 2.5G LAN for wired connections.
