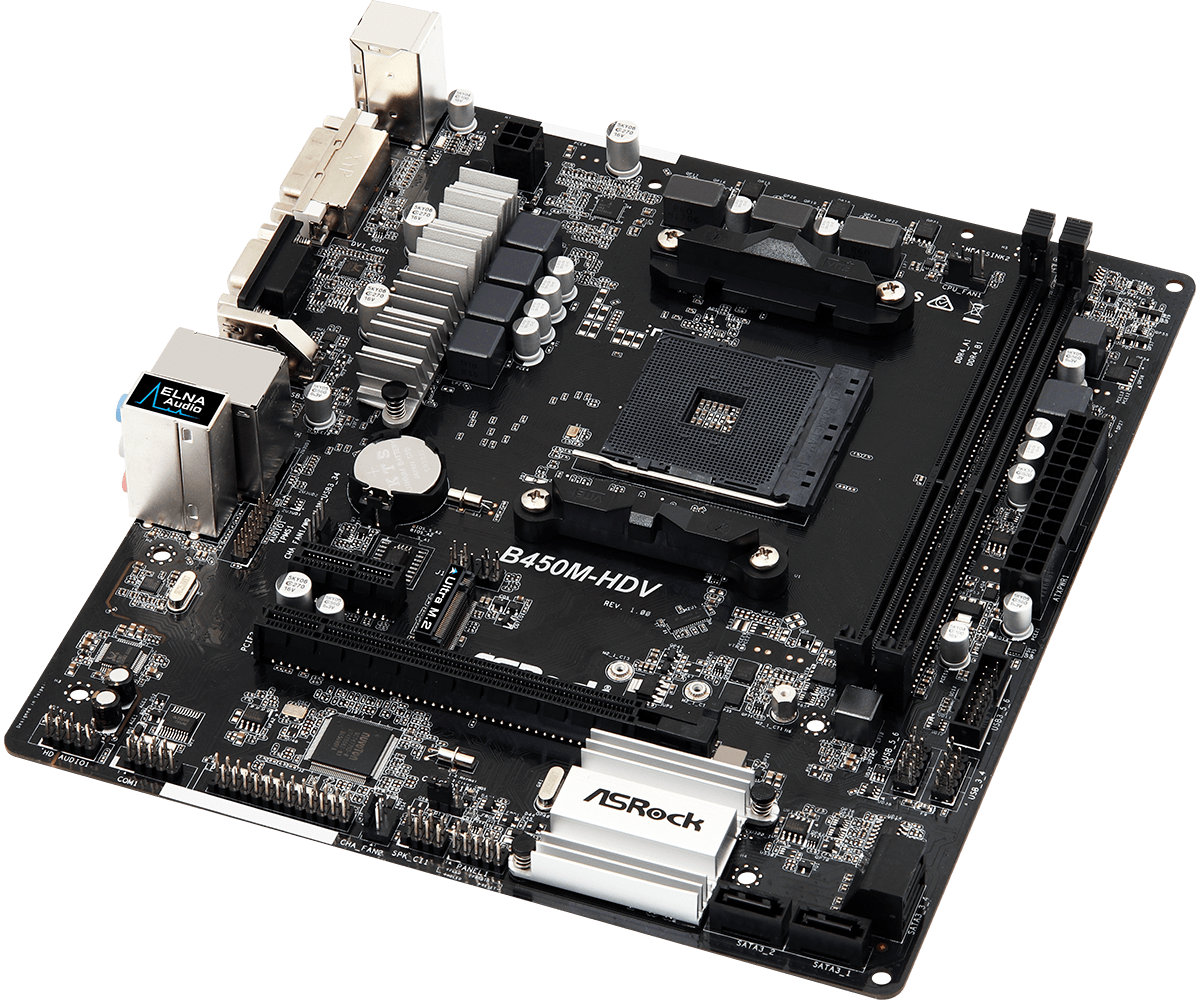

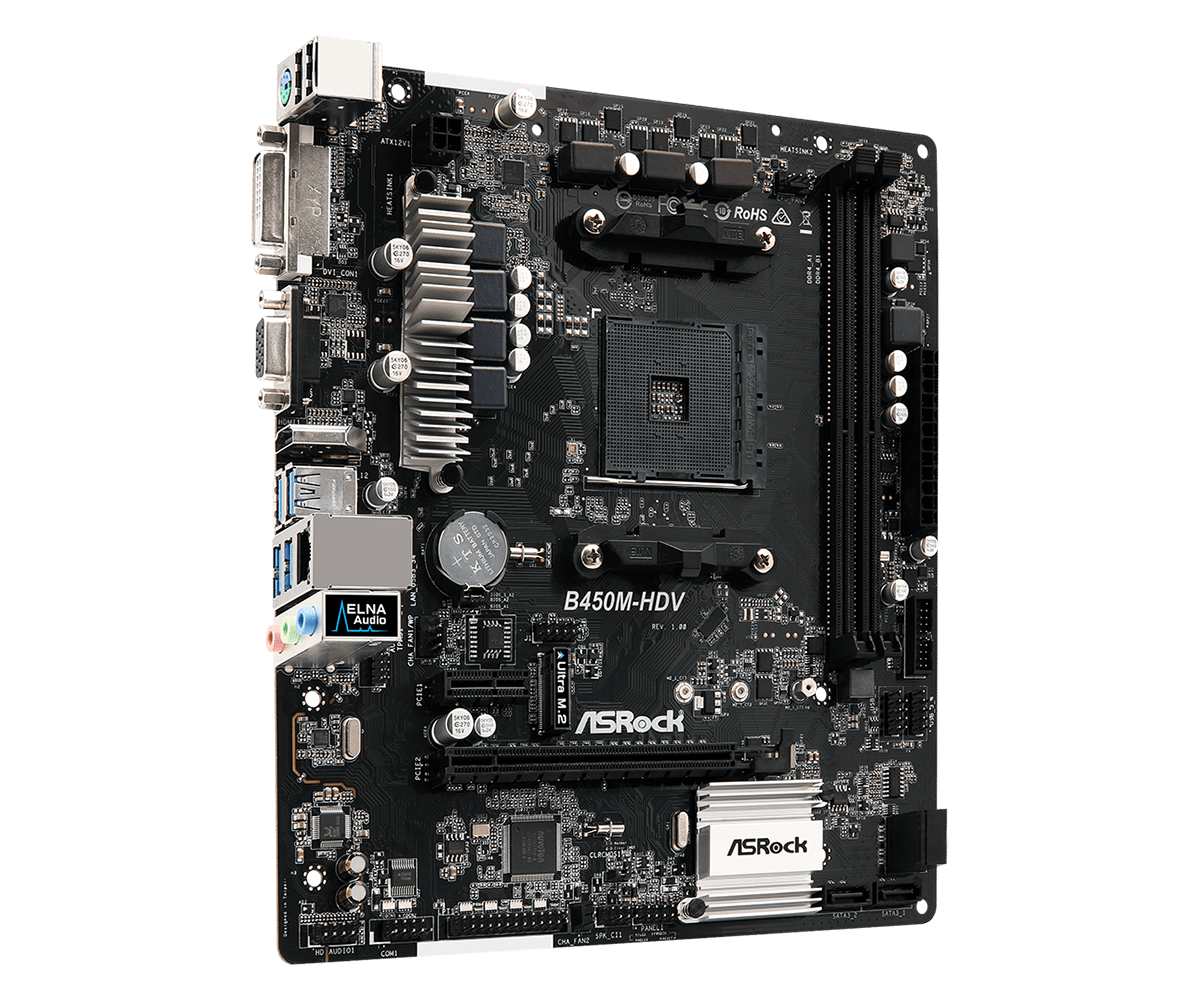

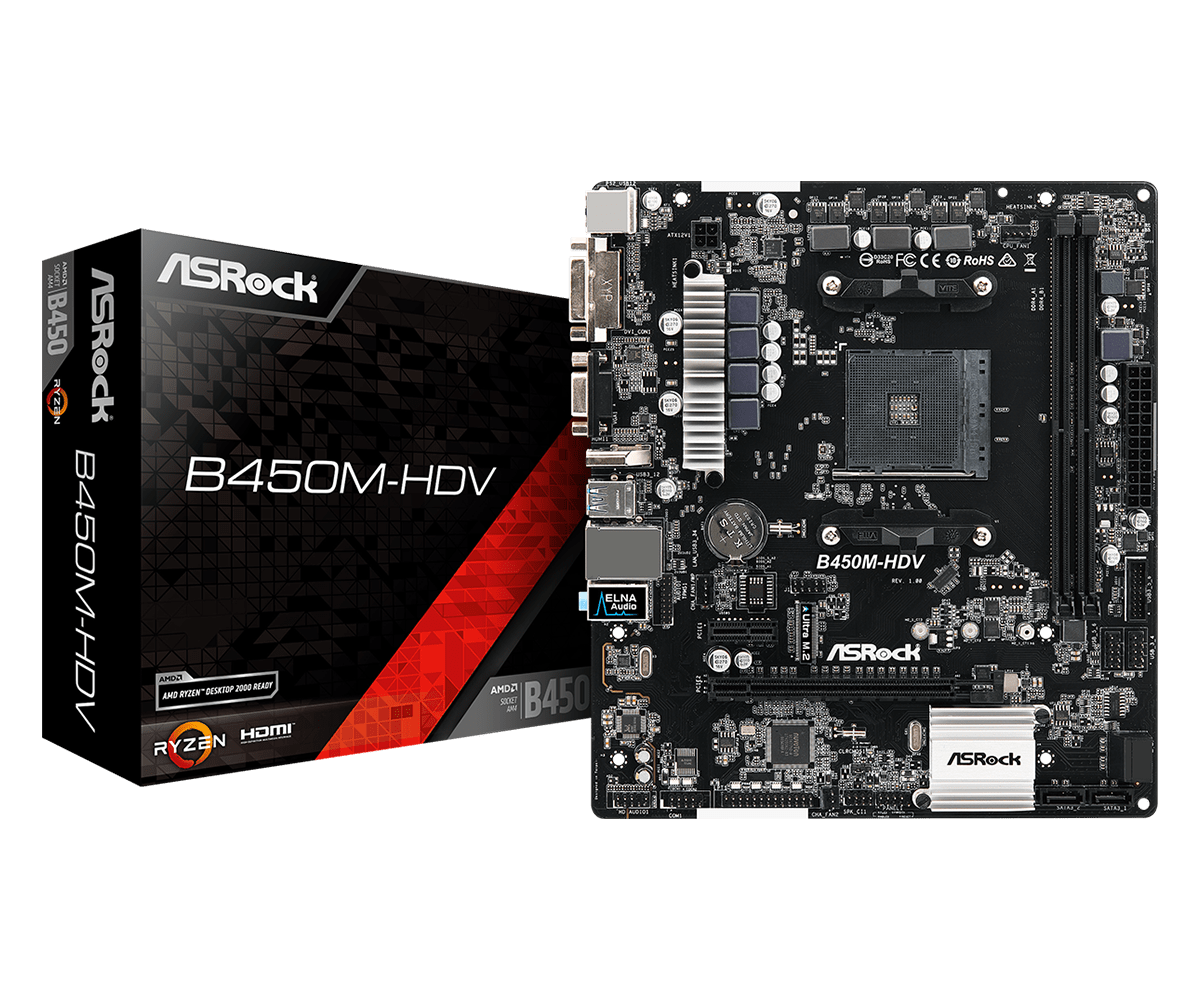

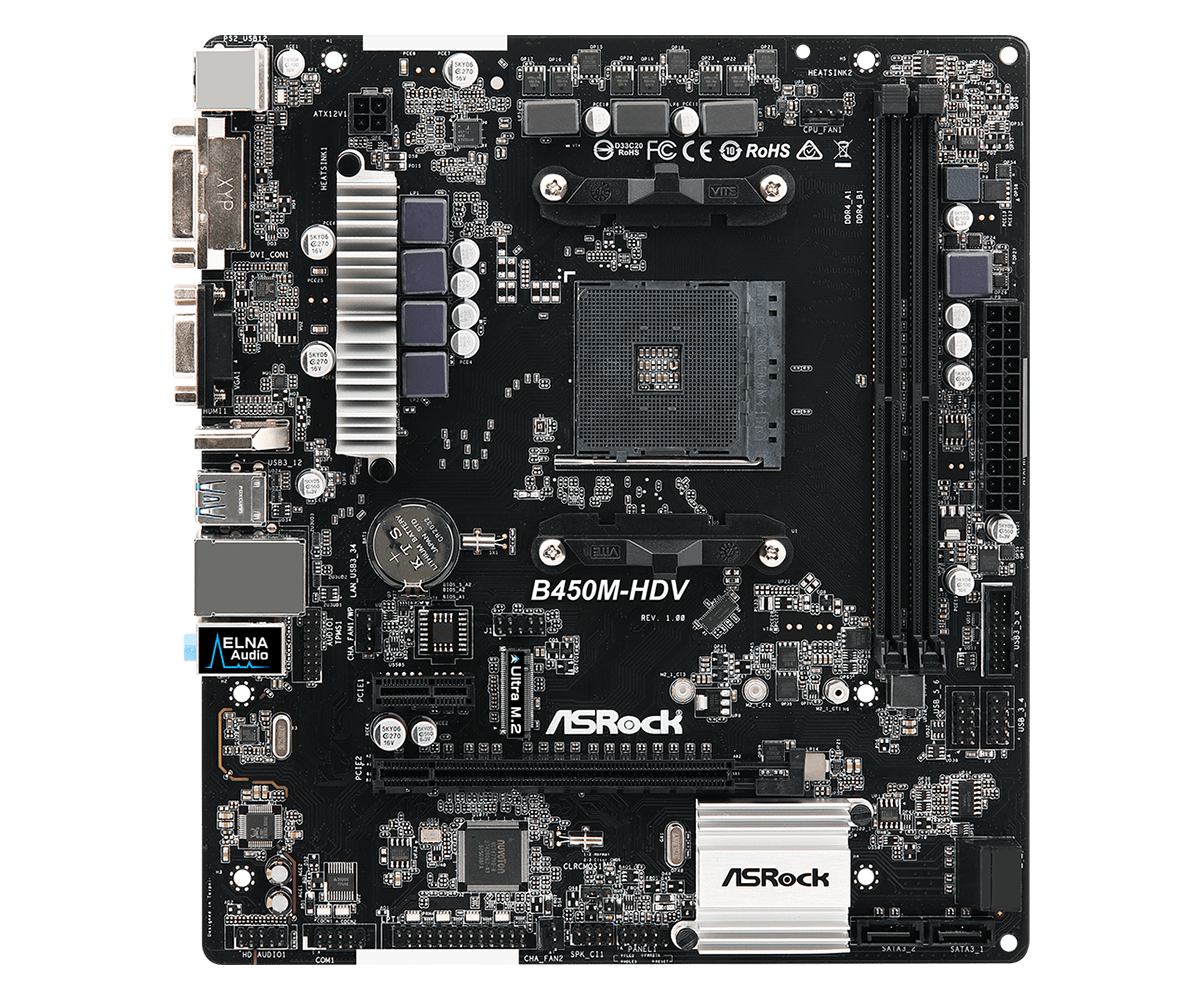

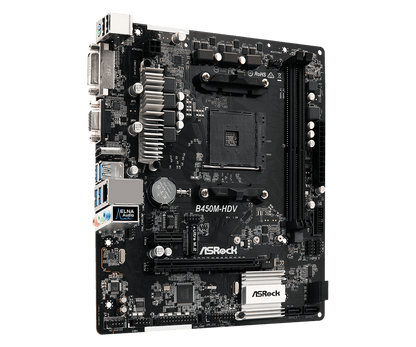

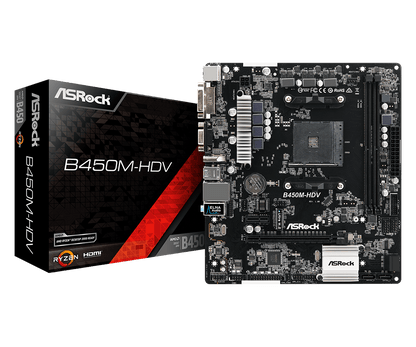

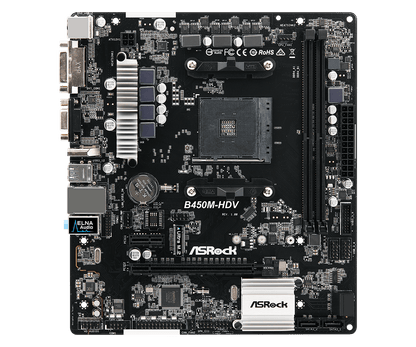

The ASROCK B450M HDV AMD AM4 Motherboard provides a solid foundation for your AMD-based desktop system. Designed to support AM4 socket processors, this motherboard is an essential component for building a reliable and efficient personal computer.
Key Features at a Glance
- AM4 Socket Support: Designed for processors utilizing the AMD AM4 socket.
- B450 Chipset Integration: Built around the AMD B450 chipset.
- ASRock Engineering: A foundational component from ASRock.
- Core System Component: Serves as the central platform for a desktop PC build.
Solid Foundation for AMD Builds
The ASROCK B450M HDV provides the core platform necessary for assembling a system with compatible AMD AM4 processors. It is designed to integrate essential components smoothly.
ASRock Quality
As an ASRock product, this motherboard offers a foundational component from a recognized manufacturer in PC hardware.
Technical Specifications
| Category | Specification |
|---|---|
| Unique Feature | ASRock Super Alloy: - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Digi Power design Supports CPU up to 105W |
| Chipset | AMD Promontory B450 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports various memory speeds based on CPU/APU model (3200+/2933/2667/2400/2133 MHz) Max capacity: 64GB Supports XMP memory modules 15? Gold Contact in DIMM Slots |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play, ACPI 5.1 compliance, DRAM Voltage multi-adjustment |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Supports Triple Monitor, Auto Lip Sync, 4K UHD Playback (HDMI) Three output options: D-Sub, DVI-D, HDMI |
| Audio | 7.1 CH HD Audio (Realtek ALC887), ELNA Audio Caps, Surge Protection |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet |
| Slots | 1 x PCI Express 3.0 x16 Slot 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID 0, 1, 10 1 x Ultra M.2 Socket (PCIe Gen3 x4 or x2 depending on CPU) |
| Connector | 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (3-pin), 1 x Chassis/Water Pump Fan Connector (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Headers |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports 1 x RJ-45 LAN Port, HD Audio Jacks |
| Software and UEFI | ASRock A-Tuning, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Easy RAID Installer |
| Accessories | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables, 1 x Screw for M.2 Socket |
| Hardware Monitor | Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring |
| Form Factor | Micro ATX Form Factor: 9.1-in x 8.1-in, Solid Capacitor design |
| OS | Microsoft Windows 10 64-bit / 11 64-bit (except Summit Ridge CPUs) |
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
Frequently Asked Questions
Q: What is the ASROCK B450M HDV AMD AM4 Motherboard?
A: This is a motherboard designed as a core component for building desktop personal computers.
Q: Which processors are compatible with this motherboard?
A: The ASROCK B450M HDV supports processors that utilize the AMD AM4 socket.
Q: What chipset does this motherboard feature?
A: This motherboard is built around the AMD B450 chipset.
