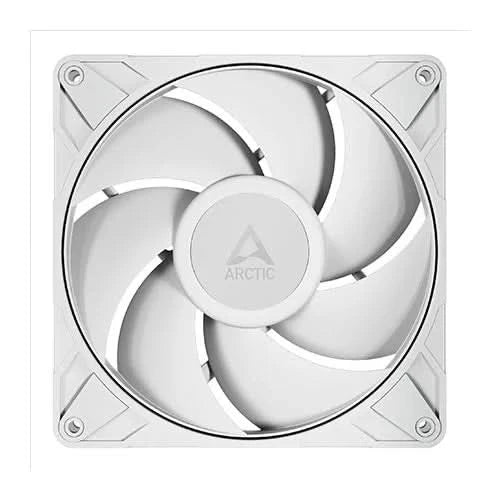

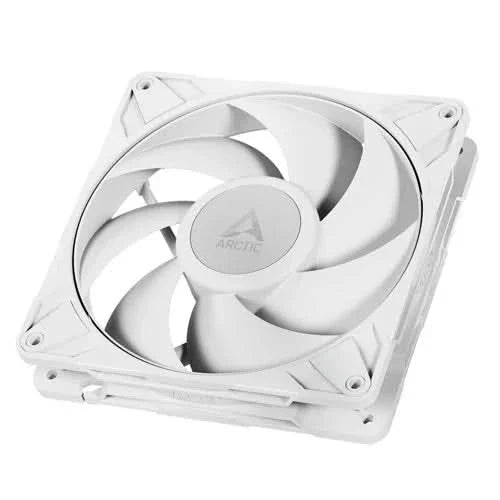

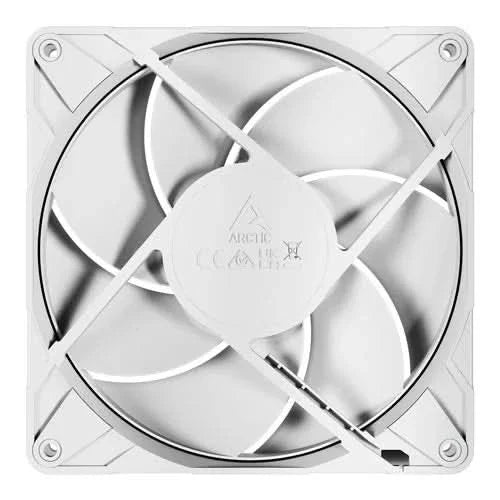

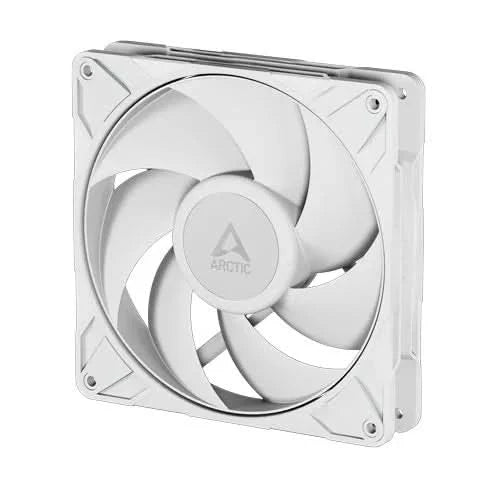

Arctic P14 Pro PST 140mm White Cabinet Fan
Arctic P14 Pro PST 140mm White Cabinet Fan
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Elevate your system's cooling efficiency with the Arctic P14 Pro PST 140mm White Cabinet Fan. Designed for optimal performance, this fan delivers robust airflow and static pressure, ensuring your components remain cool under demanding conditions. Its intelligent PWM control and advanced bearing technology provide quiet operation and reliable cooling for your PC.
Key Features at a Glance
- Operates at speeds from 400–2500 rpm, with PWM control.
- Achieves 0 rpm below 5% PWM for silent operation when not needed.
- Provides impressive airflow of 110 cfm (186 m³/h).
- Generates a static pressure of 5.2 mmH2O.
- Features a durable Fluid Dynamic Bearing for extended lifespan.
- Includes a 400 mm cable with an 80 mm daisy-chain option for flexible connection.
Powerful and Efficient Cooling
Experience superior thermal management with robust airflow and static pressure. This fan effectively moves large volumes of air through your case and radiators, keeping critical components at optimal temperatures even during intensive tasks. Its design ensures maximum heat dissipation.
Quiet Operation with Smart Control
Enjoy a quieter computing environment thanks to PWM control, which allows the fan to stop spinning completely below 5% PWM. The advanced Fluid Dynamic Bearing further contributes to reduced noise levels and smoother operation, providing silent cooling when your system load is low.
Flexible Setup and Reliable Design
Connect multiple fans with ease using the integrated daisy-chain cable, simplifying cable management and optimizing your build. Built with quality components like the Fluid Dynamic Bearing, this fan is engineered for reliability and a long operational life within typical ambient temperatures of 0–40 °C.
Technical Specifications
- Fan Speed: 400–2500 rpm (PWM controlled, 0 rpm below 5% PWM)
- Airflow: 110 cfm | 186 m³/h
- Static Pressure: 5.2 mmH2O
- Fan Bearing: Fluid Dynamic Bearing
- Typical Voltage: 12 V DC
- Start Up Voltage: 5 V DC
- Current: 0.35 A
- Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Connector: 4-Pin Fan Plug + 4-Pin Socket
- Operating Ambient Temperature: 0–40 °C
- Dimensions: 140 (L) x 140 (W) x 27 (H) mm
- Net Weight: 242 g
Frequently Asked Questions
Q: What is the maximum fan speed?
A: The fan operates at speeds ranging from 400 to 2500 rpm, controlled via PWM, and can achieve 0 rpm below 5% PWM.
Q: What are the physical dimensions of the fan?
A: The fan measures 140 mm (Length) x 140 mm (Width) x 27 mm (Height).
Q: Can this fan be daisy-chained with other fans?
A: Yes, it features an 80 mm daisy-chain cable, allowing for easy connection to additional fans.
