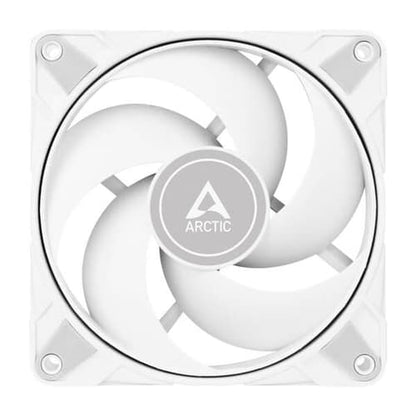

ARCTIC P12 MAX | 120MM HIGH SPEED PWM FAN | WHITE ACFAN00293A
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Experience superior cooling performance with the ARCTIC P12 MAX 120MM High Speed PWM Fan. Designed for enthusiasts and professionals, this white fan combines an impressively wide speed range with virtually silent operation at low speeds, ensuring dynamic airflow control for optimal thermal management.
Key Features at a Glance
- Utilizes ARCTIC's proven Hydrodynamic Bearing for virtually silent operation.
- Features an extremely wide speed range from 200 rpm up to 3300 rpm.
- Optimized for use on radiators, heat sinks, pinholes, and mesh.
- Includes 0dB Mode (Zero RPM) for silent idle operation via PWM.
- Incorporates a closed fan wheel design for improved pressure stability.
- Equipped with a sinus-magnetizing motor and rubber pads for minimum vibration.
- Backed by a 6-year warranty.
Unrivaled Performance and Control
The ARCTIC P12 MAX offers an impressively wide speed range from 200 up to 3300 RPM, allowing for precise control over airflow. This enables quiet operation when low airflow is needed and delivers an unprecedented level of performance on heatsinks and radiators, providing a significant boost to existing air and water cooling solutions.
Whisper-Quiet Operation with 0dB Mode
Equipped with ARCTIC's proven Hydrodynamic Bearing, the P12 MAX ensures virtually silent operation at low speeds. Its innovative 0dB Mode allows the fan speed to be throttled down to a complete standstill via PWM, providing silent operation during idle periods while guaranteeing maximum performance when demand arises.
Enhanced Stability and Durability
Featuring a closed fan wheel design, the P12 MAX maintains pressure stability even in high resistance scenarios. The new motor with sinus-magnetizing technology drastically reduces vibration, further dampened by rubber pads at the corners, ensuring maximum smoothness and minimum vibration across its extensive speed range.
Technical Specifications
| Model Name | P12 Max |
| Color | White |
| Model Number | ACFAN00293A |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 184 g |
| Operating Ambient Temperature | 0–40 °C |
| Fan Specifications | |
| Fan Speed | 200–3300 rpm (PWM controlled), 0 rpm below 5 % PWM |
| Airflow | 81.04cfm | 137.69m³/h |
| Static Pressure | 4.35 mmH2O |
| Noise Level | 0.6 Sone |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.9V DC |
| Current | 0.29 A |
| Cable Length | 400 mm |
| Connector | 4-Pin PWM Connector |
| Packaging | |
| Width | 127 mm |
| Height | 30 mm |
| Length | 125 mm |
| Weight | 0.214 kg |
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Frequently Asked Questions
Q: What bearing type does the ARCTIC P12 MAX use?
A: The ARCTIC P12 MAX is equipped with ARCTIC's proven Hydrodynamic Bearing (Fluid Dynamic Bearing).
Q: What is the speed range of the P12 MAX fan?
A: The fan features an extremely wide speed range from 200 rpm up to 3300 rpm.
Q: What is the 0dB Mode?
A: The 0dB Mode allows the fan speed to be throttled down to a complete standstill via PWM, enabling silent operation during idle periods.
