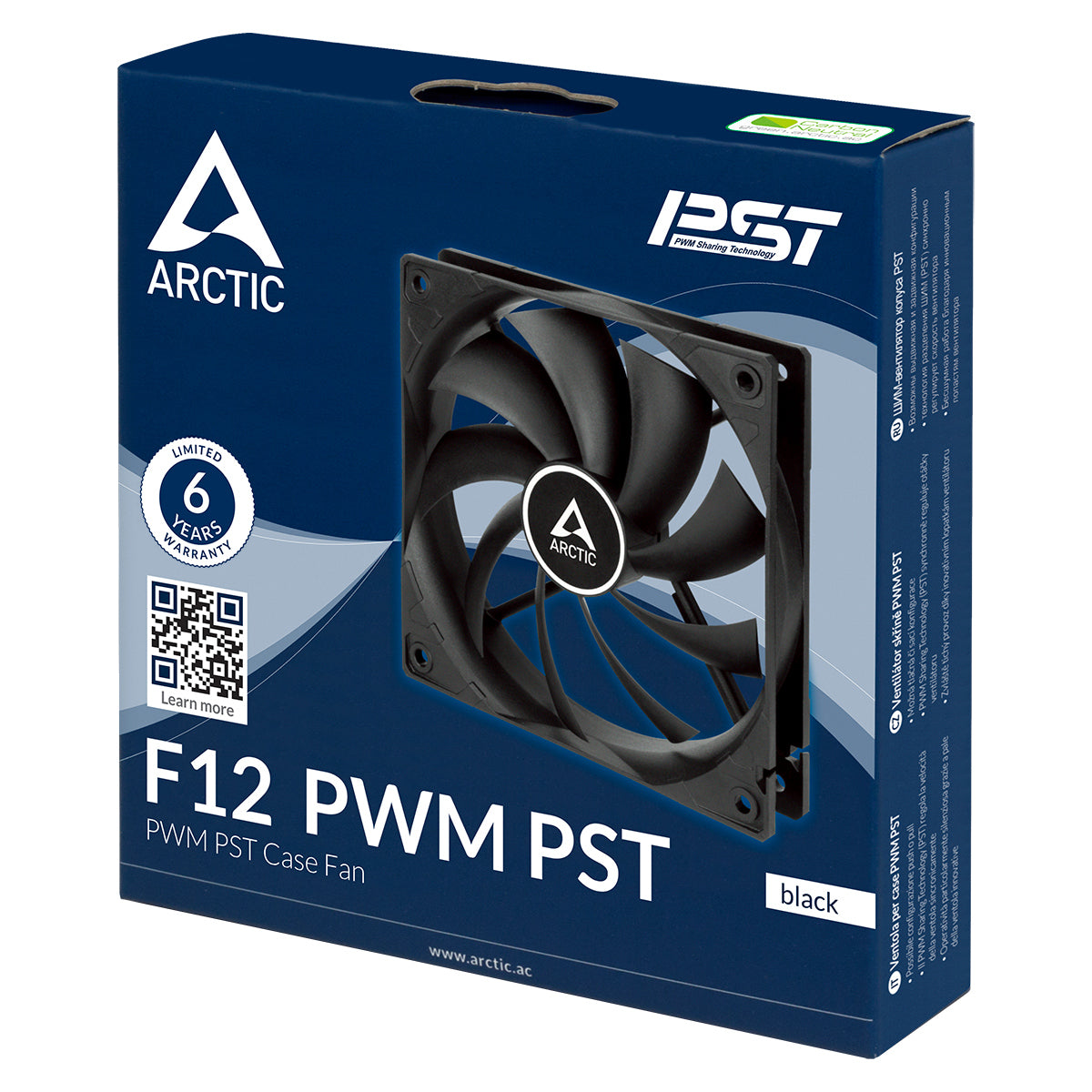

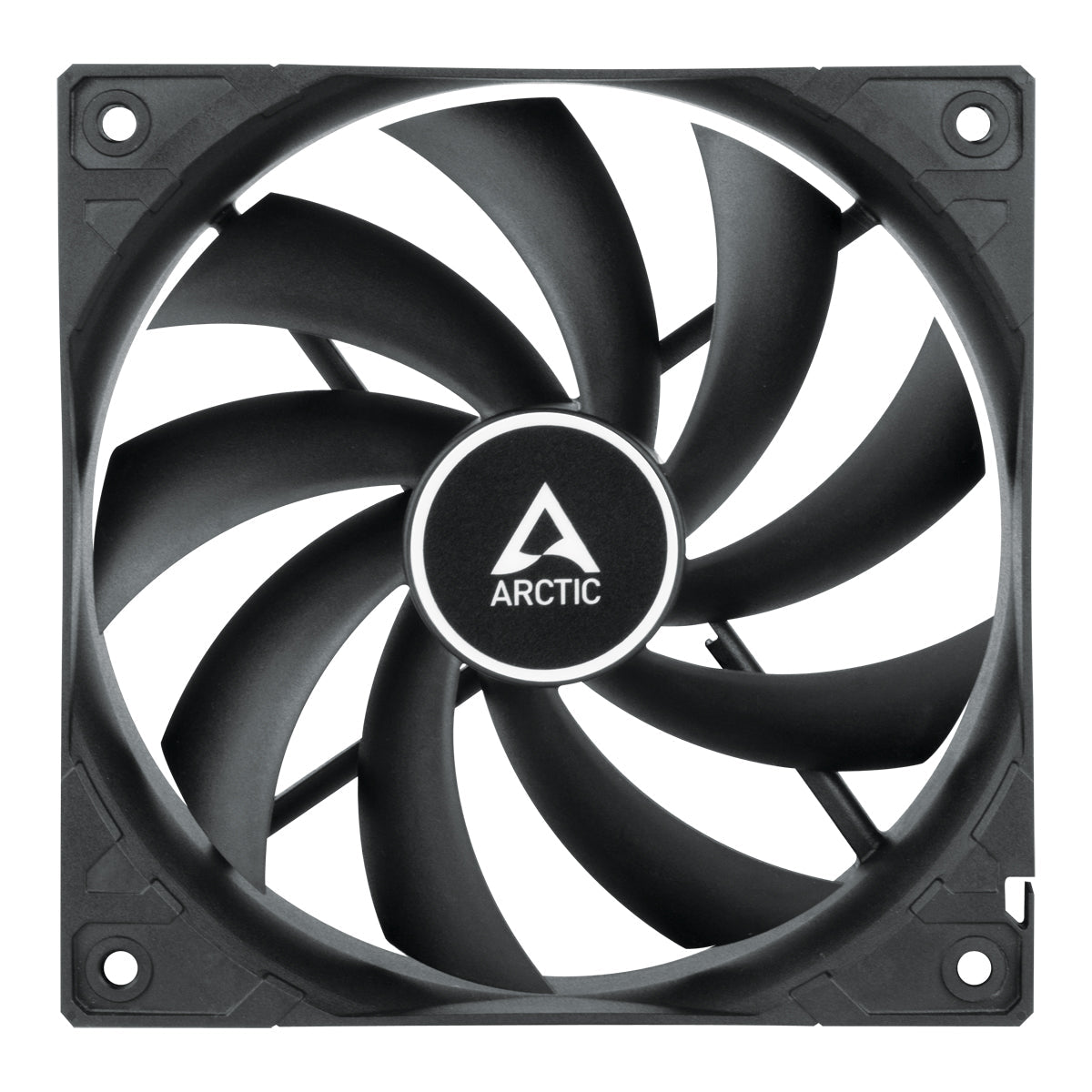

The ARCTIC F12 PWM PST (BLACK) is an advanced 120mm case fan designed to deliver effective cooling for your PC system. Featuring Pulse Width Modulation (PWM) for dynamic speed control and PWM Sharing Technology (PST) for simplified multi-fan setups, this black fan combines performance with smart connectivity.
Key Features at a Glance
- Integrated PWM for precise fan speed regulation.
- PST (PWM Sharing Technology) for easy daisy-chaining of multiple fans.
- 120mm form factor, ideal for various PC cooling applications.
- Sleek black design to complement any build aesthetic.
Optimized Fan Control
Experience precise cooling control with the integrated PWM function. This technology allows your motherboard to dynamically adjust the fan speed based on system temperature, ensuring optimal airflow when needed and quieter operation during light loads.
Streamlined Connectivity
Simplify your cable management with PWM Sharing Technology (PST). This innovative feature enables you to daisy-chain multiple fans together, controlling all of them from a single PWM header on your motherboard, reducing cable clutter and installation complexity.
Seamless System Integration
The ARCTIC F12 PWM PST (BLACK) boasts a standard 120mm size, making it a versatile choice for CPU coolers, case ventilation, or radiator setups. Its classic black finish ensures it blends discreetly into most PC builds, maintaining a clean and professional look.
Technical Specifications
| F12 PWM PST — 120 mm PWM Fan with Cable Splitter | |
|---|---|

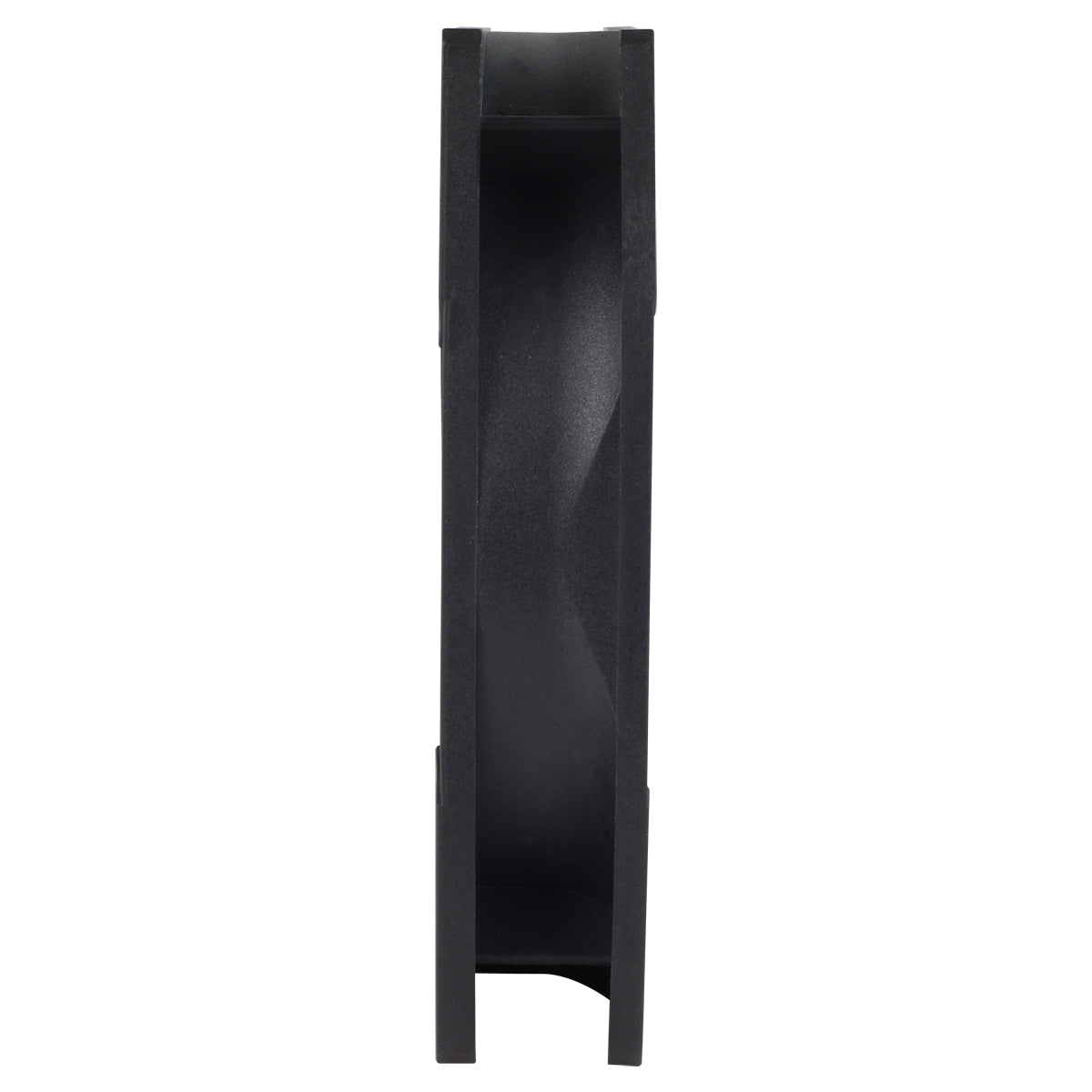

| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 109 g |
| Speed | 230–1350 rpm, 0 rpm <5% PWM |
| rpm Control | Pulsweitenmodulation – PWM |
| Static Pressure | 1.0 mmH2O |
| Airflow | 53 cfm | 90.1 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Current | Voltage | 0.21 A | 12 V DC |
| Starting Voltage | 6.0 V DC |
| Noise Level | 0.3 Sone |
| Ambient Operating Temperature | 0–40 °C |
| SKU (Single Fan – Black) | ACFAN00200A |
| EAN (Single Fan – Black) | 4895213702966 |
| UPC (Single Fan – Black) | 840033400763 |
| SKU (Single Fan – White) | ACFAN00198A |
| EAN (Single Fan – White) | 4895213702935 |
| UPC (Single Fan – White) | 840033400732 |
| SKU (Pack of 5 – Black) | ACFAN00250A |
| EAN (Pack of 5 – Black) | 4895213703345 |
| UPC (Pack of 5 – Black) | 840033401159 |
| Box Content (Single) | F12 PWM PST x 1; Mounting Screws x 4 |
| Box Content (Pack of 5) | F12 PWM PST x 5; Mounting Screws x 20 |
| Pinout | Pin#1 - Ground (-); Pin#2 - Power (+); Pin#3 - Signal (Tachometer Output); Pin#4 - PWM Control |
| Compliance | All materials are compatible with RoHS requirements |
Frequently Asked Questions
Q: What does PWM stand for in this fan?
A: PWM stands for Pulse Width Modulation. It allows your motherboard to precisely control the fan's speed based on system temperature, optimizing cooling performance and noise levels.
Q: What is PST (PWM Sharing Technology)?
A: PST is Arctic's PWM Sharing Technology. It enables you to daisy-chain multiple fans from a single motherboard header, allowing them all to be controlled simultaneously for synchronized fan speed and simplified wiring.
Q: What is the size of the ARCTIC F12 PWM PST (BLACK) fan?
A: The ARCTIC F12 PWM PST (BLACK) is a 120mm fan. The "F12" in its name typically indicates a 120mm form factor, suitable for a wide range of PC cooling applications.
