APC SMART-UPS SRC1KI-IN - 1000VA/ 800W | 230V | 4X INDIA 3-PIN 6A OUTLETS | VISUAL LED AND AUDIBLE ALARMS | ENERGY EFFICIENT | 2 YEARS WARRANTY | COMPATIBLE IN HARSH ENVIRONMENT
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

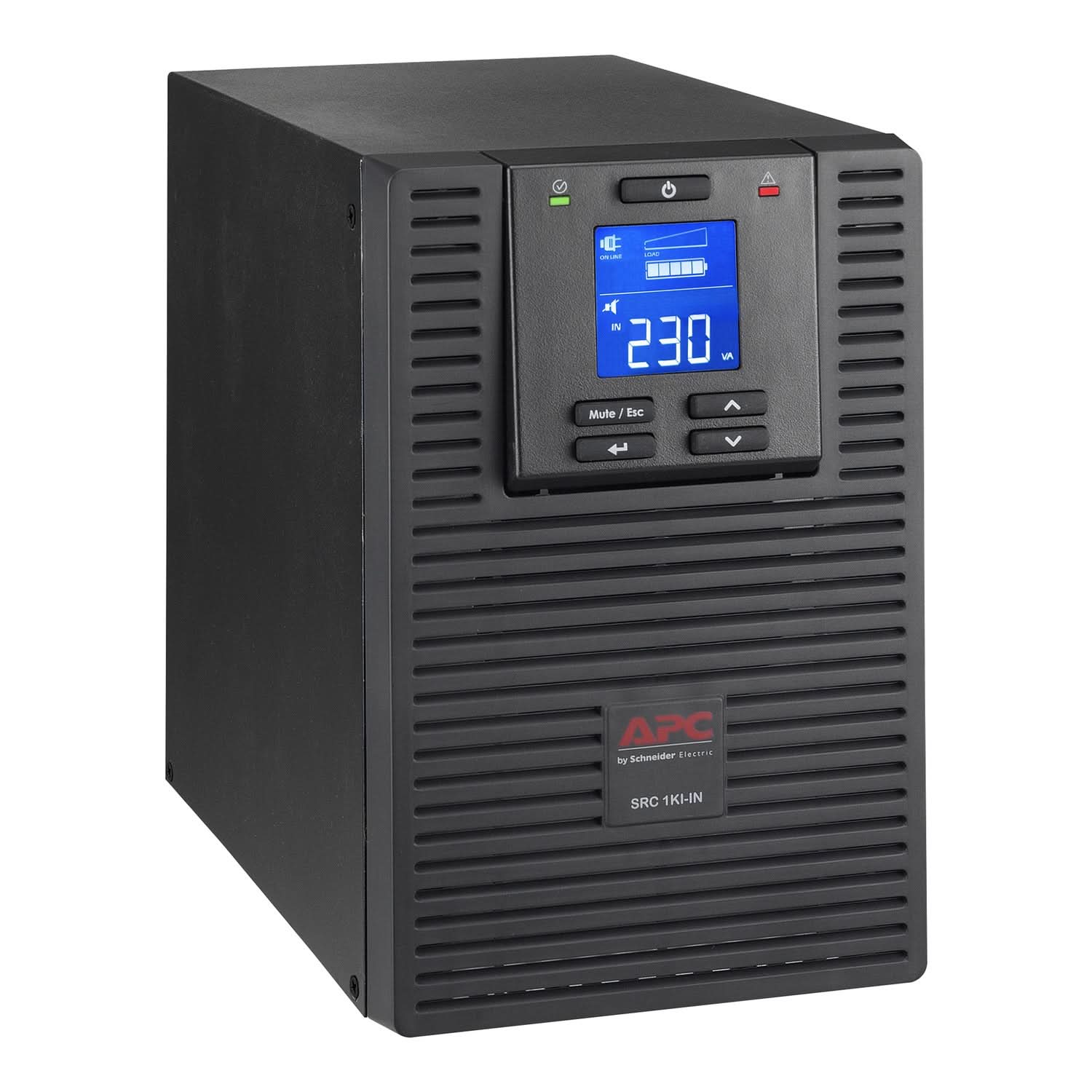

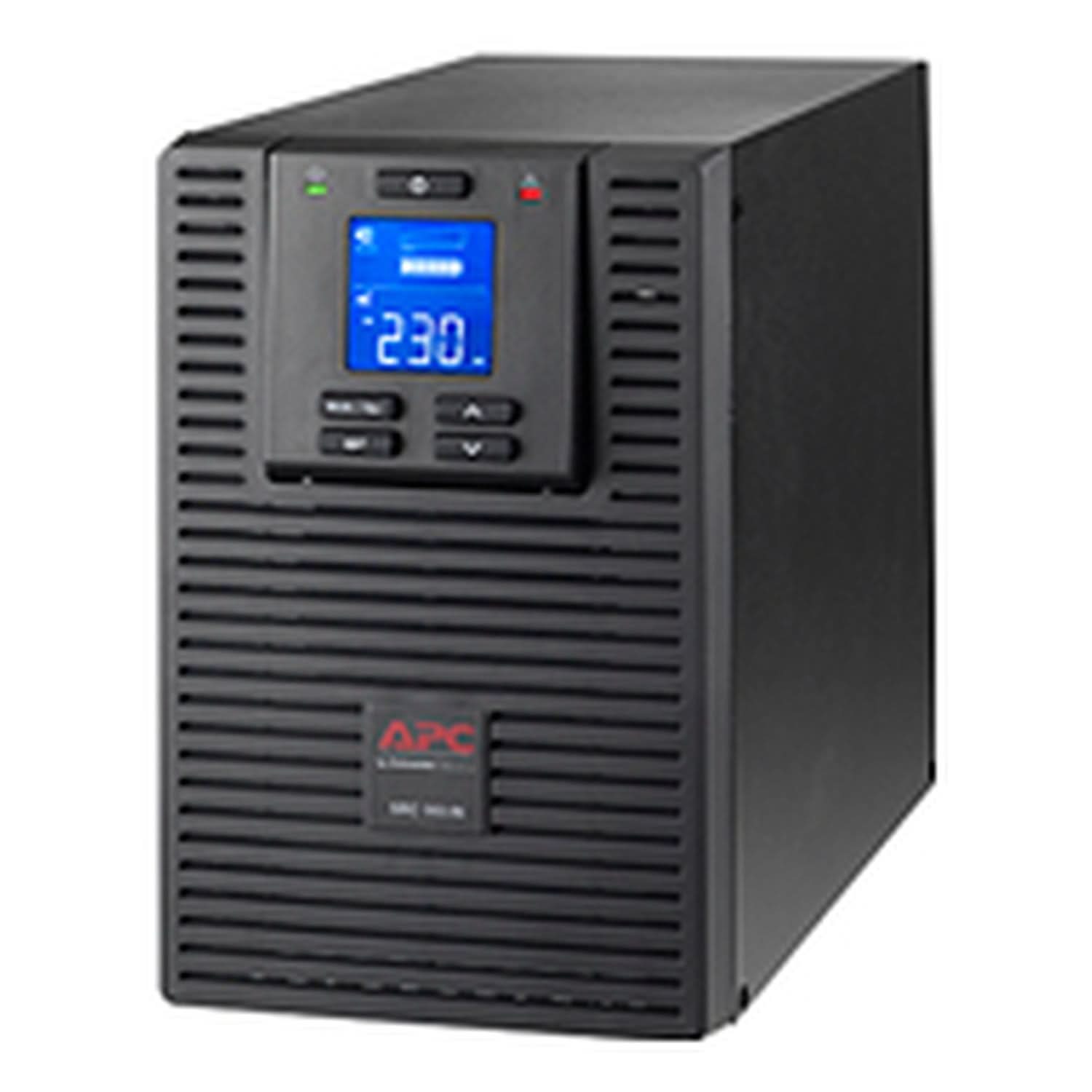

The APC SMART-UPS SRC1KI-IN is a 1000VA/800W On-Line Uninterruptible Power Supply (UPS) designed to provide premium double-conversion protection for your critical IT infrastructure. Engineered for reliability in regions with unstable power, this 230V UPS ensures continuous operation for servers, networking equipment, and sensitive electronics, featuring 4 India 3-pin 6A outlets for local compatibility.
Key Features at a Glance
- Provides 1000VA / 800W double-conversion On-Line UPS protection.
- Features 4 India 3-pin 6A outlets with battery backup and surge protection.
- Operates at over 90% efficiency in standard mode and up to 93% in Green Mode.
- Equipped with visual LED indicators, audible alarms, and a graphical LCD interface.
- Includes Automatic Voltage Regulation (AVR) for stable power delivery.
- Built for reliable performance in harsh power environments.
- Backed by a 2-year manufacturer's warranty.
Uninterrupted Power Protection
Experience superior, uninterrupted power protection with this 1000VA/800W On-Line UPS. Its double-conversion technology shields critical IT infrastructure, servers, networking equipment, and sensitive electronics from power fluctuations, ensuring continuous operation even in challenging conditions.
Optimized for Indian Environments
The SRC1KI-IN model is specifically engineered for regions with unstable power, ensuring reliable performance. It includes 4 India 3-pin 6A outlets to support multiple devices, along with Automatic Voltage Regulation (AVR) to stabilize voltage fluctuations and preserve battery life without switching to battery power. This model also features 3 x 9Ah internal batteries and is Generator Compatible.
Efficient Monitoring and Control
Monitor your power status with ease using the intuitive graphical LCD interface, visual LED indicators, and audible alarms that come with a mute option. The UPS operates at over 90% efficiency in standard mode and up to 93% in Green Mode, significantly reducing energy consumption. A SmartSlot is included for advanced network management card integration.
Technical Specifications
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Range | Smart-UPS On-Line |
| UPS Type | Double conversion online |
| Run Time for Load | 800 W |
| Min–Max Load Range | 80–800 W |
| Run Time Duration | 8 min 2 sec |
| Max. Capacity Used | 100% |
| Rated Power (W) | 800 W |
| Rated Power (VA) | 1000 VA |
| Maximum Configurable Power (W) | 800 W |
| Maximum Configurable Power (VA) | 1000 VA |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V / 240 V |
| Input Connection Type | India 3-pin 6A |
| Output Connection Type | 4x India 3-pin 6A |
| Cable Length | 1.5 m |
| Number of Cables | 1 |
| Plug Standard | India 3-pin 6A |
| Switching Current Capacity | 10 A |
| Input Voltage Limits | 110–280 V (half load) |
| Network Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Waveform Type | Pure Sine Wave |
| Efficiency | 90% (full load), 88% (half load) |
| Bypass Type | Built-in bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | < 2% |
| Battery Type | Lead-acid battery |
| Battery Recharge Time | 6 h |
| Battery Charger Power | 54 W rated |
| Extended Runtime Support | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Power Module Slots (Filled / Free) | 0 / 0 |
| Redundant | No |
| USB Compatible | No |
| Colour | Black |
| Height | 22 cm |
| Width | 14.5 cm |
| Depth | 40 cm |
| Product Weight | 13.5 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 ft |
| Storage Altitude | 0–4572 m |
| Operating Humidity | 0–95% |
| Storage Humidity | 0–95% |
| IP Degree of Protection | — |
| Control Panel | LED status display with online, battery, replace battery, and overload indicators |
| Alarms | On battery, low battery, overload (distinctive tones) |
| Provided Equipment | RS-232 cable, user manual, warranty card |
| Surge Energy Rating | — |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H x W x L) | 34 cm x 47.8 cm x 23.5 cm |
| Package Weight | 14.5 kg |
| Warranty | 2 years repair or replace |
Frequently Asked Questions
Q: What kind of protection does the APC SMART-UPS SRC1KI-IN offer?
A: The APC SMART-UPS SRC1KI-IN provides premium double-conversion On-Line UPS protection, safeguarding critical IT infrastructure, servers, networking equipment, and sensitive electronics from power disruptions.
Q: What are the key power delivery features of this UPS?
A: This UPS features a 1000VA/800W capacity, 4 India 3-pin 6A outlets with battery backup, Automatic Voltage Regulation (AVR), and is Generator Compatible for seamless power transition.
Q: How does the APC SMART-UPS SRC1KI-IN help with monitoring and management?
A: It offers an intuitive graphical LCD interface, visual LED indicators, and audible alarms for real-time status. It also includes a SmartSlot for network management and boasts high energy efficiency.
