APC EASY UPS ON-LINE SRVL3KRI-IN- 3KVA | 230V | 4 INDIA 3-PIN 6A + 1 HARD WIRE 3-WIRE (1P+N+E) OUTLETS | LITHIUM-ION | RACK/TOWER 2U | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | W/O RAIL KIT | 3 YEARS WARRANTY
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

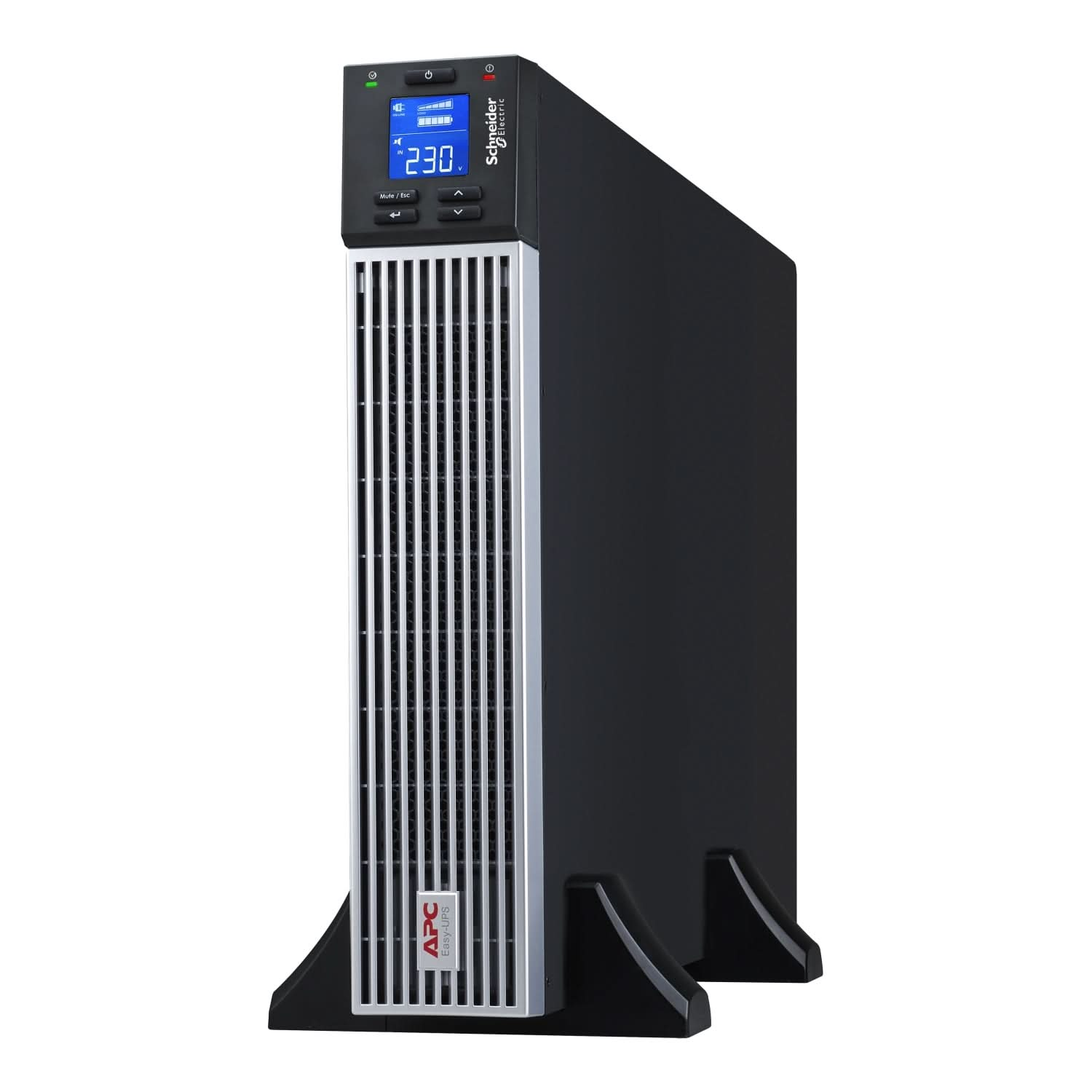

The APC EASY UPS ON-LINE SRVL3KRI-IN- 3KVA delivers superior power protection for critical IT equipment with its advanced lithium-ion battery and true double-conversion topology. Designed for reliability and efficiency, this 230V UPS ensures continuous, stable power for servers, micro data centers, and sensitive systems.
Key Features at a Glance
- Advanced lithium-ion battery with 576 Wh capacity for extended life.
- Pure sine wave double-conversion topology ensures stable 3000VA/2700W output.
- Rapid battery recharge, reaching 90% capacity in only 1.5 hours.
- Achieves high energy efficiency, up to 96% in ECO mode.

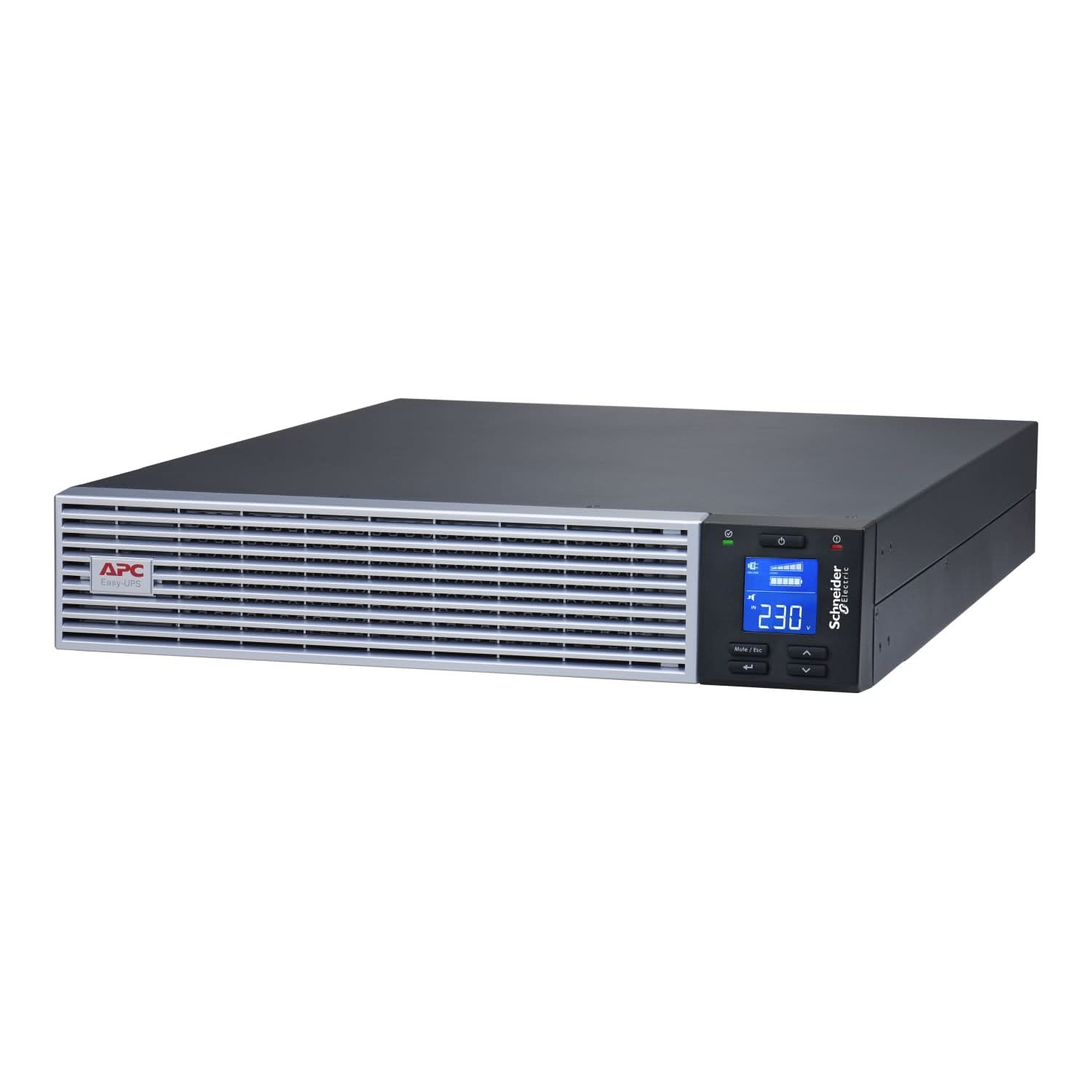

- Adaptable Rack/Tower 2U form factor for flexible installation.
- Features a 90° rotatable LCD and Intelligent Slot for remote management.
Superior Lithium-ion Reliability
Experience consistent, long-lasting power with the advanced lithium-ion battery. This technology offers 3X longer battery life and significantly faster recharge times compared to traditional VRLA batteries, ensuring your critical systems remain operational with minimal downtime.
Pristine Power for Sensitive Equipment
The true double-conversion topology provides a pure sine wave output, actively protecting your sensitive IT equipment, servers, and micro data centers from all power disturbances. This guarantees clean, stable power essential for data integrity and system longevity.
Optimized Efficiency and Flexible Deployment
Reduce operational costs with impressive energy efficiency, reaching up to 96% in ECO mode. The convertible Rack/Tower 2U design allows for versatile installation in various environments, maximizing space utilization while delivering robust performance.
Intuitive Monitoring and Control

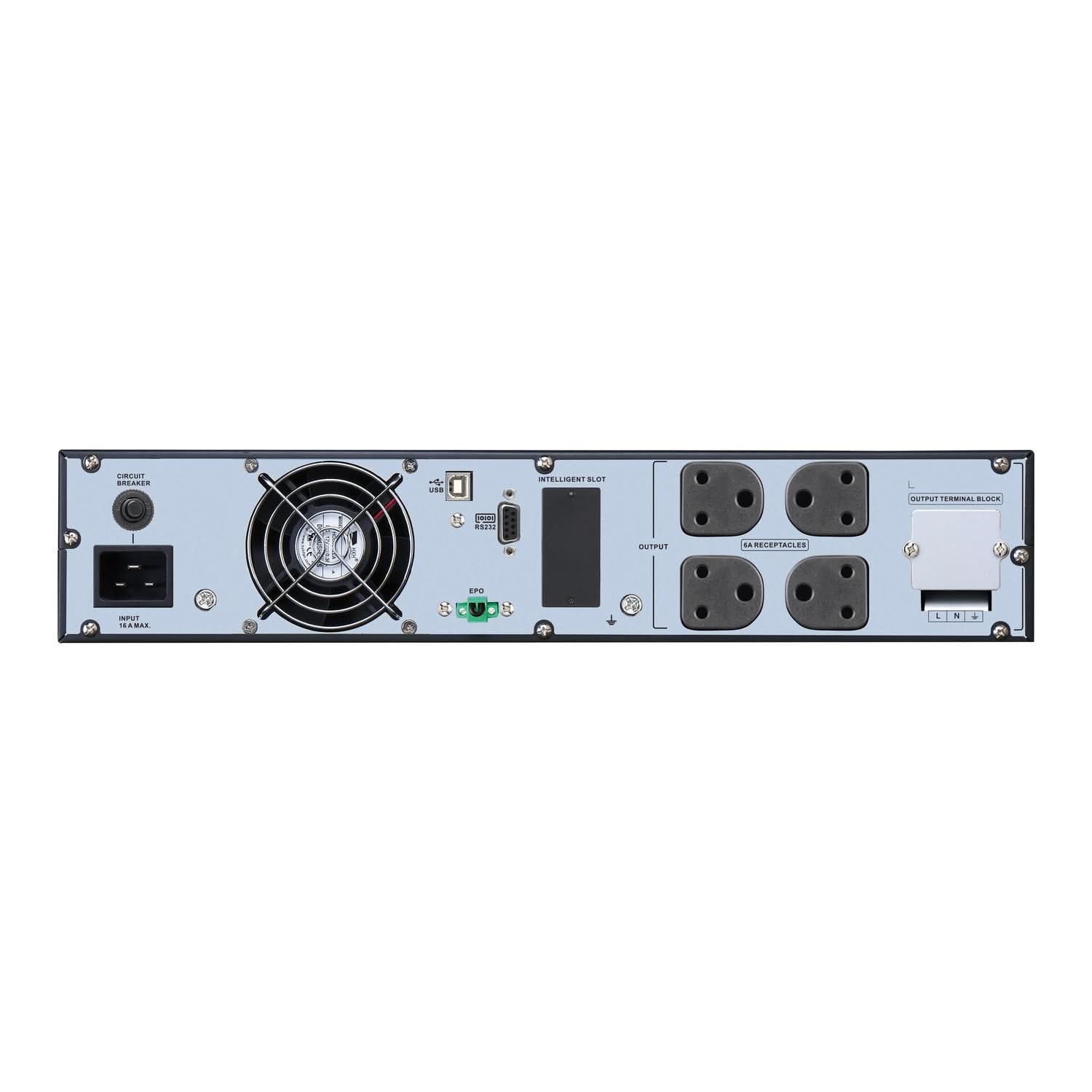

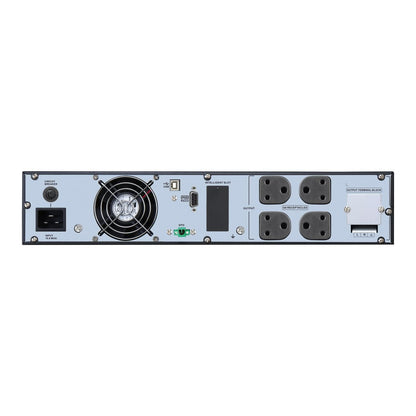

Stay informed with real-time status updates through the 90° rotatable LCD display and LED indicators. The integrated Intelligent Slot, alongside USB and RS-232 ports, enables optional network management for comprehensive monitoring and control of your UPS system.
Technical Specifications
| Category | Specification |
|---|---|
| Presentation | Double-conversion On-line UPS with Lithium-Ion battery and scalable runtime. Ideal for essential power protection in unstable power conditions. |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Main Input Voltage | 230 V |
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltages | 220 V, 240 V |
| Rated Power (W / VA) | 2700 W / 3000 VA |
| Maximum Configurable Power | 2700 W / 3000 VA |
| Run Time at Full Load (2700 W) | 9 min 1 sec |
| Min-Max Load Range | 270–2700 W |
| Max Capacity Used | 100% |
| UPS Type | Double-conversion online |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Output Connector Types | 4x India 3-pin 6A1x Hard wire 3-wire (1P + N + E) |
| Input Connection Type | IEC 60320 C20 |
| Crest Factor | 3:1 |
| Bypass Type | Internal (automatic and manual) |
| Efficiency (Full Load) | 90% |
| Battery Type | Lithium-Ion (Li-Ion) |
| Battery Voltage | 48 V |
| Battery Recharge Time | 1.5 hours |
| Battery Design Life | 8–10 years |
| Replacement Battery | RBCV183-LI |
| Extended Runtime Supported | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Power Module Slots (Filled / Free) | 0 / 0 |
| Color | Black with silver front bezel |
| Dimensions (H × W × D) | 8.6 cm × 43.8 cm × 63.2 cm |
| Product Weight | 21.2 kg |
| Mounting Position | Horizontal and Vertical |
| Rack Units | 2U |
| USB Compatible | Yes |
| Input Voltage Limits | 160–285 V (full load), 110–285 V (60% load) |
| Network Frequency | 40–70 Hz (auto sensing) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 0–95% (non-condensing) |
| Storage Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 1024 BTU/h |
| IP Degree of Protection | IP20 |
| Alarm Types | On battery, Low battery, Overload (distinct tones) |
| Emergency Power Off | Yes |
| Control Panel | Multifunction LCD status and control console |
| Surge Protection | 600 J |
| Certifications | BIS |
| Warranty | 3 years (repair or replace) |
| Provided Equipment | RS-232 cable, USB cable, Detachable power cord, Rack mounting brackets, Stabilization feet, User manual, Safety guide |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H × W × L) | 24 cm × 60 cm × 80 cm |
| Package Weight | 26 kg |
Frequently Asked Questions
Q: What type of battery does the APC EASY UPS ON-LINE SRVL3KRI-IN- 3KVA use?
A: It uses an advanced lithium-ion battery with a 576 Wh capacity, offering 3X longer life than traditional VRLA batteries.
Q: What is the power capacity and topology of this UPS?
A: This UPS has a power capacity of 3000 VA / 2700 W and utilizes pure sine wave double-conversion topology for stable output.
Q: How quickly does the battery recharge, and what is its efficiency?
A: The battery can recharge to 90% capacity in just 1.5 hours, and the UPS achieves up to 90% efficiency in online mode and 96% in ECO mode.
