APC EASY UPS ON-LINE SRV3KL-IN - 3KVA/2400W | 230V | 4 INDIA 3-PIN 6A + 1X HARD WIRE 3-WIRE(1P+N+E) OUTLETS | RACKMOUNT 2U | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | W/O RAIL KIT | 2 YEARS WARRANTY
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

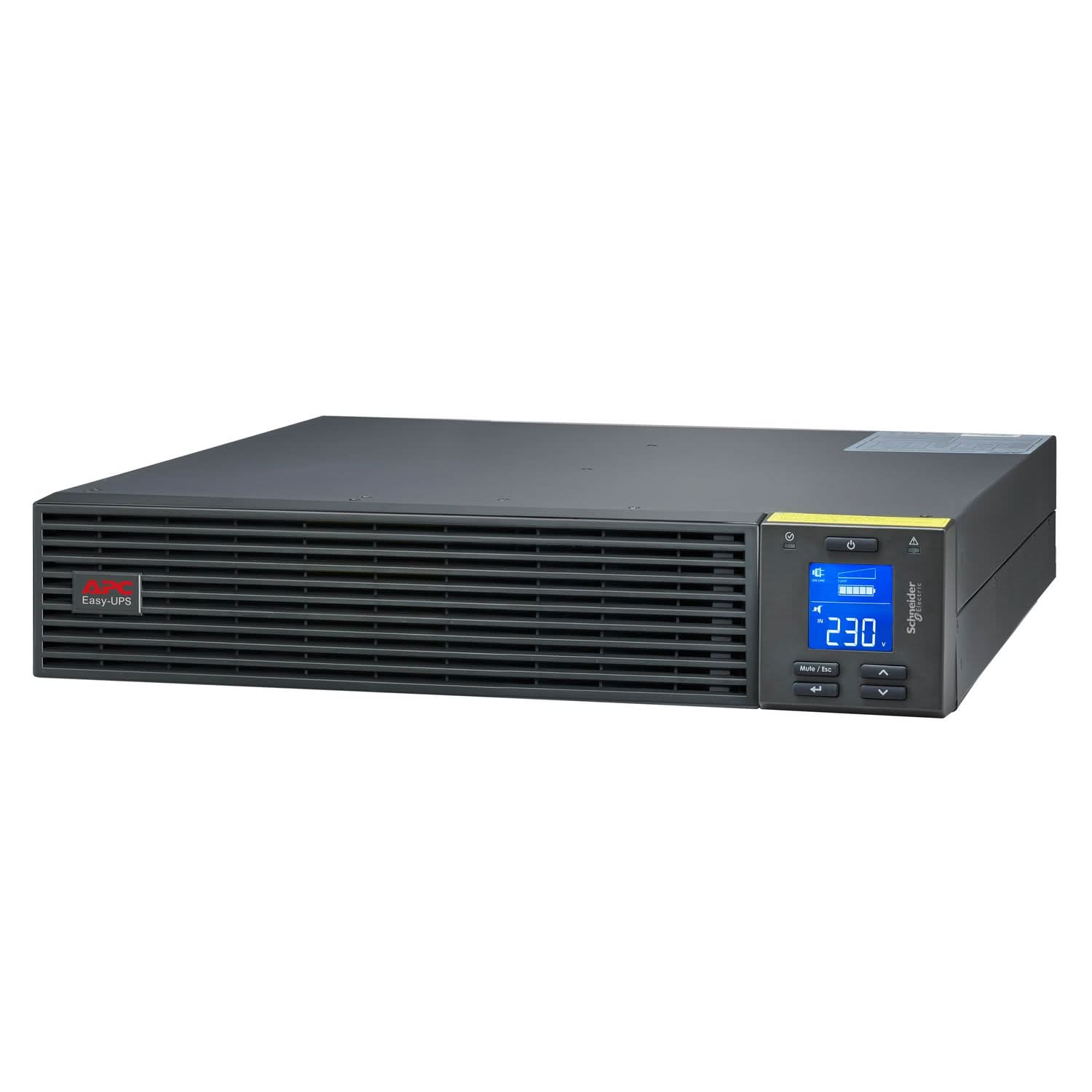

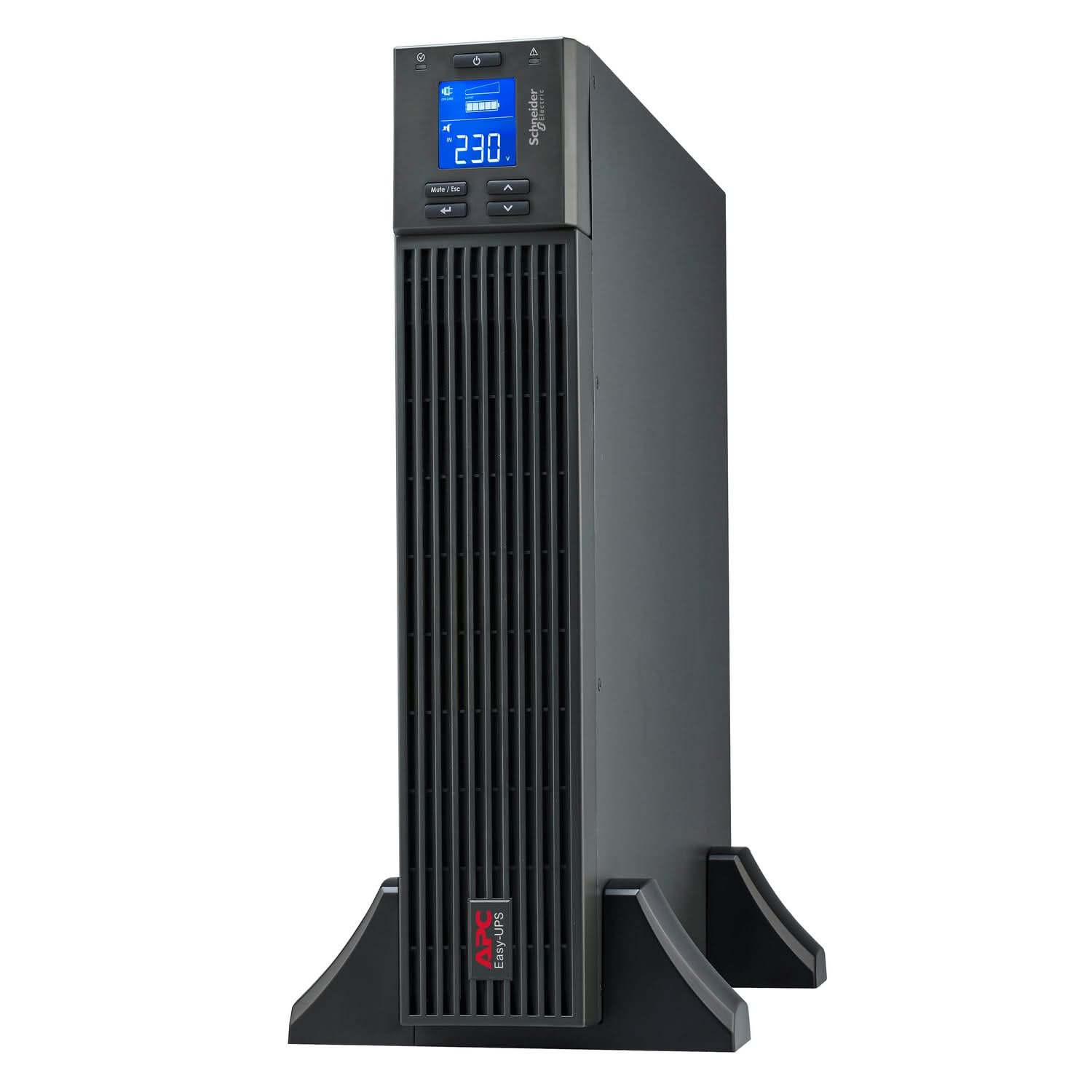

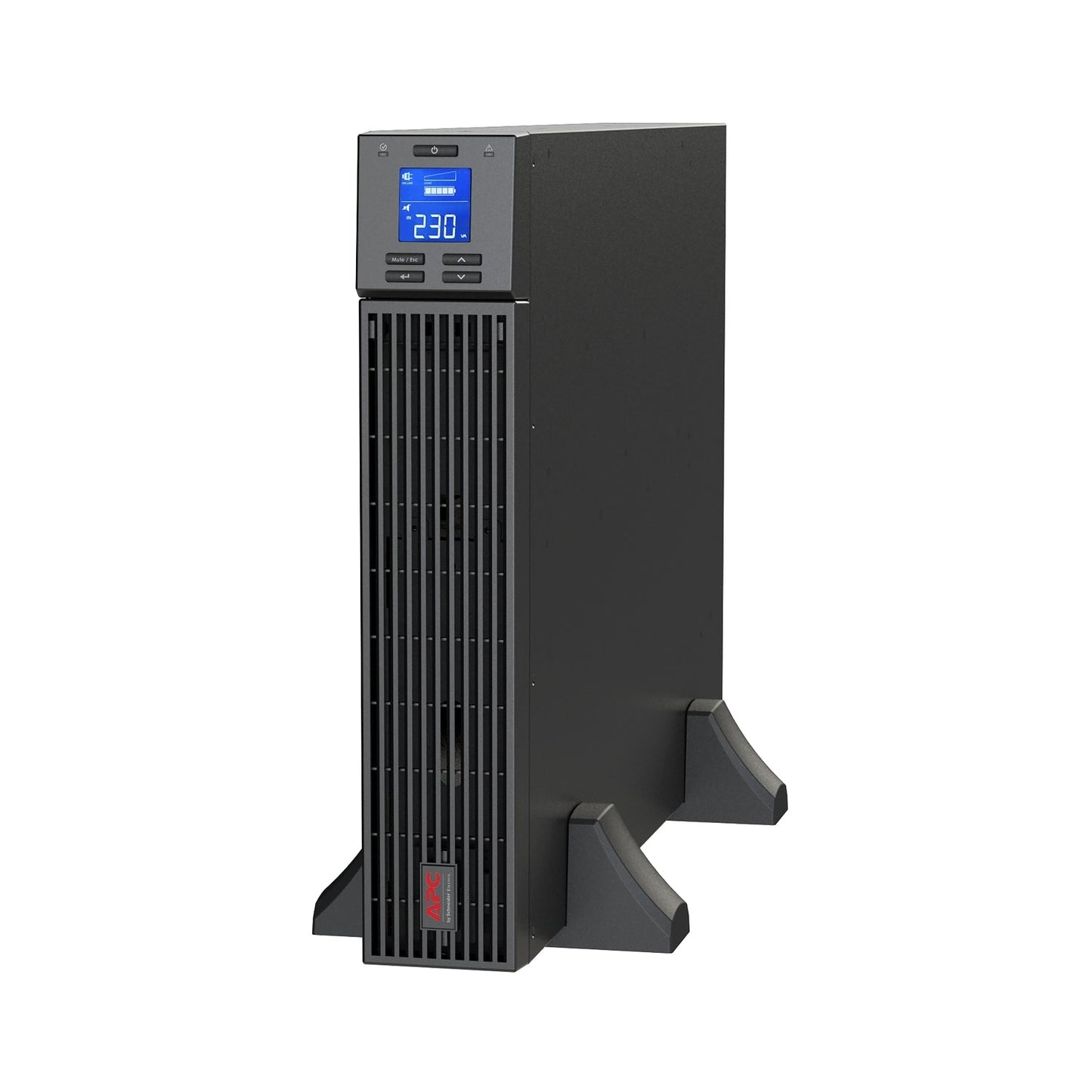

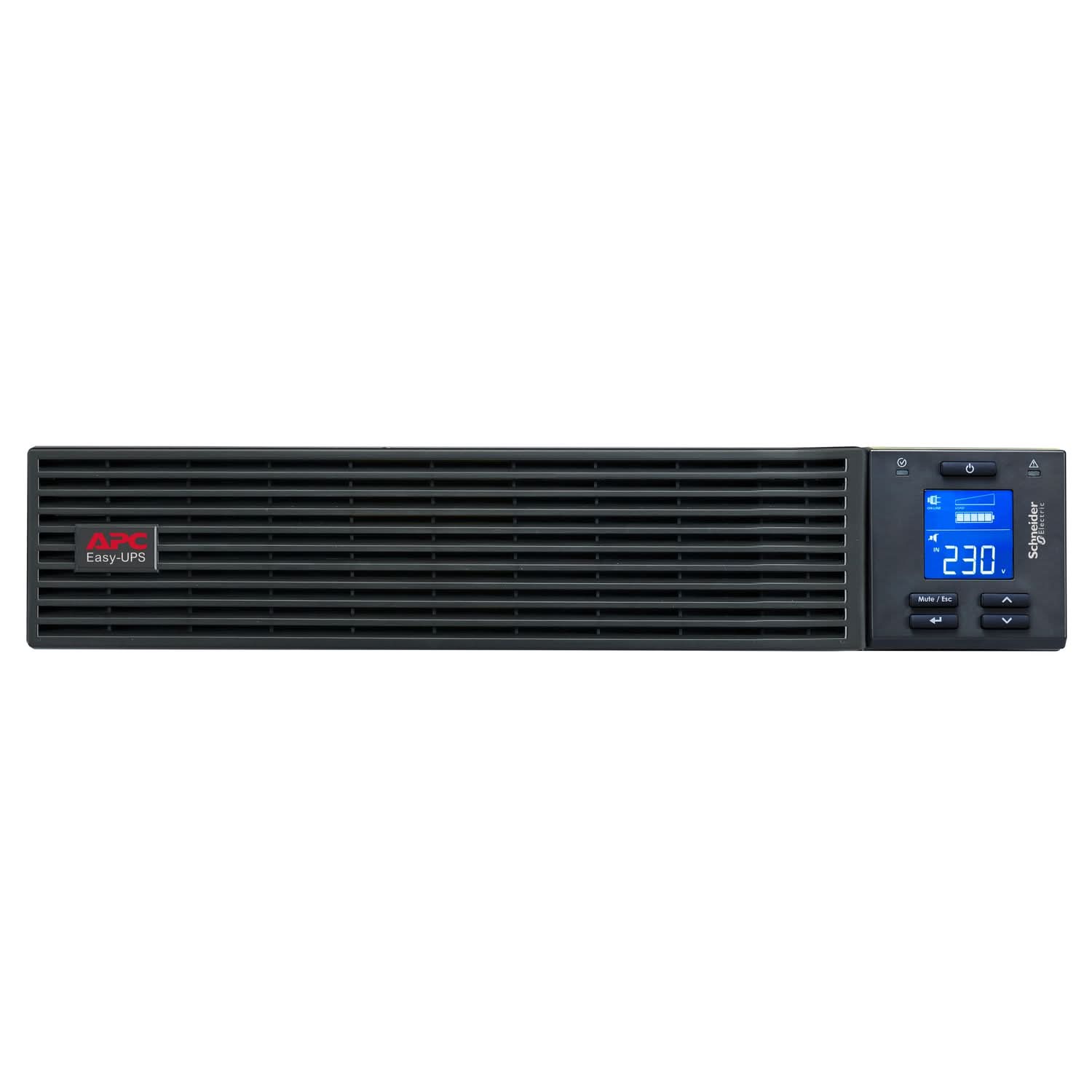

The APC EASY UPS ON-LINE SRV3KL-IN offers robust, continuous power protection for your critical IT infrastructure. This 3kVA/2400W true double-conversion UPS provides pure sine wave output, ensuring stability and reliability for servers, data centers, and sensitive business equipment. Designed with a space-saving 2U rackmount form factor, it integrates seamlessly into your existing setup, providing essential power continuity.
Key Features at a Glance
- Robust 3kVA/2400W capacity with true double-conversion online topology.
- Provides stable 230V pure sine wave output through 4 India 3-pin 6A and 1 hardwire outlet.
- Space-efficient 2U rackmount design, integrating into standard server racks.
- Features an intelligent slot for network management, plus USB and RS-232 connectivity.
- Equipped with a multi-function LCD and audible alarms for real-time status monitoring.
- Achieves high energy efficiency of up to 90% in double-conversion mode and 95% in ECO mode.
Continuous Double-Conversion Protection
Ensure your vital IT, server, and data center equipment receive continuous, pure sine wave power. The true double-conversion online topology of this UPS safeguards against all power fluctuations, providing a stable and reliable electrical supply crucial for sensitive operations.
Adaptable Input Voltage and Compact Design
Built to handle diverse power environments, this UPS features a wide input voltage range (160-280V at full load, 110-280V at half load) for stable operation in varying conditions. Its 2U rackmount form factor allows for efficient integration into existing server racks, optimizing space without compromising performance.
Intuitive Monitoring and Expandable Connectivity
Monitor your power status effortlessly with the multi-function LCD display, LED indicators, and audible alarms that provide real-time updates and alerts. The inclusion of USB, RS-232 ports, and an intelligent slot allows for enhanced network management capabilities and seamless integration into your IT infrastructure.
Technical Specifications
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 2400 W / 3000 VA |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Input Voltage Limits | 110–280 V (half load), 160–280 V (full load) |
| Input Frequency | 40–70 Hz auto sensing |
| Input Connector Type | IEC 60320 C20 |
| Output Connector Type | 4× India 3-pin 6A, 1× Hard wire (H + N + E) |
| UPS Type | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | ≤ 3% |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Efficiency (Full Load) | 90% |
| Max. Runtime @ Full Load | 2 min 38 sec |
| Battery Type | Lead-acid (Internal) |
| Battery Voltage | 72 V |
| Extended Runtime Support | No |
| Battery Slots (Filled / Free) | 1 / 0 |
| Battery Recharge Time | 4 h |
| Battery Charger Power | 60 W rated |
| Replacement Battery | APCRBCV202 |
| Included Equipment | USB cable, RS-232 cable, C19 to India 3-pin 16A cable, rack mounts, feet, user manual |
| Mounting Mode | Rack-mounted |
| Mounting Units | 2U |
| Mounting Location | Front |
| Mounting Position | Horizontal |
| Color | Black (RAL 7010) |
| USB Compatible | No |
| Dimensions (H × W × D) | 8.8 × 43.8 × 63.2 cm |
| Product Weight | 28 kg |
| Control Panel | Multifunction LCD status and control console |
| Alarm Types | Audible and visual (prioritized by severity) |
| Surge Energy Rating | 600 J |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 910 BTU/h |
| IP Rating | IP20 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% non-condensing |
| Package Dimensions (H×W×L) | 22.8 × 79.4 × 57 cm |
| Package Weight | 32 kg |
| Warranty | 2 Years Repair or Replace |
Frequently Asked Questions
Q: What is the power capacity of the APC EASY UPS ON-LINE SRV3KL-IN?
A: It has a power capacity of 3kVA (3000 VA) / 2400W.
Q: What type of outlets does this UPS provide?
A: It provides 4 INDIA 3-PIN 6A outlets and one hard wire 3-wire (1P+N+E) connection.
Q: Is a rail kit included for rack mounting?
A: No, the rail kit is not included with this 2U rackmount UPS.
