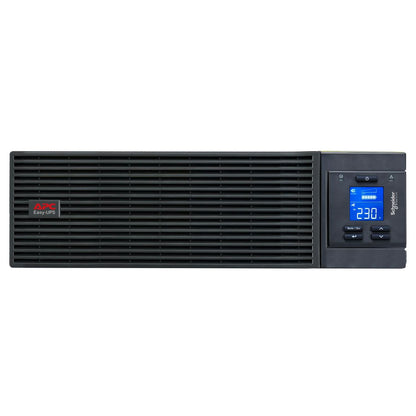

APC EASY UPS ON-LINE SRV20KUXI-IN - 20KVA/20KW | 230V | 1X HARD WIRE 3-WIRE(1P+N+E) OUTLETS | RACKMOUNT 3U | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | NO BATTERY, W/O RAIL KIT | 2 YEARS WARRANTY
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

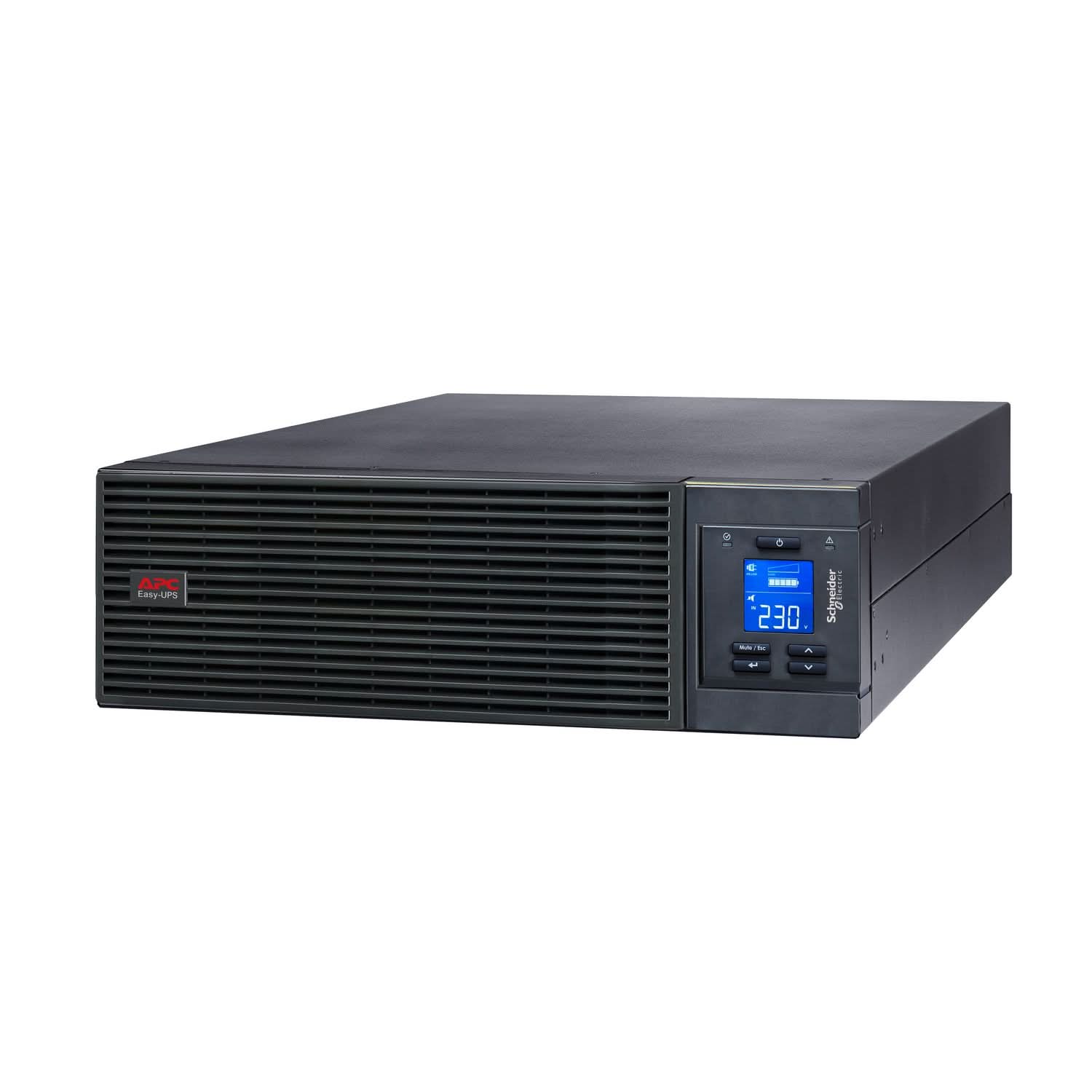

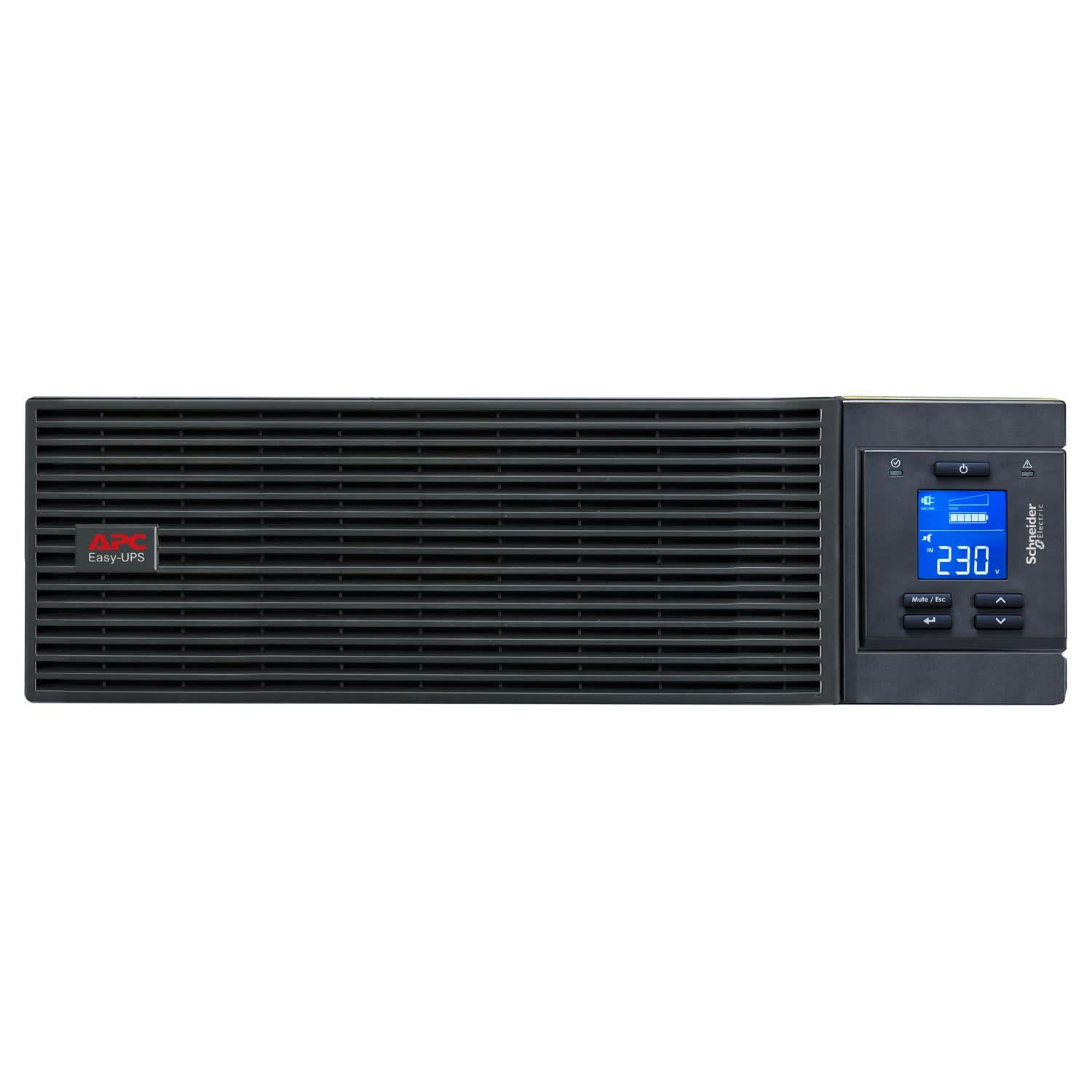

The APC EASY UPS ON-LINE SRV20KUXI-IN 20kVA/20kW is a true double-conversion on-line UPS designed to provide premium, uninterrupted pure sine wave power for critical enterprise IT and data center operations. With a 20kVA/20kW unity power factor, this robust Rackmount 3U UPS ensures reliable performance in demanding environments.
Key Features at a Glance
- Power Capacity: 20,000 VA / 20,000 W Unity Power Factor for maximum load support.
- Topology: True Double-Conversion On-Line for clean, uninterrupted power.
- High Efficiency: Up to 95% online mode efficiency and 97% in ECO mode.
- Versatile Input/Output: 230V pure sine wave output (selectable 220V/240V) with 1-phase or 3-phase input support.
- Compact Design: Space-saving Rackmount 3U form factor (130.6 x 438 x 689.4 mm).
- Comprehensive Management: Multi-function LCD display, USB, RS-232 ports, and an Intelligent Slot for network management.
Reliable Power Protection
The APC EASY UPS SRV20KUXI-IN ensures robust protection for your critical equipment with its true double-conversion online topology. It provides a consistent, pure sine wave output, safeguarding sensitive enterprise IT infrastructure, data centers, and industrial applications from power fluctuations and outages.
Energy Efficient Operation
Designed to optimize energy usage, this UPS operates with up to 95% efficiency in online mode and 97% in ECO mode. This exceptional energy performance helps reduce overall power consumption and associated cooling expenses for large-scale deployments, contributing to lower operational costs.
Flexible and Scalable Design
Offers adaptable power solutions with its support for both single-phase and three-phase input configurations and a wide input voltage range (176-275V full load, 110-300V half load). The compact Rackmount 3U form factor integrates efficiently into existing server racks, while the scalable external battery system, featuring a programmable charger (3-13A) and selectable voltage (±96V to 120V), allows for extended runtime customization.
Advanced Management & Safety
Equipped with advanced management features, this UPS includes a multi-function LCD display for real-time monitoring and control. Connectivity options like USB, RS-232, and an intelligent slot allow for network management. Enhanced safety is provided through Hardwire output and an Emergency Power Off (EPO) function.
Technical Specifications
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 20000 W / 20000 VA |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V AC, 415 V AC |
| Other Input Voltage | 220 V, 230 V, 415 V |
| Input Voltage Limits | 110–300 V (half load), 176–300 V (full load) |
| Input Frequency | 40–70 Hz auto-sensing |

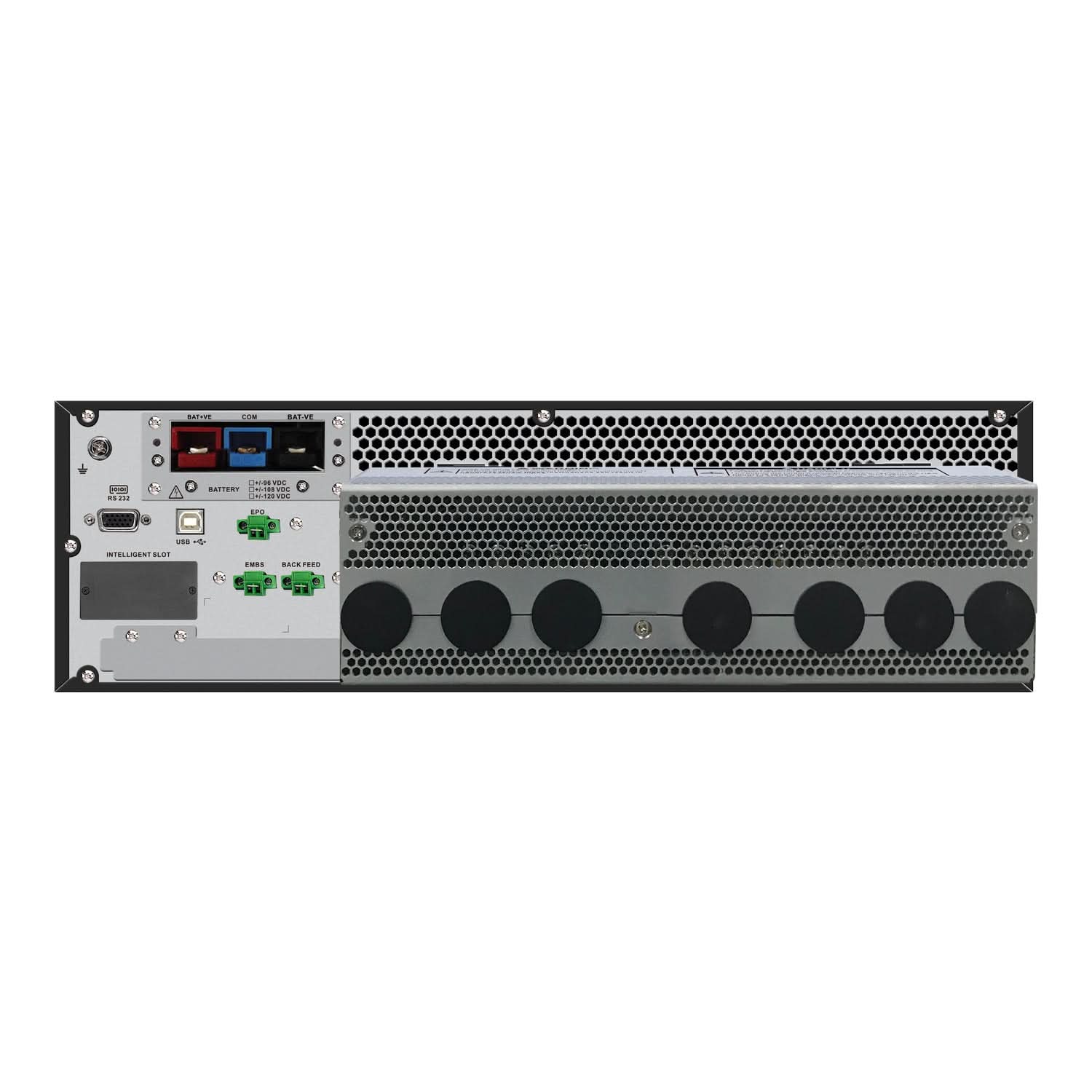

| Input Connectors | 1× Hard wire 3-wire (1P + N + E), 1× Hard wire 5-wire (3P + N + E) |
| Output Connector Type | 1× Hard wire 3-wire (1P + N + E) |
| Max Configurable Power | 20000 VA / 20000 W |
| Waveform | Pure Sine Wave |
| UPS Type | Double Conversion Online |
| Efficiency (Full Load) | 95% |
| Harmonic Distortion | ≤ 2% |
| Crest Factor | 3:1 |
| Bypass Type | Internal (Automatic and Manual) |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Battery Type | External Battery System |
| Battery Voltage | ±120 V |
| Extended Runtime | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Battery Charger Power | 2340 W rated |
| Mounting Type | Rack-mounted with kit |
| Mounting Units | 3U |
| Mounting Position | Horizontal (Front) |
| Color | Black (RAL 7010) |
| Dimensions (H×W×D) | 13.0 × 43.8 × 74.9 cm |
| Product Weight | 29 kg |
| USB Compatible | Yes |
| Included Equipment | USB cable, RS-232 config cable, rack brackets, wall feet, battery cable, 6 jumper bars, manual |
| Control Panel | Multifunction LCD status and control console |
| Communication Ports | USB, RS-232, SmartSlot |
| Alarm Types | On battery, Low battery, Overload |
| Emergency Power Off (EPO) | Yes |
| Surge Protection | 600 J |
| Acoustic Level | 65 dBA |
| Heat Dissipation | 3712 BTU/h |
| IP Protection | IP20 |
| Operating Temp. | 0–40 °C |
| Storage Temp. | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity | 0–95% (non-condensing) |
| Package Dimensions (H×W×L) | 25 × 87 × 58 cm |
| Package Weight | 35.9 kg |
| Warranty | 2 Years Repair or Replace |
Frequently Asked Questions
Q: What is the power capacity of this UPS?
A: The APC EASY UPS ON-LINE SRV20KUXI-IN has a power capacity of 20,000 VA / 20,000 W with a unity power factor.
Q: Does this UPS include batteries?
A: No, this UPS is designed for use with scalable external battery systems, but batteries are not included.
Q: What are the physical dimensions of the Rackmount 3U unit?
A: The dimensions of the Rackmount 3U unit are 130.6 mm (height) x 438 mm (width) x 689.4 mm (depth).
