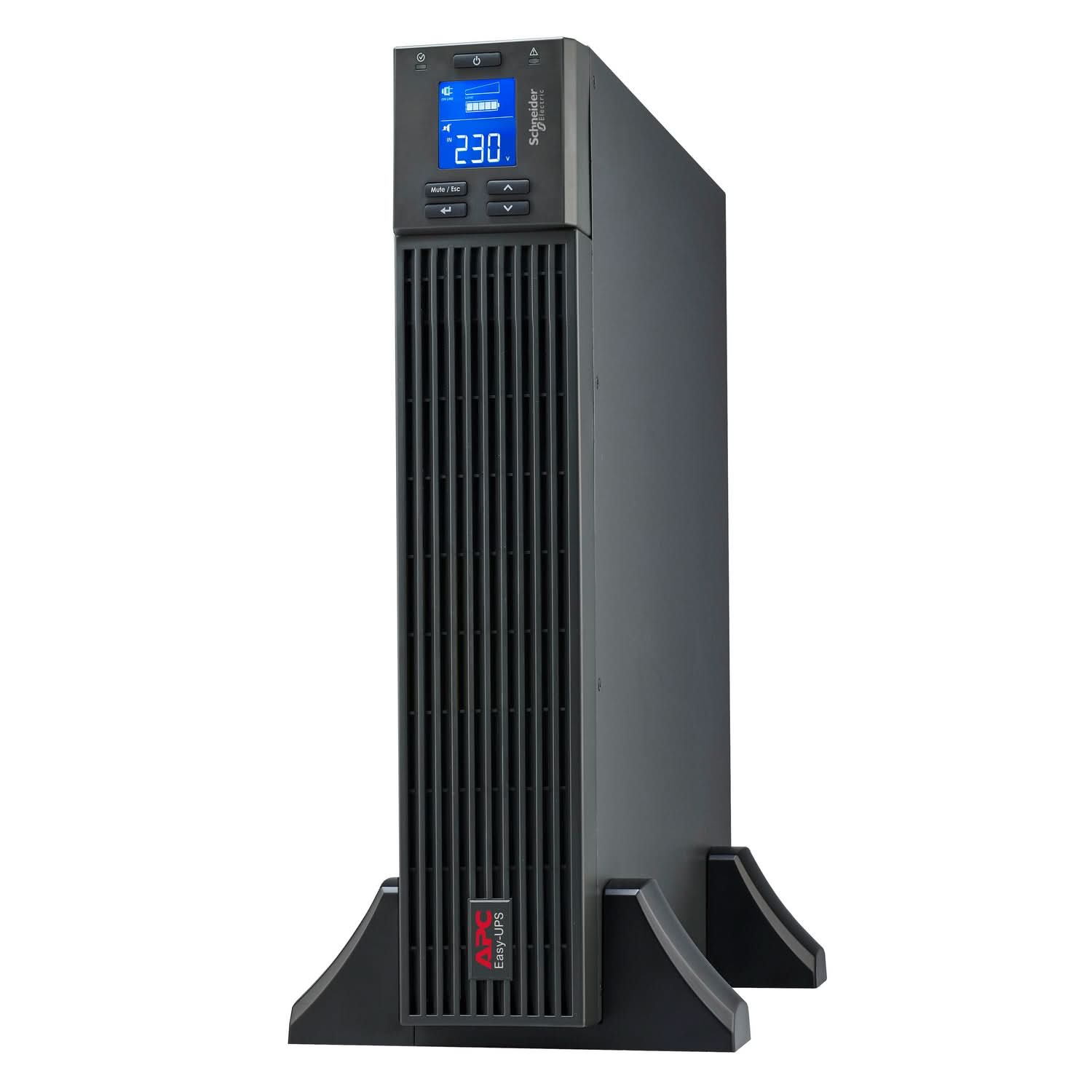

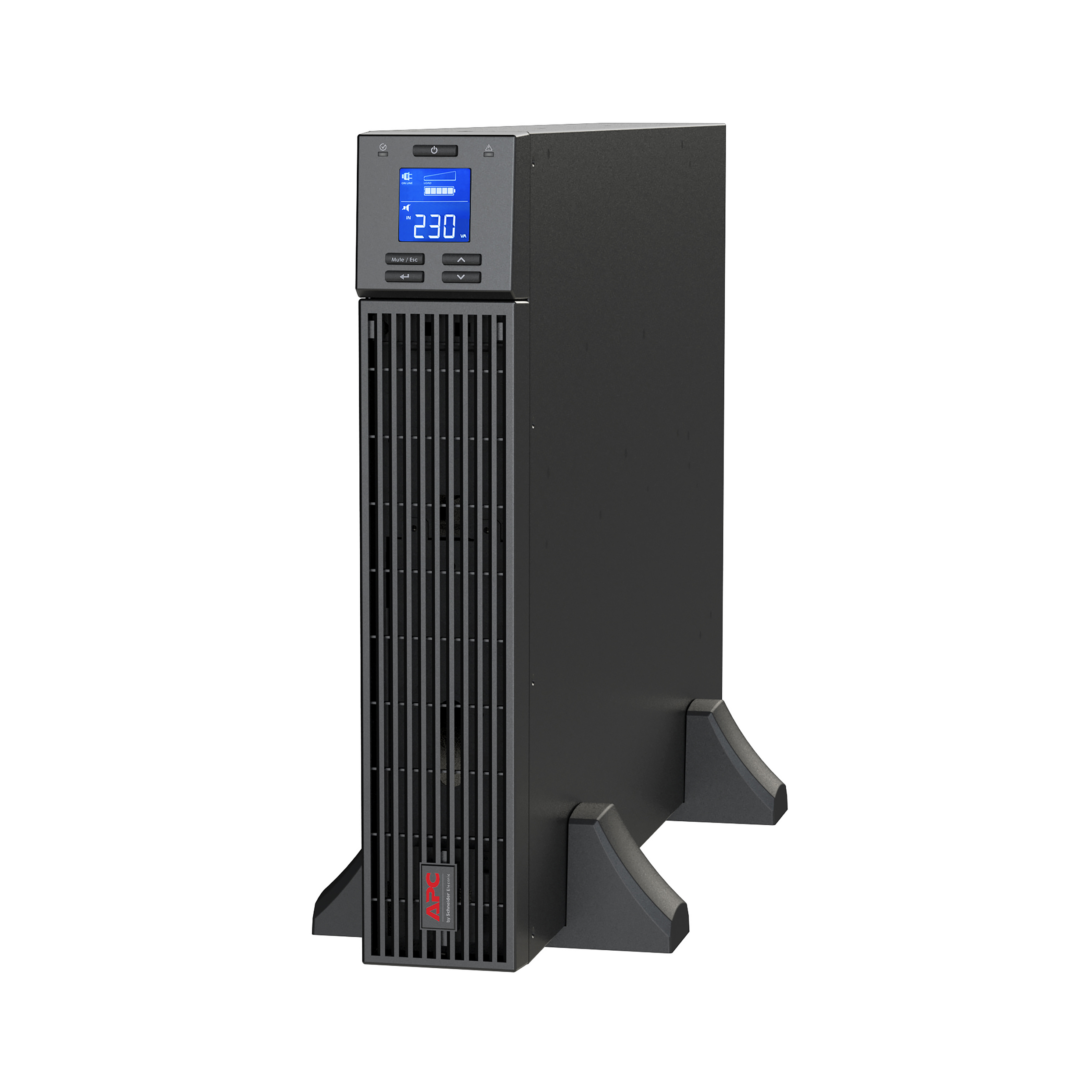

The APC EASY UPS ON-LINE SRV1KL-IN is a reliable 1000VA/800W true double-conversion online UPS designed to provide constant, pure sine wave power for your critical IT equipment. Its robust features and rack-mountable 2U design make it an ideal solution for safeguarding sensitive servers, network devices, and workstations, especially in environments with fluctuating power conditions.
Key Features at a Glance
- True double-conversion online UPS topology.
- Delivers 1000VA / 800W of pure sine wave power.
- Features a wide input voltage range (110-280V) for unstable power.
- Space-saving rack-mountable 2U form factor.
- Intuitive multi-function LCD display and audible alarms.
- Includes 4 India 6A outlets, USB, RS-232, and Intelligent Slot.
Reliable Double-Conversion Protection
The APC EASY UPS ON-LINE SRV1KL-IN utilizes true double-conversion online technology to deliver constant, pure sine wave power. This advanced topology ensures that your sensitive servers, network devices, and critical IT equipment receive clean and stable electricity, protecting them from voltage fluctuations and power disturbances, even in challenging environments like India.

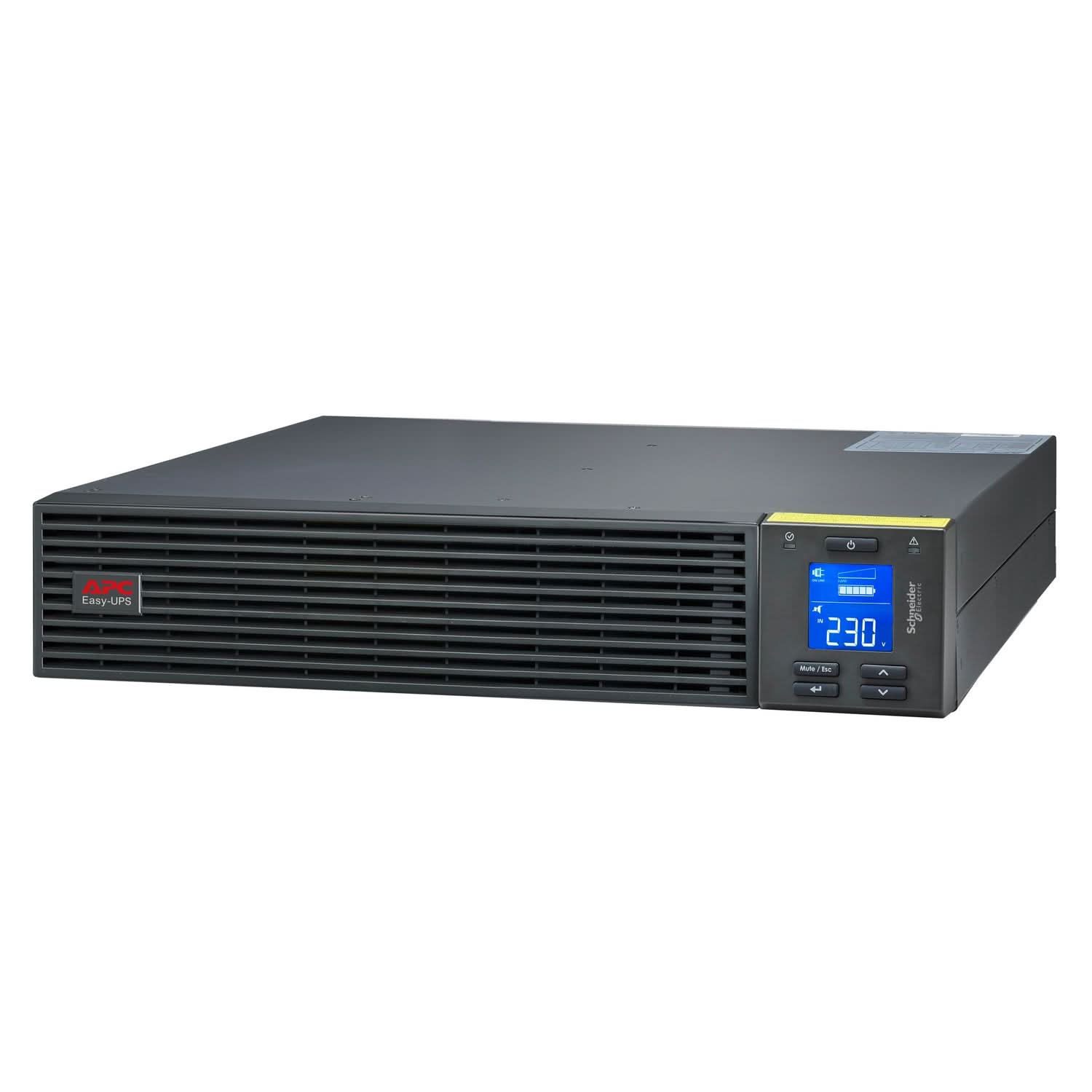

Space-Saving Rackmount Design with Intuitive Monitoring

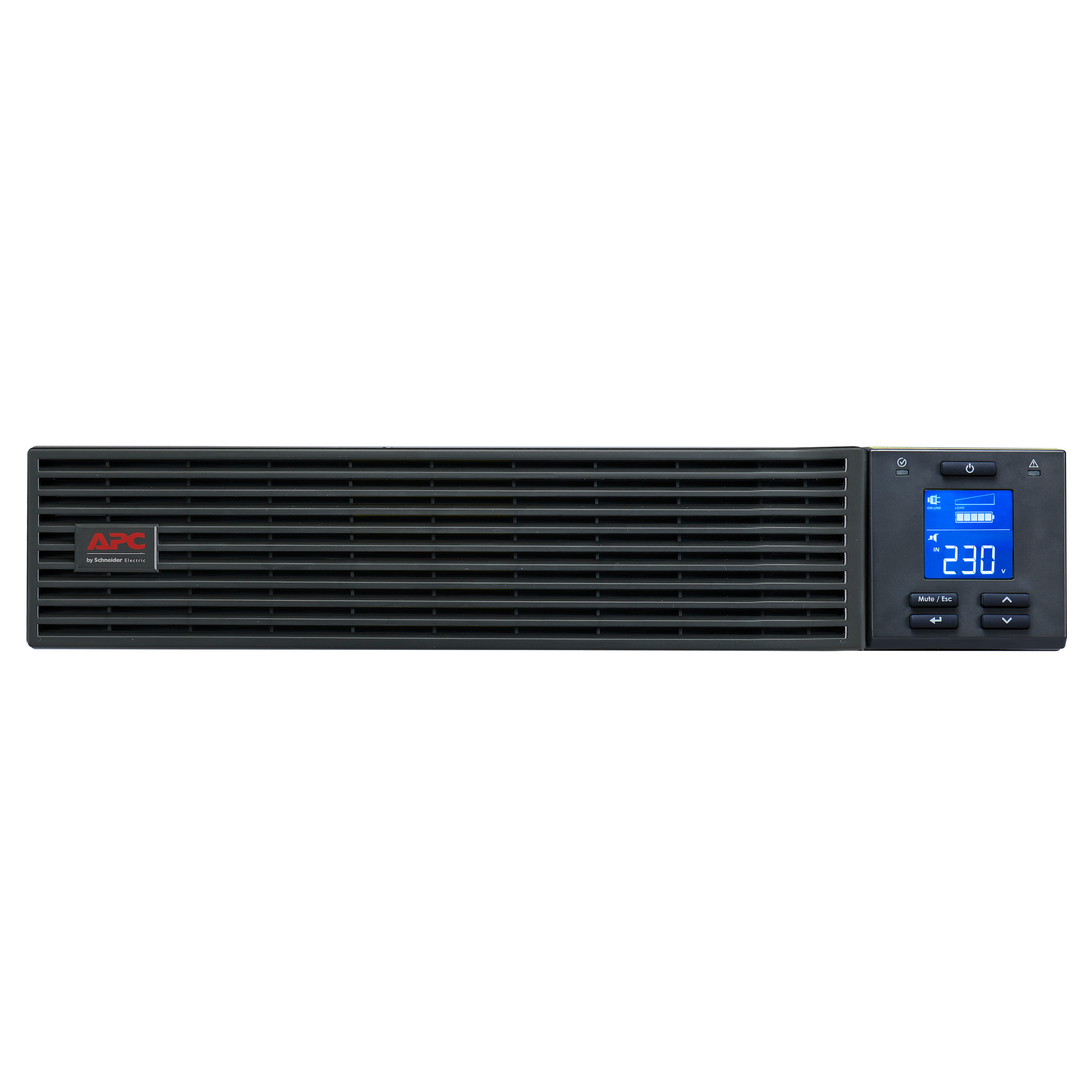

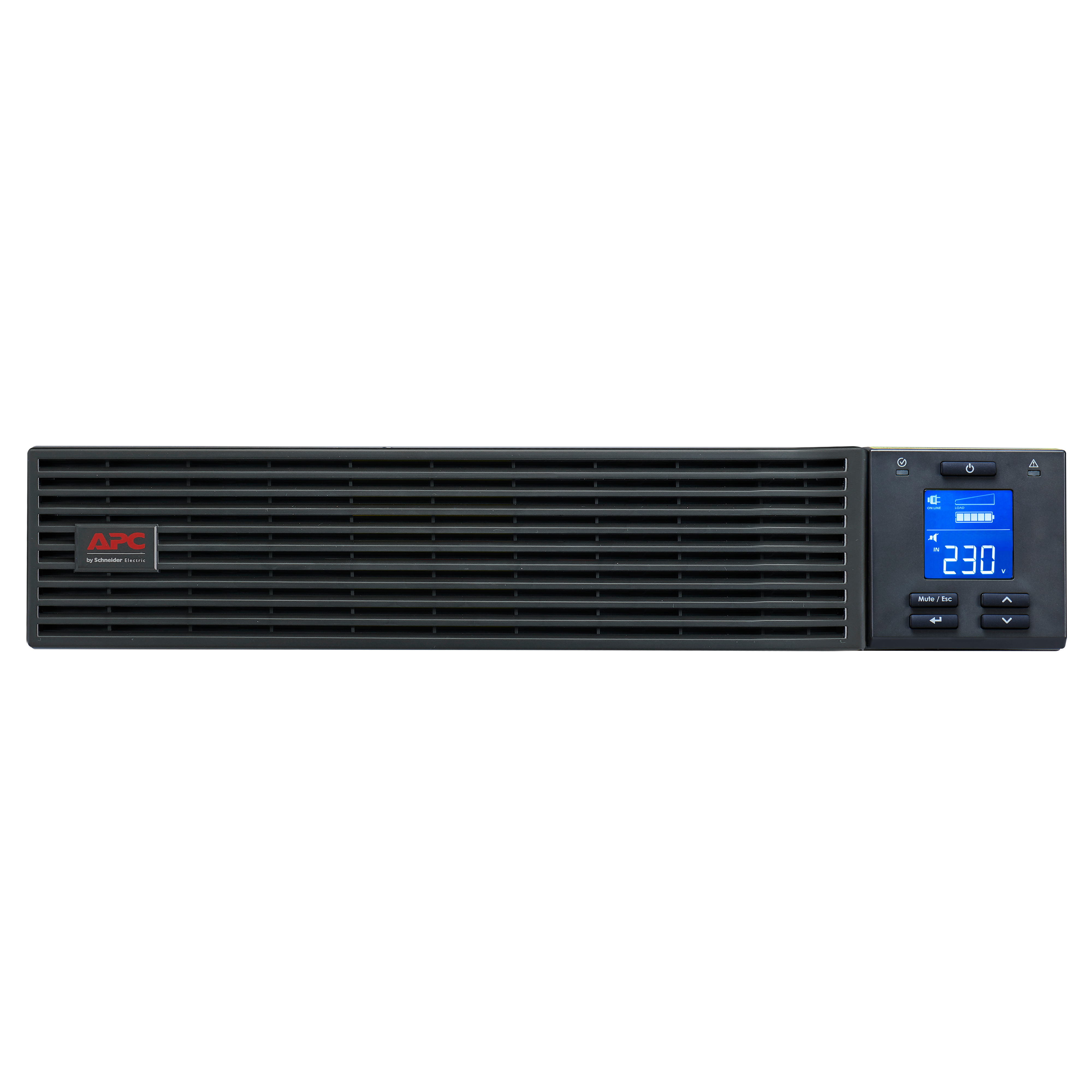

With its space-saving rack-mountable 2U form factor, this UPS seamlessly integrates into existing server racks, optimizing your data center layout. An intuitive multi-function LCD display, alongside LED indicators and audible alarms, provides real-time UPS status, battery levels, and critical alerts for easy, at-a-glance monitoring.
Extended Battery Runtime and Smart Connectivity

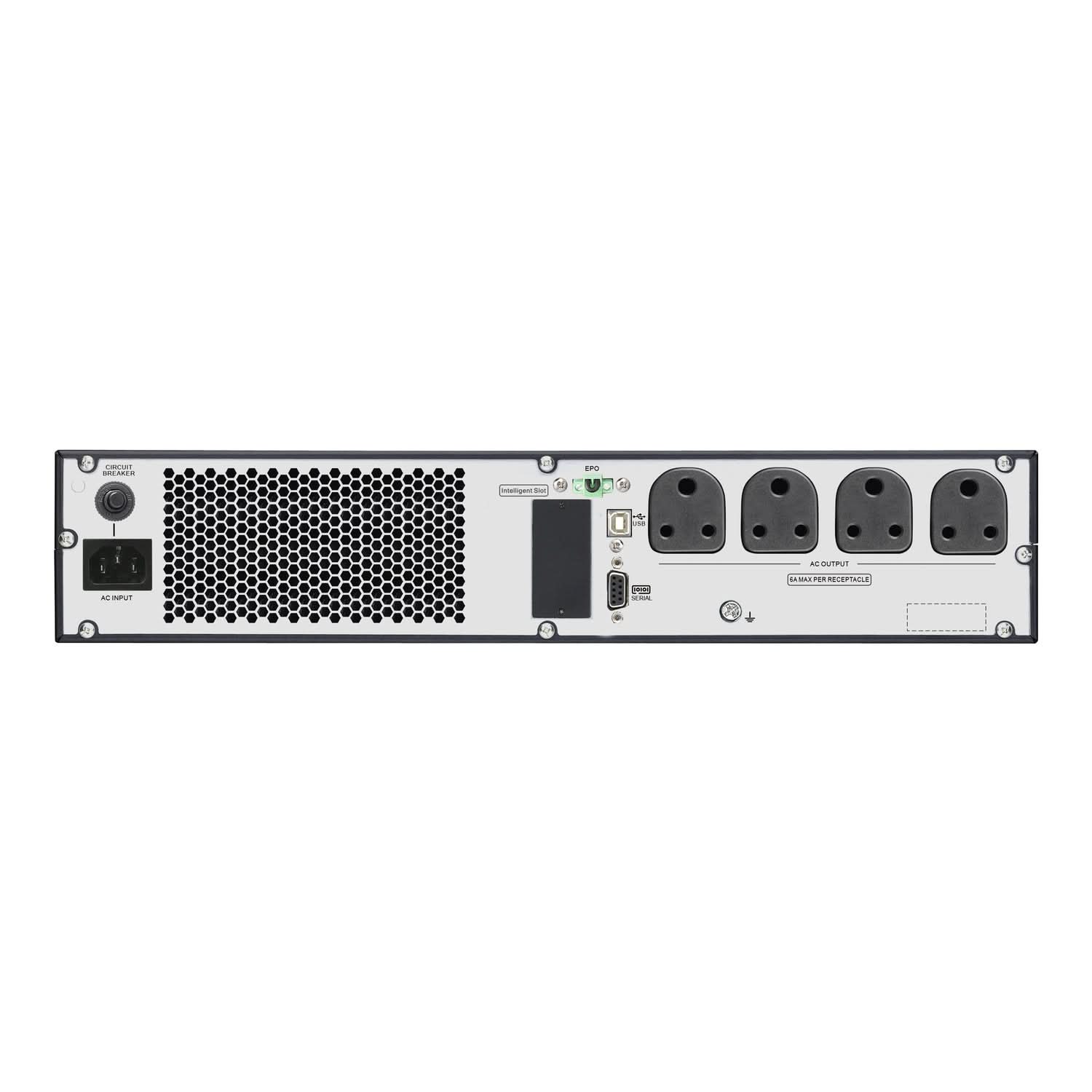

Equipped with 3 x 12V 7Ah sealed lead-acid batteries, the UPS offers up to 12 minutes of runtime at half load, ensuring sufficient time for safe shutdowns during power outages. Smart connectivity options include 4 India 6A outlets, USB, RS-232 ports, and an Intelligent Slot for optional network management cards, enabling remote monitoring and control.
Optimized Energy Efficiency
This UPS is designed for energy efficiency, achieving up to 88% efficiency in double-conversion mode and an impressive 95% in ECO mode. This helps to reduce energy consumption and operating costs, contributing to a greener and more economical power management solution for your business.
Technical Specifications
| Parameter | Specification |
|---|---|
| Presentation | High quality, double-conversion online UPS for unstable power conditions |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) – Double Conversion Online |
| Range of Product | Easy UPS On-Line |
| Rated Power | 800 W / 1000 VA |
| Runtime at Full Load (800W) | 4 minutes 21 seconds |
| Min–Max Supported Load | 80–800 W |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V (Other: 220 V / 240 V) |
| Input Voltage Range | 110–280 V (half load), 160–280 V (full load) |
| Main Output Voltage | 230 V (Other: 220 V / 240 V configurable) |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 4× India 3-pin 6A |
| UPS Type | Double Conversion Online |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Transfer Time | 0 ms (always online) |
| Harmonic Distortion | ≤ 3% |
| Crest Factor | 3:1 |
| Efficiency (Full Load) | 88% |
| Bypass Type | Internal bypass (automatic and manual) |
| Battery Type | Lead-acid |
| Battery Voltage | 36 V |
| Battery Charger Power | 30 W rated |
| Recharge Time | 4 hours |
| Battery Slots (Filled / Free) | 1 filled / 0 free |
| Extended Runtime Supported | No |
| USB Compatible | Yes |
| Mounting Type | Rack-mounted with kit, 2U, horizontal mounting |
| Included Accessories | IEC to 3-pin India cable, USB cable, RS-232 cable, rack brackets, wall feet, user manual |
| Dimensions (H × W × D) | 8.8 × 43.8 × 41.2 cm |
| Product Weight | 13.6 kg |
| Color | Black (RAL 7010) |
| Operating Temp. | 0–40 °C |
| Storage Temp. | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% (non-condensing) |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 372 BTU/hr |
| Display Panel | Multifunction LCD status and control console |
| Communication Ports | USB, RS-232, SmartSlot |
| Emergency Power Off (EPO) | Yes |
| Alarms | On battery, Low battery, Overload |
| Surge Energy Rating | 600 J |
| IP Degree of Protection | IP20 |
| Certifications | BIS |
| Packaging Dimensions (H × W × L) | 24 × 60 × 50 cm |
| Packaging Weight | 16.8 kg |
| Warranty | 2 years repair or replace |
Frequently Asked Questions
Q: What is the power capacity of this UPS?
A: The APC EASY UPS ON-LINE SRV1KL-IN provides a power capacity of 1000VA / 800W.
Q: What is the typical battery runtime?
A: It provides up to 12 minutes of runtime at half load and 4 minutes at full load with its built-in batteries.
Q: What are the physical dimensions and form factor?
A: This UPS features a rack-mountable 2U form factor with dimensions of 438 x 86.2 x 412.2 mm and weighs 13.6 kg.
