APC BACK-UPS BX2000UXI 2000VA/1200W | 230V | AUTOMATIC VOLTAGE REGULATION | LED STATUS DISPLAY | WITHOUT BATTERY WITH SELECTABLE CHARGER | SEALED MAINTENANCE-FREE & TUBULAR BATTERY COMPATIBLE UPS | USER REPLACABLE BATTERY | ENERGY EFFICIENT |
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

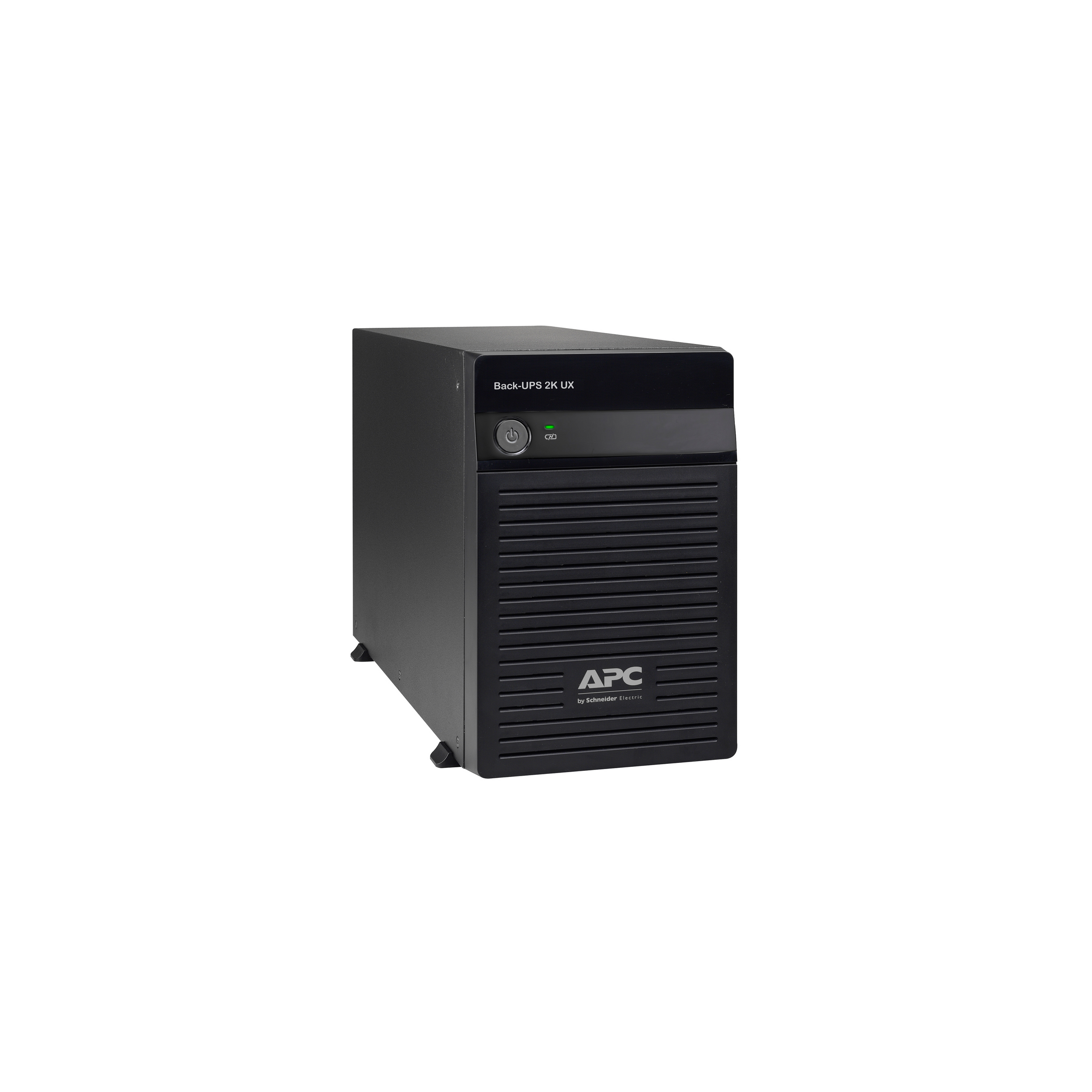

The APC BACK-UPS BX2000UXI is an Uninterruptible Power Supply (UPS) providing 2000VA/1200W of power for your IT and electronic equipment. Designed for environments with unstable power supply, it features automatic voltage regulation and supports flexible battery configurations for extended backup durations. This energy-efficient UPS is compatible with both sealed maintenance-free and tubular batteries, and offers a selectable charger.
Key Features at a Glance
- 2000VA / 1200W Capacity: Provides substantial power for equipment.
- Automatic Voltage Regulation: Ensures stable power delivery.
- Wide Input Voltage Range: Operates from 140V to 300V.
- Flexible Battery Support: Compatible with SMF and tubular batteries.
- Selectable Charging Currents: Choose from 5A, 10A, 15A, or 20A.
- LED Status Display: For clear monitoring of operational status.
Stable Power in Challenging Conditions
The APC BACK-UPS BX2000UXI is engineered to perform reliably even with fluctuating power. Its wide input voltage range of 140V to 300V and genset compatibility (40Hz–70Hz) ensure continuous operation, providing a stable stepped sinewave output for your connected devices.
Flexible and Adaptable Battery Management
This UPS offers versatile battery configuration to meet your specific backup needs. It is compatible with both Sealed Maintenance-Free (SMF) and tubular batteries, and features user-replaceable batteries for convenience. A selectable charger allows you to choose from 5A, 10A, 15A, or 20A charging currents, although batteries are not included with the unit.
Comprehensive Equipment Protection
Protect your valuable IT and electronic equipment with the built-in safeguards of the BX2000UXI. Automatic Voltage Regulation (AVR) corrects power fluctuations without switching to battery, while a fast transfer time (4–10 ms typical, 15 ms max) minimizes disruption during outages. An output terminal block provides secure connections, and a resettable circuit breaker offers additional safety.
Technical Specifications
| Category | Specification |
|---|---|
| Availability | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Back-UPS |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated Power (W) | 1200 W |
| Rated Power (VA) | 2000 VA |
| Maximum Configurable Power (W) | 1200 W |
| Maximum Configurable Power (VA) | 2000 VA |
| Output Frequency | 50 Hz ± 1 Hz (unsynchronized) |
| UPS Type | Line interactive |
| Waveform | Stepped approximation to a sinewave |
| Efficiency (Full Load) | 92% |
| Transfer Time | 8 ms typical / 12 ms max |
| Output Connector Type | Hard wire 3-wire (1P + N + E) × 1 |
| Cable Length | 1.5 m |
| Battery Voltage | 24 V |
| Battery Charger Power | 576 W rated |
| Extended Runtime | 0 |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| Power Module Free Slots | 0 |
| Power Module Filled Slots | 0 |
| Redundant | No |
| Plug Standard | India 3-pin 16A |
| Input Voltage Limits | 140–300 V |
| Network Frequency | 40–70 Hz auto sensing |
| Colour | Black |
| Height | 22 cm |
| Width | 14.5 cm |
| Depth | 39.2 cm |
| Weight | 13.4 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 ft |
| Storage Temperature | 0–45 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–914.4 m |
| Acoustic Noise Level | 50 dBA |
| IP Protection Rating | IP20 |
| Control Panel | LED status display with online / battery indicators |
| Surge Energy Rating | 160 J |
| Certifications | BIS |
| Provided Equipment | User manual |
| Package Type | PCE |
| Units per Package | 1 |
| Package Height | 33.5 cm |
| Package Width | 23.5 cm |
| Package Length | 47.7 cm |
| Package Weight | 14.3 kg |
| Warranty | 2 years (repair or replace) |
Frequently Asked Questions
Q: What is the power capacity of the APC BACK-UPS BX2000UXI?
A: The APC BACK-UPS BX2000UXI provides a power capacity of 2000VA / 1200W.
Q: What types of batteries are compatible with this UPS?
A: This UPS is compatible with both Sealed Maintenance-Free (SMF) and tubular batteries.
Q: Are batteries included with the APC BACK-UPS BX2000UXI?
A: No, the unit is supplied without batteries, but features a selectable charger and user-replaceable battery capability.
