APC BACK-UPS BX1000UXI 1000VA/600W | 230V | 4 INDIA 3-PIN 6A OUTLETS OUTLETS | AUTOMATIC VOLTAGE REGULATION | LED STATUS DISPLAY | WITHOUT BATTERY WITH SELECTABLE CHARGER | SEALED MAINTENANCE-FREE & TUBULAR COMPATIBLE | USER REPLACABLE BATTERY

Rs. 9,159.00 Rs. 11,700.00

Product variants

Out of stock

The APC Back-UPS BX1000UXI is a powerful and flexible uninterruptible power supply designed to deliver long backup times and reliable protection for your IT and electronic equipment. With a capacity of 1000VA/600W, this UPS is ideal for homes, small offices, and areas with frequent power fluctuations.

Built by Schneider Electric, the BX1000UXI supports both SMF and tubular batteries, giving users the freedom to connect batteries of any size. Its selectable charging current (5A/10A/15A/20A) ensures optimal charging performance based on the battery type and capacity. The UPS features 4 Indian output sockets, a separate charging LED, and a resettable circuit breaker for added safety and convenience.

Thanks to its wide input voltage window (140V–300V) and genset compatibility (40Hz–70Hz), the BX1000UXI is perfectly suited for challenging power environments. It delivers a stepped sinewave output and has a fast transfer time of 4–10 ms, ensuring your devices stay protected and operational during outages. With a 2-year warranty, this UPS offers dependable performance and peace of mind.

Key Features:

Power Capacity: 1000VA / 600W – ideal for home and office electronics.
Battery Compatibility: Supports SMF and tubular batteries (external, not included).
Selectable Charging Current: 5A, 10A, 15A, or 20A – connect any size battery.
Wide Input Voltage Range: Operates from 140V to 300V – perfect for low-voltage areas.
Genset Compatible: Works with generators across a 40Hz–70Hz frequency range.
Fast Transfer Time: 4–10 ms typical, 15 ms max – ensures minimal disruption.
Output Voltage: 230V stepped sinewave output for stable power delivery.

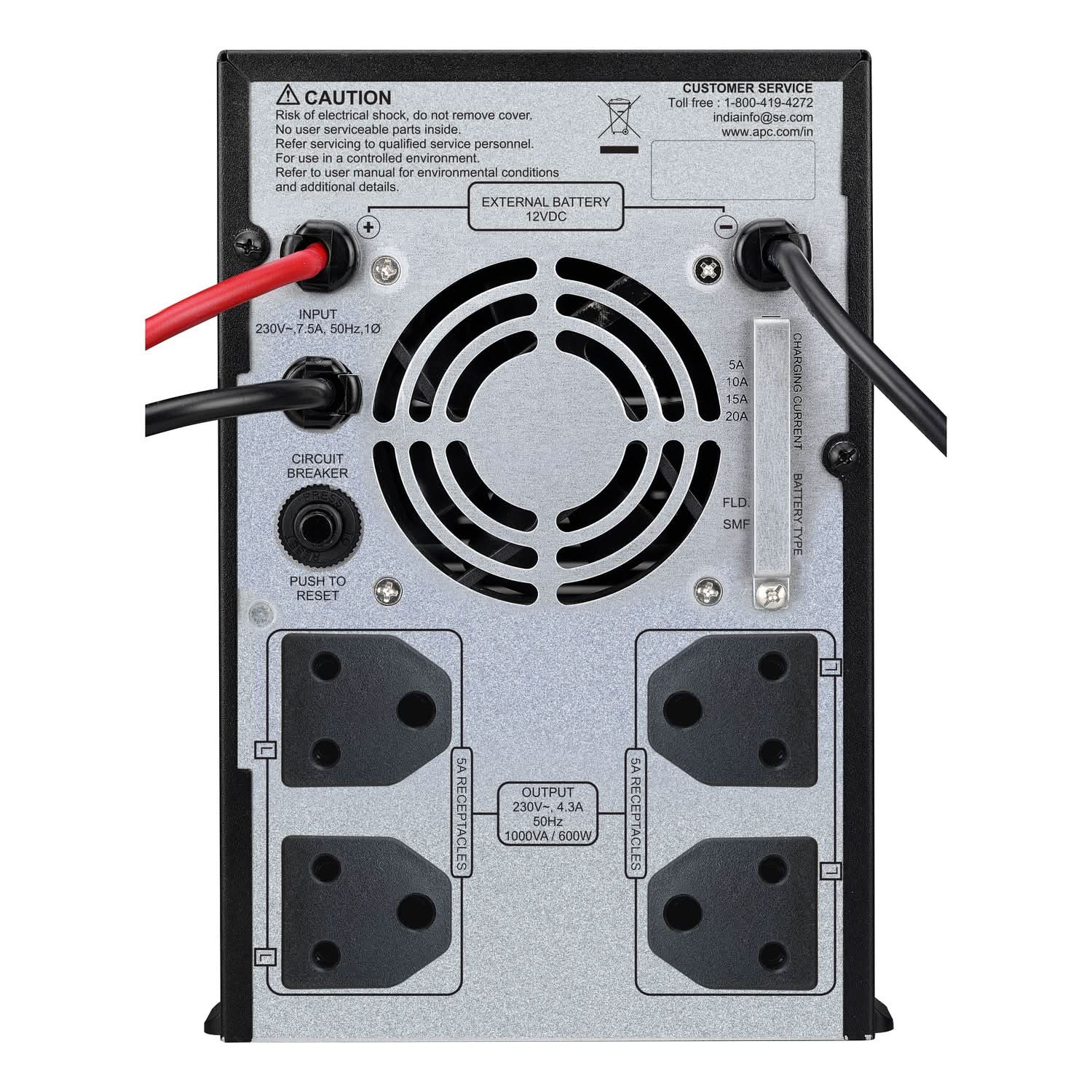

User-Friendly Design: 4 Indian output sockets and separate charging LED.
Safety Features: Resettable circuit breaker for overload protection.
Compact & Durable: Dimensions – 392 x 145 x 220 mm; Weight – 9.3 kg.
Environmental Tolerance: Operates in 0–40°C with up to 95% non-condensing humidity.
Warranty: 2-year manufacturer warranty for reliable support.

Specifications

Category	Specification
Lead Time	Usually in Stock
Product Type	Uninterruptible Power Supply (UPS)
Range of Product	Back-UPS
Main Input Voltage	230 V
Main Output Voltage	230 V
Rated Power (W)	600 W
Rated Power (VA)	1000 VA
Maximum Configurable Power (W)	600 W
Maximum Configurable Power (VA)	1000 VA
Output Frequency	50 Hz ± 1 Hz (unsynchronized)
UPS Type	Square
Waveform	Stepped approximation to a sinewave
Efficiency (Full Load)	92%
Transfer Time	8 ms typical / 12 ms max
Output Connection Type	4x India 3-pin 6A
Cable Length	1.5 m
Battery Type	External battery system
Battery Voltage	12 V
Battery Charger Power	288 W rated
Extended Runtime	0
Battery Filled Slots	0
Battery Free Slots	0
Power Module Free Slots	0
Power Module Filled Slots	0
Redundant	No
Plug Standard	India 3-pin 6A
Input Voltage Limits	140–300 V
Network Frequency	40–70 Hz auto sensing
Colour	Black
Height	22 cm
Width	14.5 cm
Depth	39.2 cm
Product Weight	9.3 kg
Mounting Preference	No preference
Mounting Mode	Not rack-mountable
Two-Post Mountable	0
USB Compatible	No
Operating Temperature	0–40 °C
Operating Humidity	0–95% non-condensing
Operating Altitude	0–3000 ft
Storage Temperature	0–45 °C
Storage Humidity	0–95% non-condensing
Storage Altitude	0–3048 m
Acoustic Noise Level	50 dBA
IP Protection Rating	IP20
Control Panel	LED status display with online / battery indicators
Surge Energy Rating	160 J
Certifications	BIS
Provided Equipment	User manual
Package Type	PCE
Units per Package	1
Package Height	33.5 cm
Package Width	23.5 cm
Package Length	47.7 cm
Package Weight	10.2 kg
Warranty	2 years (repair or replace)
