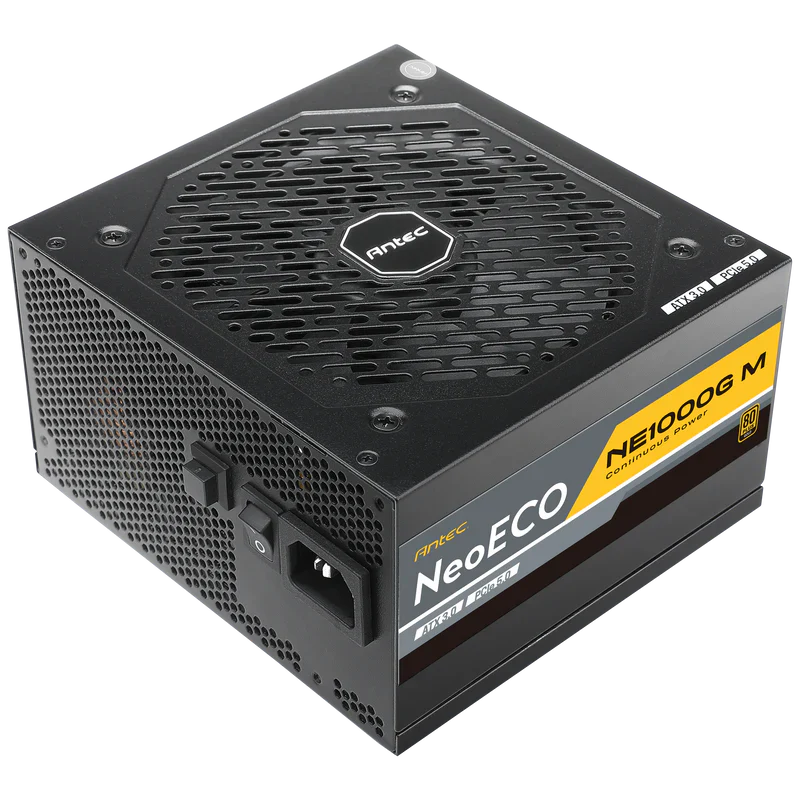

ANTEC NE1000G M ATX 3.0 WHITE 80 PLUS GOLD FULLY MODULAR POWER SUPPLY
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Elevate your PC build with the ANTEC NE1000G M ATX 3.0 WHITE 80 PLUS GOLD FULLY MODULAR POWER SUPPLY. Designed for modern systems, this power supply delivers reliable and efficient power in a sleek white finish, perfect for custom builds seeking both performance and aesthetic appeal.
Key Features at a Glance
- ANTEC NE1000G M series
- Adheres to the ATX 3.0 standard
- 1000W power output
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- Stylish white chassis design
Reliable ATX 3.0 Power Delivery
The ANTEC NE1000G M meets the latest ATX 3.0 specification, ensuring stable and consistent power delivery for demanding components and future-proof compatibility with next-generation hardware.
Exceptional 80 PLUS Gold Efficiency
Achieve significant energy savings with the 80 PLUS Gold certification. This power supply operates at high efficiency, converting more AC power into usable DC power, reducing heat generation and lowering your electricity bill.
Streamlined Fully Modular Design
Experience unparalleled flexibility and a cleaner build with the fully modular cable management system. Connect only the cables you need, simplifying installation, improving airflow, and enhancing your PC's aesthetic.
Sleek White Aesthetic
Integrate seamlessly into any white-themed PC setup. The ANTEC NE1000G M features a crisp white finish, adding a clean and modern touch to your system's overall look.
Technical Specifications
| Model | NE1000G M White ATX 3.1 |
| Type | ATX 12V 3.1 |
| Dimension | 140(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V-240V |
| Input Current | 12A-6A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |

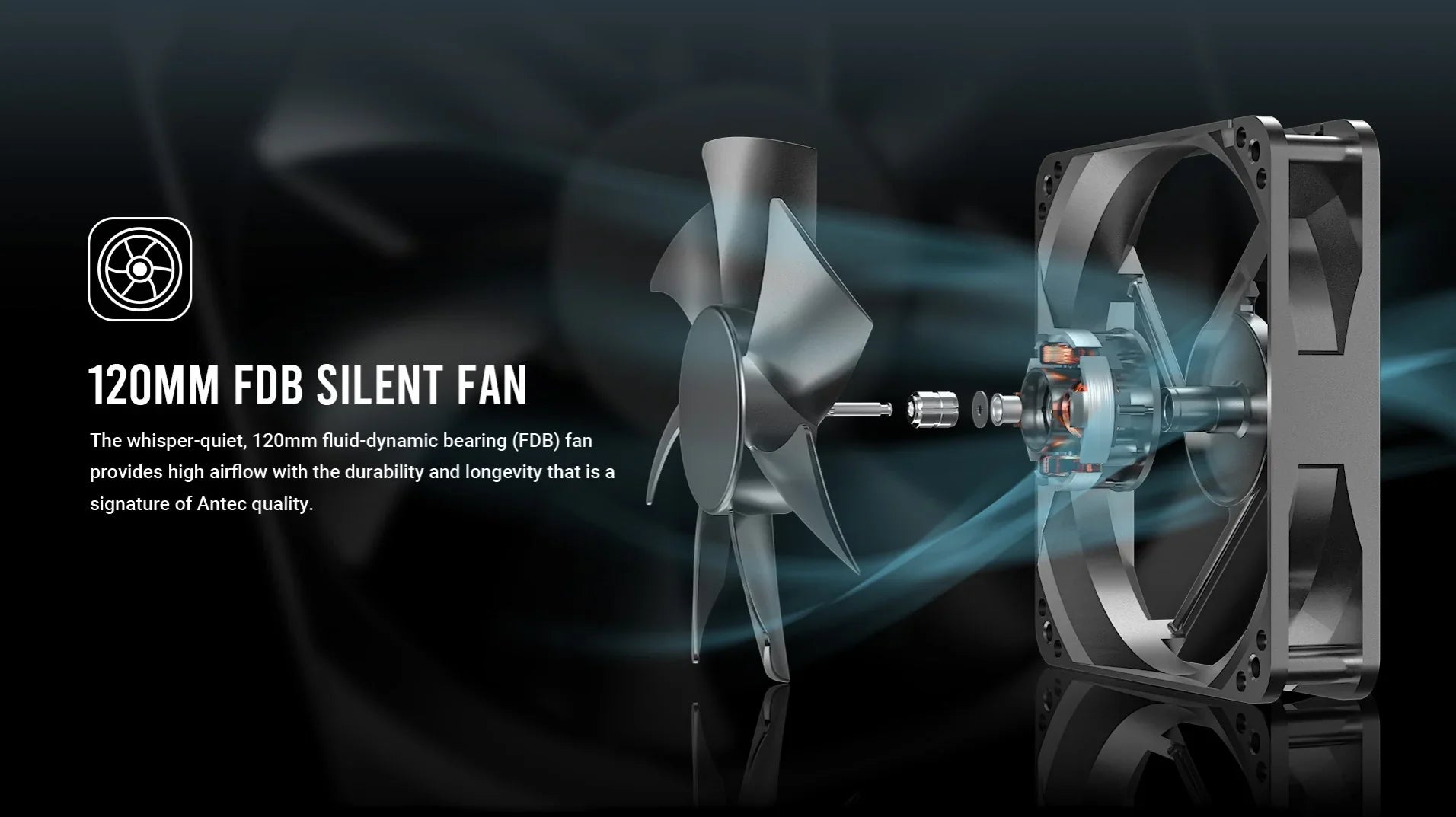

| Fan | 120mm FDB Silent Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.1 12V-2x6 | |
| 2 x 8(4+4)pin CPU | |
| 4 x 8(6+2) Pin PCI-E | |
| 12 x SATA | |
| 4 x Molex | |
| Net Weight | 1.64 Kgs |
| Gross Weight | 4.66 Kgs |
| UPC# | NE1000G M White ATX 3.1 0-761345-11788-3 NE1000G M White ATX 3.1 AU 0-761345-11789-0 NE1000G M White ATX 3.1 EC 0-761345-11790-6 NE1000G M White ATX 3.1 GB 0-761345-11791-3 NE1000G M White ATX 3.1 JP 0-761345-11792-0 |
Frequently Asked Questions
Q: What is the power output of this power supply?
A: The ANTEC NE1000G M provides 1000W of power, suitable for high-performance systems.
Q: Does this power supply support the latest ATX standard?
A: Yes, it is designed to the ATX 3.0 standard, ensuring compatibility with modern components.
Q: Is the ANTEC NE1000G M energy efficient?
A: Yes, it boasts an 80 PLUS Gold certification, indicating high energy efficiency.
