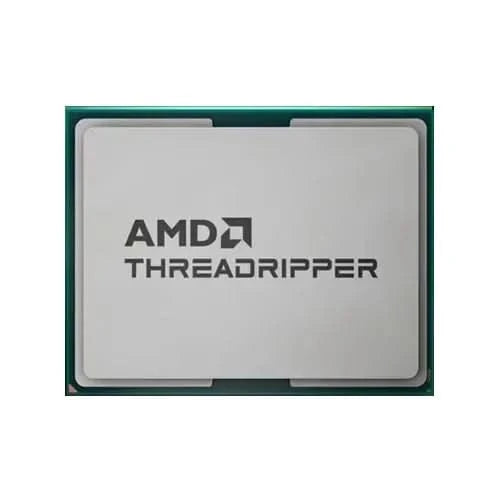

AMD Ryzen Threadripper 9960X OEM Processor
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Explore the AMD Ryzen Threadripper 9960X OEM Processor, a dedicated component designed for integration into compatible systems. This processor is identified as model 9960X within the AMD Ryzen Threadripper series, supplied as an OEM product.
Technical Specifications
| General Specifications | |
| Name | AMD Ryzen™ Threadripper™ 9960X |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 9000 Series |
| Form Factor | Desktops |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Shimada Peak |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 24 |
| Multithreading (SMT) | Yes |
| # of Threads | 48 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 1920 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 5 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Socket | sTR5 |
| Supporting Chipsets | TRX50 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 – 64-Bit Edition |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 92, 88 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 4 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 6400 MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Manageability | |
| DASH Support | Yes |
| Security | |
| AMD Memory Guard | Yes |
| AMD Secure Processor Support | Yes |
| Windows Secure Boot Support | Yes |
| UEFI Secure Boot Support | Yes |
| Windows Device Guard Support | Yes |
| Guest Mode Execution (GMET) Trap Support | Yes |
| Virtualization-Based Security (VBS) Support | Yes |
| Windows Secured-Core PC Support | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) Support | Yes |
| AMD-V Nested Paging (RVI) Support | Yes |
| AMD AVIC (Interrupt Virtualization) Support | Yes |
| AMD-Vi (I/O MMU Virtualization) Support | Yes |
| Second Level Address Translation (SLAT) Supported | Yes |
| Advanced Encryption Standard New Instructions (AES-NI) | Yes |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| FIPS Certification | In Review |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| brand | |
|---|---|
| processor-cores | |
| processor-speed | |
| processor-series |
Key Features at a Glance
- Processor from AMD.
- Part of the Ryzen Threadripper product family.
- Specific model designation: 9960X.
- Supplied as an Original Equipment Manufacturer (OEM) unit.
- Designed for computing applications.
For System Integrators
The AMD Ryzen Threadripper 9960X OEM Processor is provided as an OEM unit, making it suitable for direct installation by system builders and integrators into custom computing setups. This format caters to specific manufacturing and assembly needs.
Part of the AMD Ryzen Threadripper Series
As a component of the AMD Ryzen Threadripper series, this processor, model 9960X, belongs to a distinct line of products from AMD. This ensures it is recognized within AMD's established product categories.
Frequently Asked Questions
Q: What type of product is the AMD Ryzen Threadripper 9960X?
A: This product is an AMD Ryzen Threadripper 9960X OEM Processor.
Q: Who is the manufacturer of this processor?
A: The manufacturer of this processor is AMD.
Q: Is this processor intended for retail purchase or as an OEM component?
A: This is an OEM (Original Equipment Manufacturer) Processor, primarily for system manufacturers and integrators.
