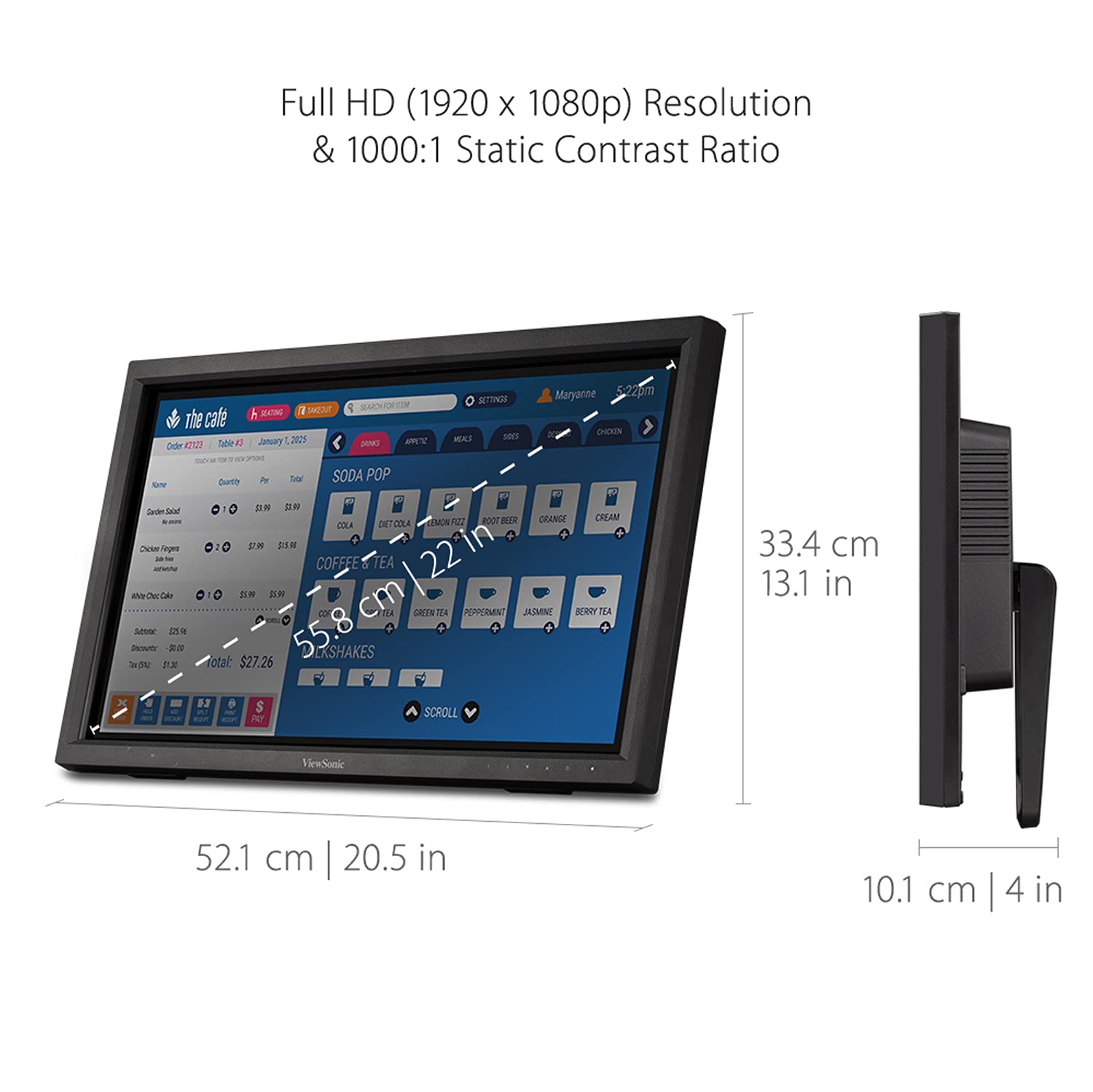

VIEWSONIC TD2223- (22") TOUCH MONITOR 10-POINT TOUCH| 7H HARDNESS | IR TOUCH TECH| 75HZ | DUAL SPEAKER| USB, HDMI, DVI, VGA
Sale priceRs. 17,336.00Regular price
Rs. 31,000.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Overview
Specifications
| Description | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | VA Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 3,000:1 (typ) |
| Dynamic Contrast Ratio: | 20M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.7M |
| Color Space Support: | 8 bit true |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 6.5ms |
| Response Time (GTG w/OD): | 6.5ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 30000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 75 |
| Low Blue Light: | Software solution |
| Flicker-Free: | Yes |
| Color Gamut: | NTSC: 72% size (Typ) |
| sRGB: 104% size (Typ) | |
| Pixel Pitch: | 0.249 mm (H) x 0.241 mm (V) |
| Touch Screen: | IR, 10-point multi-touch |
| Surface Treatment: | Glossy, Hard Coating (7H) |
| Cover Glass Thickness: | 2mm |
| COMPATIBILITY | |
| PC Resolution (max): | 1920x1080 |
| Mac® Resolution (max): | 1920x1080 |
| PC Operating System: | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920x1080 |
| CONNECTOR | |
| VGA: | 1 |
| USB 2.0 Type A: | 2 |
| USB 2.0 Type B: | 1 |
| 3.5mm Audio In: | 1 |
| 3.5mm Audio Out: | 1 |
| HDMI 1.4: | 1 |
| DVI-D: | 1 |
| Power in: | 3-pin Socket (IEC C14 / CEE22) |
| AUDIO | |
| Internal Speakers: | 2Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 13W |
| Eco Mode (optimized): | 16W |
| Consumption (typical): | 18.5W |
| Consumption (max): | 21.8W |
| Voltage: | AC 100-240V |
| Stand-by: | 0.5W |
| Power Supply: | Internal Power Supply |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| Cable Organization: | Yes |
| CONTROLS | |
| Physical Controls: | 1, 2, Up, Down, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| WALL MOUNT | |
| VESA Compatible: | 100 x 100 mm |
| INPUT SIGNAL | |
| Frequency Horizontal: | RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz |
| Frequency Vertical: | RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS - DVI-D, TMDS - HDMI (v1.4) |
| Analog Sync: | Separate/Composite/SOG - RGB Analog |
| ERGONOMICS | |
| Tilt (Forward/Back): | 20º / 40º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 9.3 |
| Net Without Stand (lbs): | 8 |
| Gross (lbs): | 12.6 |
| WEIGHT (METRIC) | |
| Net (kg): | 4.2 |
| Net Without Stand (kg): | 3.7 |
| Gross (kg): | 5.7 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 22.8 x 15.9 x 6.4 |
| Physical (in.): | 20.4 x 12.9 x 4 |
| Physical Without Stand (in.): | 20.4 x 12.1 x 2.4 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 580 x 405 x 162 |
| Physical (mm): | 519 x 329 x 101 |
| Physical Without Stand (mm): | 519 x 308 x 61 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS |
| PACKAGE CONTENTS: | TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | 2 Years |
| Power Management: | Energy Star standards, EPEAT |
