Elevate your PC build with the MSI PRO Z790-P WIFI DDR4 LGA 1700 Motherboard, designed to support Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. This motherboard integrates essential features for reliable performance and enhanced connectivity, making it a solid foundation for both professional and multimedia setups. It supports dual channel DDR4 memory, allowing for speeds up to 5333+MHz (OC), ensuring efficient multitasking and responsive computing.
Key Features at a Glance
- Supports Intel Core 14th/13th/12th Gen and Celeron/Pentium Gold Processors (LGA 1700).
- Dual Channel DDR4 Memory support up to 5333+MHz (OC).
- Enhanced Power Design with 14+1+1 DRPS and 55A DrMOS.
- Premium Thermal Solution including Extended Heatsink and M.2 Shield Frozr.
- High-Quality 6-layer PCB made with 2oz thickened copper.
- Lightning-Fast Connectivity: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2, 2.5G LAN, and Wi-Fi 6E.
Robust Power Delivery and Memory Performance
Experience stable and efficient power delivery with an enhanced 14+1+1 DRPS power design featuring 55A DrMOS and dual 8-pin CPU power connectors. Core Boost and Memory Boost technologies are integrated to optimize processor and DDR4 memory performance. This ensures your system handles demanding tasks and high-speed memory with unwavering stability, supporting speeds up to 5333+MHz (OC).
Advanced Thermal Solution for Sustained Operation
Maintain peak performance even under heavy loads thanks to a premium thermal solution. The motherboard features an extended heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads. M.2 Shield Frozr is also included to dissipate heat from M.2 SSDs, ensuring high performance and a non-stop computing experience for both gaming and professional applications.
Cutting-Edge Connectivity and Networking
Benefit from lightning-fast data transfer and network speeds with a PCIe 5.0 slot and Lightning Gen 4 x4 M.2 slots. USB 3.2 Gen 2x2 provides ultra-fast external device connectivity, complemented by Intel Turbo USB 3.2 Gen 2 for stable and speedy USB performance. For networking, a 2.5G LAN paired with Wi-Fi 6E offers a secure, stable, and fast network connection, ideal for online gaming and high-bandwidth multimedia use.
Immersive Audio Experience
Immerse yourself in high-quality sound with AUDIO BOOST technology. Designed to deliver studio-grade sound, this feature provides a more engaging and immersive audio experience, whether you're gaming, watching movies, or listening to music.
Technical Specifications
| Chipset | INTEL Z790 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |

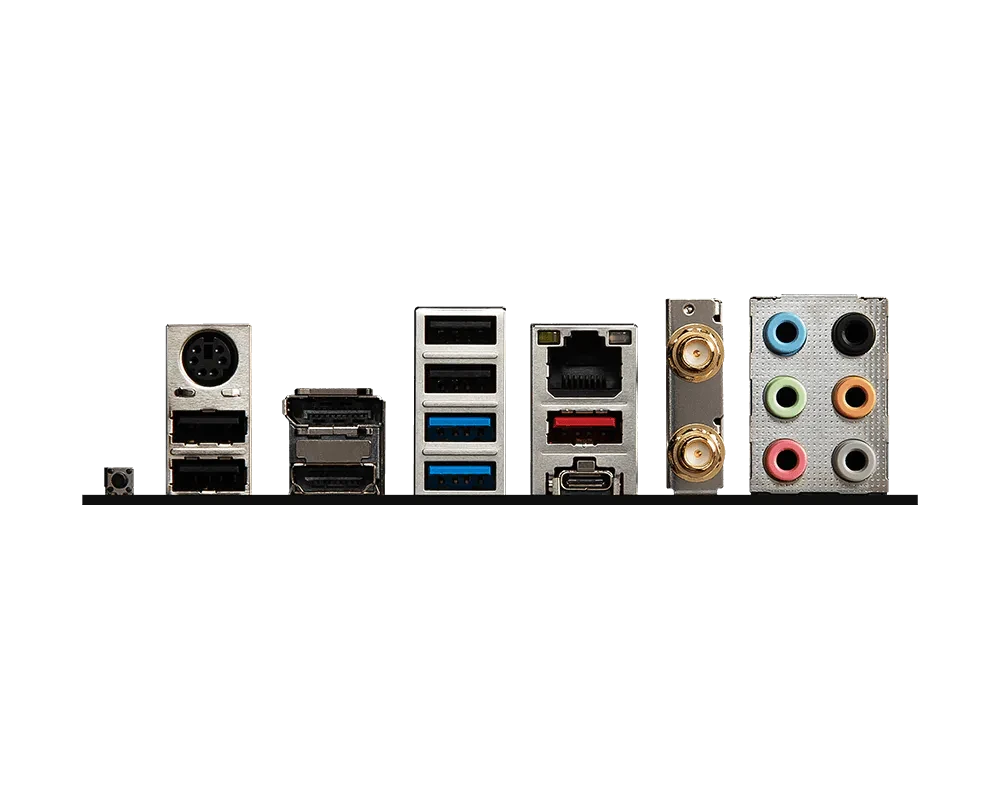

| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
Frequently Asked Questions
Q: What CPU generations does the MSI PRO Z790-P WIFI DDR4 motherboard support?
A: This motherboard supports Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors, all designed for the LGA 1700 socket.
Q: What type of memory is compatible with this motherboard?
A: The MSI PRO Z790-P WIFI DDR4 motherboard supports dual channel DDR4 memory, with overclocking capabilities up to 5333+MHz.
Q: What are the key connectivity features for storage and networking?
A: It features a PCIe 5.0 slot, Lightning Gen 4 x4 M.2 slots for fast storage, 2.5G LAN for wired networking, and Wi-Fi 6E for high-speed wireless connectivity.
