Save 30%
MSI MEG Z790 GODLIKE INTEL LGA1700 MOTHERBOARD
Sale priceRs. 103,929.00Regular price
Rs. 149,500.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | MEG Z790 GODLIKE |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen Intelà Coreô Processors, Pentiumà Gold and Celeronà Processors |
| LGA 1700 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 7800+ MHz | |
| ï 1DPC 2R Max speed up to 6600+ MHz | |
| ï 2DPC 1R Max speed up to 6400+ MHz | |
| ï 2DPC 2R Max speed up to 5600+ MHz | |
| Supports Intelà XMP3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Thunderbolt | Thunderbolt chip JHL8540 |
| 2x Thunderbolt4 (USB-C) ports | |
| Supports up to 40Gbps transfer rate with Thunderbolt devices | |
| Supports up to 20Gbps transfer rate with USB4 devices | |
| Supports up to 10Gbps transfer rate with USB 3.2 devices | |
| Supports up to 5V/3A,15W power charging | |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices | |
| Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) | |
| Expansion Slot | 2x PCI-E x16 slot |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 5.0 supports up to x8 (From CPU) | |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 7x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices | |
| M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | |
| M.2_5 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices | |
| M.2_6 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 6x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 7x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 2x USB 3.2 Gen2x2 Type C (Front) | |
| LAN | Marvellà AQC113CS-B1-C 10Gbps LAN |
| Intelà 2.5Gbps LAN | |
| Wireless / Bluetooth | Intelà Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.3, FIPS, FISMA | |
| Audio | Realtekà ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| 7.1-Channel USB High Performance Audio | |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Front Type-C Quick Charge Connector(PD_PWR1) | |
| 1x CPU Fan | |
| 2x Pump Fan | |
| 7x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Water Flow connector | |
| 1x Slow Mode Booting Jumper(JSLOW) | |
| 1x Front Audio (JAUD) | |
| 2x Thermal Sensor connectors(T_SEN) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 2x USB 3.2 Gen 2x2 Type C | |
| V-check point | |
| LED Feature | 1x EZ LED Control switch |
| 4x EZ Debug LED | |
| 1x 2-Digit Debug Code LED | |

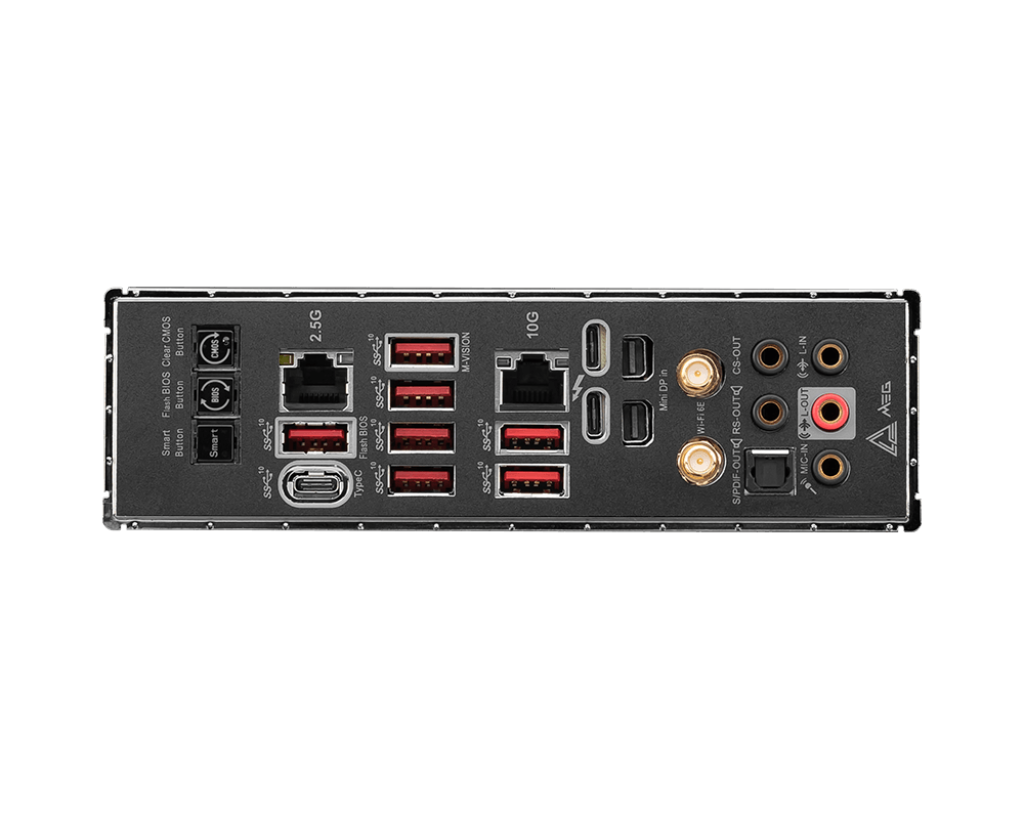

| Back Panel Ports | Clear CMOS Button |
| Flash BIOS Button | |
| 2.5G LAN | |
| 10G Super LAN | |
| Thunderbolt 4 40Gbps (Type-C) | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| Smart Button | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Mini DisplayPort Input (for Thunderbolt passthrough) | |
| Optical S/PDIF-Out | |
| Operating System | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Dimension | E-ATX |
| 304.8mmx310mm | |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
