Save 51%
MSI MAG X670E TOMAHAWK WIFI AMD AM5 MOTHERBOARD
Sale priceRs. 25,921.00Regular price
Rs. 52,999.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | MAG X670E TOMAHAWK WIFI |
| Chipset | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzenô 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 6000+ MHz | |
| ï 1DPC 2R Max speed up to 6000+ MHz | |
| ï 2DPC 1R Max speed up to 6000+ MHz | |
| ï 2DPC 2R Max speed up to 5400+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPOô | |
| Onboard Graphics | 1x HDMIô |
| Support HDMIô 2.1 FRL, maximum resolution of 4K 120Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| 1x Type-C DisplayPort | |
| Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz | |
| EXPANSION SLOT | 3x PCI-E x16 slot |
| Supports x16/x4/x2 | |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) | |
| PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) | |
| Storage | 4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | Realtekà RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.3 | |
| Audio | Realtekà ALC1200 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| LED FEATURE | 4x EZ Debug LED |

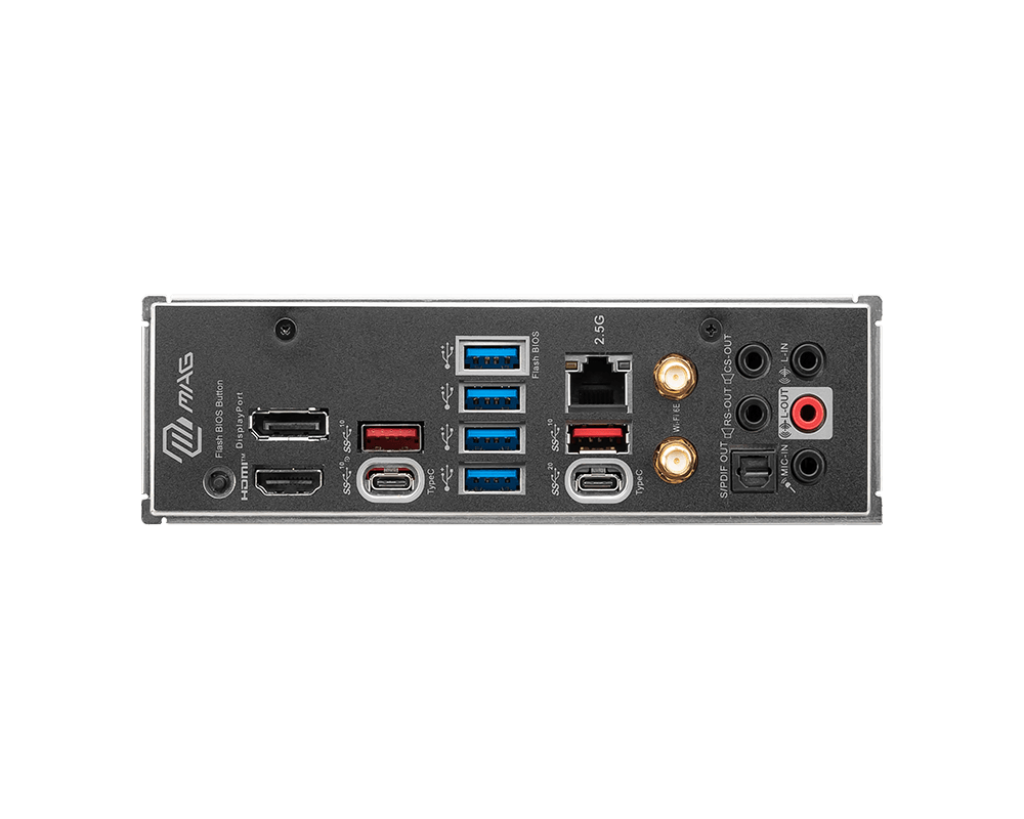

| BACK PANEL PORTS | DisplayPort |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| Flash BIOS Button | |
| HDMIô | |
| USB 3.2 Gen 2 10Gbps (Type-C Display port) | |
| USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| S/PDIF-Out | |
| OPERATING SYSTEM | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Dimension (W L) | ATX |
| 243.84mmx304.8mm | |
| Warranty | 3 Years |
