MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 MOTHERBOARD
Sale priceRs. 17,377.00Regular price
Rs. 34,499.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | MAG B550 TOMAHAWK MAX WIFI |
| Processor | Supports AMD Ryzenô 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 5100 MHZ | |
| 1DPC 2R max speed 3866 MHZ | |
| 2DPC 1R max speed 4000 MHZ | |
| 2DPC 2R max speed 3600 MHZ | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory | |
| Supports un-buffered memory | |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
| 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed | |
| 2x PCIe 3.0 x1 slots | |
| Multi-GPU | Supports AMD CrossFireô Technology |
| Onboard Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 40962160 @60Hz |
| Support HDCP 1.4 & 2.3 | |
| 1x DisplayPort, supports a maximum resolution of 40962160 @60Hz 1 | |
| Maximum shared memory of 16 GB | |
| Storage | AMD B550 Chipset |
| 6x SATA 6Gb/s ports | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (from AMD Processor) | |
| Supports PCIe 4.0/ 3.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 slot (from AMD B550 chipset) | |
| Supports PCIe 3.04 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
| 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| LAN | 1x Realtekà RTL8125B 2.5Gbps LAN controller |
| Audio | Realtekà ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Wireless Lan & Bluetooth | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.2, FIPS, FISMA | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |

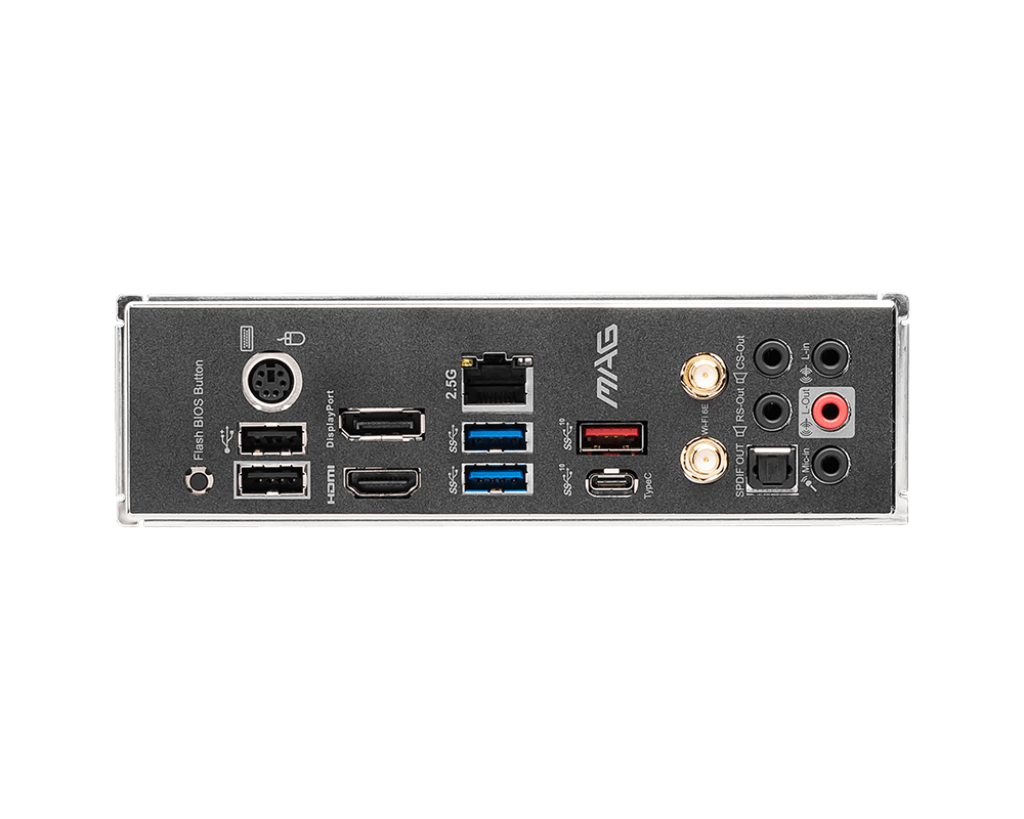

| Back panel ports | Keyboard / Mouse |
| DisplayPort 1.4 | |
| 2.5G LAN Port | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| Wi-Fi / Bluetooth Antenna | |
| Audio Connectors | |
| Flash BIOS Button | |
| USB 2.0 Port | |
| HDMI 2.1 Port | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| USB 3.2 Gen 2 10Gbps Type-C | |
| Optical S/PDIF OUT | |
| Dimensions | ATX Form Factor |
| 12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
| Mounting | 9 mounting holes |
| Operating System | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| Warranty | 3 Years |
