Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
Specifications:
| CPU |
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
|
| Chipset |
AMD A520 Chipset |
| Memory |
- 2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
|
| Expansion Slot |
- 1x PCIe 3.0 x16 slot (From AMD processor)
- Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors
- Supports x8 speed with Ryzen 3000G processors
- Supports x4 speed with AMD® Athlon with Radeon Graphics processors
- 2x PCIe 3.0x1 slots
|
| Onboard Graphics |
- 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
- Maximum shared memory of 16GB
|
| Storage |
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (From AMD processor, Key M)
- M2_1 slot (from AMD processor)
- Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors
- Supports SATA 6Gb/s with Athlon with Radeon Vega Graphics processors
- Supports 2242/ 2260/ 2280 storage devices
|
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB |
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| Audio |
Realtek ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
|
| LAN |
1x Realtek RTL8111H LAN controller
|
| Wireless LAN & Bluetooth |
WIFI 5
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
- Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
|
| Internal connectors |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x Serial port connector
- 1x M.2 slot (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
- 1x Clear CMOS jumper
|

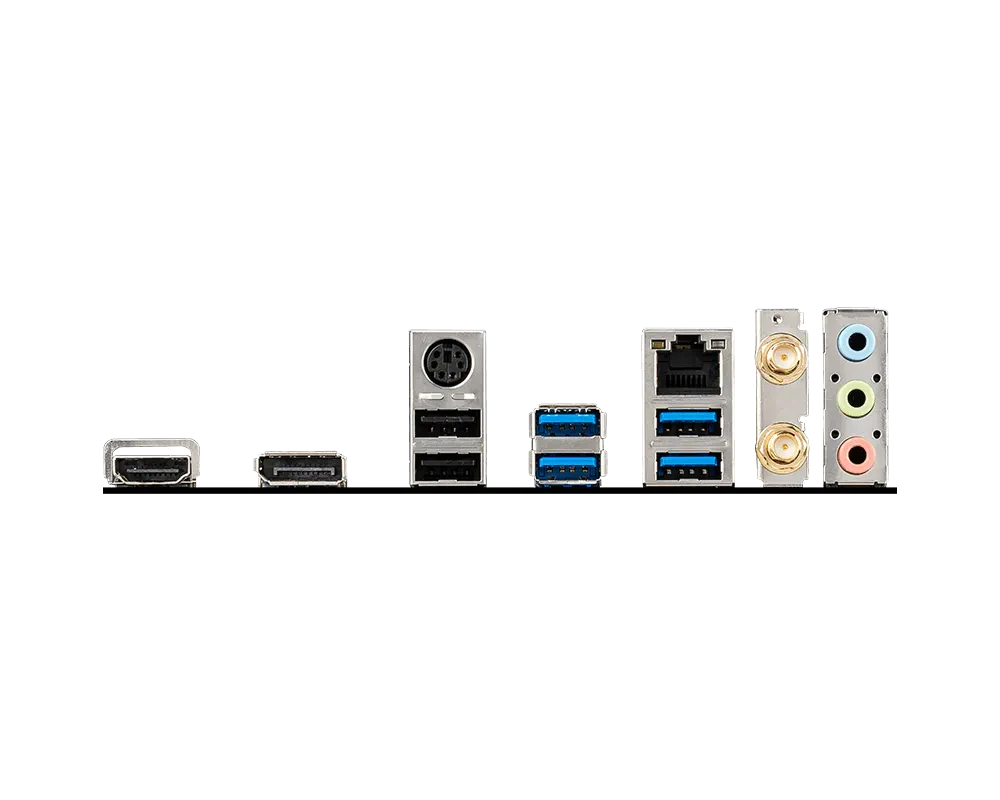

| Back panel ports |
- Keyboard / Mouse
- LAN port
- Wi-Fi Antenna connectors
- Audio Connectors
- HDMI™
- DisplayPort
- USB 2.0 Ports
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
|
| Dimensions |
- M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
|
| MOUNTING |
- M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
|
