GeForce RTX 5060 Ti 8G VENTUS 2X OC WHITE PLUS

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Core Clock:
    Extreme Performance: 2617 MHz (MSI Center)
    Boost: 2602 MHz
  • STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
  • Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
  • Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
  • MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
  • Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.



DUAL-Fan Thermal Design

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

Specifications:

 Marketing Name  GeForce RTX 5060 Ti 8G VENTUS 2X OC WHITE PLUS
Memory 8GB GDDR7

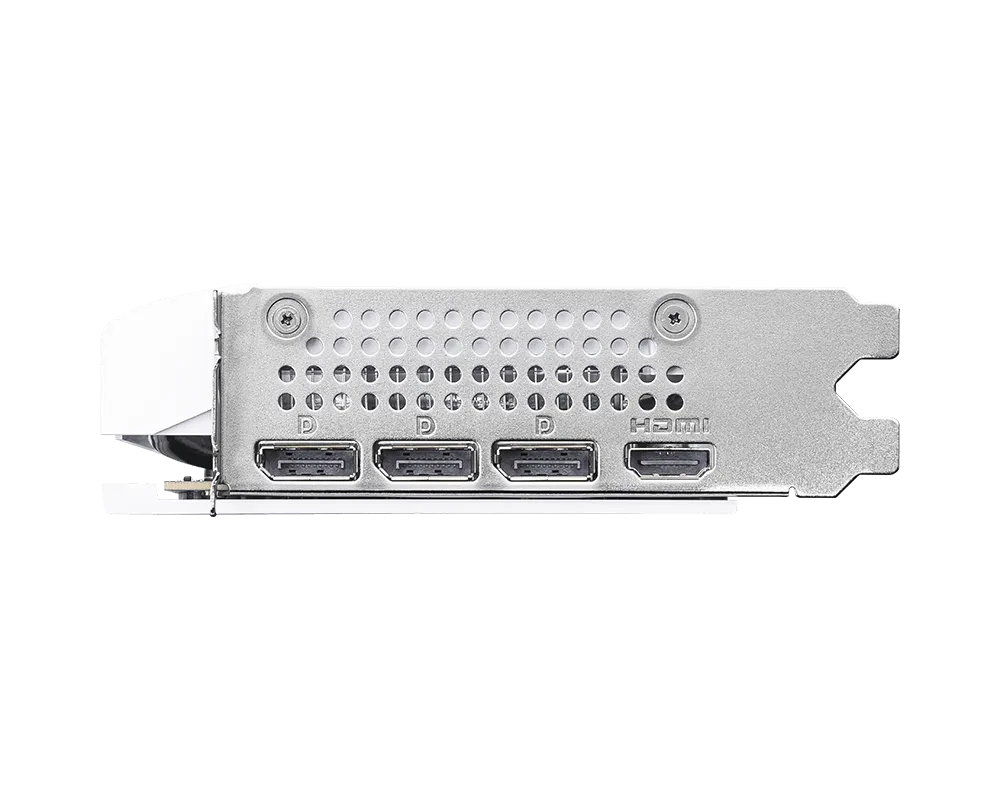

Output DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express Gen 5 x16 (uses x8)
Core Clock Speed (MHz) Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
Memory Interface 128-bit
Memory Clock Speed (MHz) 28 Gbps
OpenGL Version Support 4.6
Maximum Displays 4
HDCP Support Y
DirectX Version Support 12 Ultimate
Card Dimension(mm) 227 x 126 x 41 mm
Card Weight (g) 600 g / 862 g
Power consumption (W) 180 W
Recommended PSU (W) 600 W
Digital Maximum Resolution 7680 x 4320
Power Connectors 8-pin x1
Mic-in/Headphone-out 1/1
