Save 61%
MSI B760M-E PRO DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 7,791.00Regular price
Rs. 19,999.00
Hurry, only 10 items left in stock!
MSI B760M-E PRO DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 7,791.00Regular price
Rs. 19,999.00
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | PRO B760M-E DDR4 |
| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intelà Coreô Processors, Pentiumà Gold and Celeronà Processors |
| LGA 1700 | |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 4800+ MHz | |
| ï 1DPC 2R Max speed up to 4600+ MHz | |
| Onboard Graphics | 1x HDMIô |
| 1x VGA | |
| Support HDMIô 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to (From Chipset) | |
| Storage | 1x M.2 slot |
| M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G port | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | Realtekà RTL8111H Gigabit LAN |
| Audio | Realtekà ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 2x USB 2.0 | |
| 1x USB 3.2 Gen1 Type A | |
| LED FEATURE | 4x EZ Debug LED |

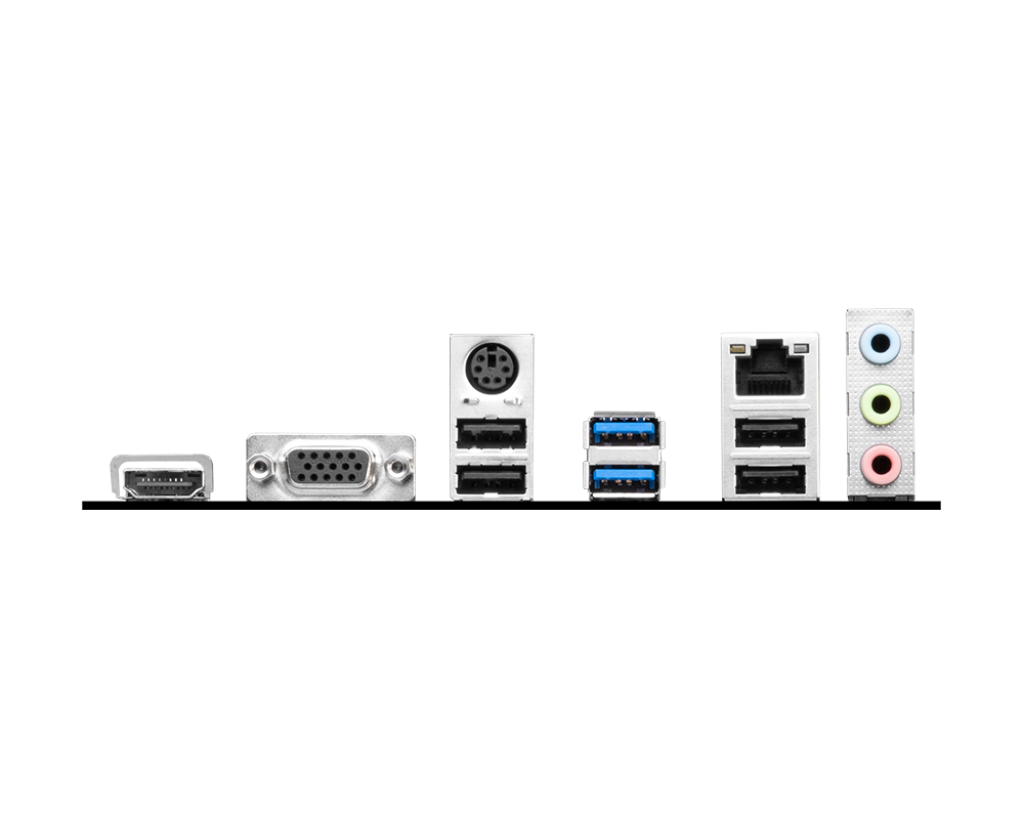

| BACK PANEL PORTS | HDMI |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Dimension | mATX |
| 200mmx236.16mm | |
| Warranty | 3 Years |
