Save 52%
MSI B760M-A PRO WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 14,455.00Regular price
Rs. 29,999.00
Hurry, only 10 items left in stock!
MSI B760M-A PRO WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 14,455.00Regular price
Rs. 29,999.00
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | PRO B760M-A WIFI DDR4 |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen Intelà Coreô Processors, Pentiumà Gold and Celeronà Processors |
| LGA 1700 | |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 5333+ MHz | |
| ï 1DPC 2R Max speed up to 4800+ MHz | |
| ï 2DPC 1R Max speed up to 4400+ MHz | |
| ï 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intelà Extreme Memory Profile (XMP) | |
| Onboard Graphics | Support HDMIô 2.1, maximum resolution of 4K 60Hz |
| Support DP 1.4, maximum resolution of 4K 60Hz | |
| Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| 2x HDMIô | |
| 2x DisplayPort | |
| Expansion Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 1x USB 3.2 Gen1 Type C (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| LAN | Intelà 2.5Gbps LAN |
| Wireless Lan & Bluetooth | Intelà Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.3, FIPS, FISMA | |
| Audio | Realtekà ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen1 Type C | |
| LED Features | 4x EZ Debug LED |

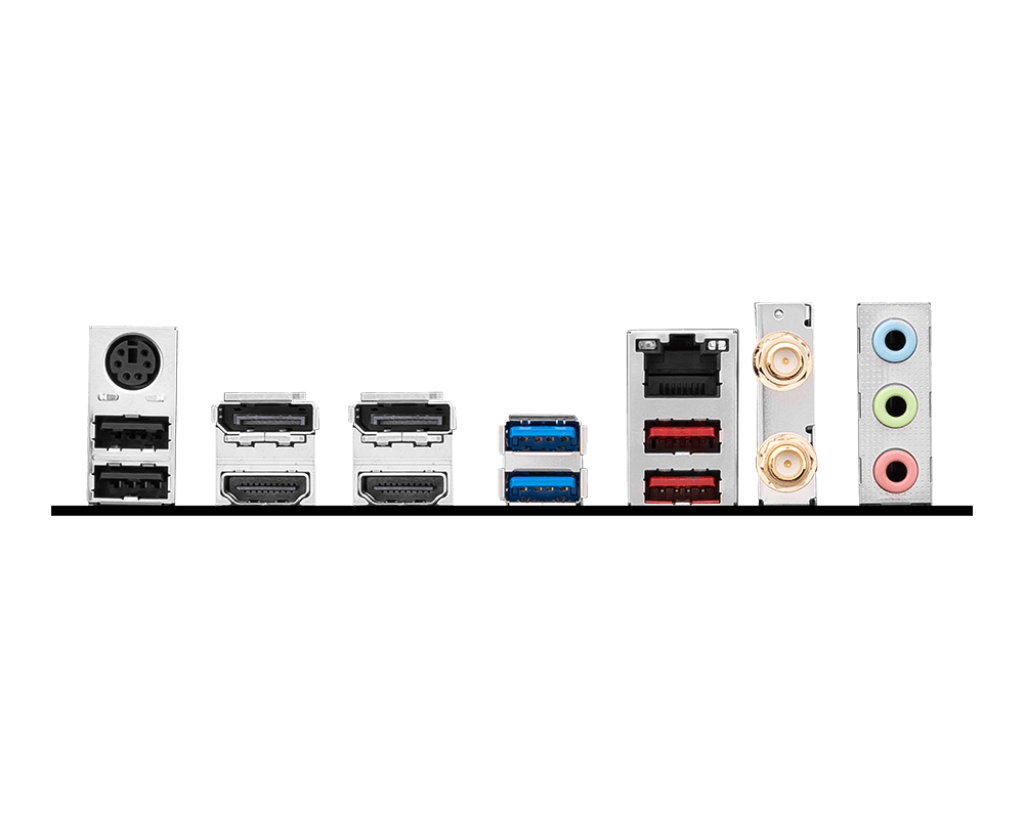

| Back Panel Ports | Keyboard / Mouse |
| DisplayPort | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| USB 2.0 | |
| HDMIô | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Operating System | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Info | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
