Save 39%

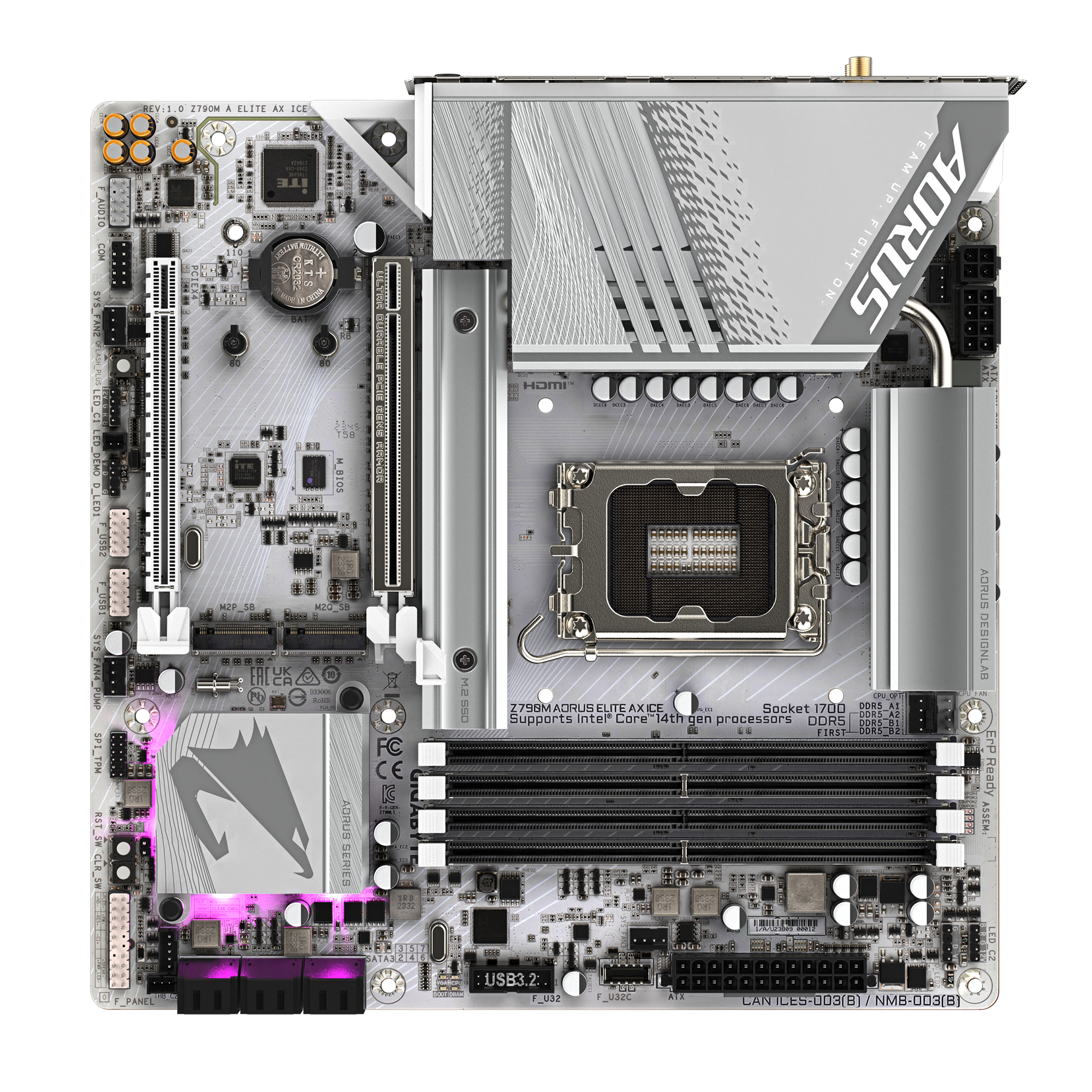

GIGABYTE Z790M AORUS ELITE AX ICE DDR5 MOTHERBOARD
Sale priceRs. 20,923.00Regular price
Rs. 34,500.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications:
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Onboard Graphics | Integrated Intel HD Graphics, 1 x HDMI (4096x2160@60Hz), 1 x DisplayPort (4096x2304@60Hz), support for HDMI 2.1 and DisplayPort 1.2 |
| Audio | Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel Wi-Fi 6E AX211 (PCB rev. 1.0) and Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1), Bluetooth 5.3, support for 2.4/5/6 GHz bands, 11ax 160MHz wireless standard |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 1 x M.2 PCIe 4.0 x4 (CPU), 2 x M.2 PCIe 4.0 x4/SATA (Chipset), 6 x SATA 6Gb/s, RAID 0, RAID 1, RAID 5, and RAID 10 support |
| USB Ports | 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1 (including internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V, 3 x system fan headers, 3 x M.2 connectors, 6 x SATA 6Gb/s, USB headers, and more |

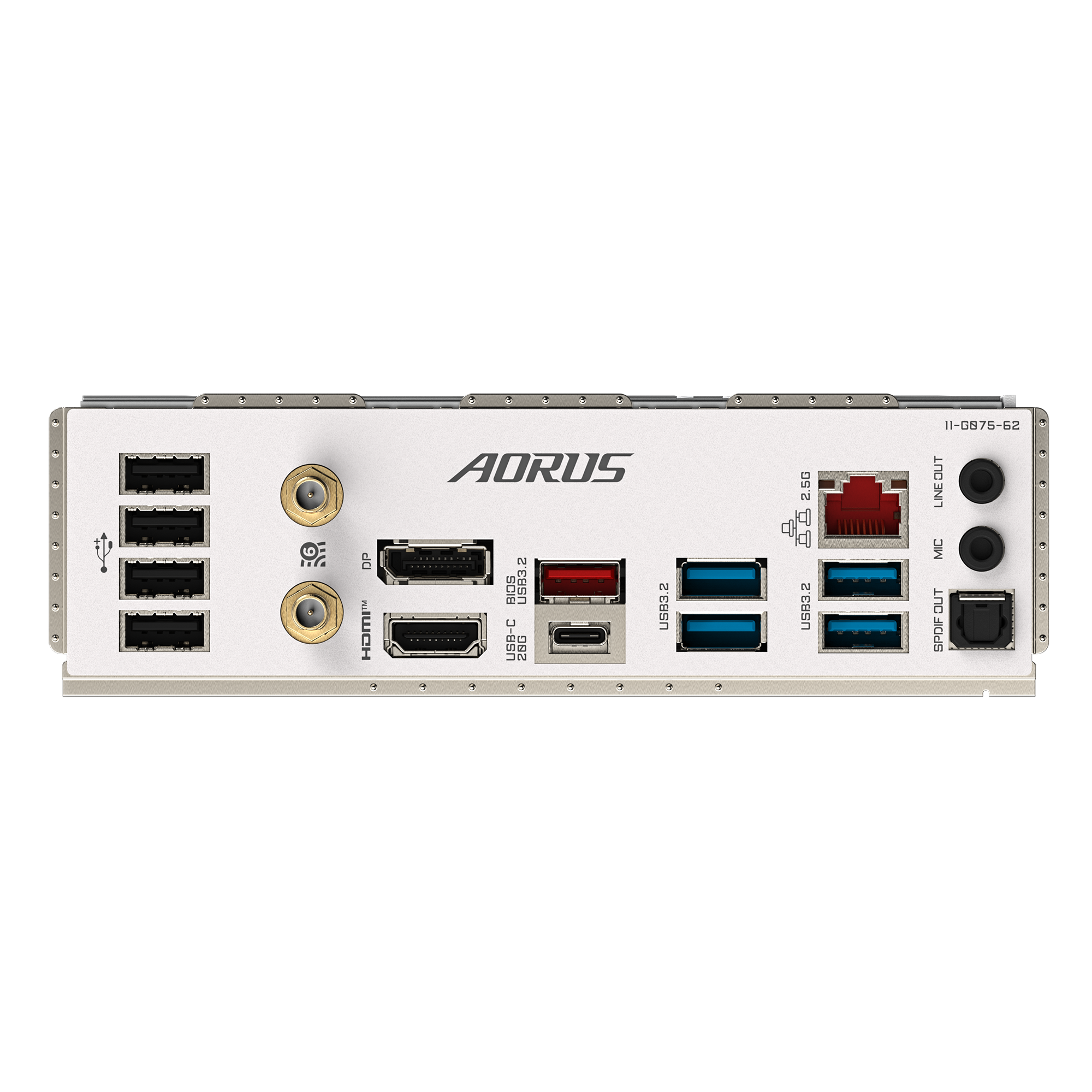

| Back Panel Connectors | 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 2 x SMA antenna connectors, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 1 x optical S/PDIF Out, 2 x audio jacks |
| Operating System Support | Windows 10 64-bit, Windows 11 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup, Norton Internet Security, LAN bandwidth management software |
