GIGABYTE GA-H470M-H INTEL LGA1200 MOTHERBOARD
Sale priceRs. 6,370.00Regular price
Rs. 9,850.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
CPU
|
LGA1200 package:
|
| 1. 11th Generation IntelÃCoreô i9 processors/IntelÃCoreô i7 processors/IntelÃCoreô i5 processors | |
| 2. 10th Generation IntelÃCoreô i9 processors/IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors | |
| L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
Chipset
|
1. IntelÃH470 Express Chipset |
Memory
|
1. 11th Generation IntelÃCoreô i9/i7/i5 processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules | |
| 2. 10th Generation IntelÃCoreô i9/i7 processors: | |
| Support for DDR4 2933/2666/2400/2133 MT/s memory modules | |
| 3. 10th Generation IntelÃCoreô i5/i3/PentiumÃ/CeleronÃprocessors: | |
| Support for DDR4 2666/2400/2133 MT/s memory modules | |
| 4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| 5. Dual channel memory architecture | |
| 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 8. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
Onboard Graphics
|
Integrated Graphics Processor-IntelÃHD Graphics support:
|
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| * The D-Sub port is only available with the 10th Generation processors. | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
Audio
|
1. RealtekÃAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
LAN
|
1. RealtekÃGbE LAN chip (1 Gbps/100 Mbps) |
Expansion Slots
|
CPU:
|
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| Chipset: | |
| 1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
Storage Interface
|
Chipset:
|
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| 2. 4 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| IntelÃOptaneô Memory Ready | |
USB
|
Chipset:
|
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x RGB LED strip header | |
| 6. 1 x M.2 Socket 3 connector | |
| 7. 4 x SATA 6Gb/s connectors | |
| 8. 1 x front panel header | |
| 9. 1 x front panel audio header | |
| 10. 1 x USB 3.2 Gen 1 header | |
| 11. 1 x USB 2.0/1.1 header | |
| 12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 13. 1 x serial port header | |
| 14. 1 x Clear CMOS jumper | |

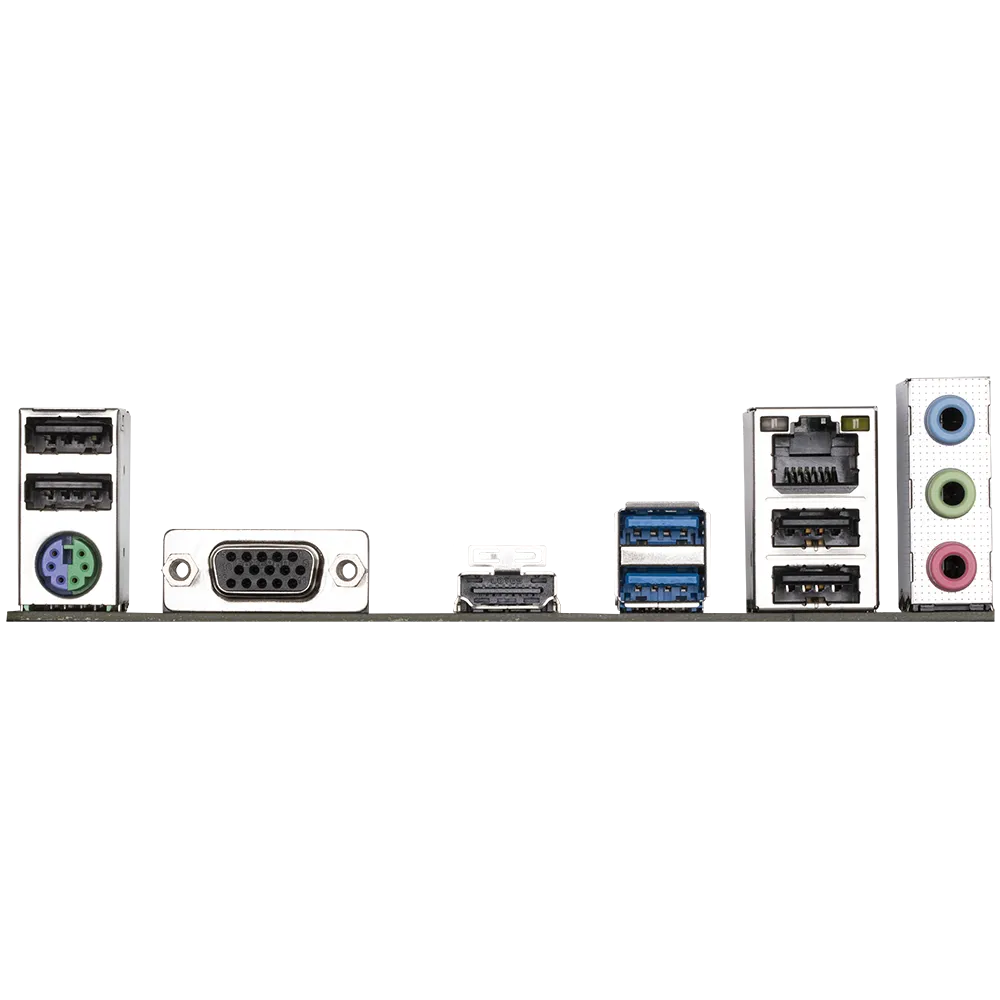

Back Panel Connectors
|
1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port | |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
I/O Controller
|
1. iTEÃI/O Controller Chip |
H/W Monitoring
|
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Fan fail warning | |
| 5. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS
|
1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features
|
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
Bundled Software
|
1. NortonÃInternet Security (OEM version) |
| 2. LAN bandwidth management software | |
Operating System
|
1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
Form Factor
|
1. Micro ATX Form Factor; 22.6cm x 18.5cm |
