Specifications



Bearing Type Hydro Bearing
Display Area 53.9x49.15 mm
Display Module Power Consumption 0.4 W
Display Module Rated Current 0.08 A±10%
Display Module Rated Voltage 5 VDC
Display Type LED Digital Display
Fan Air Pressure 3.48 mmAq
Fan Airflow 72.04 CFM
Fan Connector 4-pin PWM
Fan Dimensions 120×120×25 mm(L×W×H)
Fan Noise ≤38.71 dB(A)
Fan Power Consumption 2.64 W
Fan Rated Current 0.22 A
Fan Rated Voltage 12 VDC
Fan Speed 600~2400 RPM±10%
LED Connector 3-pin(+5V-D-G)
LED Power Consumption 2.4 W(PUMP)/ 3.15 W(FAN×3)
LED Rated Voltage 5 VDC
LED Type Addressable RGB LED
Net Weight 1840 g
P/N R-LQ360-BKLSMW-G-1
Pump Connector 3-pin
Pump Dimensions 89×76×64 mm(L×W×H)
Pump Power Consumption 4.2 W
Pump Rated Current 0.35 A
Pump Rated Voltage 12 VDC
Pump Speed 3400 RPM±10%

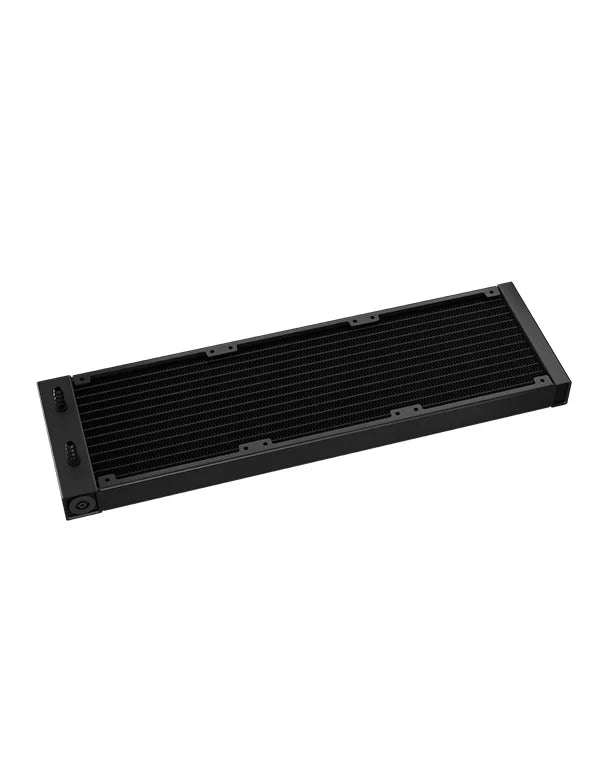

Radiator Dimensions 402×120×27 mm(L×W×H)
Radiator Material Aluminum
Tube length 410 mm
