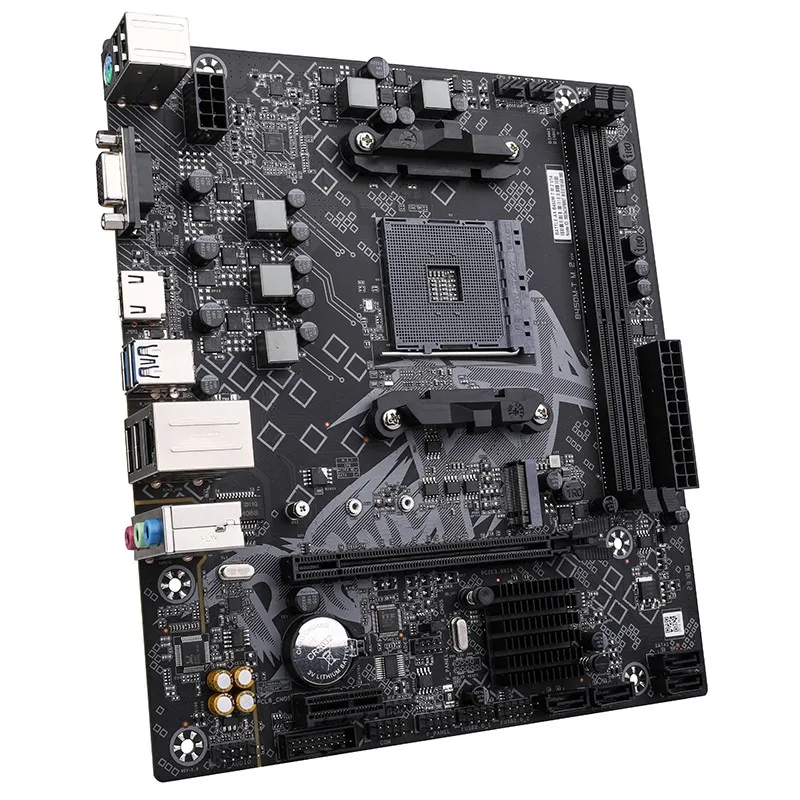

Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard
Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Features
Provide 1 PCIe 3.0 x4 M.2 SSD slot Provide 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces Provide 4 USB 2.0 interfaces Equipped with RTL8111H gigabit wired network card Provide HDMI+VGA display interface Six major protective technologies for more stable product operation Strict testing of 200 processes ensures quality assurance PCB atomization process fully upgraded
| Model | BATTLE-AX B450M-T M.2 V14 |
| Series | BATTLE-AX Series |
| Chipset | AMD B450 |
| Processor Support | AMD Ryzen Series Processors (Socket AM4) |
| Form Factor | M-ATX (220mm × 195mm) |
| Memory | 2 × DDR4 DIMM Slots (Up to 64GB, 32GB per slot) |
| Supports DDR4-3600(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz | |
| Supports Dual Channel & XMP Memory Technology | |
| Storage | 1 × M.2 Slot (2242/2260/2280, PCIe 3.0 x4, CPU channel) |
| 4 × SATA 6Gb/s Ports | |
| Expansion Slots | 1 × PCIe 3.0 x16 Slot |
| 1 × PCIe 3.0 x1 Slot | |
| Audio | Realtek ALC897 High-Fidelity Codec (5.1 Channel) |
| LAN | Realtek RTL8111H Gigabit Ethernet |
| BIOS | 128M UEFI BIOS, Multi-language Support |
| Rear I/O Ports | 4 × USB 2.0, 2 × USB 3.2 Gen1 Type-A |
| 1 × HDMI 2.0 (4K@60Hz), 1 × VGA, 1 × PS/2 | |
| 1 × Gigabit LAN, 3 × Audio Jacks (Input/Output/Mic) | |
| Internal Connectors | 1 × CPU Fan, 1 × System Fan |
| 2 × USB 2.0 Headers (expand 4 USB 2.0), 1 × USB 3.2 Gen1 Header (expand 2 USB 3.2 Gen1) | |
| 1 × Front Audio, 1 × Front Panel, 1 × Speaker, 1 × COM Port, 1 × Clear CMOS, 1 × Debug LED | |
| Power Management | Supports S3/S4 Wake, Network Wake (S5), USB Wake, Timed Boot, and Call Boot |
| Monitoring | CPU/System Fan Speed Control, Temperature & Voltage Monitoring |
