Save 22%

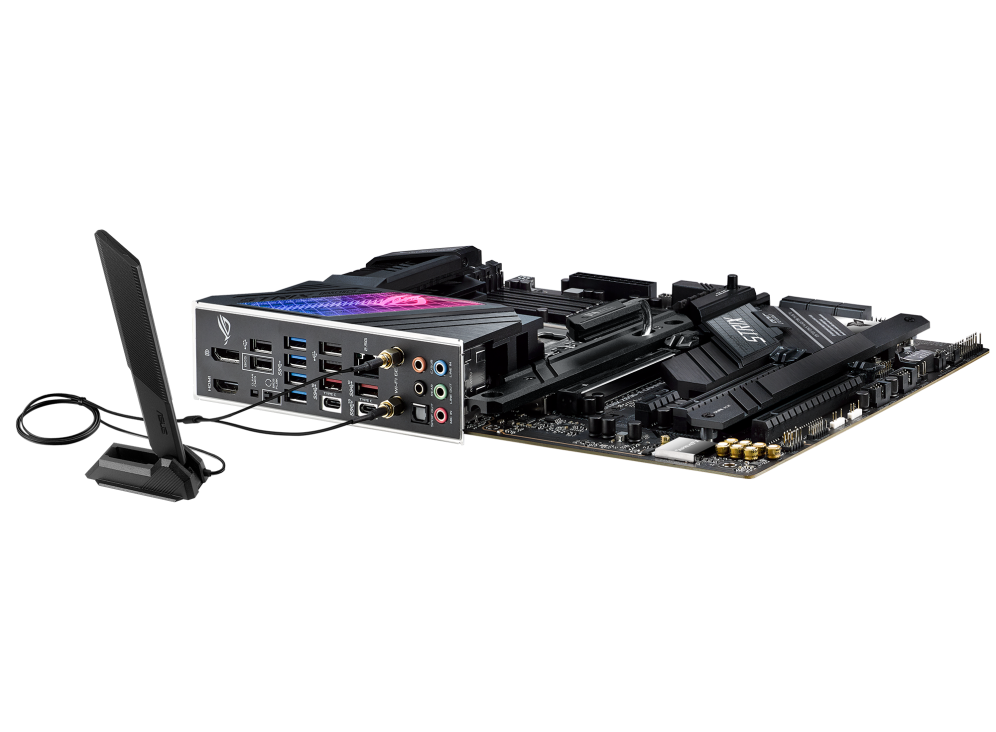

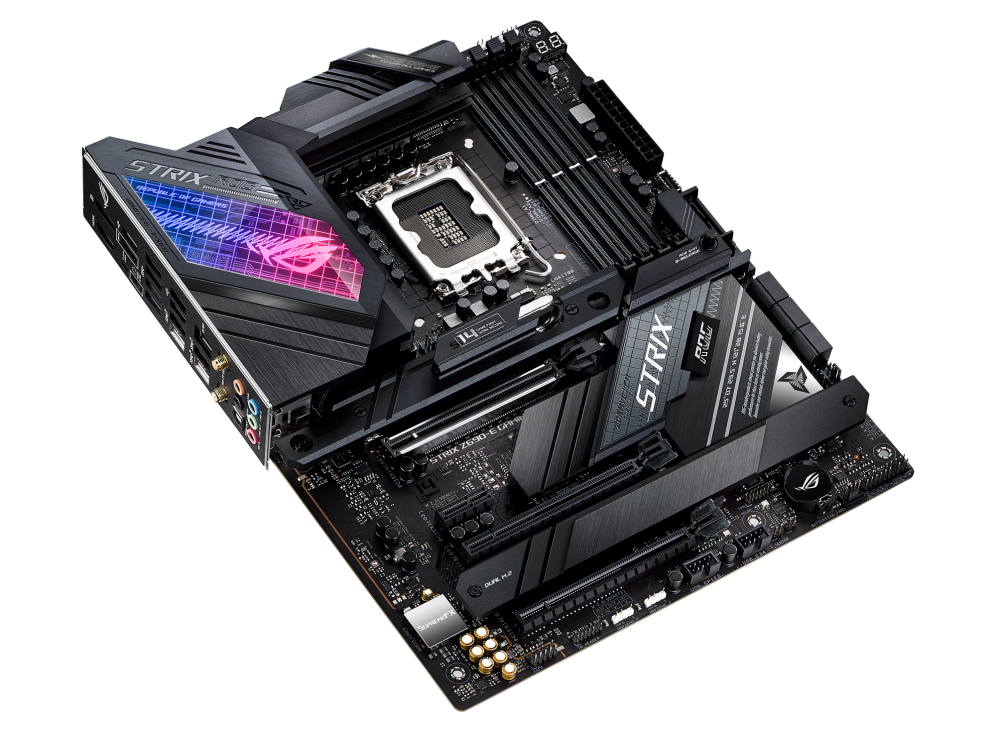

ASUS ROG STRIX Z690-E GAMING WIFI DDR5 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 44,443.00Regular price
Rs. 57,000.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| CPU | Intelà Socket LGA1700 for 12th Gen Intelà Coreô, Pentiumà Gold and Celeronà Processors |
| Supports Intelà Turbo Boost Technology 2.0 and Intelà Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intelà Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intelà Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intelà Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÃ*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Support 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Support 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | Intelà 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot** | |
| Intelà Z690 Chipset*** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD) | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in Chapter 1 of user guide. | |
| ** When M.2_1 is occupied with SSD device, PCIEX16(G5)_1 will run x8 only. | |
| *** Supports Intelà Optane Memory H Series on PCH-attached PCIe slot. | |
| *** Supports Intelà Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| IntelÃ12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| - Intelà 12th Gen processors support PCIe 5.0 x4 mode. | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| - Intelà 12th Gen processors support PCIe 4.0 x4 mode. | |
| Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110*** | |
| - Intelà 12th Gen processors support PCIe 4.0 x4 mode | |
| Intelà Z690 Chipset** | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) | |
| Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** | |
| Hyper M.2_2 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** | |
| 6 x SATA 6Gb/s ports***** | |
| * Intelà Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intelà Rapid Storage Technology supports Intelà Optane Memory H Series on PCH attached M.2 slots. | |
| *** When ROG Hyper M.2 card is installed on PCIEX16(G5), only Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G3), only Hyper M.2_1 slot can support PCIe 3.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| **** When ROG Hyper M.2 card is installed on PCIEX16(G5) or PCIEX16(G3), Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. | |
| Ethernet | 1 x Intelà 2.5Gb Ethernet |
ASUS LANGuard |
|
| Wireless & Bluetooth | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| "Wi-Fi 6E | |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 hardware ready** | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| ** Bluetooth v5.2 function will be ready in Windows 11 or later. " | |
| USB | Rear USB: Total 12 ports |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÃ) | |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÃ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB: Total 7 ports | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÃ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback" | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - ALC4080 + Savitech SV3H712 AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |
| Intrernal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÃ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 RGB headers | |
| ASUS HYDRANODE | |
| - 1 x Chassis fan support* (CHA_FAN1P) | |
| * Visit ASUS Website for the latest compatibility list. | |
| TPM header | |
| Software Features | ROG Exclusive Software |
| - ROG CPU-Z | |
| - GameFirst VI | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTSÃ Sound Unbound | |
| - Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 4 | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - 5-Way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI+ VRM | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 4 x SATA 6Gb/s cables | |

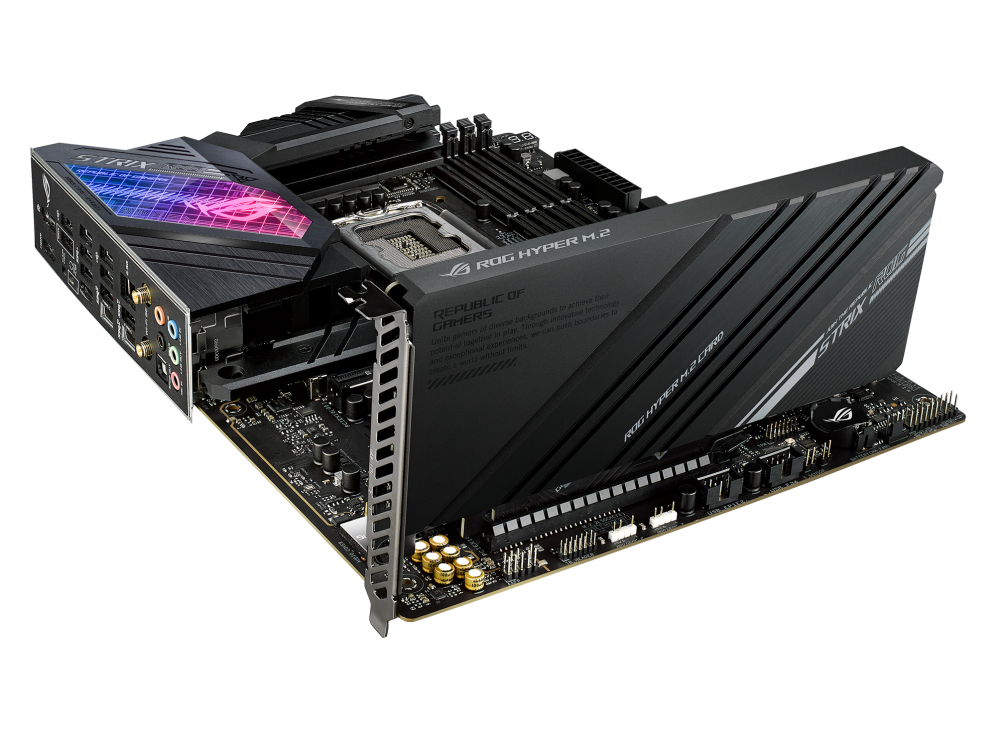

| ROG HYPER M.2 CARD | |
| 1 x ROG HYPER M.2 CARD | |
| Miscellaneous | |
| 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 1 x M.2 Rubber Packages | |
| 2 x M.2 Screw Packages | |
| 1 x ROG Graphics card holder | |
| 1 x ROG key chain | |
| 1 x cable tie | |
| 1 x ROG STRIX stickers | |
| 1 x ROG STRIX thank you card | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Operating System | Windowsà 11 64-bit, Windowsà 10 64-bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty | 3 Years |
