Save 33%

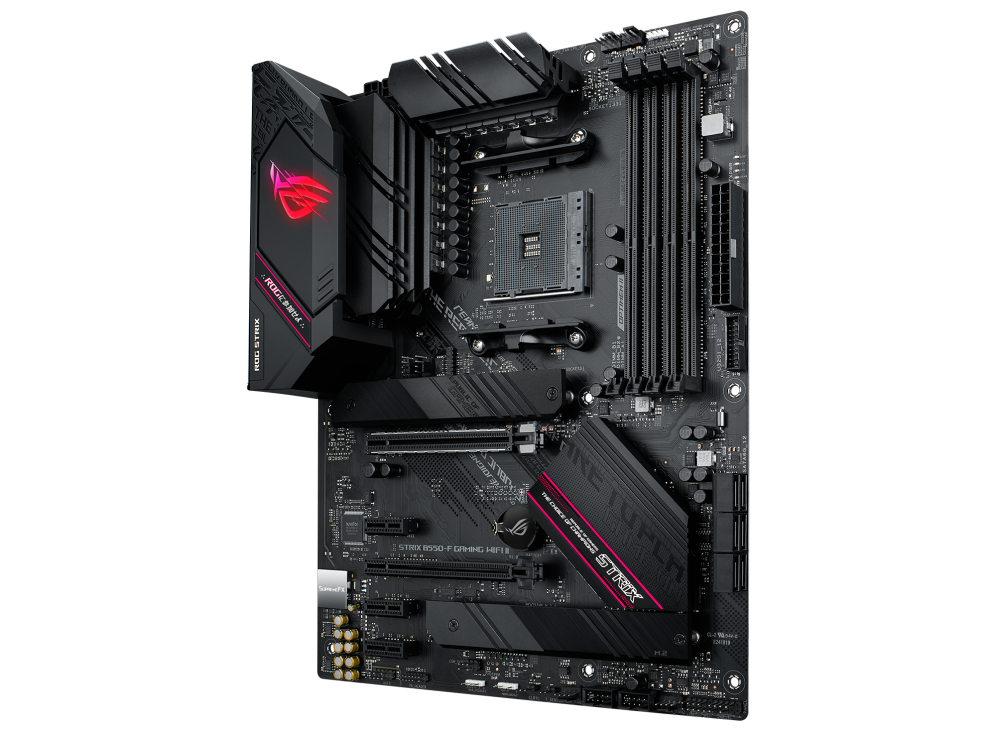

ASUS ROG STRIX B550-F GAMING WIFI II AMD AM4 MOTHERBOARD
Sale priceRs. 19,453.00Regular price
Rs. 29,100.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Model | STRIX B550-F GAMING WIFI II |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 / 3000 Series Processors* |
| Supports AMD Ryzen 5000 / 4000 G-Series Processors | |
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4288pin |
| Memory Standard | DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) |
| DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| Expansion Slot | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* |
| * Supports x4 mode. | |
| * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. | |
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Storage Device | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| AMD B550 Chipset: | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* | |
| * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. | |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Wi-Fi 6E |
| 802.11a/b/g/n/ac/ax | |
| Bluetooth | Bluetooth 5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports | |
| 1 x Wi-Fi Module | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Intel I225-V 2.5G Ethernet | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Other Connectors | Fan and cooling related |
| 1 x 4-Pin AIO_Pump header | |
| 1 x 4-Pin CPU fan header | |
| 1 x 4-Pin CPU_OPT fan header | |
| 3 x 4-Pin Chassis fan headers | |
| Miscellaneous | |
| 1 x Addressable Gen 2 header | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x Front panel audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal sensor header | |
| 1 x Thunderbolt header | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| Features | Special Features: |
| ASUS Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) | |
| - ASUS Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| AURA Sync | |
| - AURA RGB headers | |
| - Addressable Gen 2 RGB headers | |
| ASUS EZ DIY | |
| - BIOS FlashBack button | |
| - BIOS FlashBack LED | |
| - Clear CMOS header | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| Software Features: | |
| ROG Exclusive Software | |
| - RAMCache III | |
| - ROG CPU-Z | |
| - GameFirst VI | |
| - Sonic Studio III + Sonic Studio Virtual Mixer | |
| - Sonic Radar III | |
| - DTS Sound Unbound | |
| - Overwolf | |
| - Anti-virus software | |
| ASUS Exclusive Software Features | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator | |
| - Aura Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3: | |
| - Performance And Power Saving Utility | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert 4 | |
| TurboV EVO | |
| - EZ update | |
| WinRAR | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial version) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Warranty | 3 Years |
