Specifications:



Specification Details

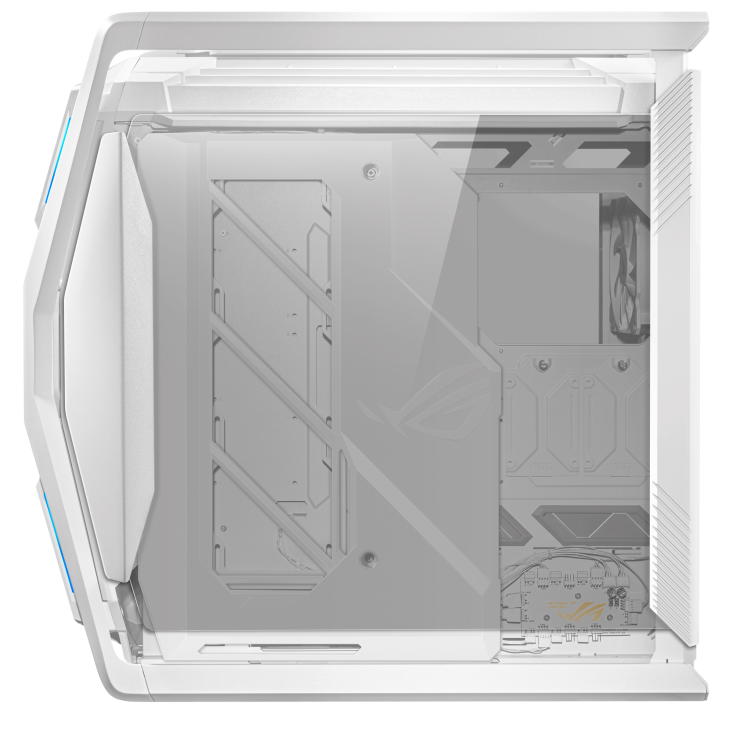

Model ROG Hyperion GR701
Motherboard Support EATX (12"x10.9"), ATX, Micro-ATX, Mini-ITX
Drive Bays 5 x 2.5" Bay, 2 x 2.5"/3.5" Combo Bay
Expansion Slots 9 (3 additional vertical slots)
Front I/O Port 1 x headphone/microphone, 4 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type C
LED Control Button Reset Button, 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C
Tempered Glass Left Side, Right Side
Radiator Support (Front) 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Radiator Support (Top) 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Radiator Support (Rear) 120 mm, 140 mm
Cooling Support (Front) 3 x 120 mm, 3 x 140 mm
Cooling Support (Top) 3 x 120 mm, 3 x 140 mm
Cooling Support (Rear) 1 x 120 mm, 1 x 140 mm
Pre-installed Fans (Front) 3 x 140 mm PWM
Pre-installed Fans (Rear) 1 x 140 mm PWM
Maximum CPU Cooler Height 190 mm
Maximum GPU Length 460 mm
Maximum PSU Length 240 mm
Removable Dust Filters Front, Top, Bottom
Maximum Cable Management Space 34 mm
Dimensions (L x W x H) 268 x 639 x 659 mm
Weight 20.8 kg, 21.3 kg (GR701 BTF Edition)
