Save 45%

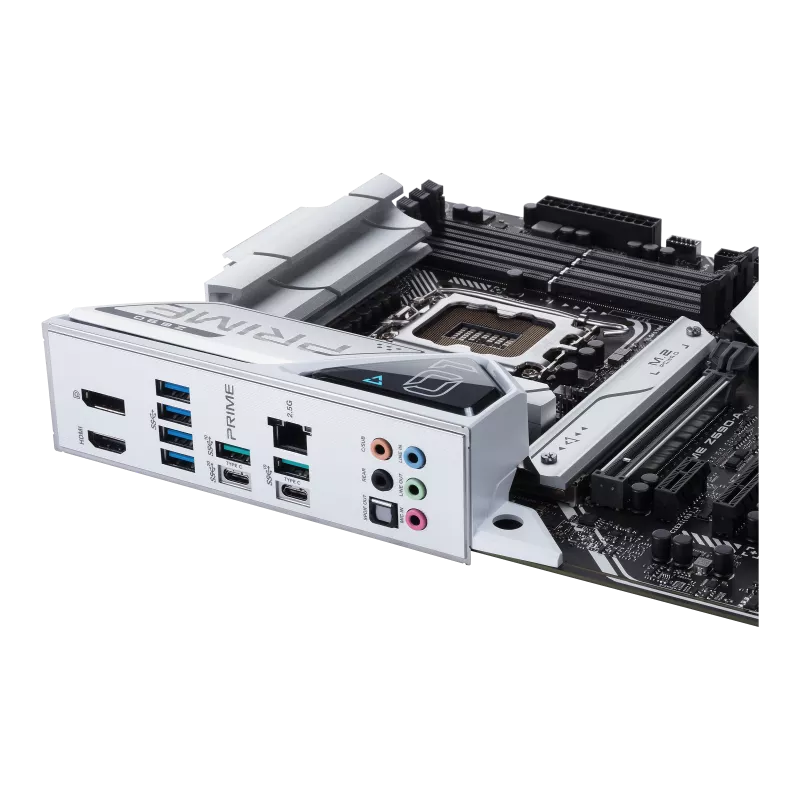

ASUS PRIME Z690-A DDR5 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 24,843.00Regular price
Rs. 45,000.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| CPU | Intelà Socket LGA1700 for 12th Gen Intelà Coreô, Pentiumà Gold and Celeronà Processors |
| Supports Intelà Turbo Boost Technology 2.0 and Intelà Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intelà Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intelà Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÃ port*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Storage | Supports4xM.2slotsand4xSATA6Gb/sports |
| IntelÃ12thGen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - IntelÃ12th Gen processors support PCIe 4.0 x4 mode. | |
| Intelà Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intelà Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intelà Rapid Storage Technology supports Intelà Optane Memory H Series on PCH attached M.2 slots | |
| Ethernet | |
| 1 x Intelà 2.5Gb Ethernet | |
| ASUS LANGuard | |

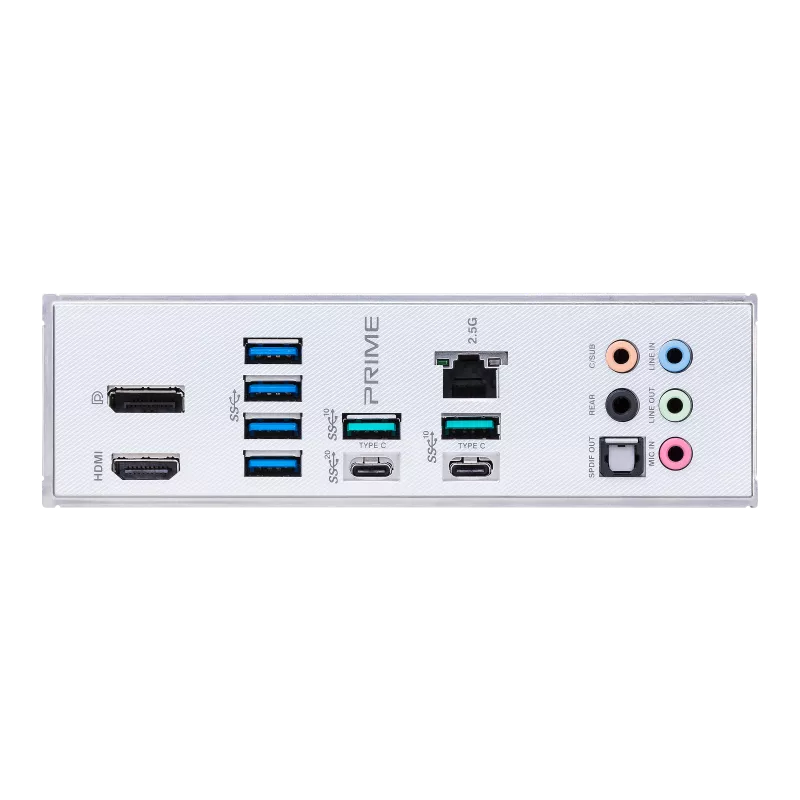

| USB | Rear USB:Total 8 ports |
| 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-CÃ) | |
| 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-CÃ) | |
| 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
| Front USB:Total 7 ports | |
| 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-CÃ) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

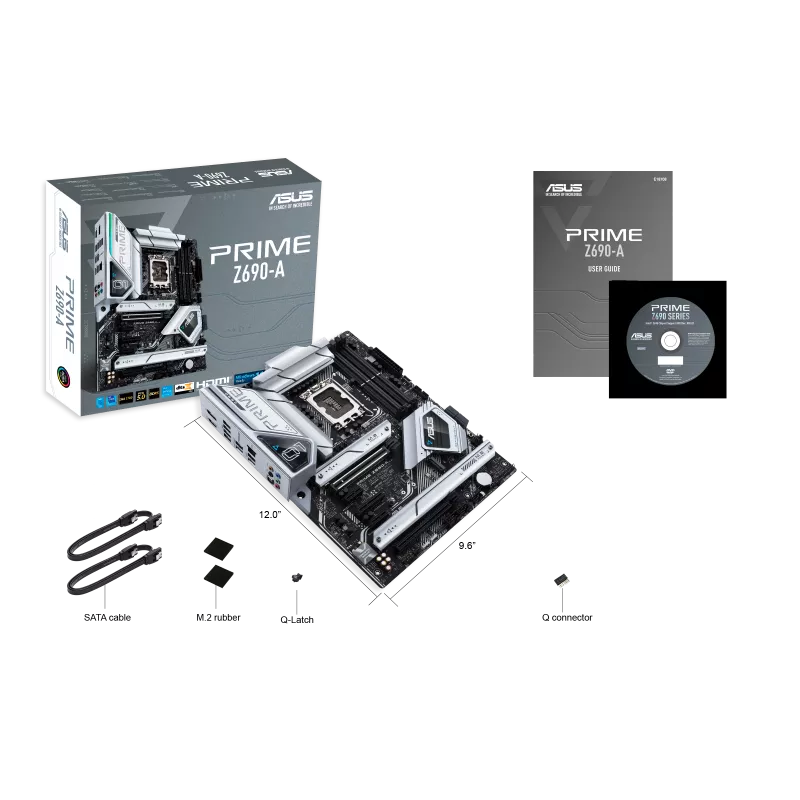

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x M.2 Rubber Package(s) | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package(s) | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User guide | |
| Operating System | WindowsÃ11 64-bit,WindowsÃ1064-bit |
| Form Factor | |
| ATX | |
| 30.5cm x 24.4cm |
