Save 26%

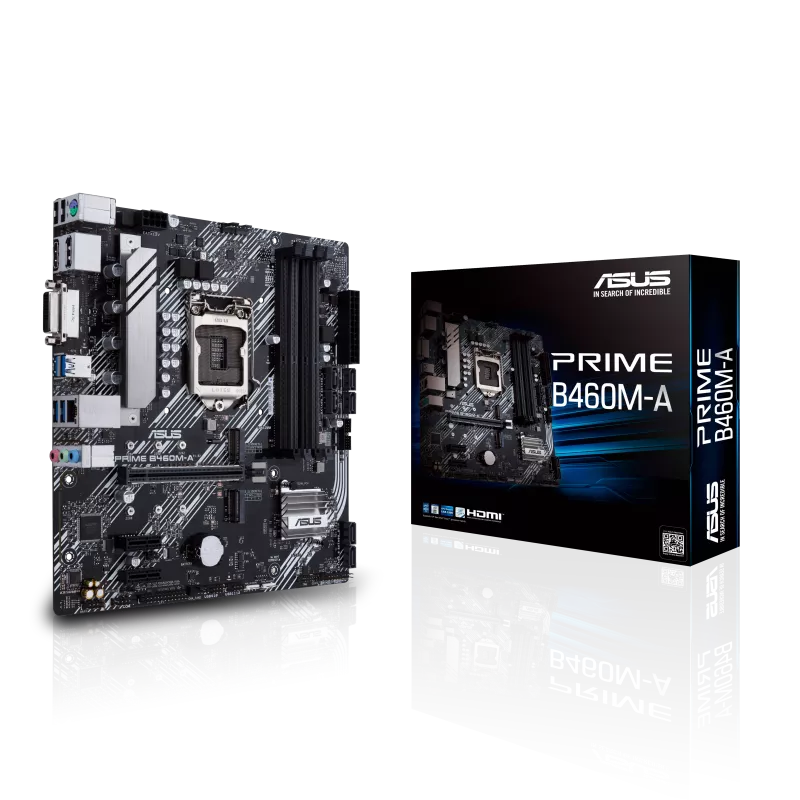

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD
Sale priceRs. 9,555.00Regular price
Rs. 12,900.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Specification | Details |
|---|---|
| Model | PRIME B460M-A |
| CPU | * Refer to www.asus.com for CPU support list.,Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU |
| Chipset | Intel B460 |
| Memory | * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,Supports Intel Extreme Memory Profile (XMP) |
| Graphic | **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x HDMI port,1 x DisplayPort 1.4,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor- Intel UHD Graphics support |
| Expansion Slots | Intel B460 Chipset , Intel 10th Gen Processors ,1 x PCIe 3.0/2.0 x16 (x16 mode),2 x PCIe 3.0/2.0 x1 |
| Storage | Intel B460 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel Rapid Storage Technology supports,Intel Optane Memory Ready |
| LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Audio | - Supports : Jack-detection, up to 24-Bit/192kHz playback,Realtek ALC8877.1-Channel High Definition Audio CODEC *,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s),4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM ASUS Sync - Standard RGB header(s) |

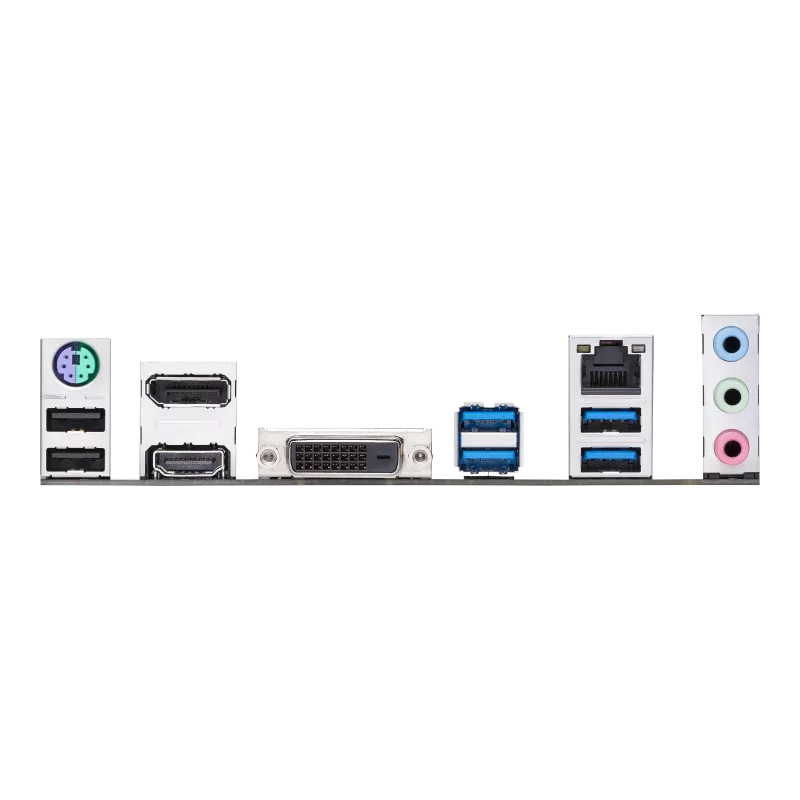

| Back I/O Ports | 4 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports | 1 x COM port header,1 x AAFP connector,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),2 x Chassis Fan connector(s) (2 x 4-pin),2 x M.2 Socket 3,1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x AAFP connector,2 x Aura RGB Strip Header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x LPT header,6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header |

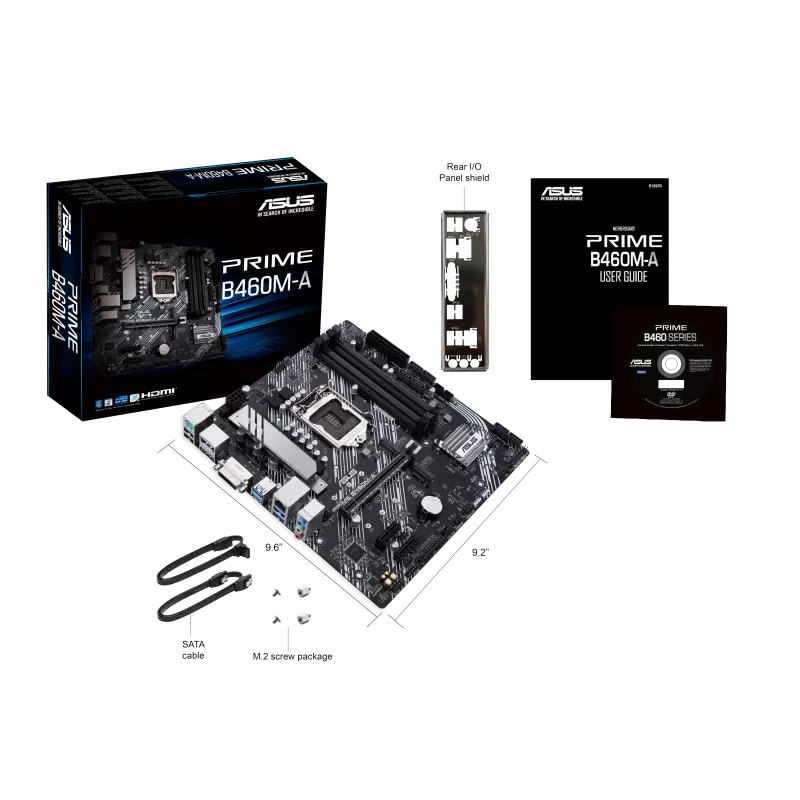

| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD,2 x SATA 6Gb/s cable(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm ),mATX Form Factor |
| Note | *M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *NVME RAID is supported with M.2_2 and PCIe X16.PCIe x16´s device needs to use Intel brand. |
